Home >> Saturn >> 2000 >> LS2 V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Engine Control Module >> J2

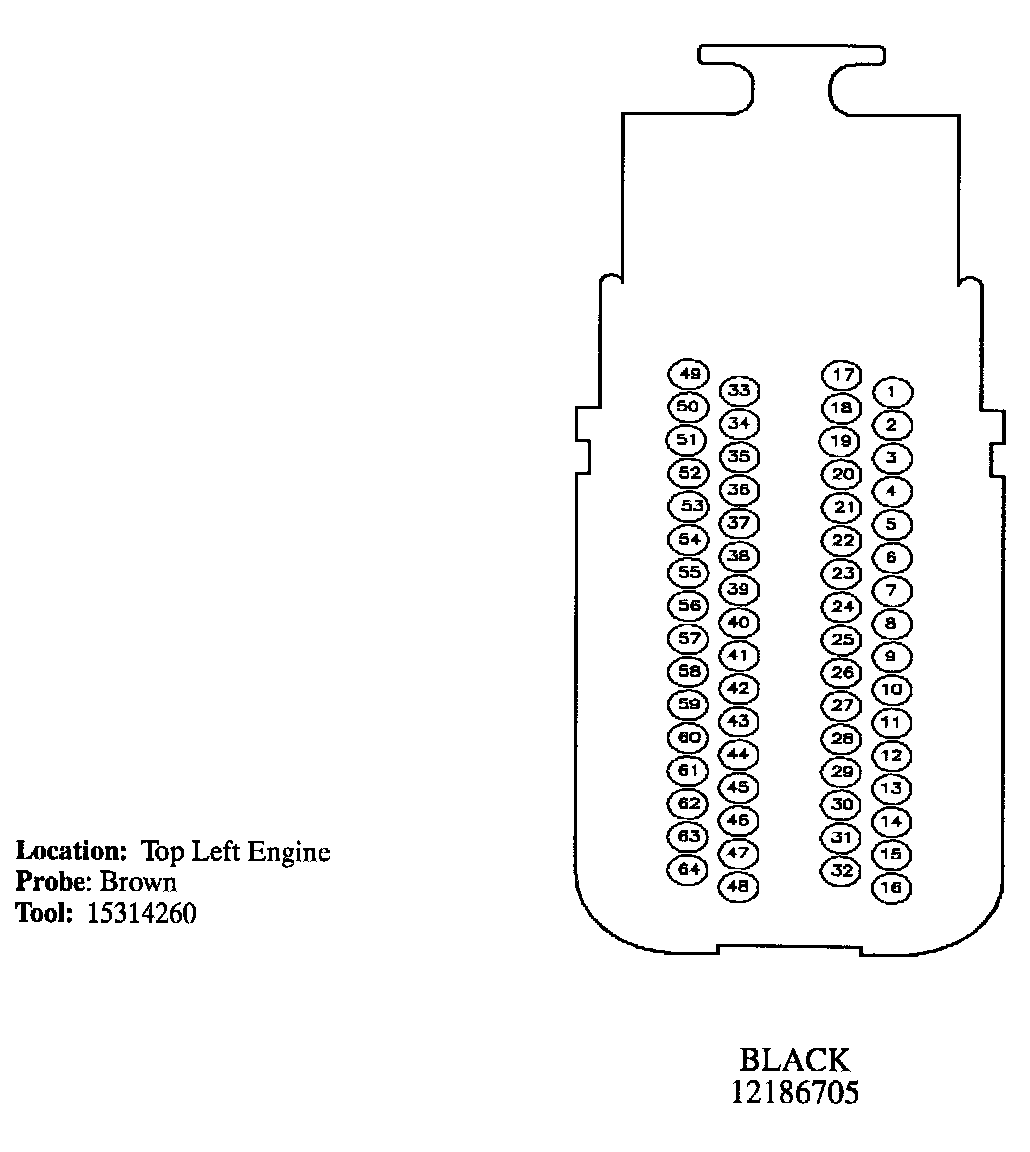

J2

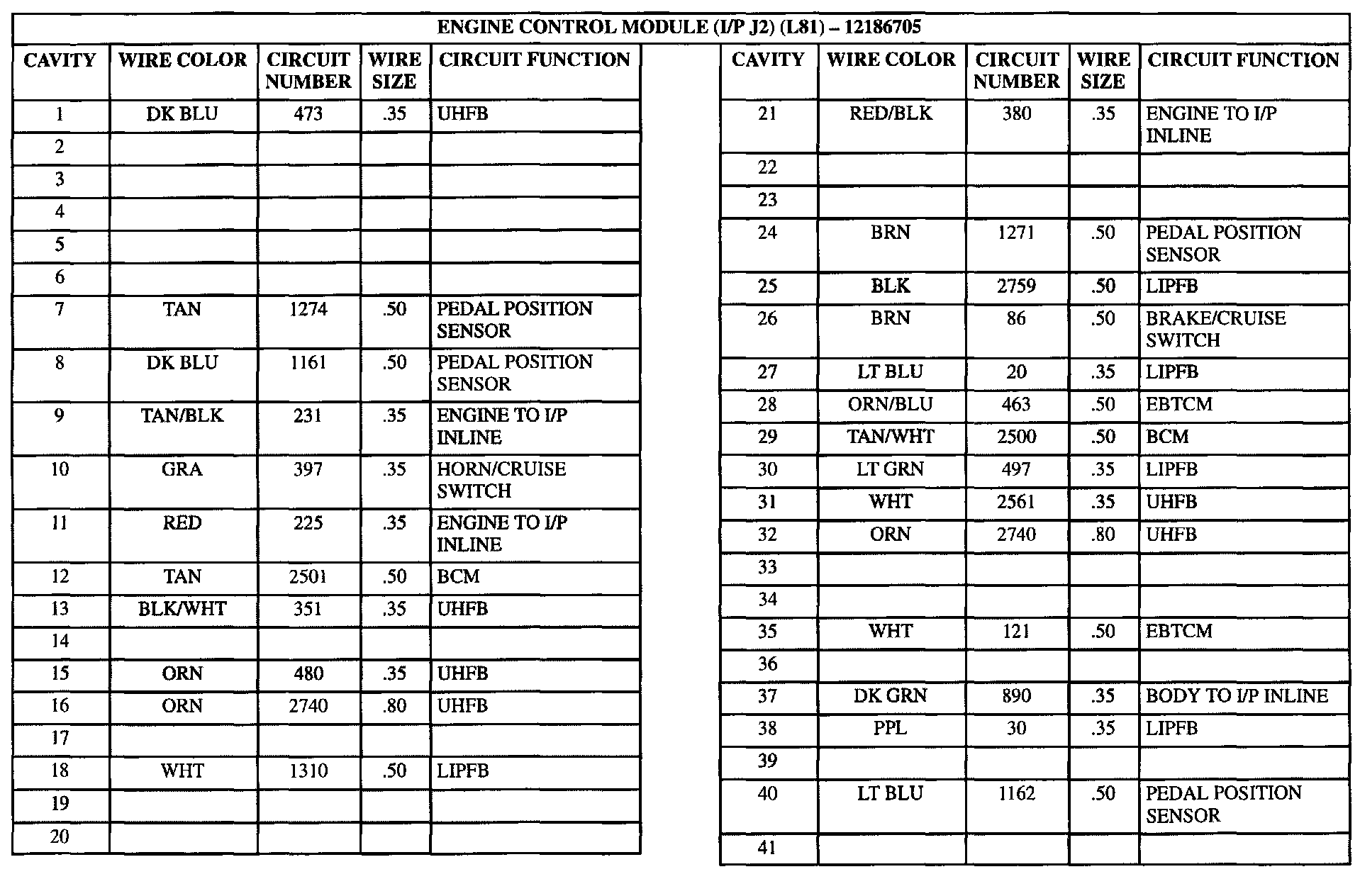

Engine Control Module (I/P J2) (Part 1 Of 3):

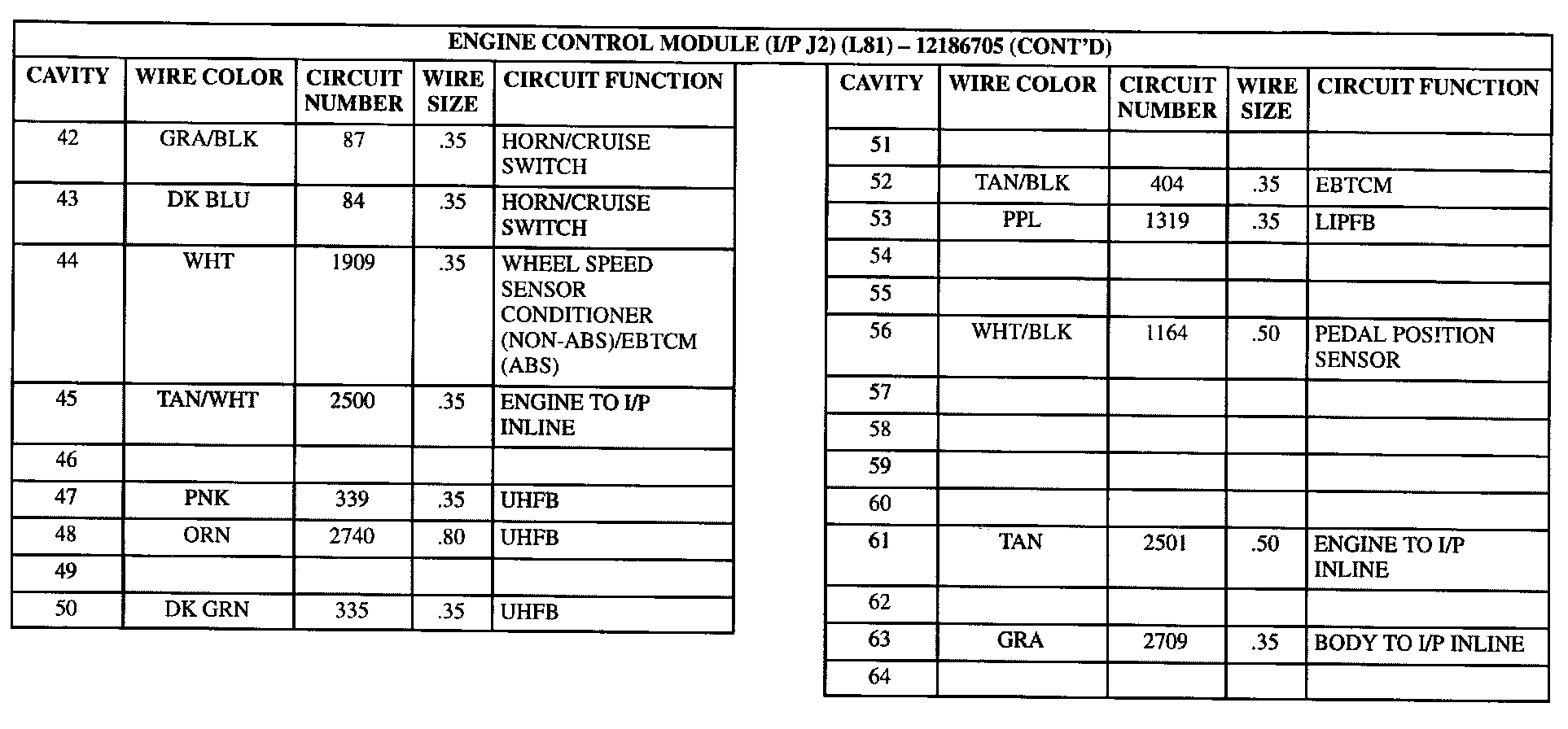

Engine Control Module (I/P J2) (Part 2 Of 3):

Engine Control Module (I/P J2) (Part 3 Of 3):
