Connector Views
>>
Windows
>>
System Diagram
System Diagram

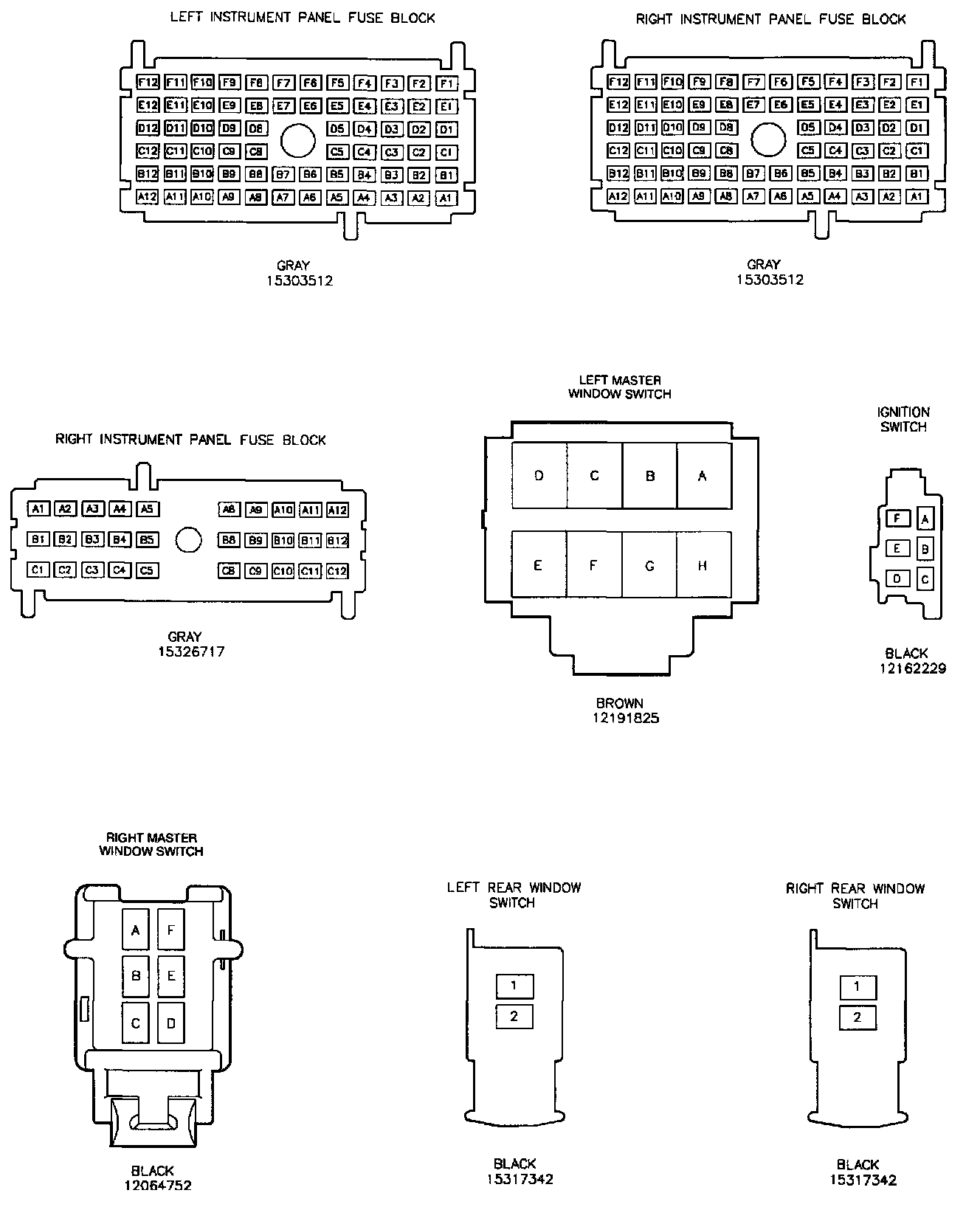

Power Windows Electrical Connectors:

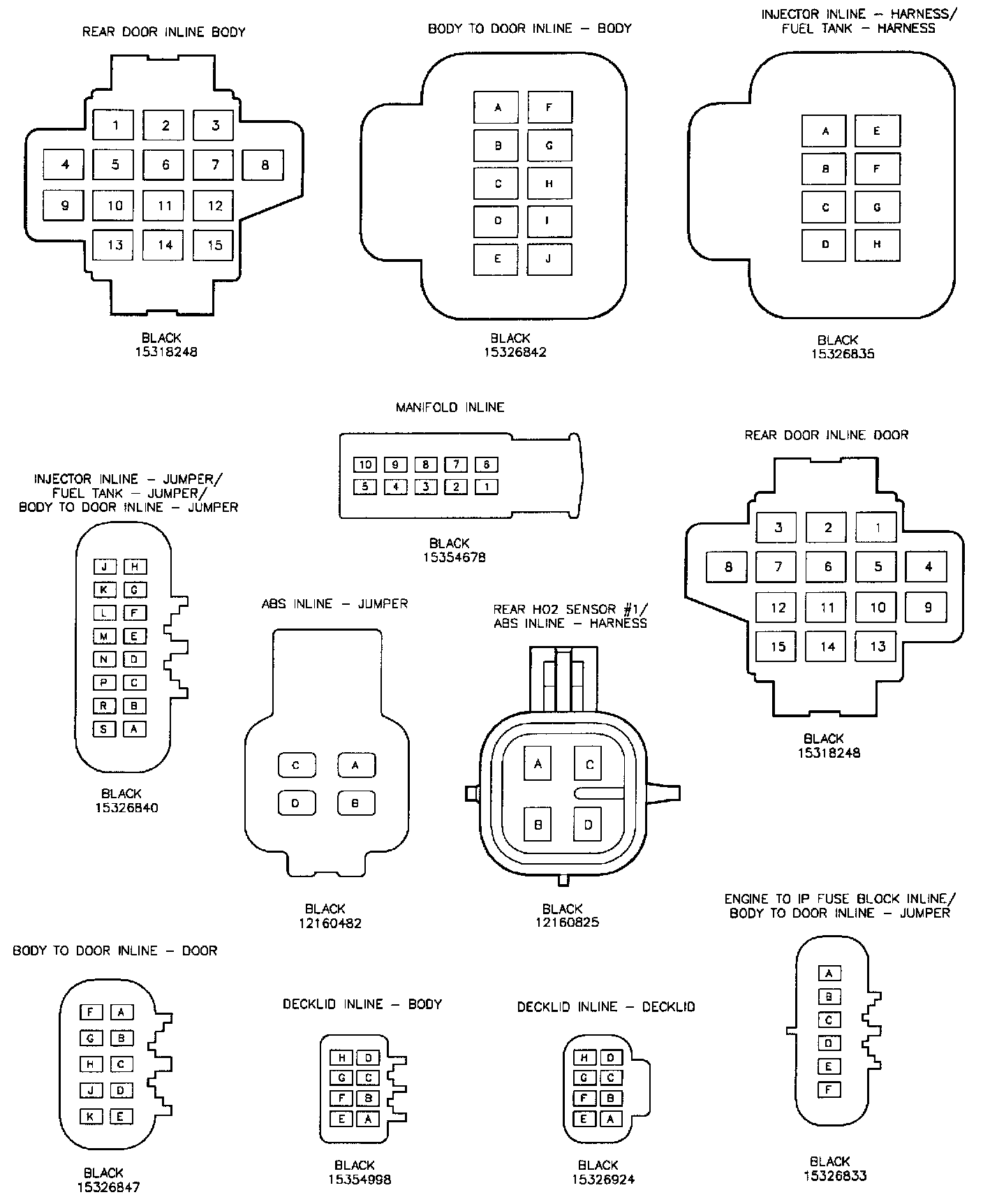

Inline Connectors:
