Home >> Saturn >> 2000 >> LS L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module >> Electronic Brake Traction Control Module

Electronic Brake Traction Control Module

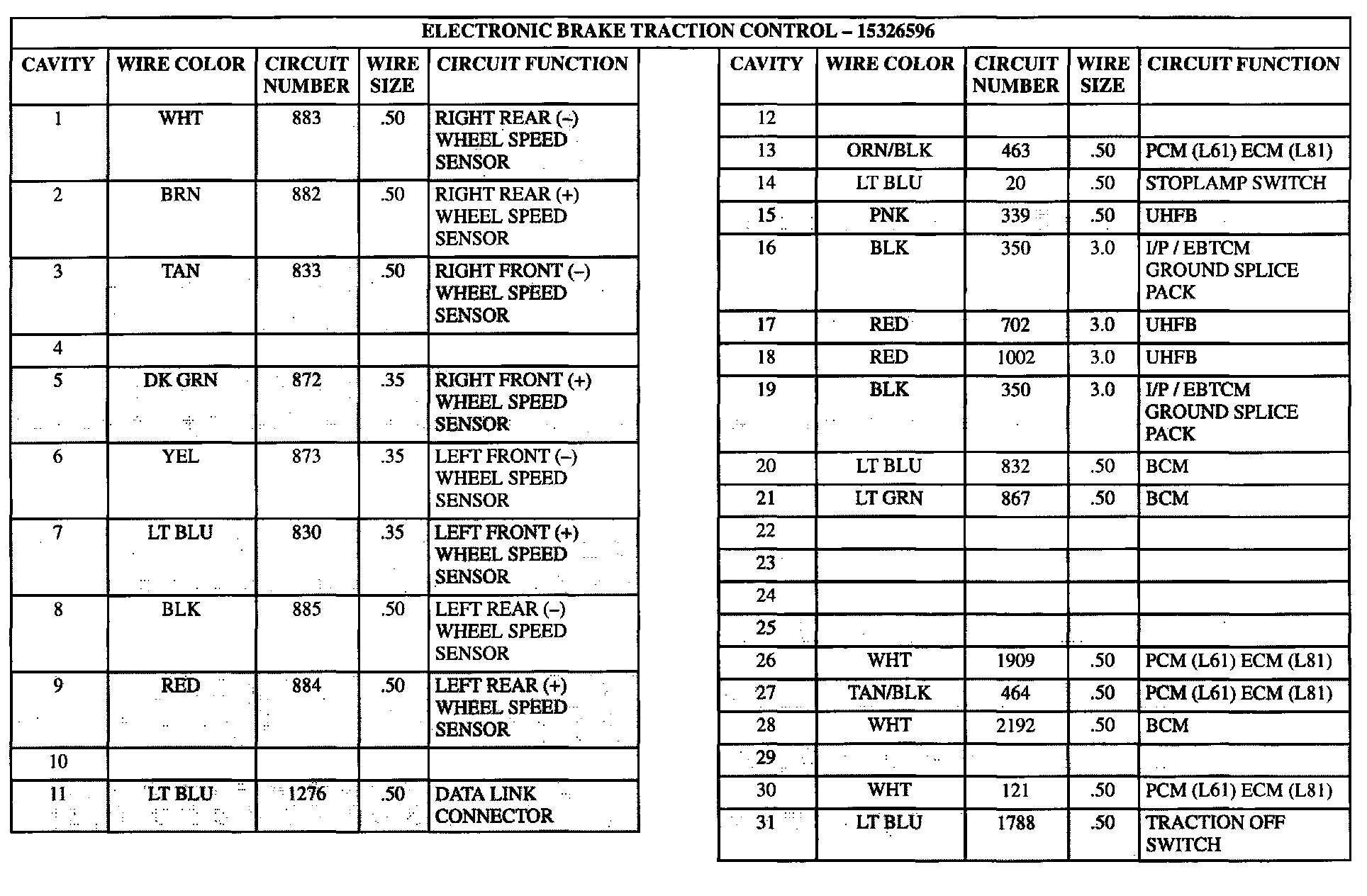

Electronic Brake Traction Control Module (Part 1 Of 2):

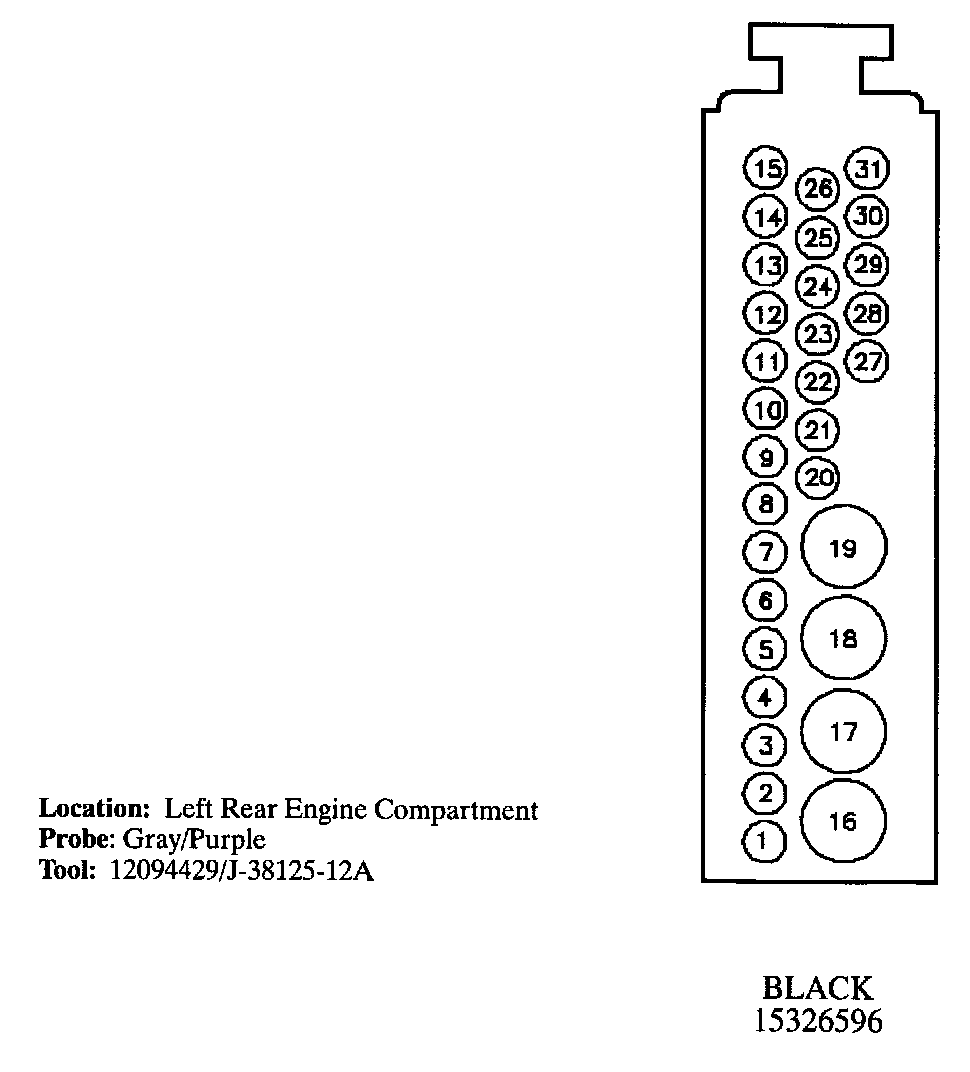

Electronic Brake Traction Control Module (Part 2 Of 2):
