Home >> Saturn >> 2000 >> LS L4-2.2L VIN F >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Connector Views

Connector Views

Cruise Control Harness Connector Face Views (Part 1 Of 2):

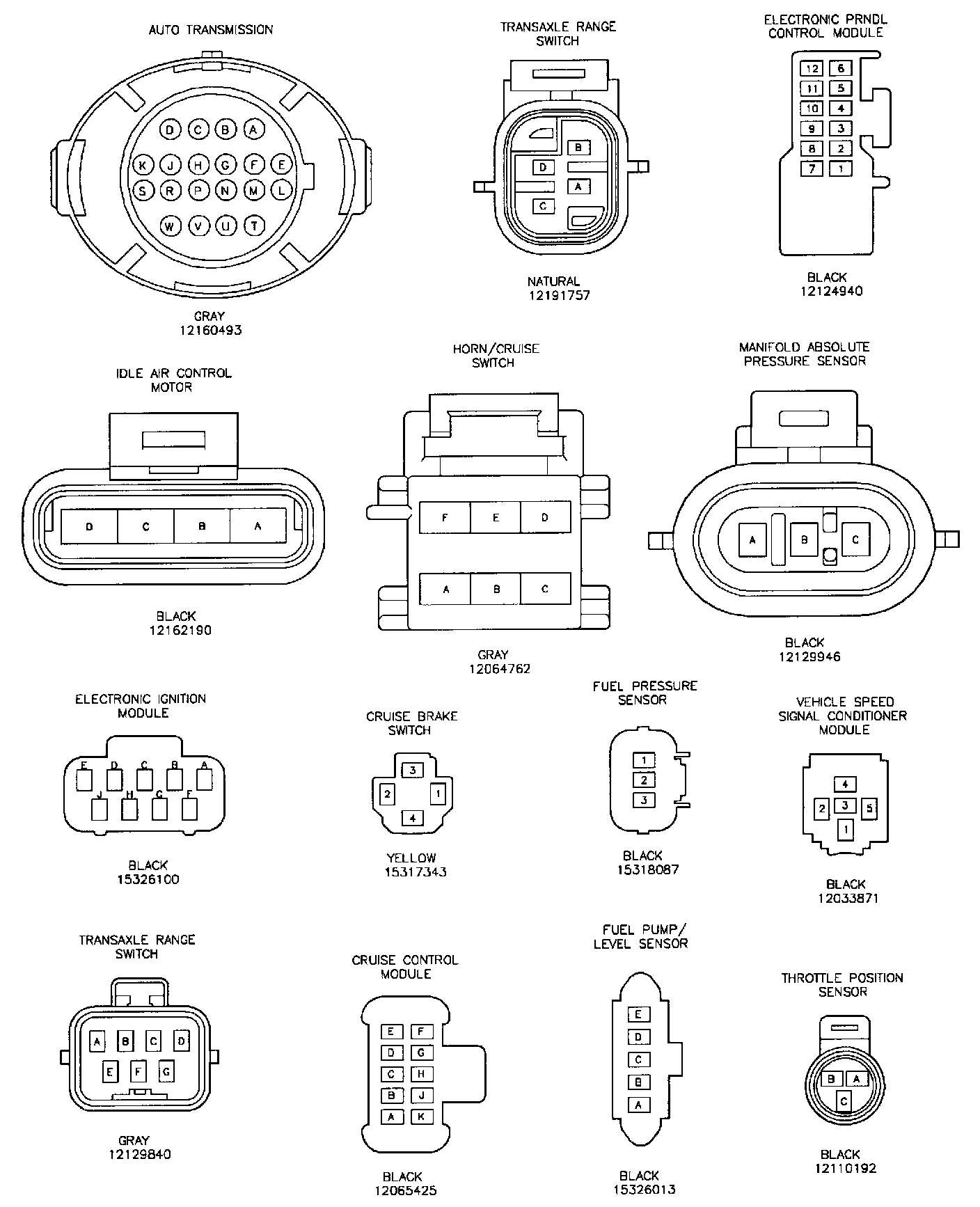

Cruise Control Harness Connector Face Views (Part 2 Of 2):
