Timing Cover

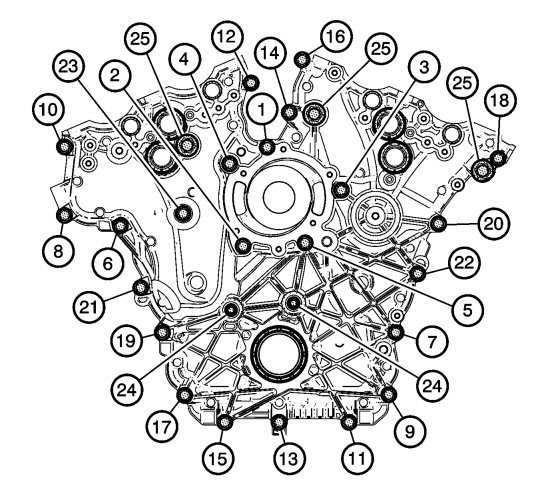

Engine Front Cover Bolts





First pass: Bolts (1-23) 20 Nm (14 lb ft)
Second pass: Bolts (1-23) 20 Nm (14 lb ft)
Third pass: Bolts (1-23) Tighten an additional 60°
Fourth pass: Bolts (24) 65 Nm (48 lb ft)
Final pass: Bolts (25) 65 Nm (48 lb ft)
