Home >> Saab >> 2009 >> 9-7X V8-5.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Diagrams

Coolant Temperature Sensor/Switch (For Computer): Diagrams

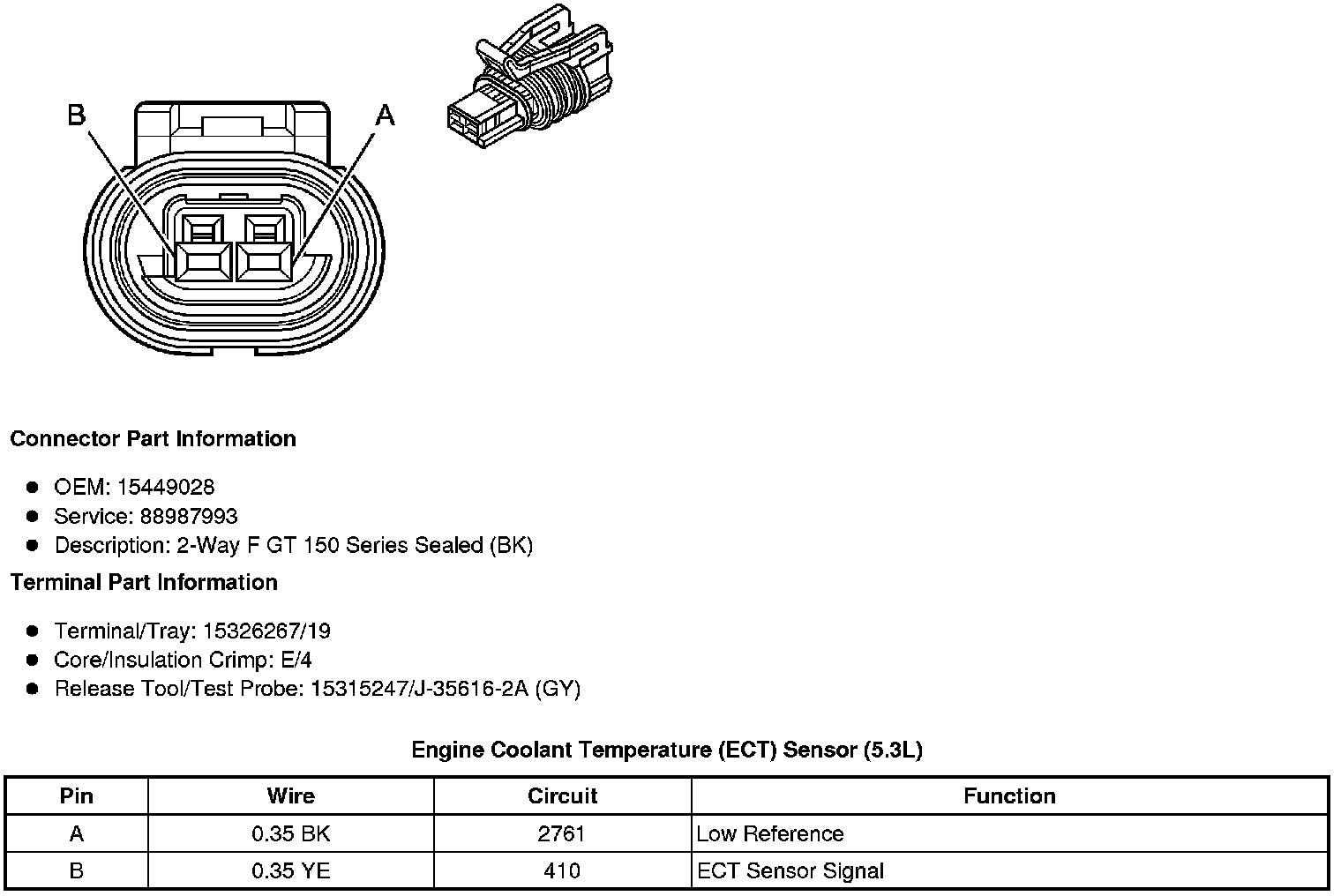

Component Connector End Views

Engine Coolant Temperature (ECT) Sensor (5.3L)
