Home >> Saab >> 2007 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams

Transmission Position Sensor/Switch: Diagrams

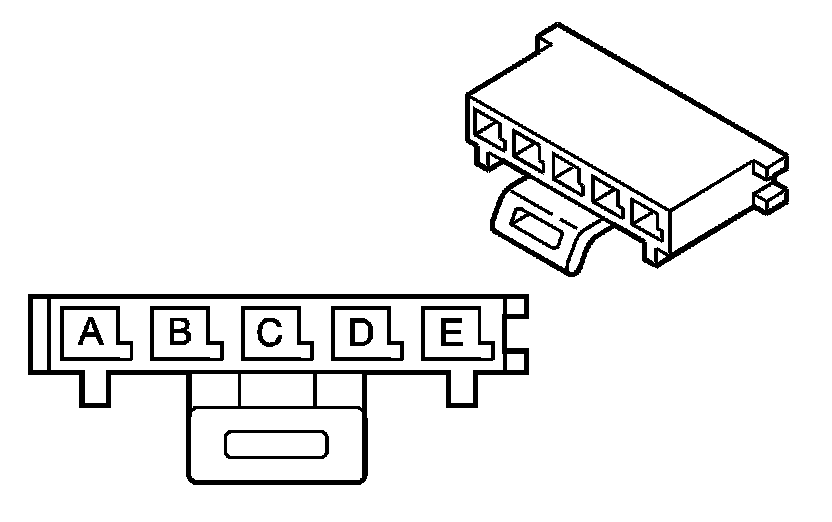

Component Connector End Views

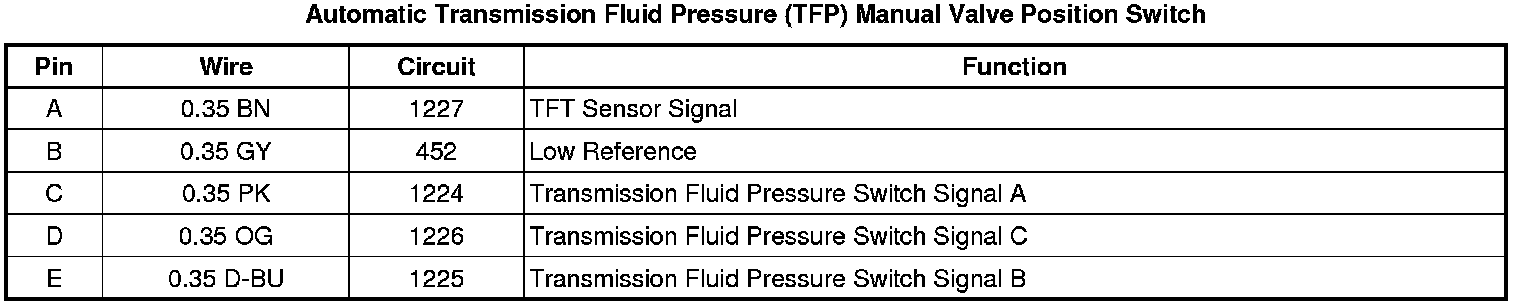

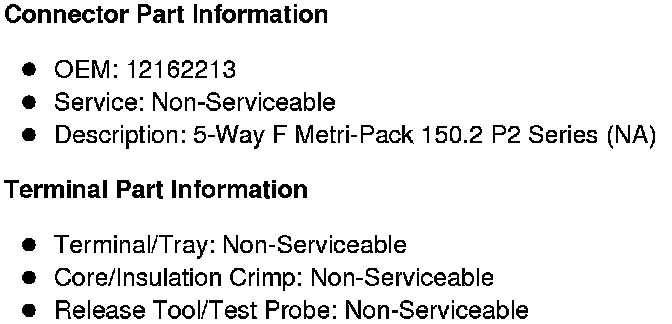

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch
