Camshaft Position Sensor: Service and Repair

Camshaft Position Sensor Replacement

Removal Procedure

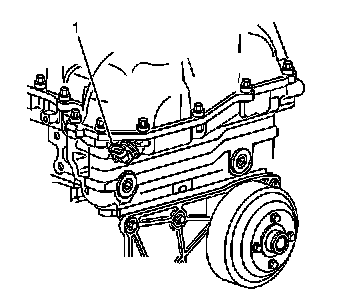

1. Remove the camshaft position (CMP) sensor electrical connector (1).
2. Remove the CMP sensor retaining bolt.

Installation Procedure





Notice: Refer to Fastener Notice.

1. Install the CMP sensor.

Tighten the CMP sensor bolt to 10 Nm (89 in. lbs.).

2. Install the CMP sensor electrical connector (1).
