Engine Control Module



Component Connector End Views

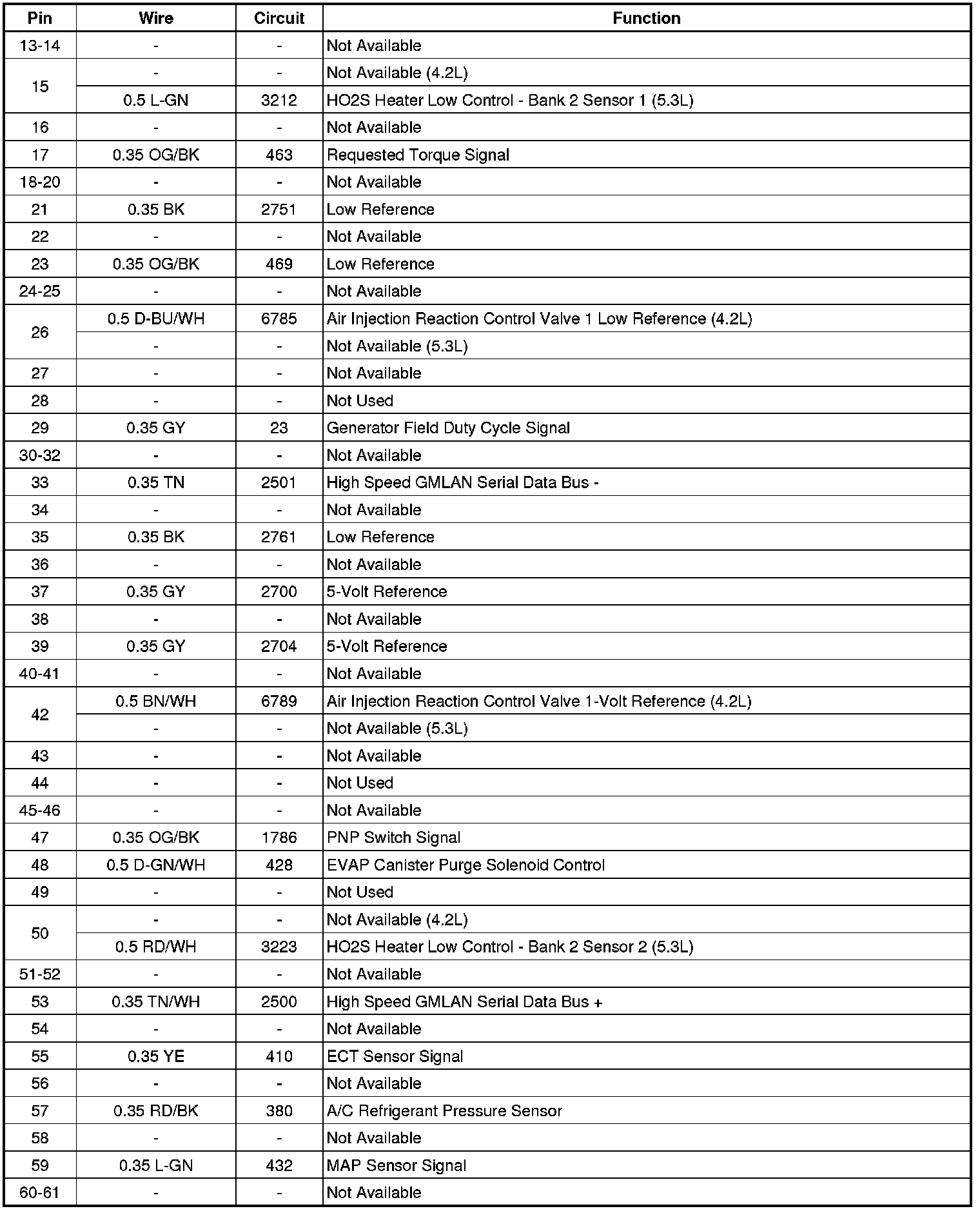

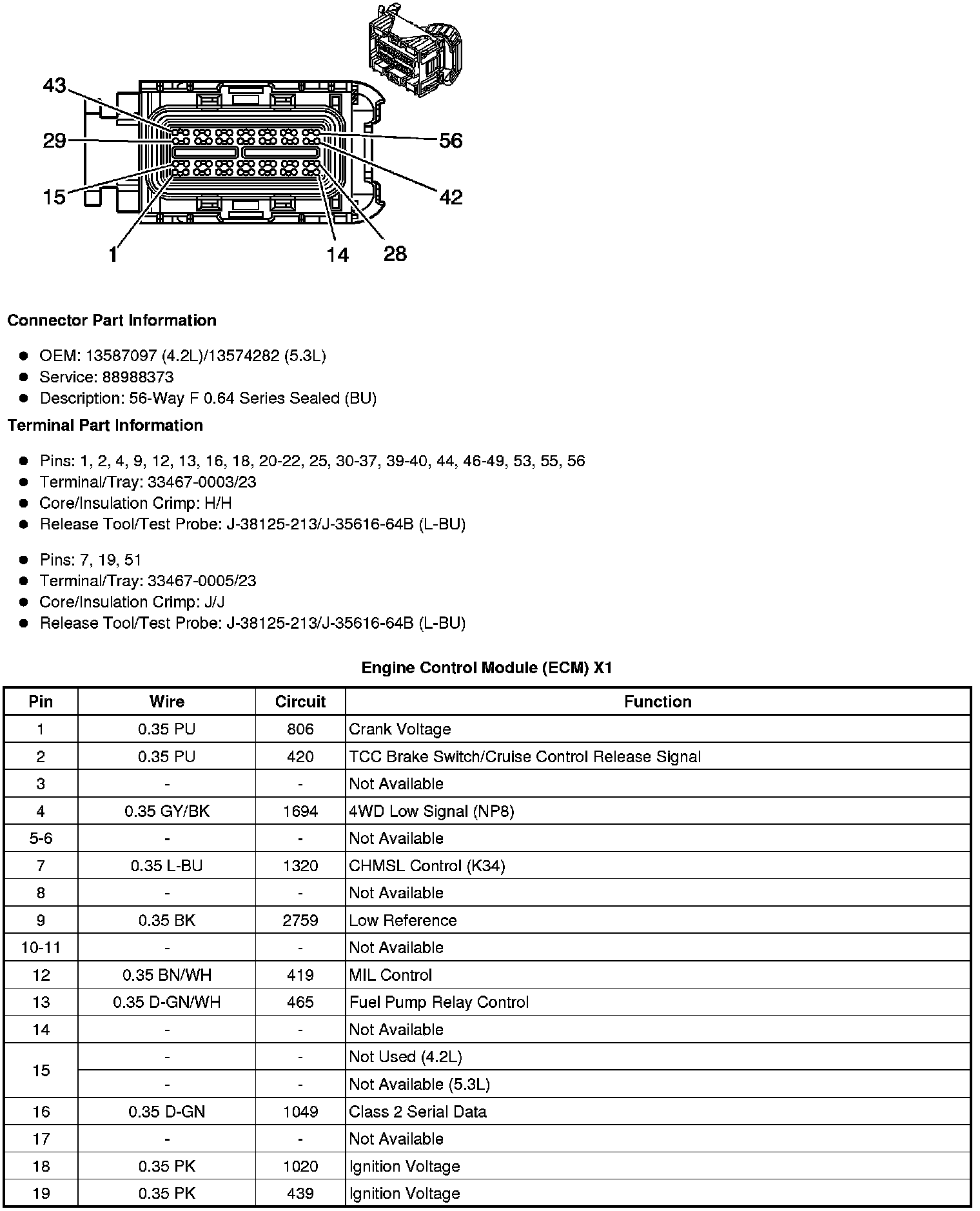

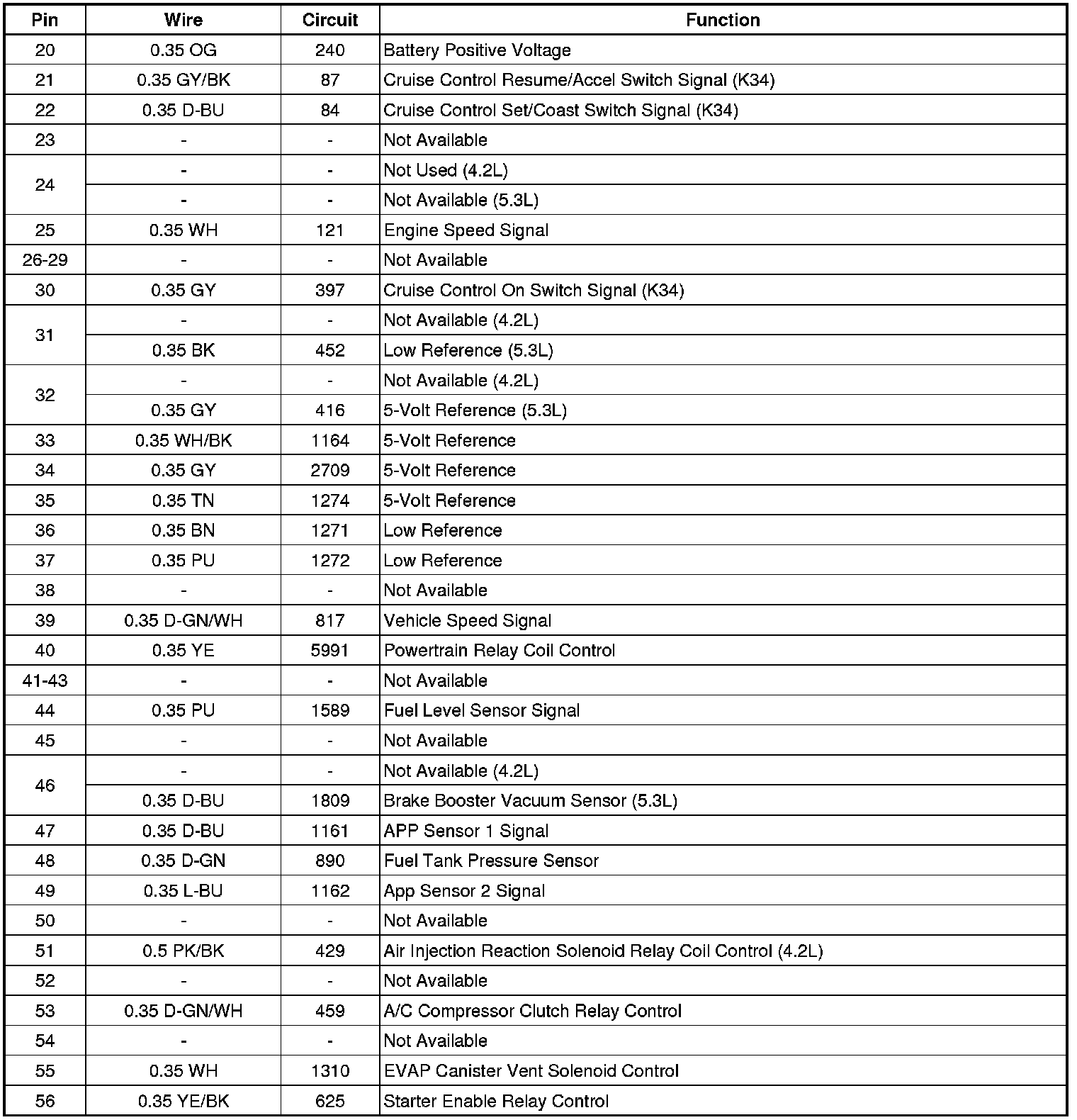

Engine Control Module (ECM) X1

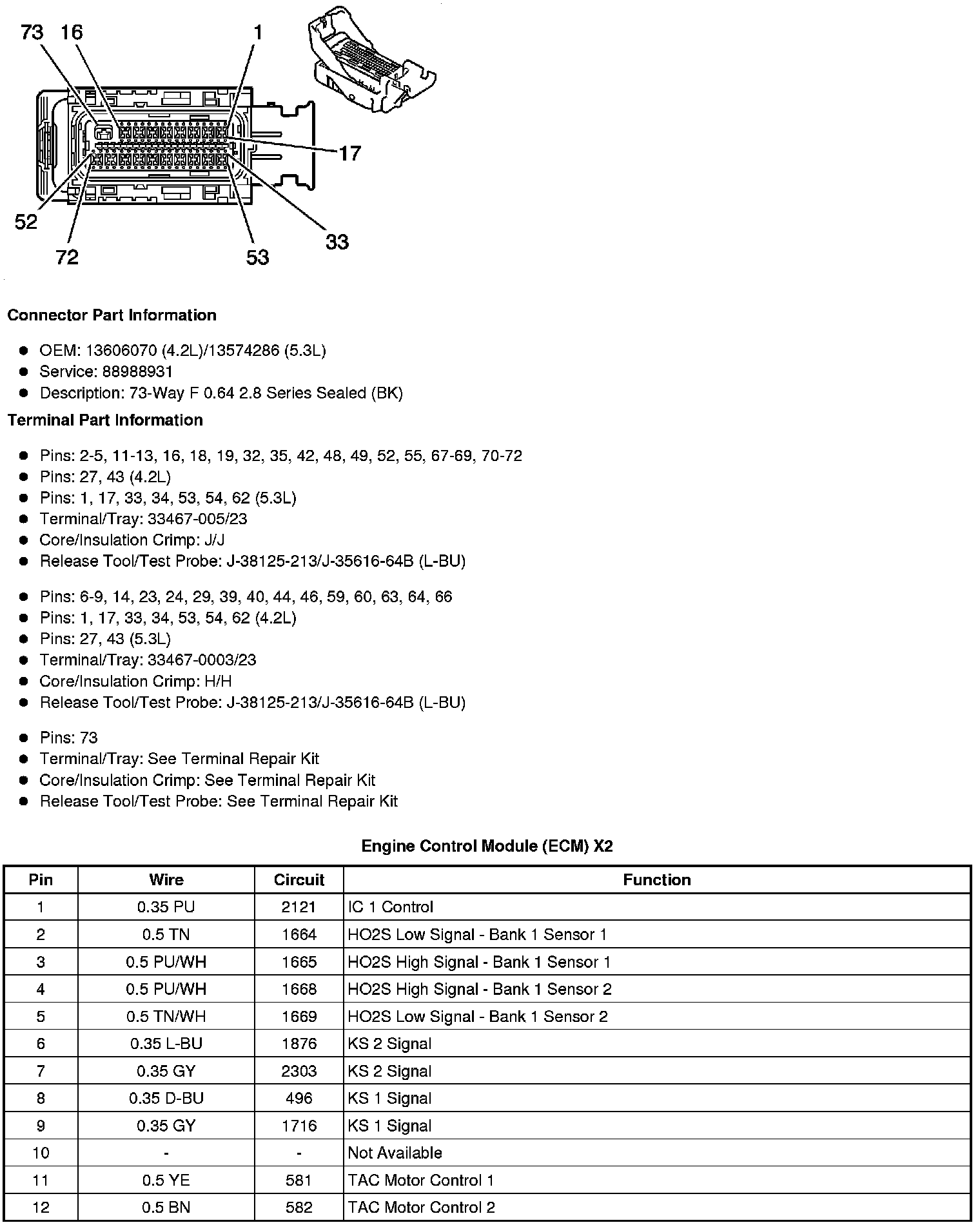

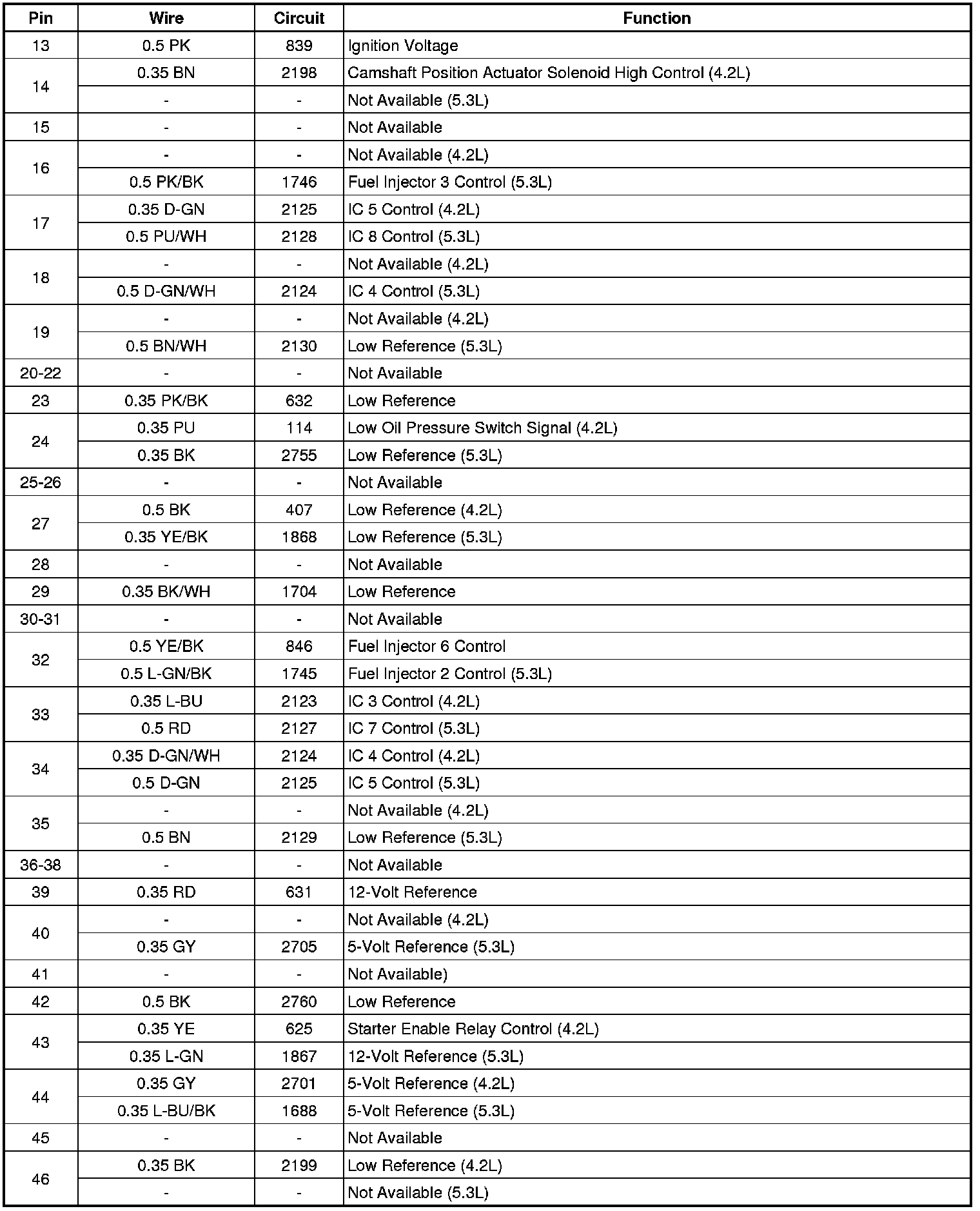

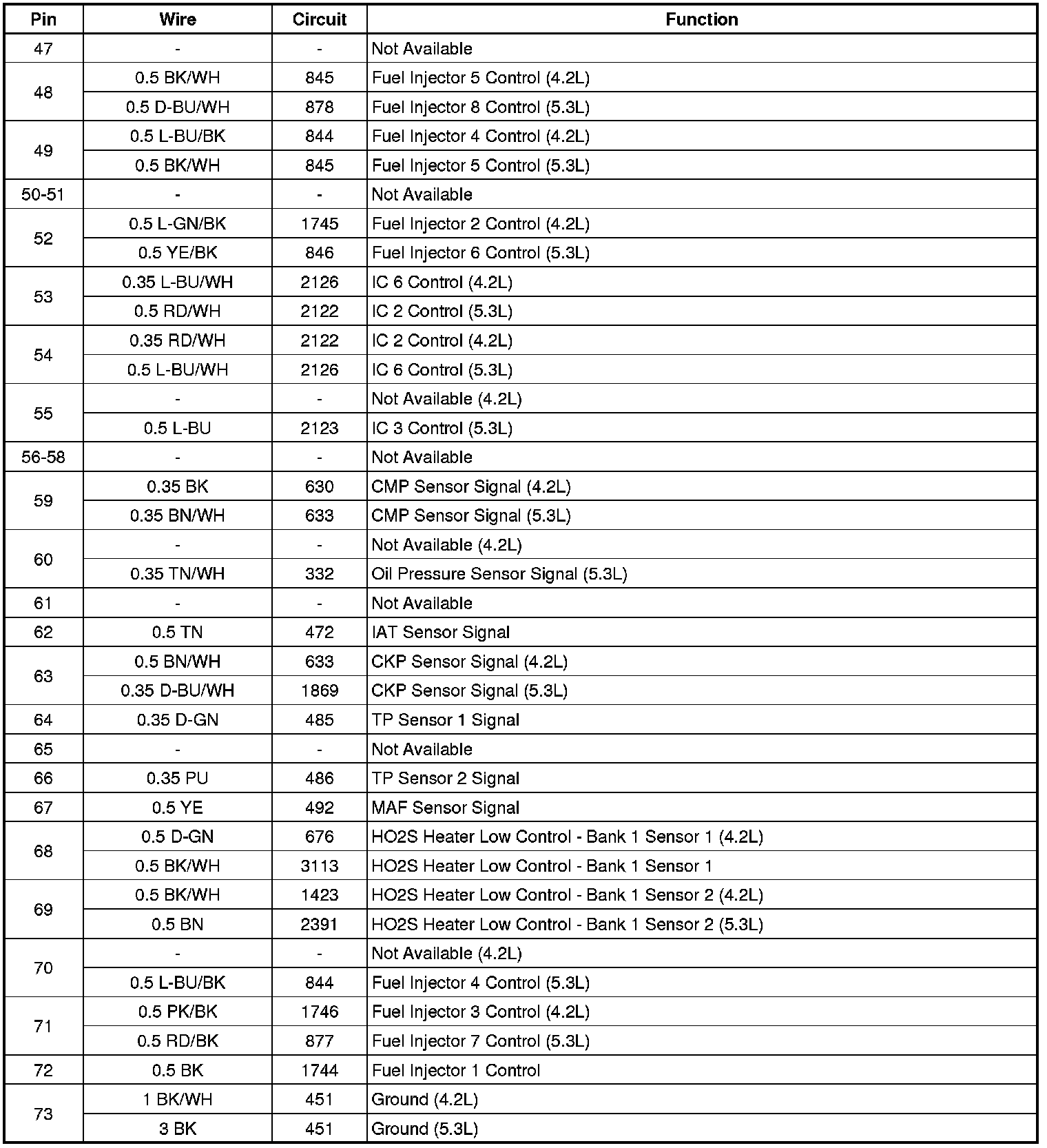

Engine Control Module (ECM) X2

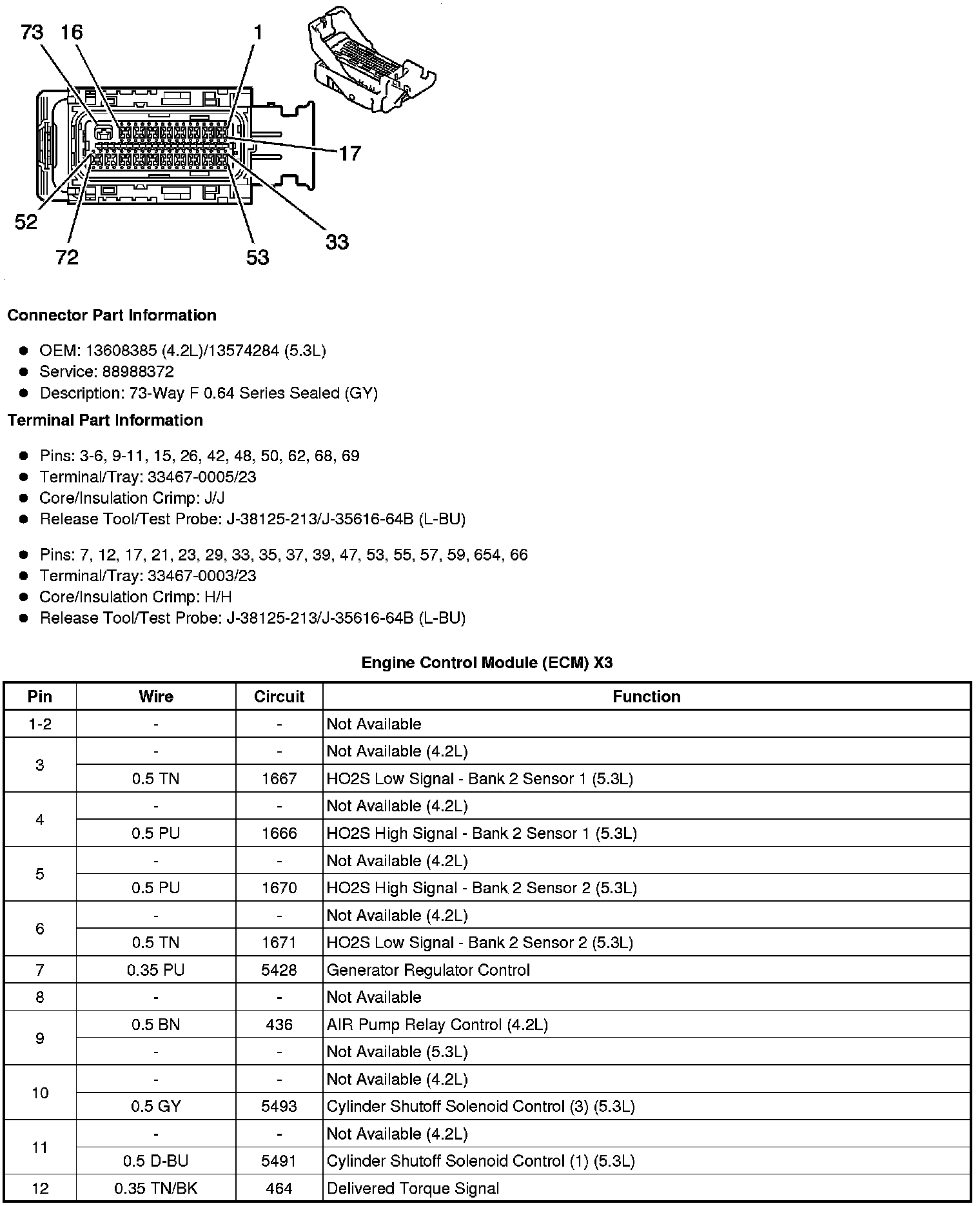

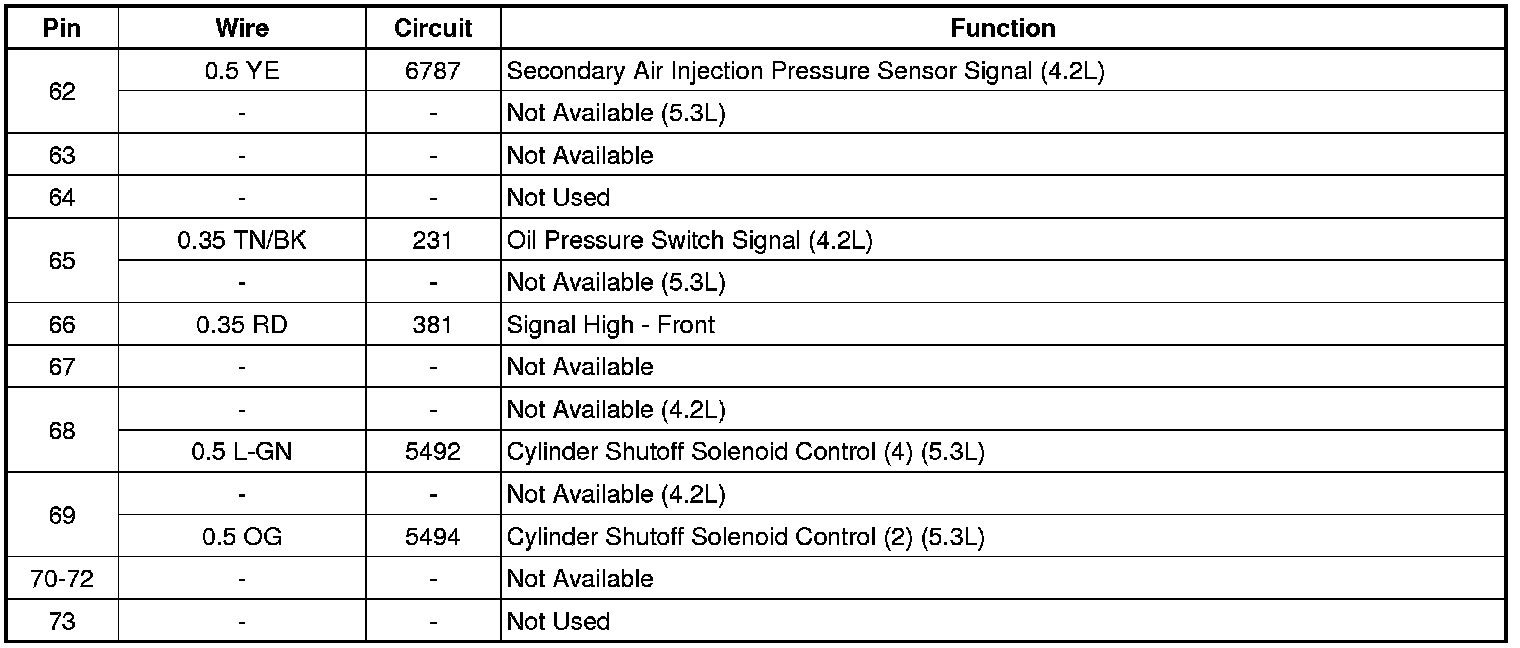

Engine Control Module (ECM) X3
