Home >> Saab >> 2007 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Charging System Control Module

Charging System Control Module

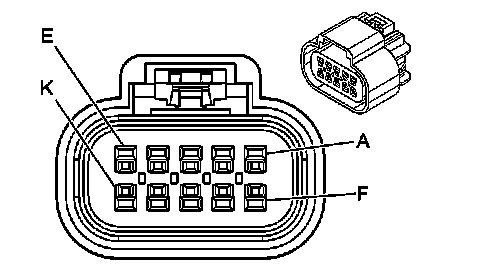

Engine Electrical Connector End Views

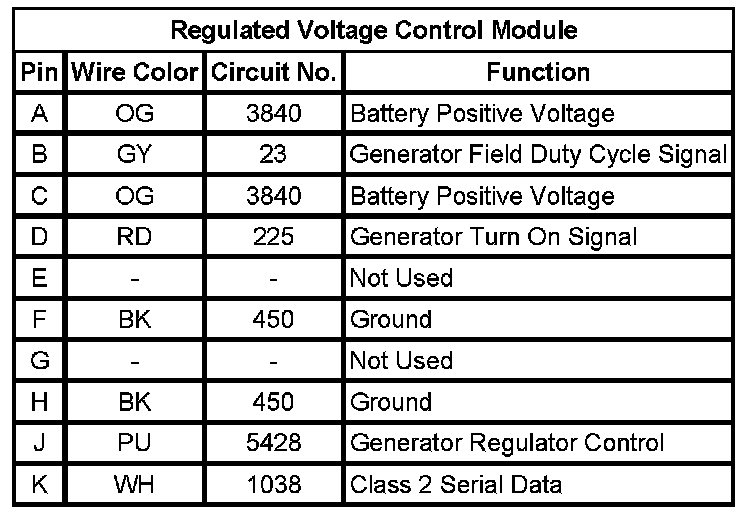

Regulated Voltage Control Module
