Structural Brace: Service and Repair

Frame Brace Replacement


Removal Procedure





1.Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

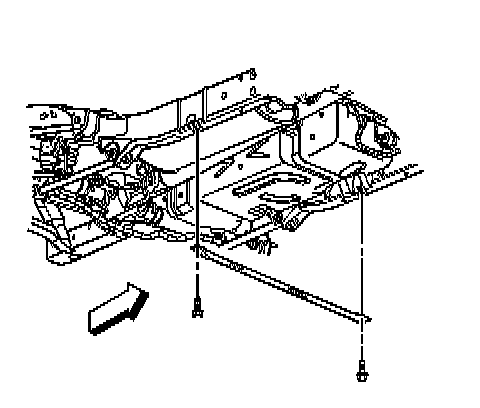

2.Remove the 2 mounting bolts from the frame brace.

3.Remove the frame brace from the frame.

Installation Procedure

Notice:Refer to Fastener Notice .





1.Install the frame brace to the frame using the 2 mounting bolts.

TightenTighten the bolts to 50 N �m (37 lb ft).

2.Lower the vehicle.
