Home >> Saab >> 2006 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Components

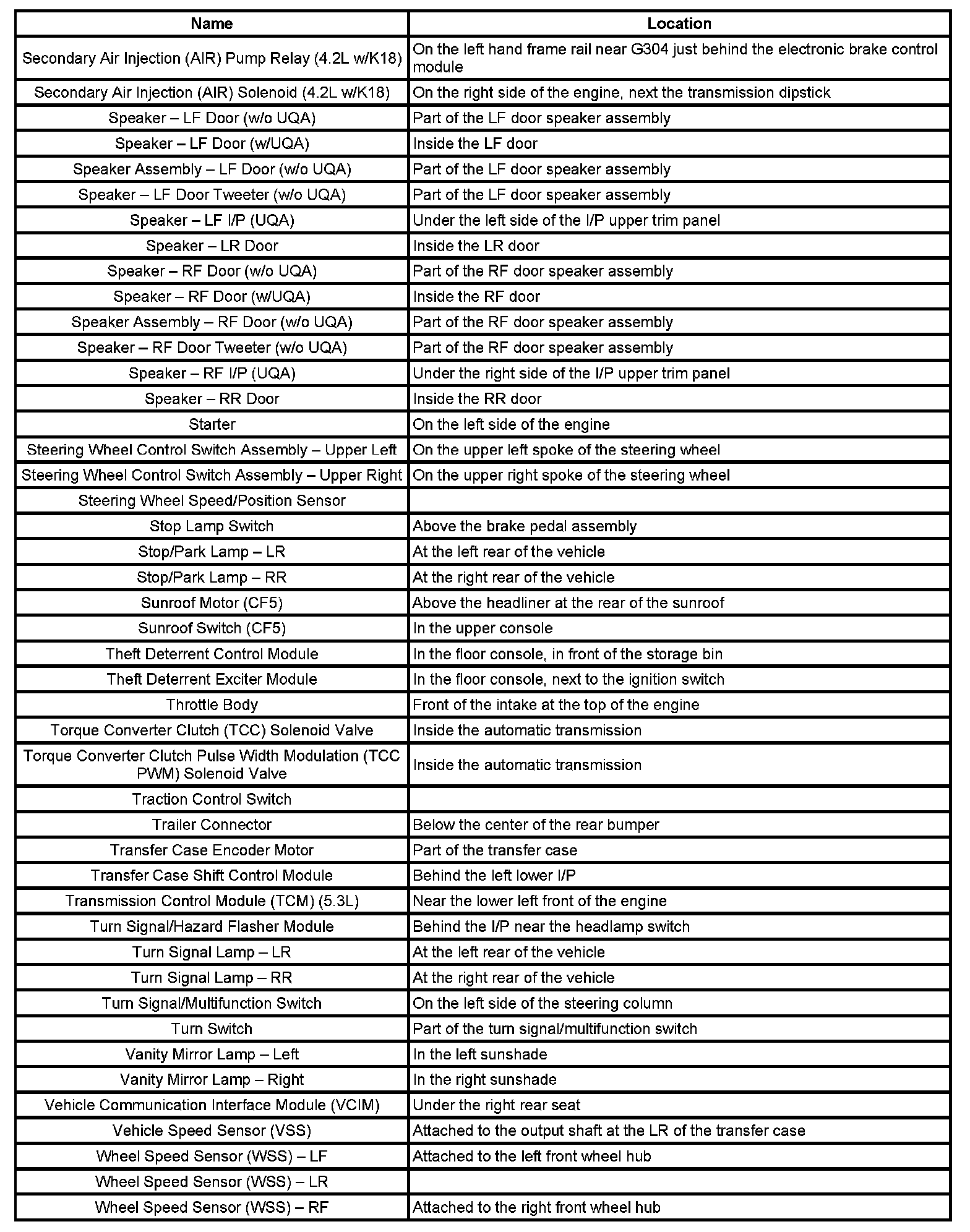

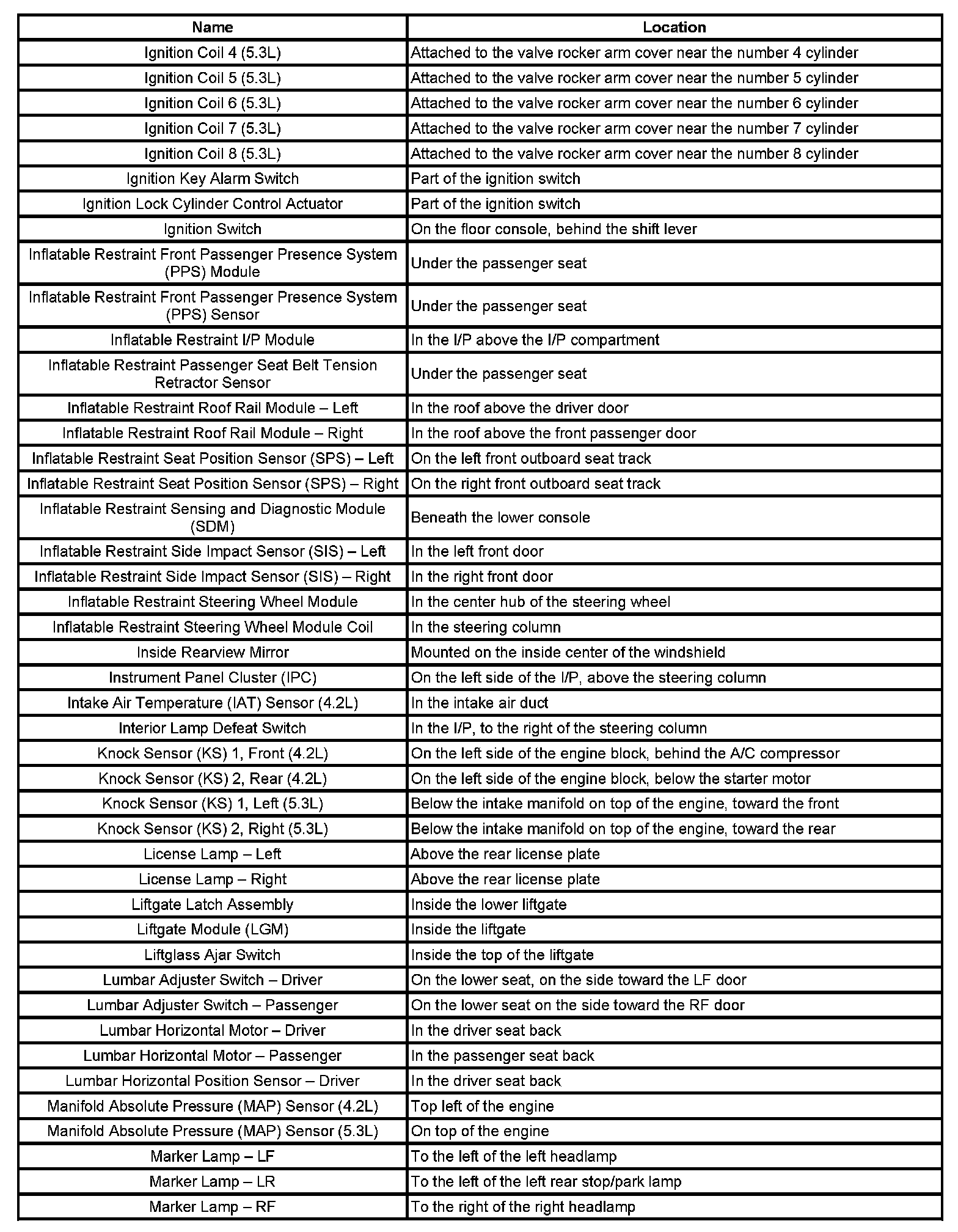

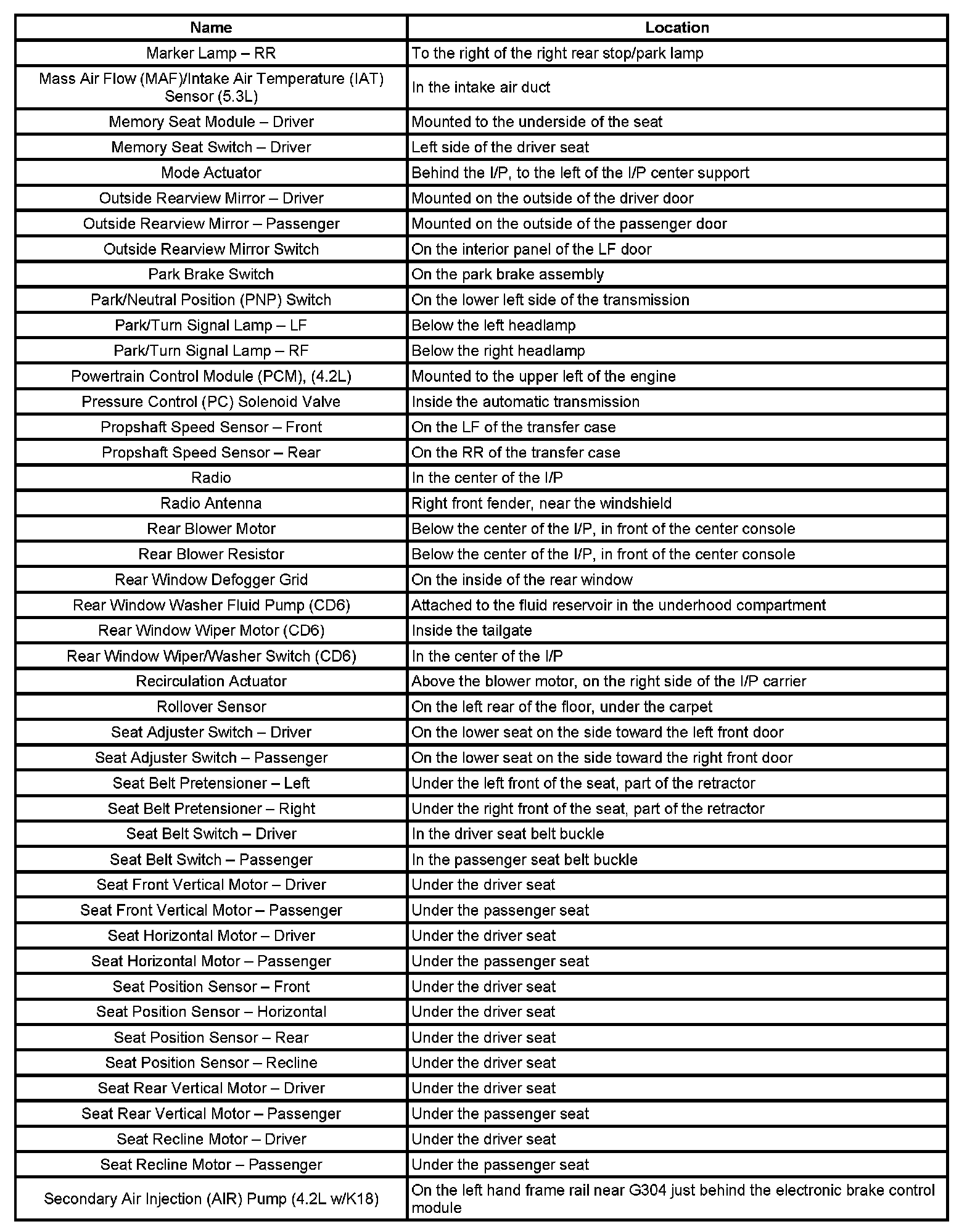

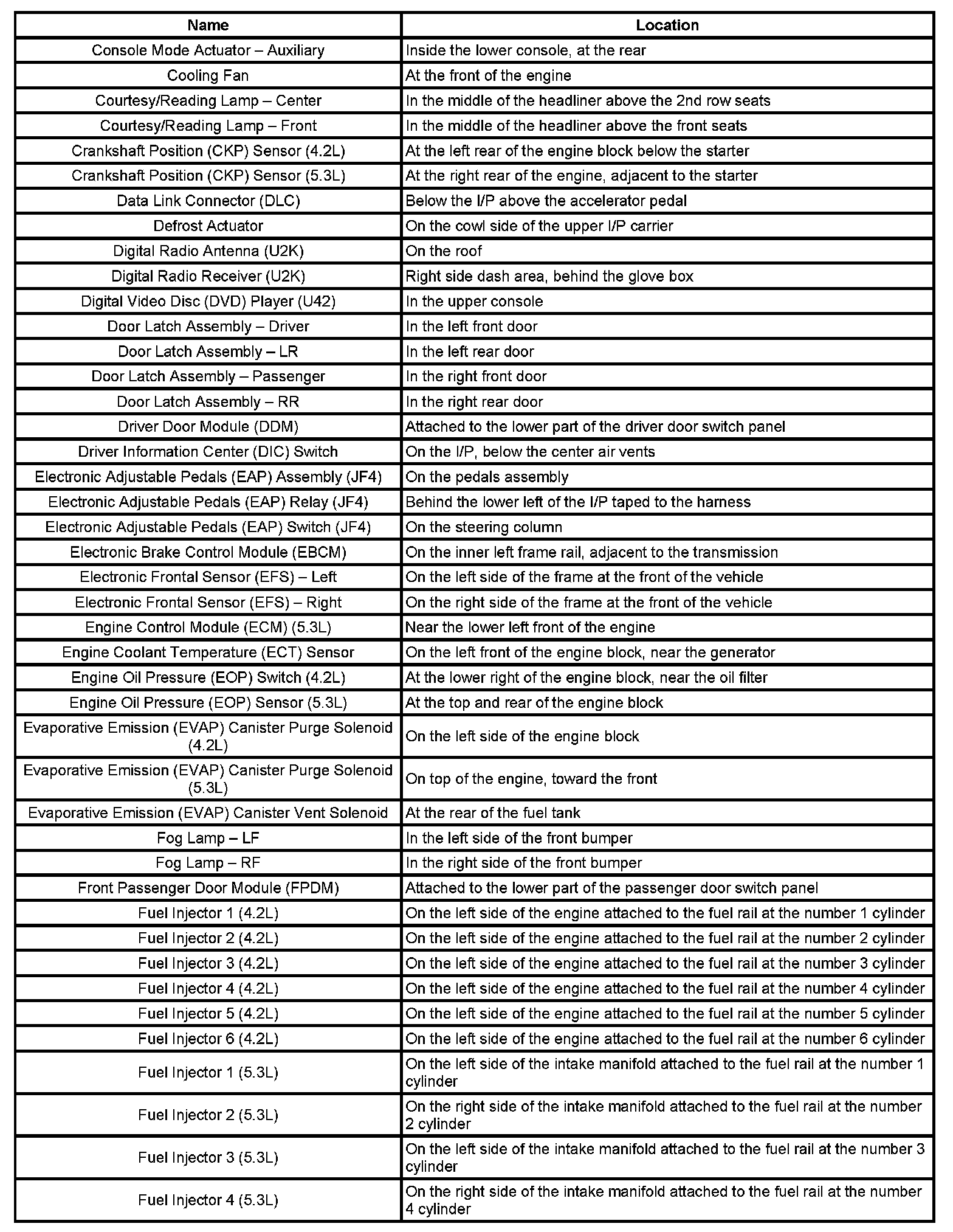

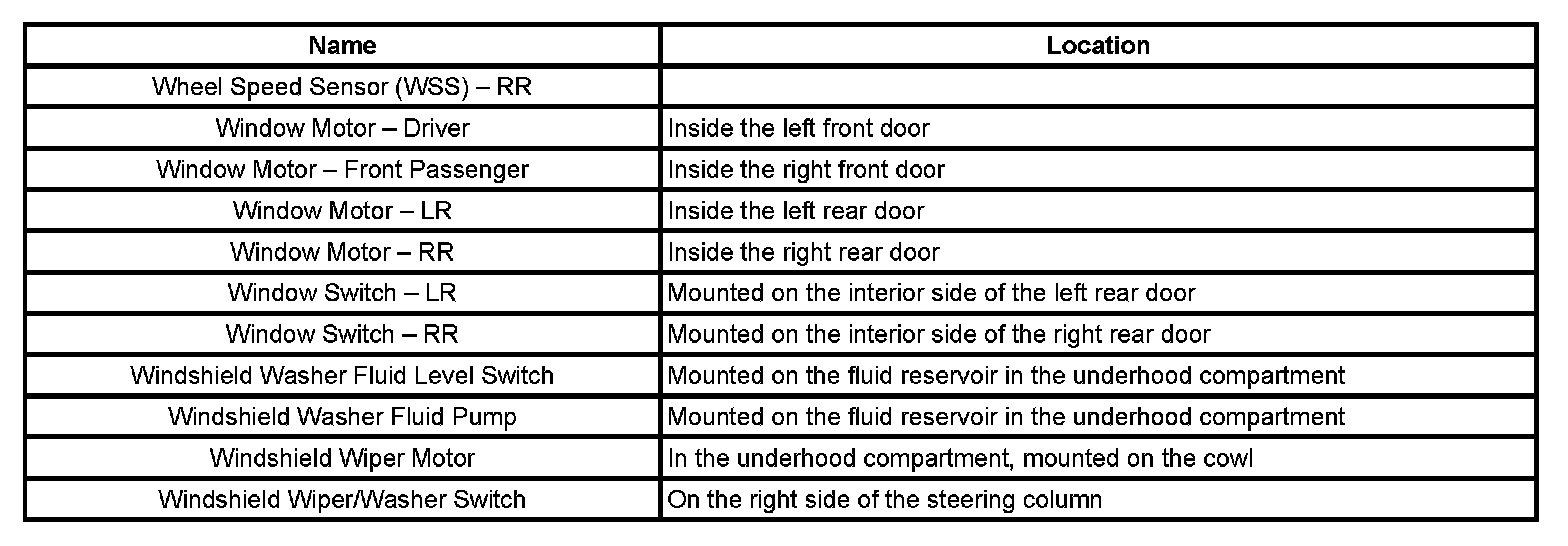

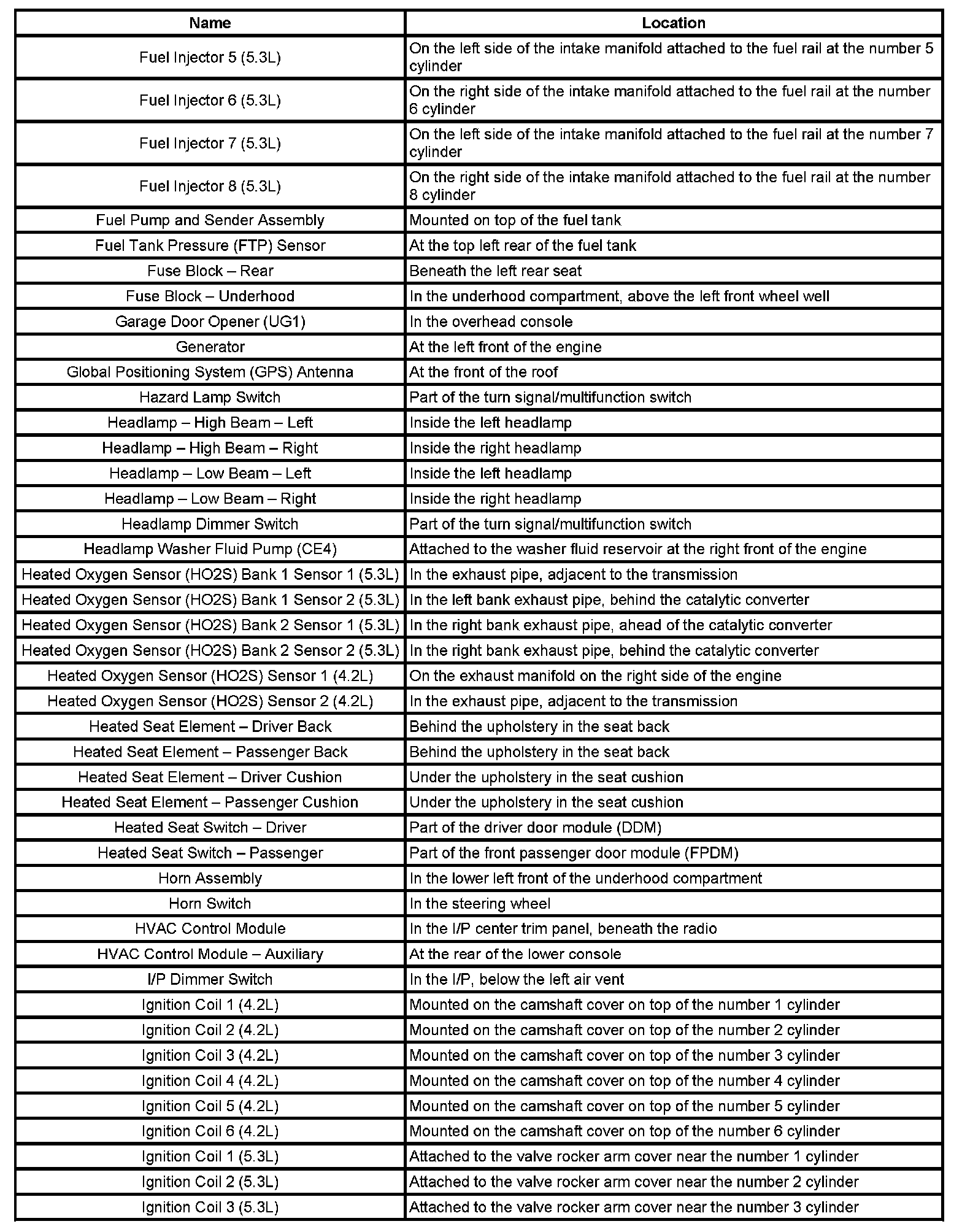

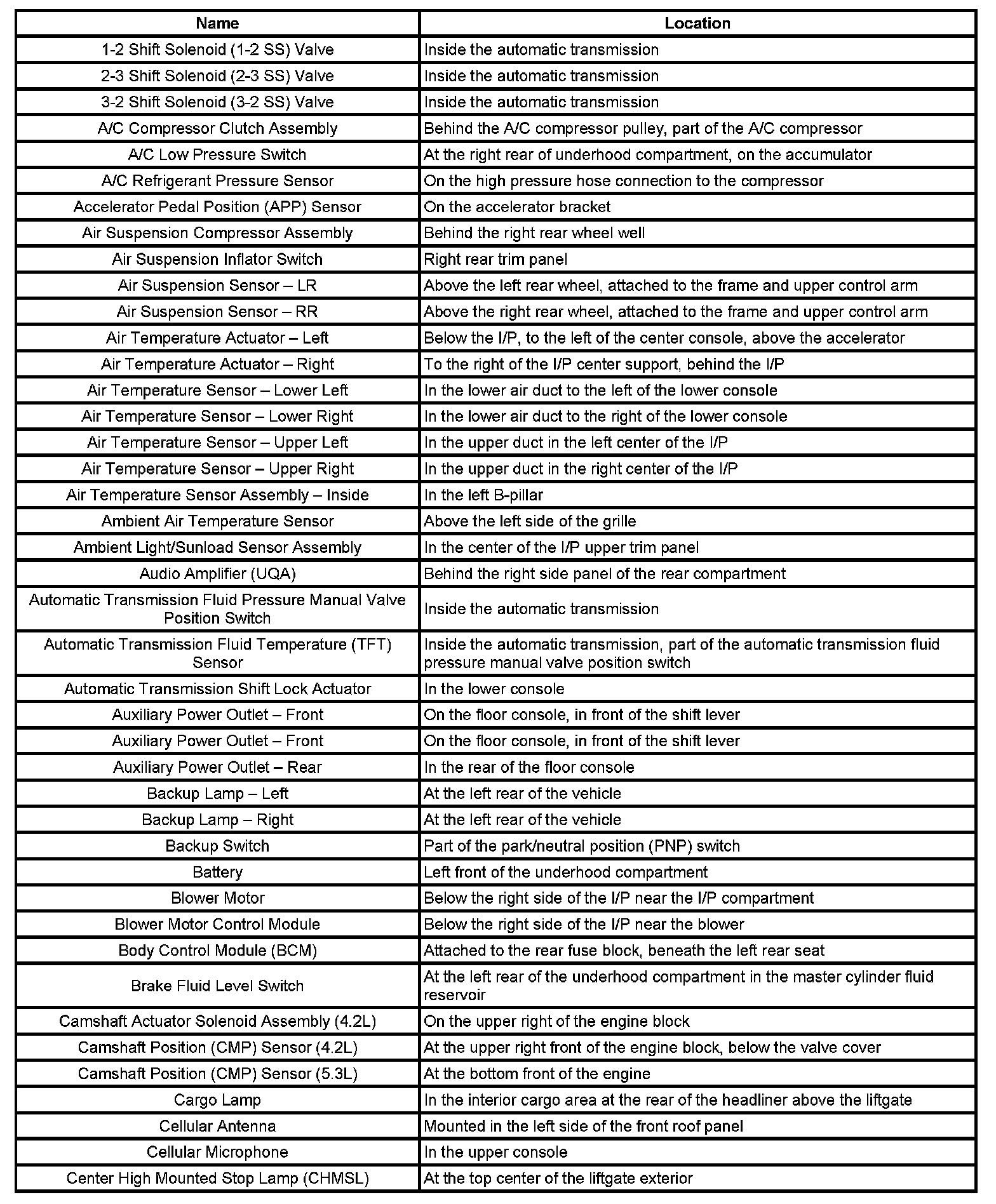

Components



1-2 Sh - Ce:




Co - Fuel:




Fuel - Ig:




Ig - Ma:




Ma - Se:




Se - Wh:




Wh - Wi:
