Pinout Values and Diagnostic Parameters

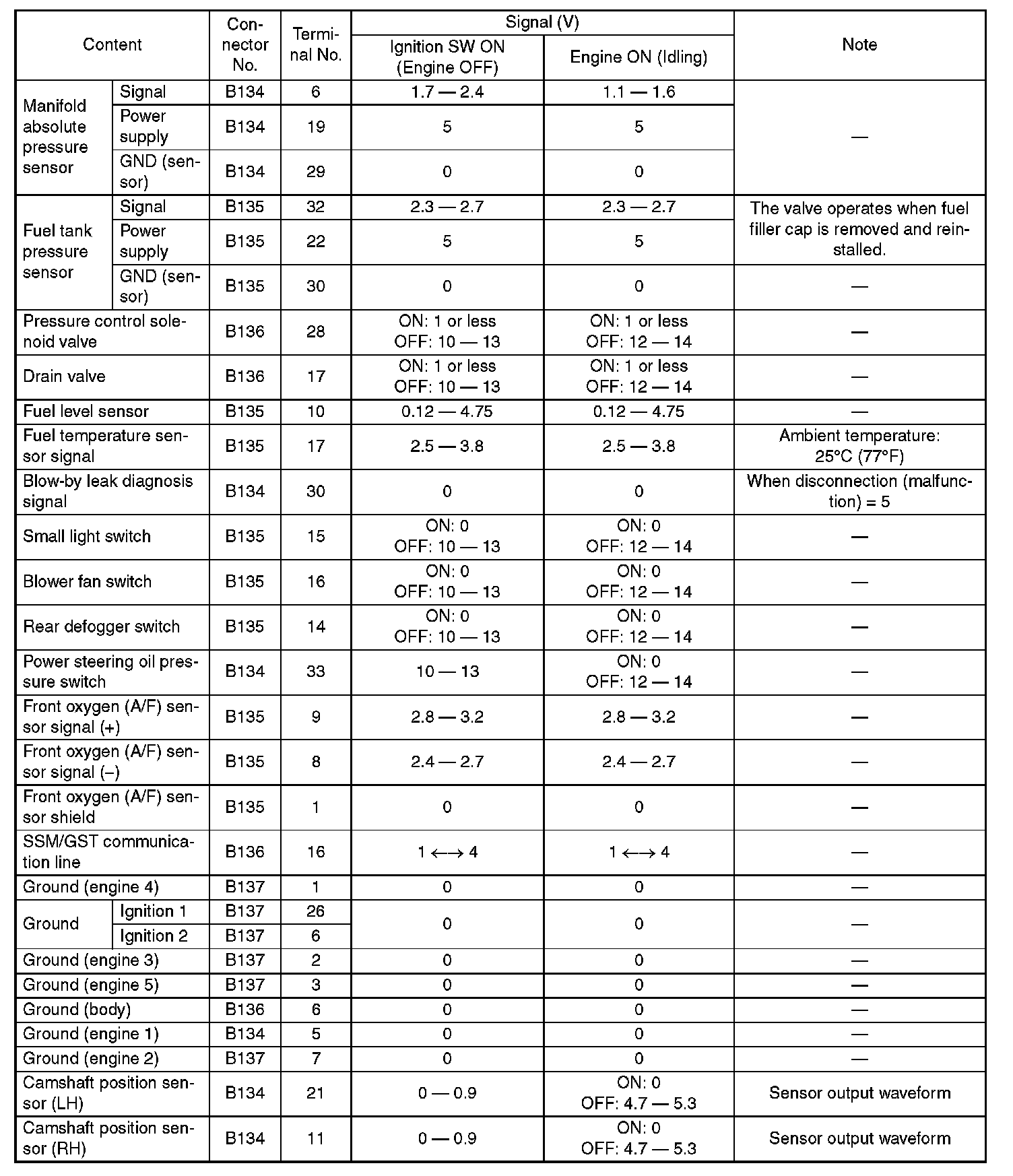

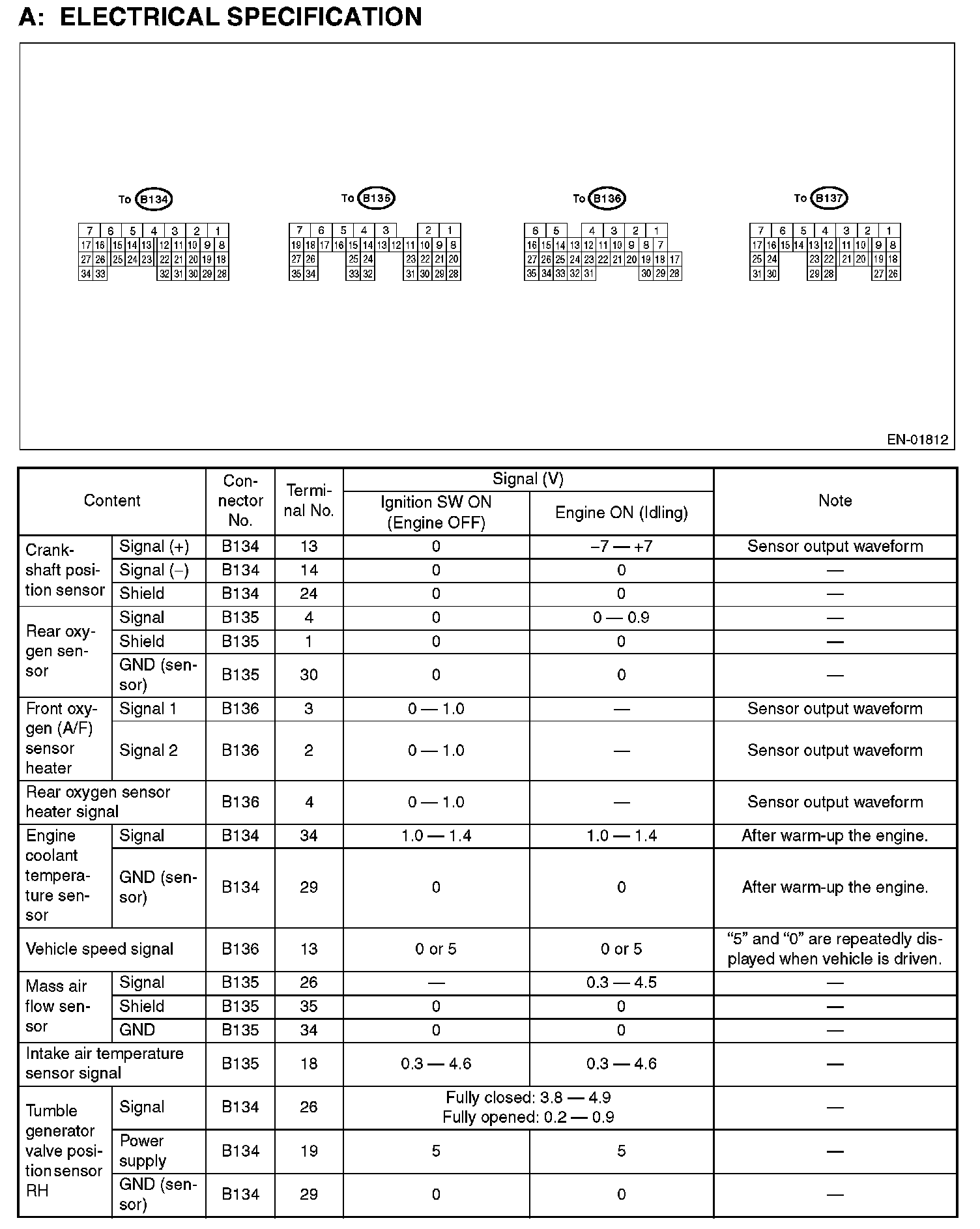

Engine Control Module (ECM) I/O Signal (Part 1):

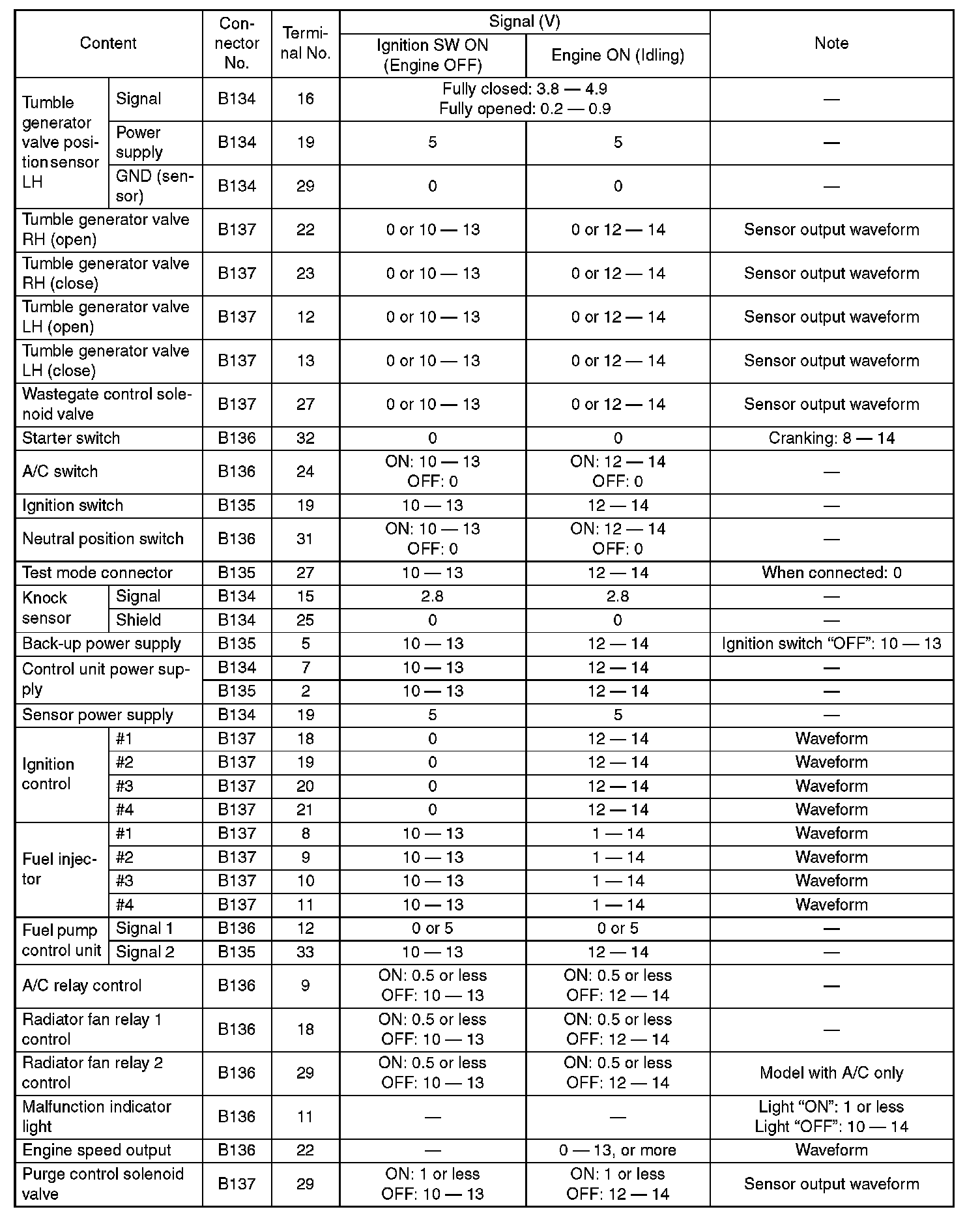

Engine Control Module (ECM) I/O Signal (Part 2):

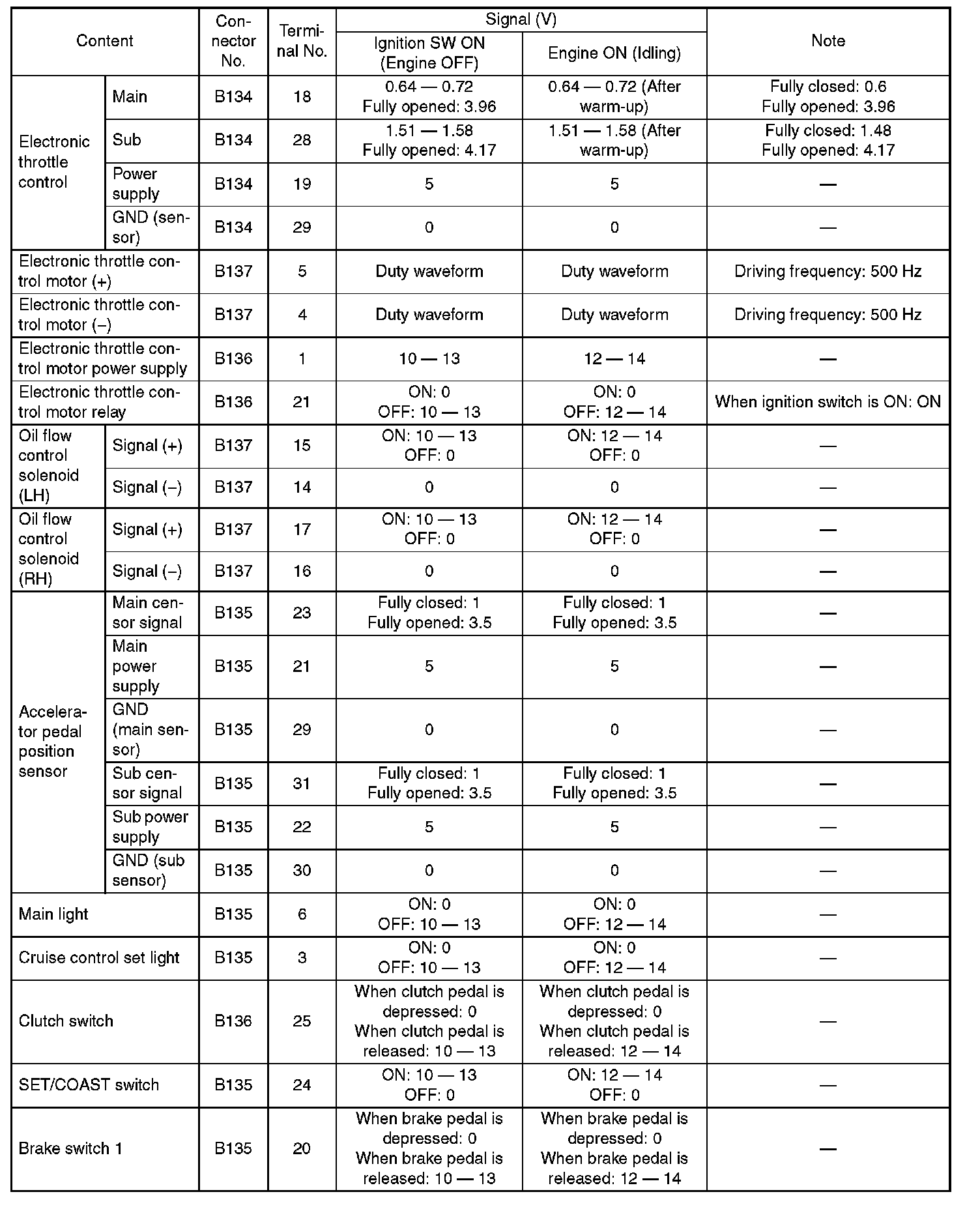

Engine Control Module (ECM) I/O Signal (Part 3):

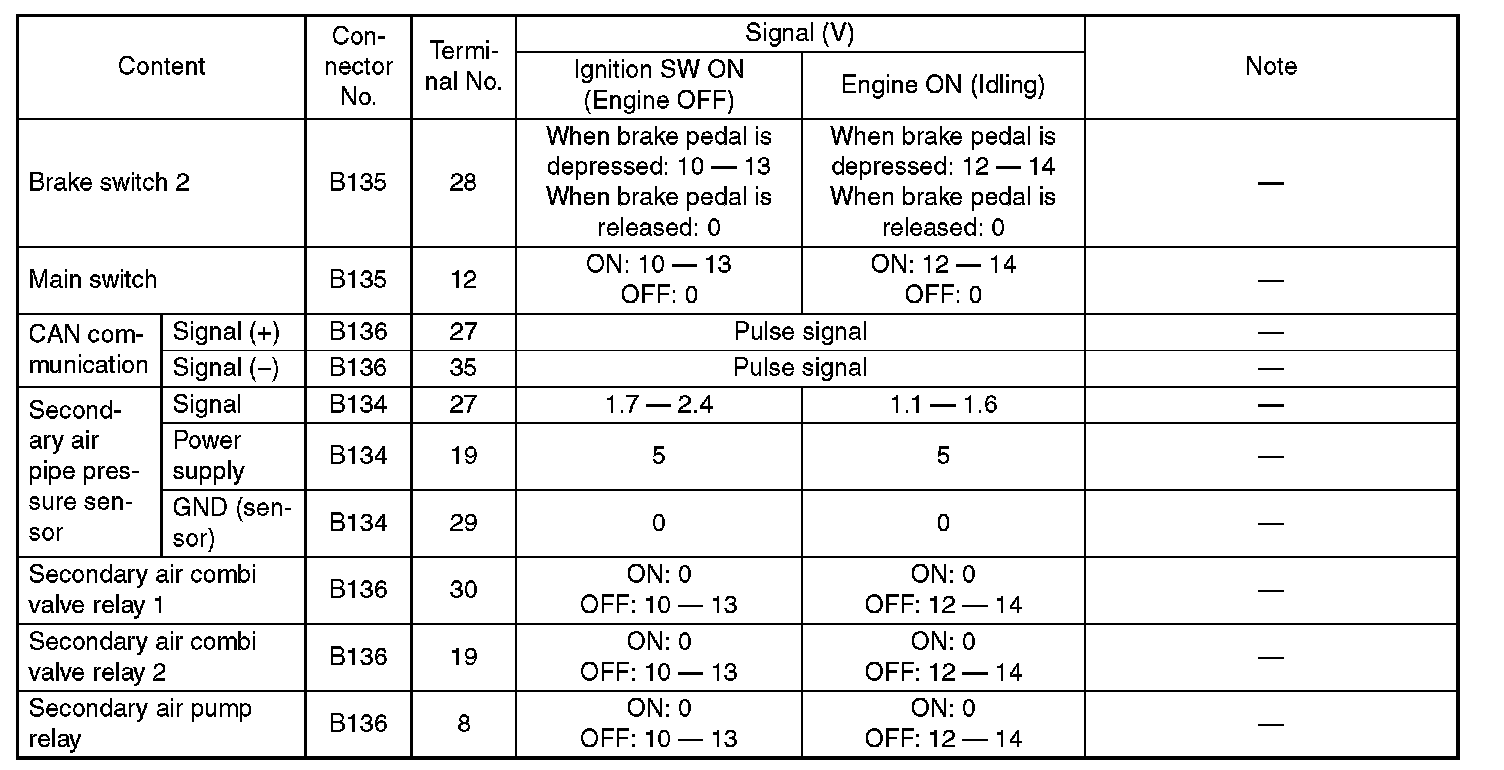

Engine Control Module (ECM) I/O Signal (Part 4):

Engine Control Module (ECM) I/O Signal (Part 5):

Engine Control Module (ECM) I/O Signal (Part 6):
