Home >> Saab >> 2005 >> 9-7X V8-5.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> Engine Control Module (ECM) C3

Engine Control Module (ECM) C3

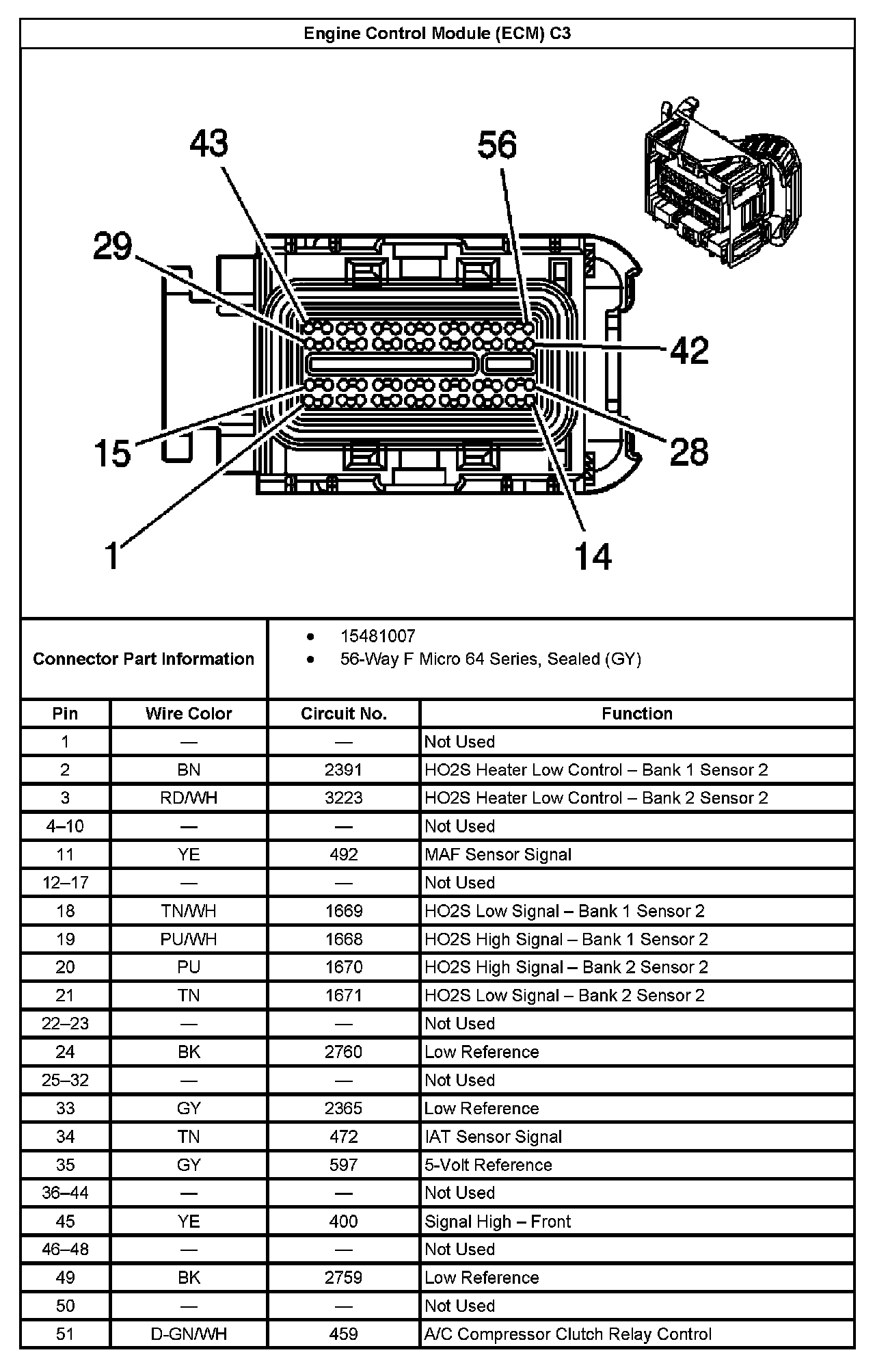

Engine Control Module (ECM) C3 Part 1:

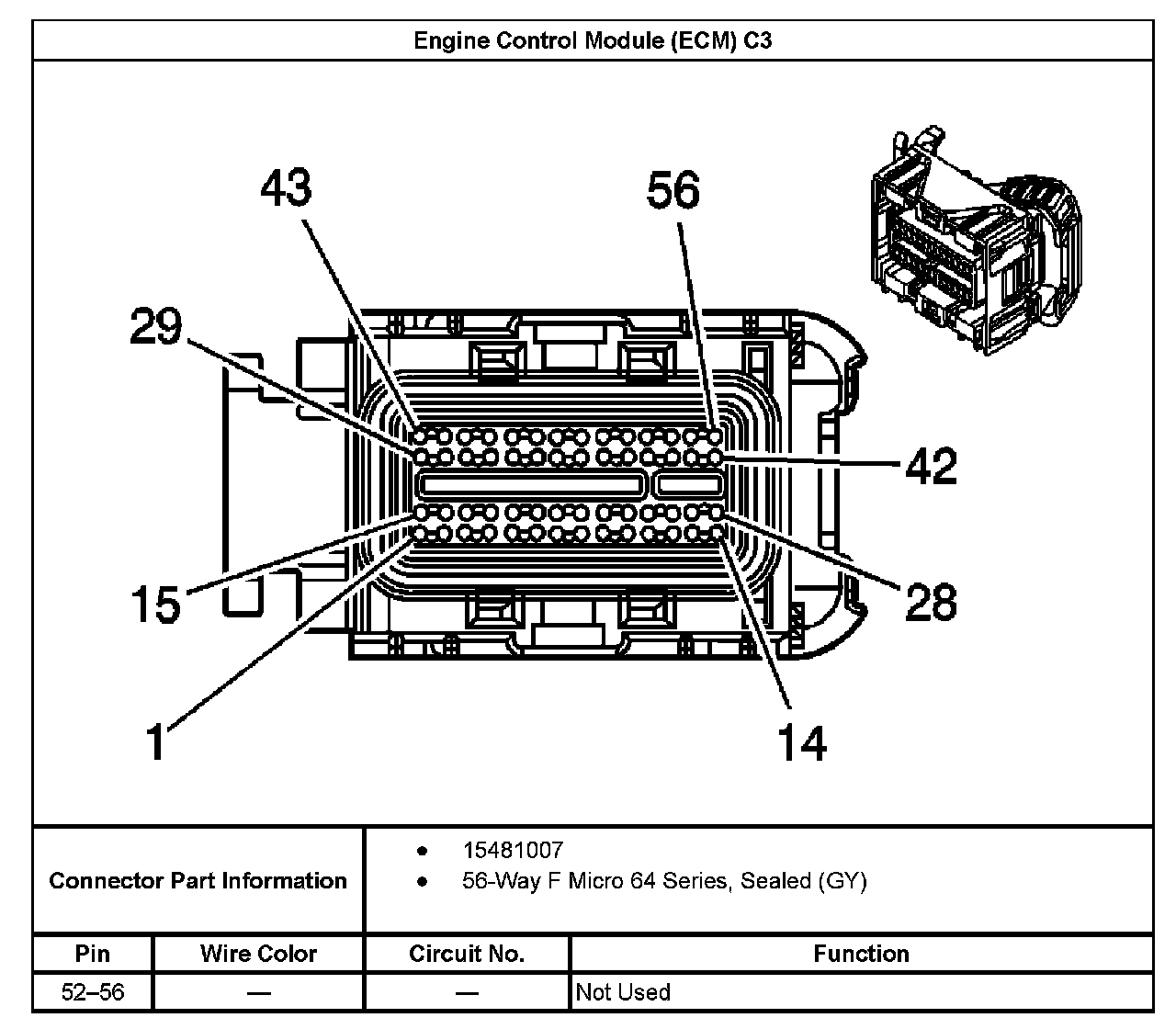

Engine Control Module (ECM) C3 Part 2:
