Door Control Module Diagrams

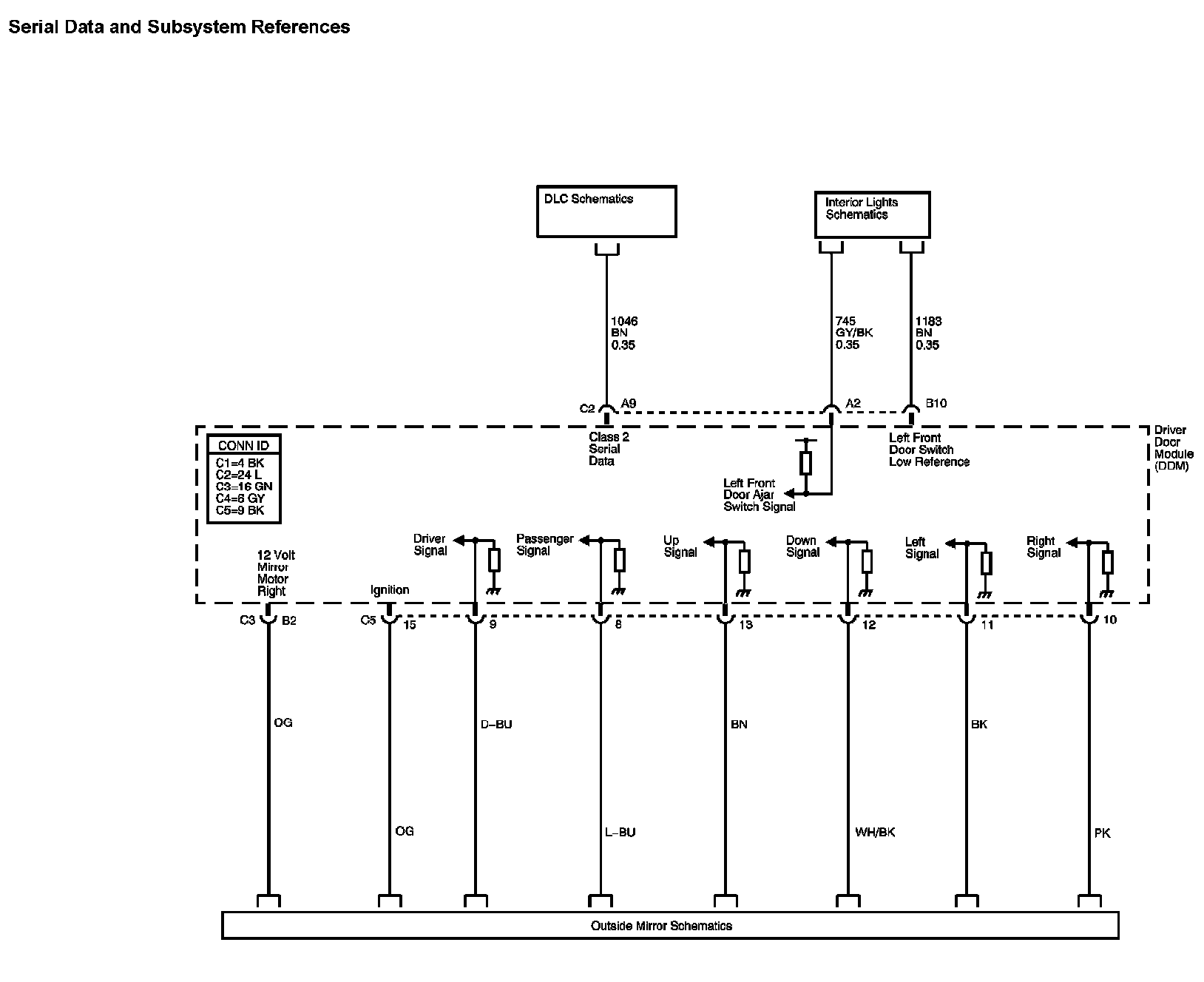

Door Control Module Diagram 1:

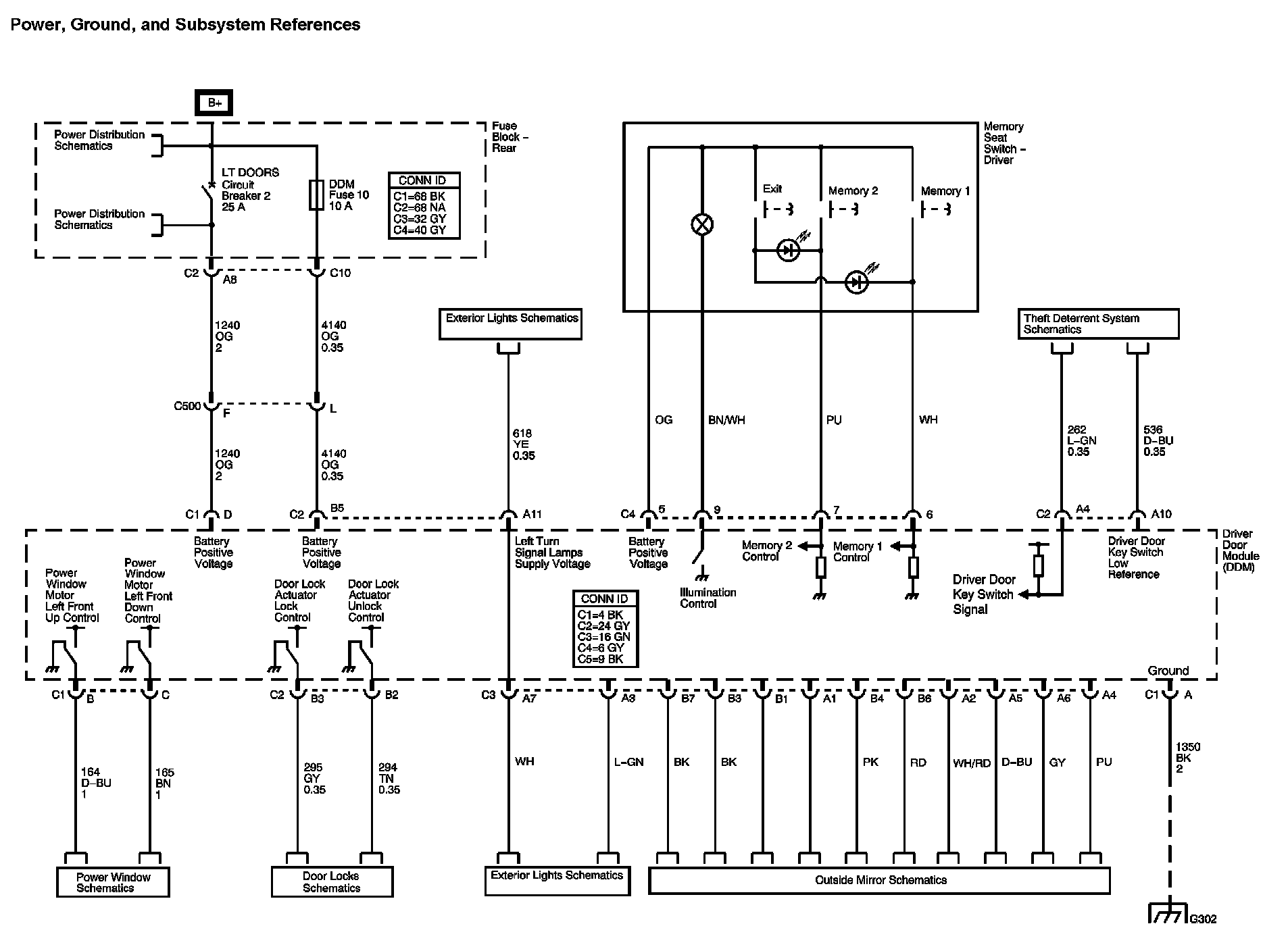

Door Control Module Diagram 2:

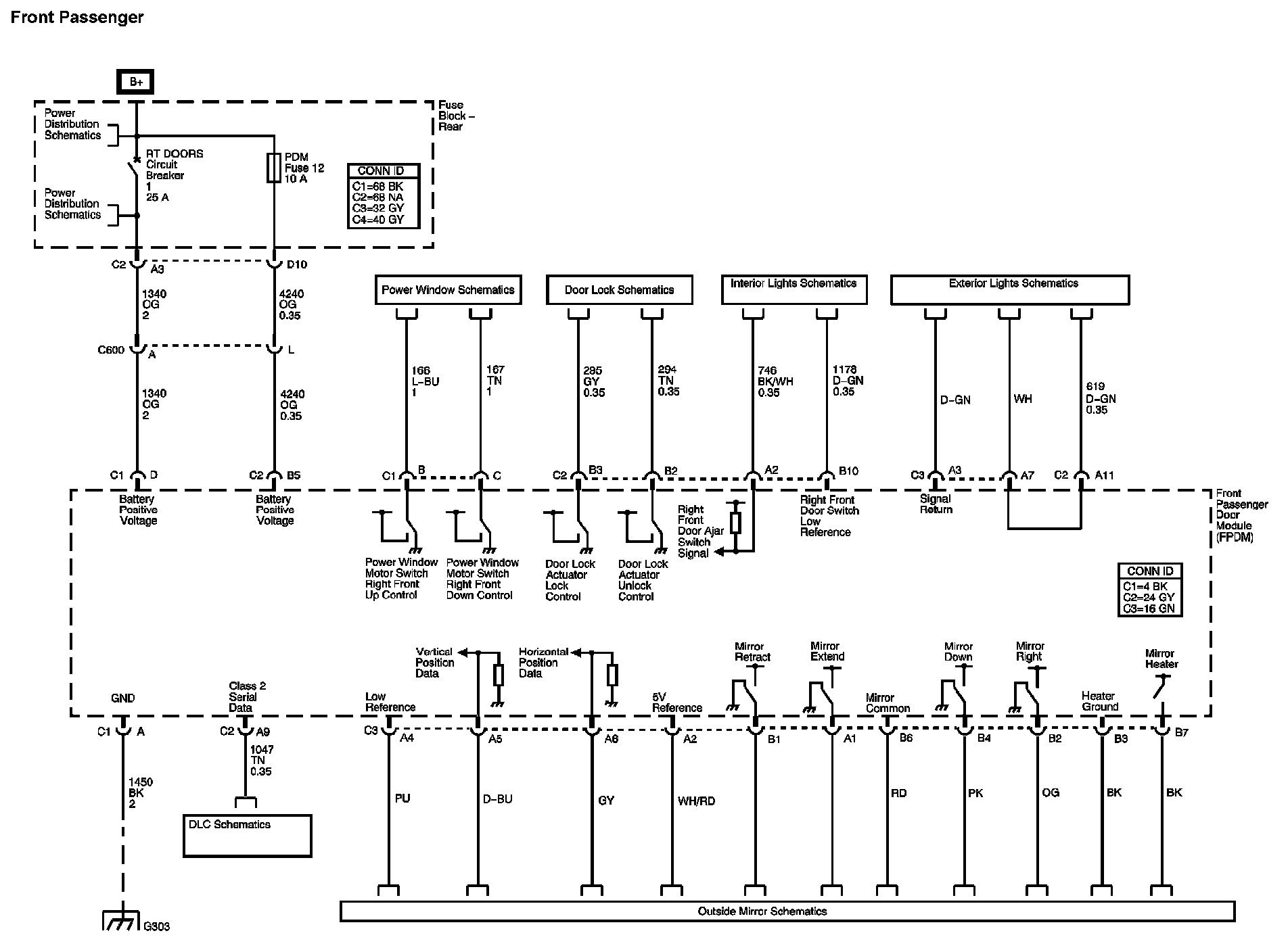

Door Control Module Diagram 3:






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
