Home >> Saab >> 2005 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Components

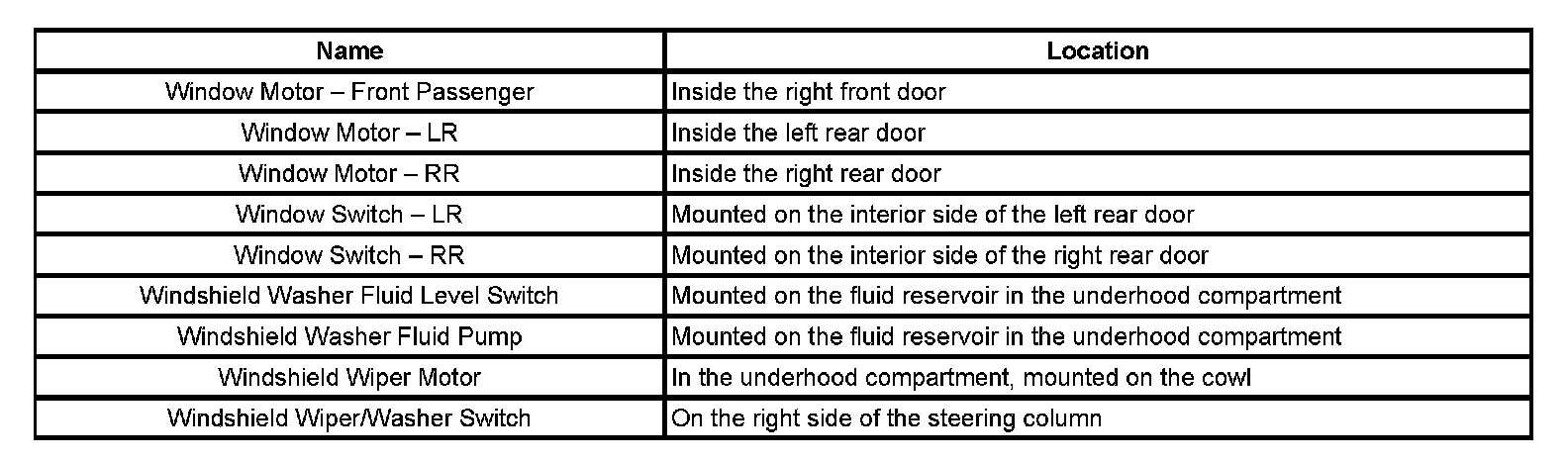

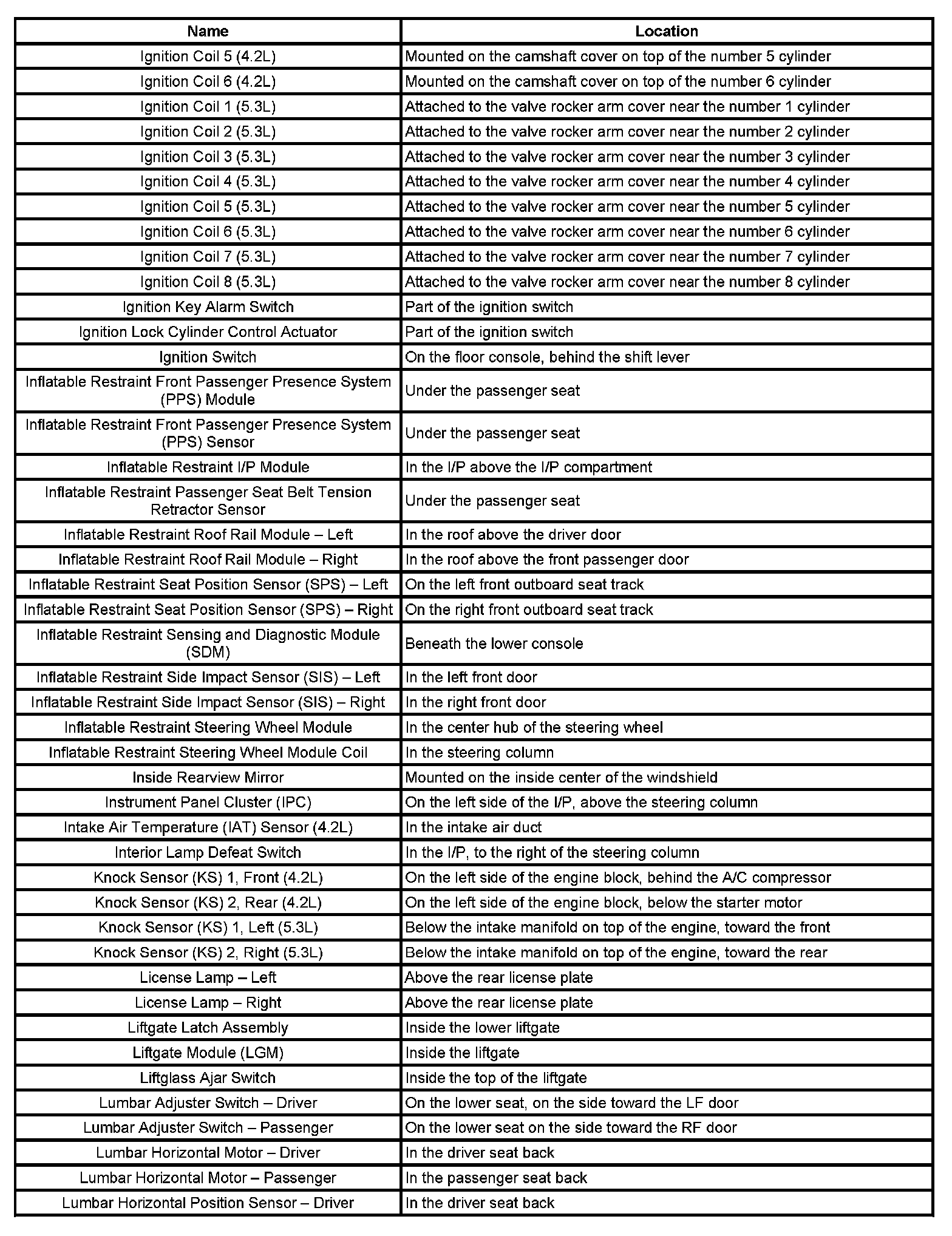

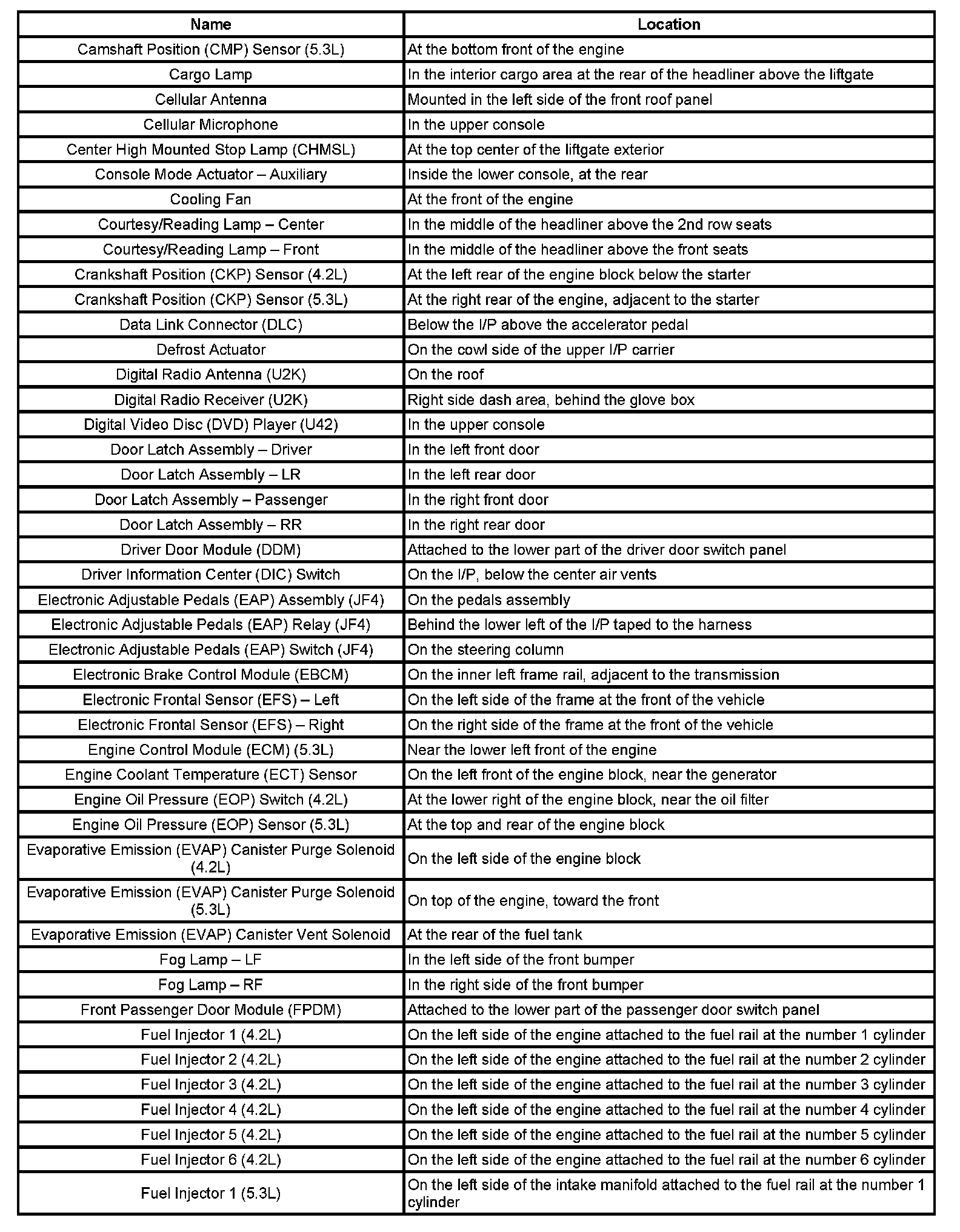

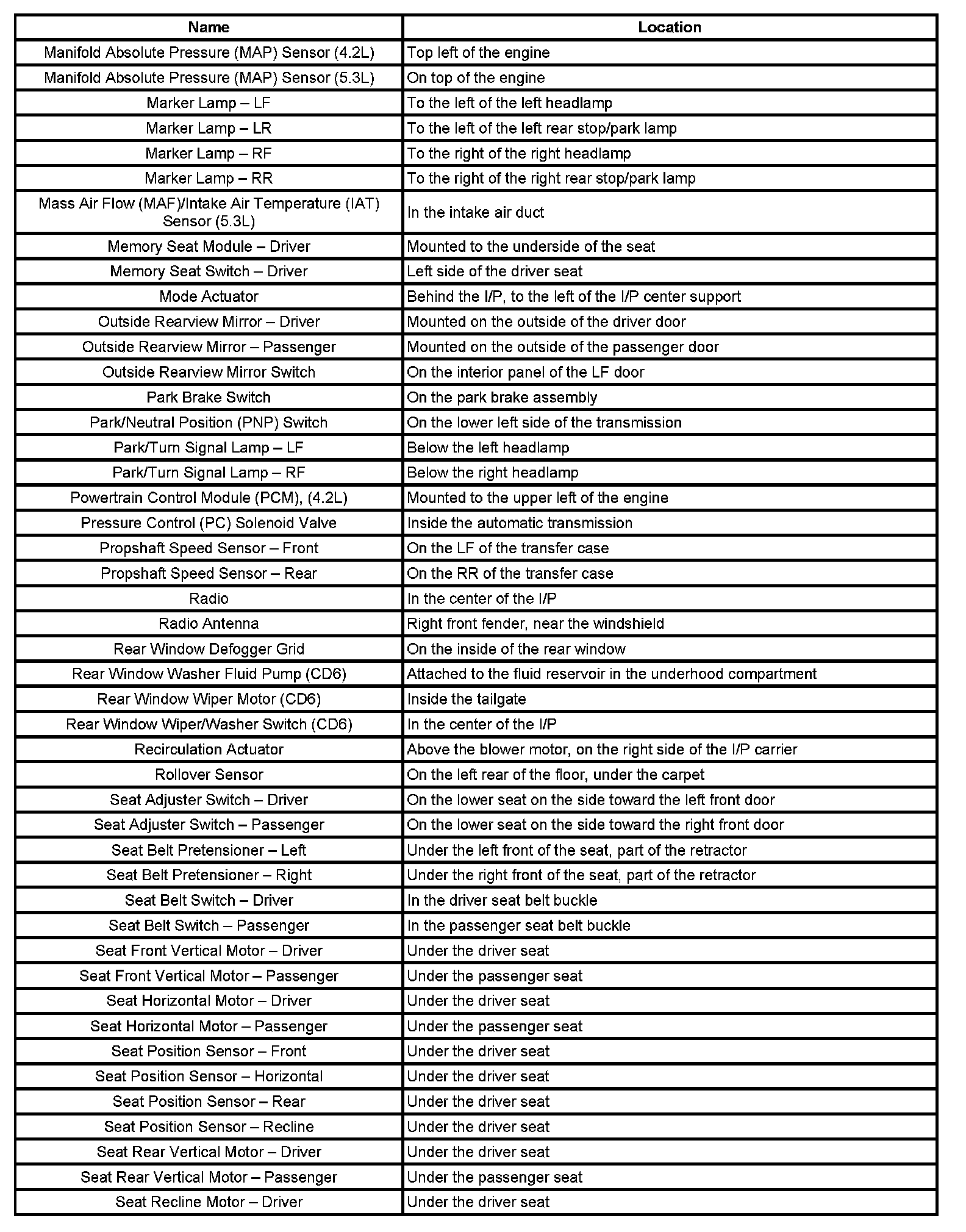

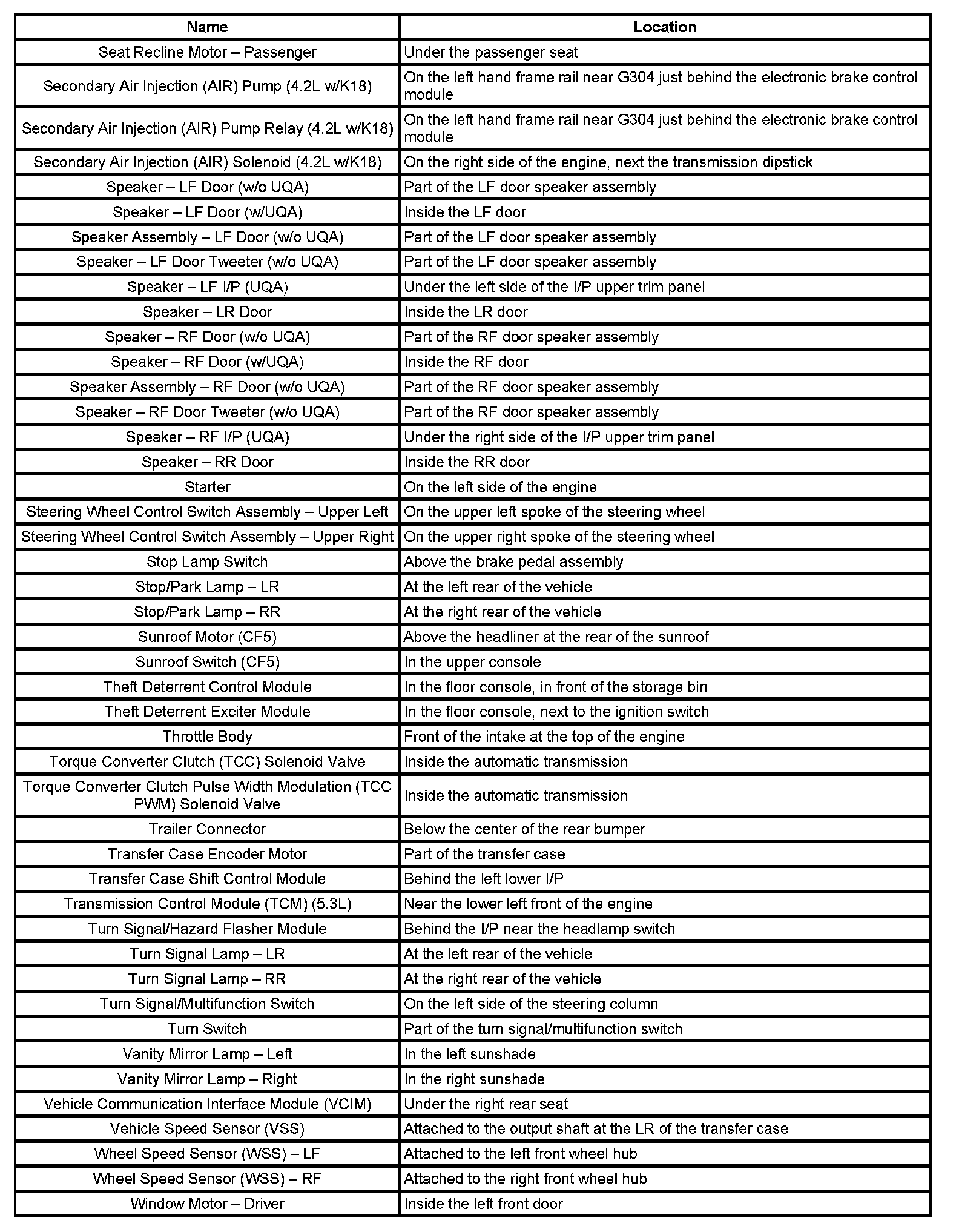

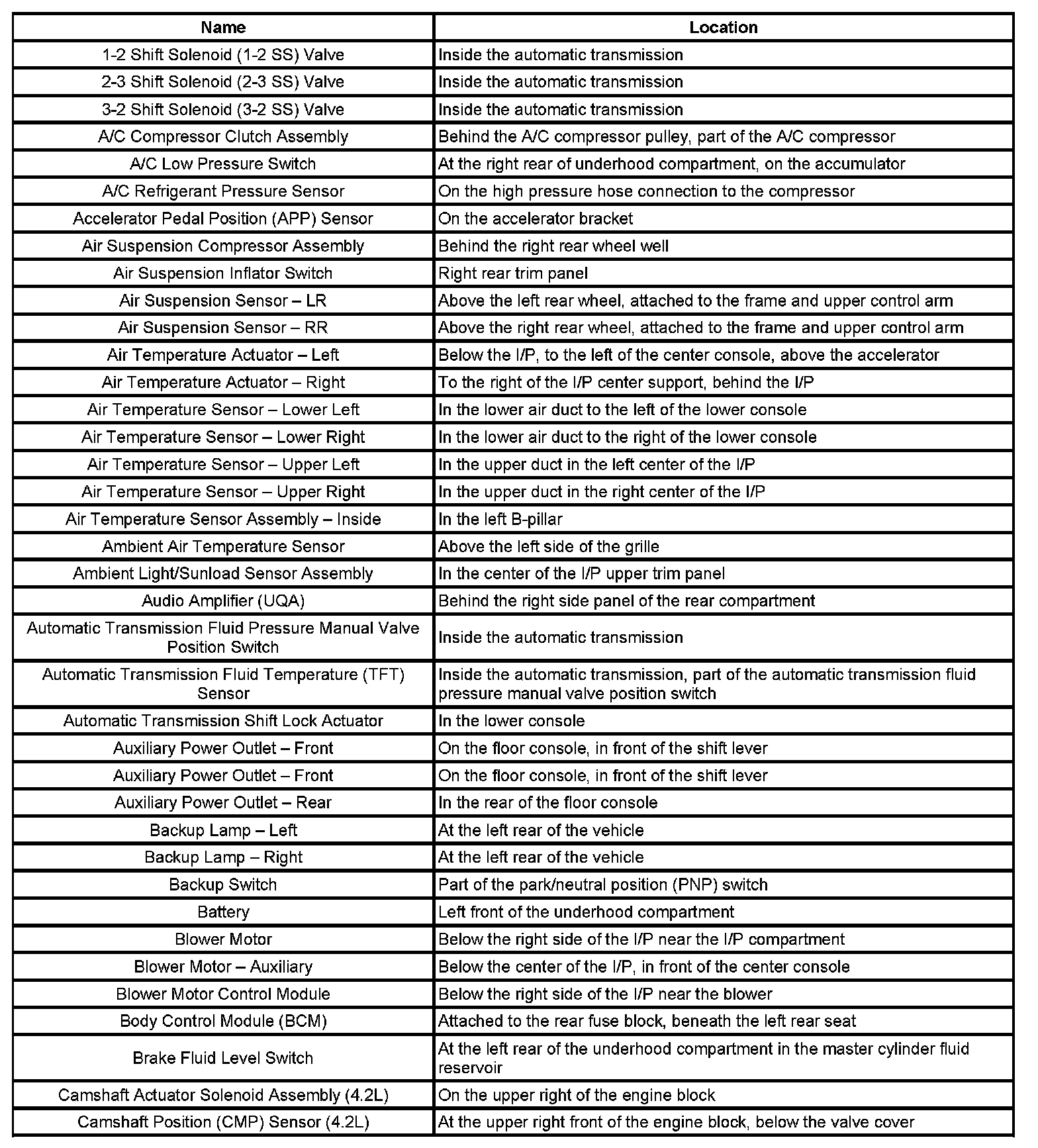

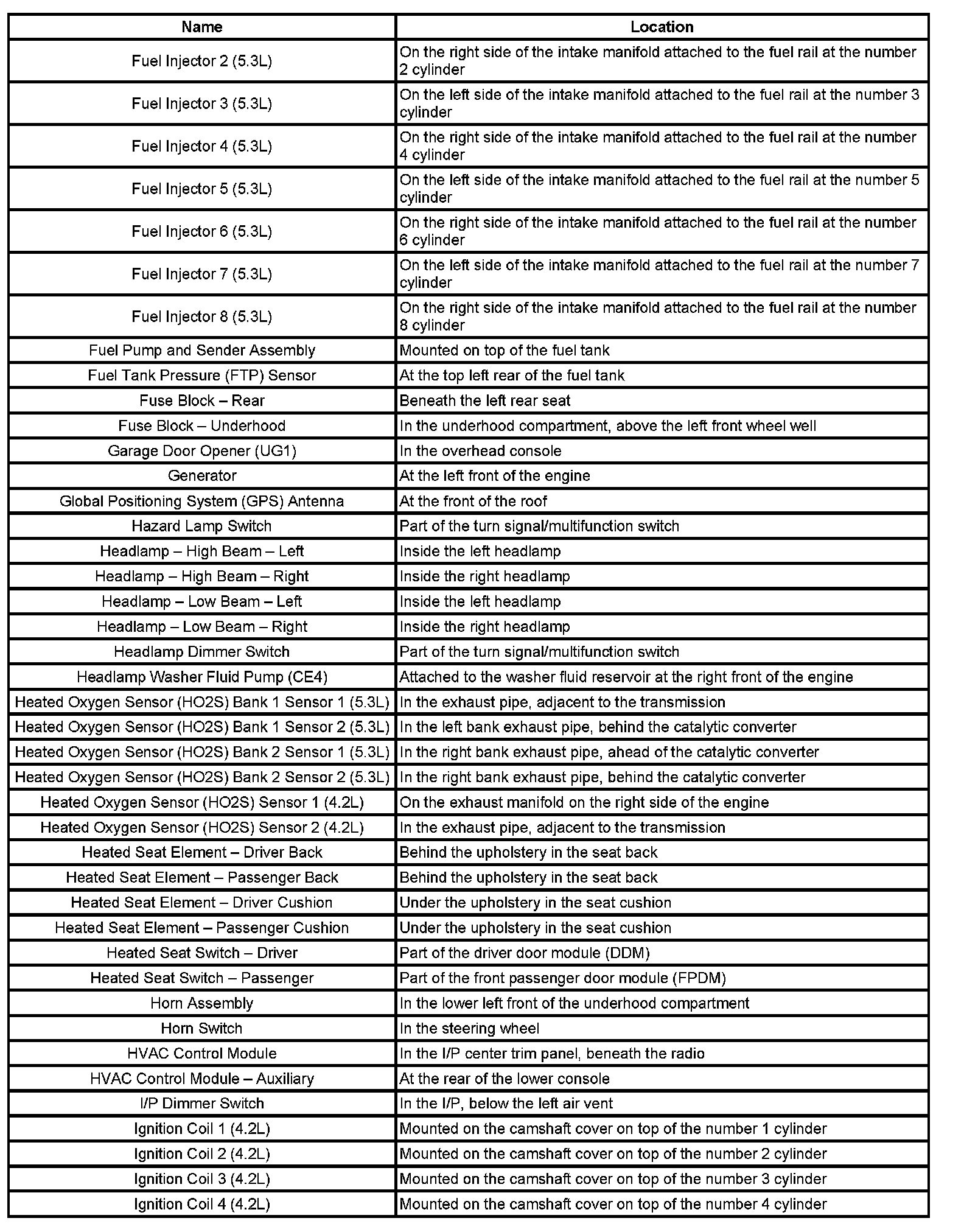

Components




A - Cam:




Cam - Fuel:




Fuel - Ign:




Ign - Lumbar:




Man - Seat:




Seat - Wind:




Wind - Z:
