Splash Guard: Service and Repair

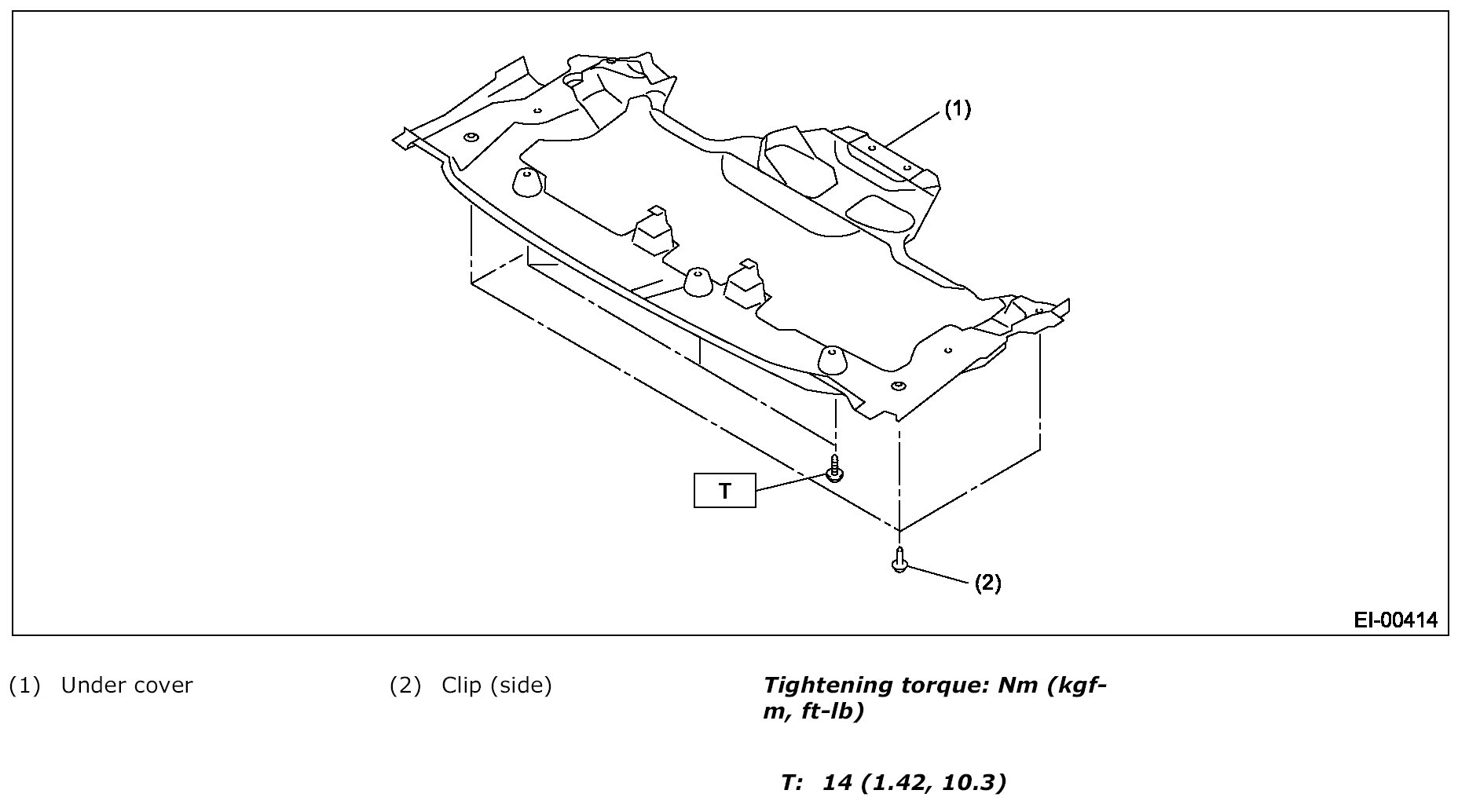

Under Cover:
REMOVAL
Lift-up the vehicle.
Remove the bolts and clips to remove under cover.
INSTALLATION
Install in the reverse order of removal.
Tightening torque: 14 Nm (1.42 kgf-m, 10.3 ft-lb)

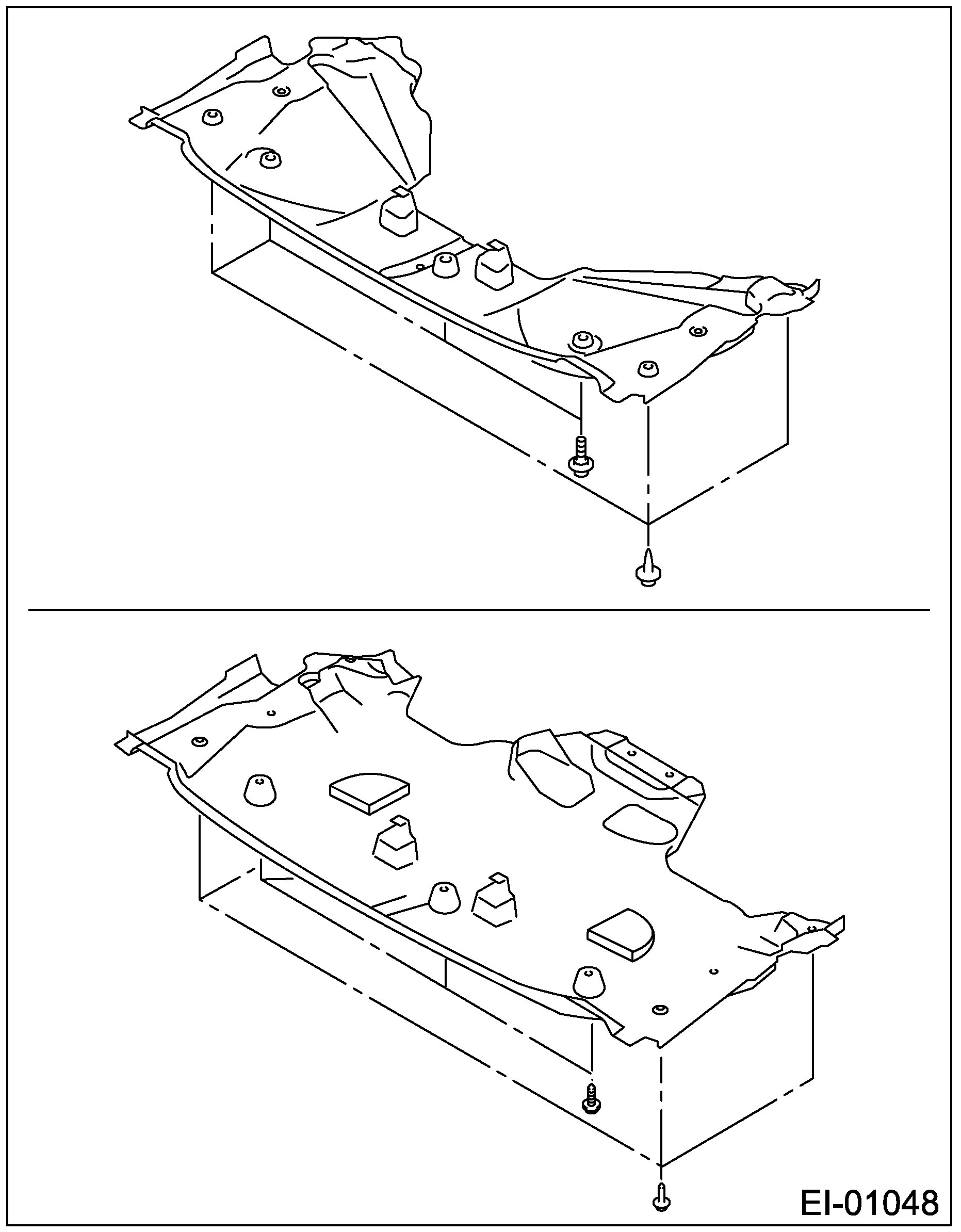

REMOVAL
Lift-up the vehicle.
Remove the bolts and clips to remove under cover.
INSTALLATION
Install in the reverse order of removal.
Tightening torque: 14 Nm (1.42 kgf-m, 10.3 ft-lb)
