Control Module Pinout Values

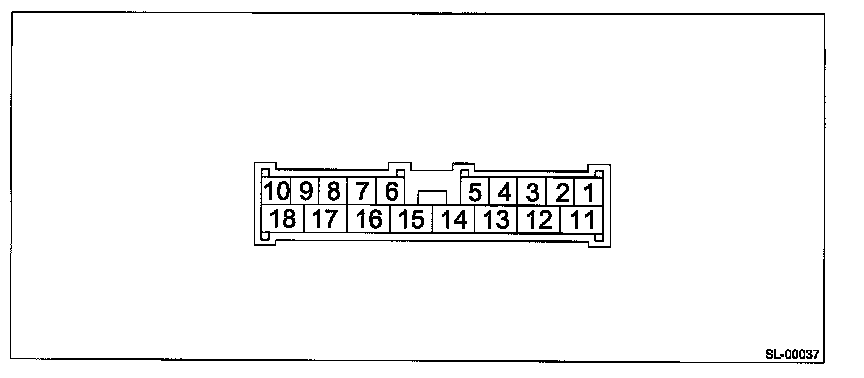

Control Module Pinout Values

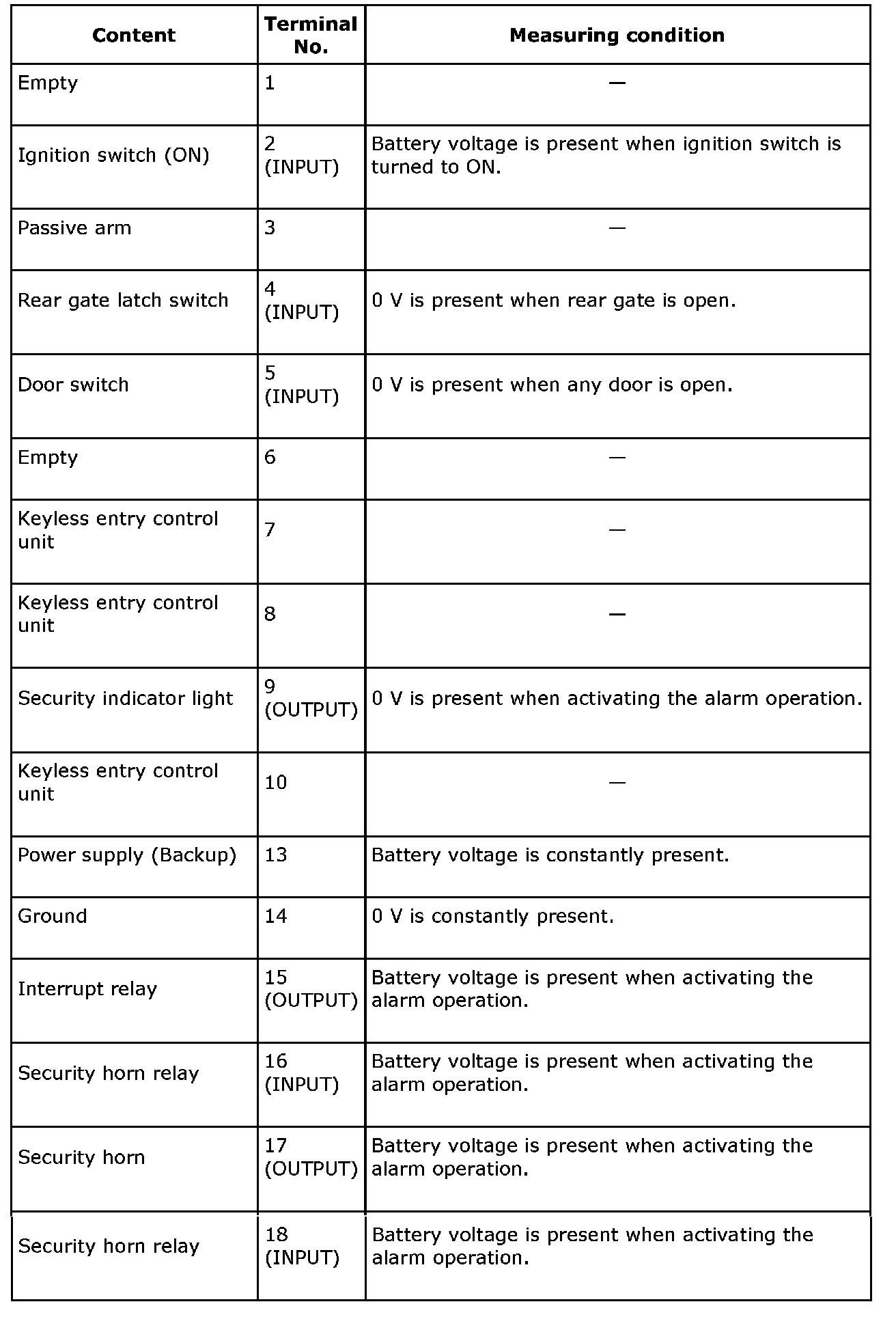

Electrical Specification Part 1:
Electrical Specification Part 2:
