System Specifications

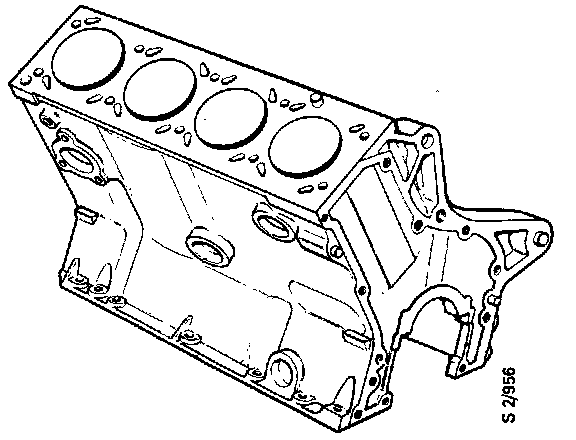

Engine Block:

Cylinder Block Bores:
Standard (A) - 90.00 - 90.010 mm (3.5433 - 3.5437 in)
Standard (B) - 90.01 - 90.020 mm (3.5437 - 3.5441 in)
B+ oversize - 90.02 - 90.030 mm (3.5441 - 3.5444 in)
First oversize - 90.50 - 90.512 mm (3.5629 - 3.5634 in)
Second oversize - 91.00 - 91.012 mm (3.5826 - 3.5831 in)
