Timing Component Alignment Marks: Locations

Timing Component Alignment Marks

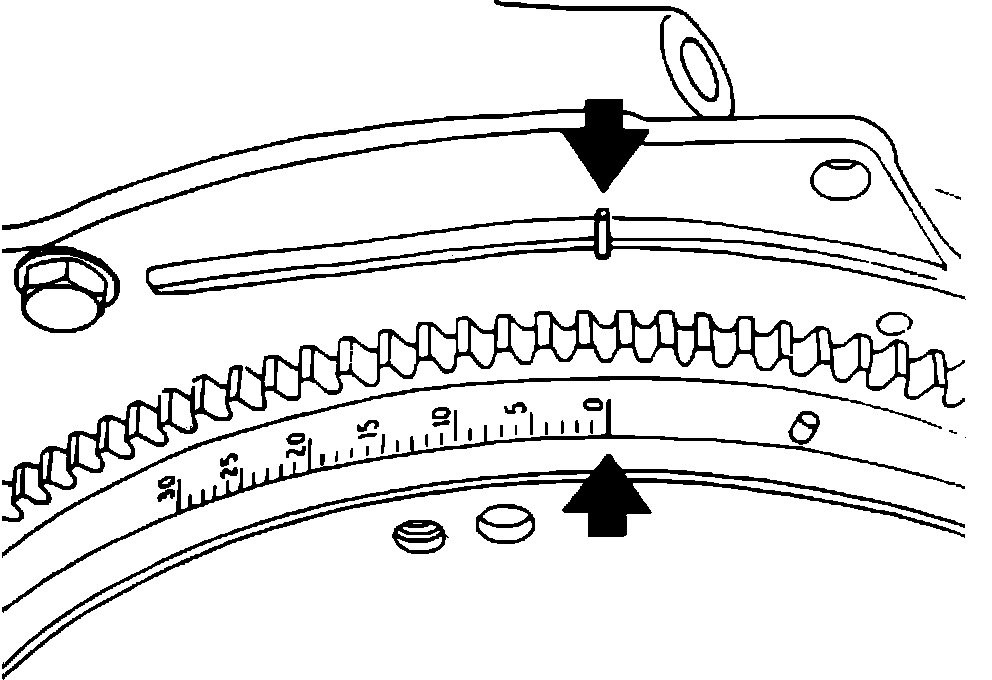

Flywheel Timing Marks-Bellhousing Removed:

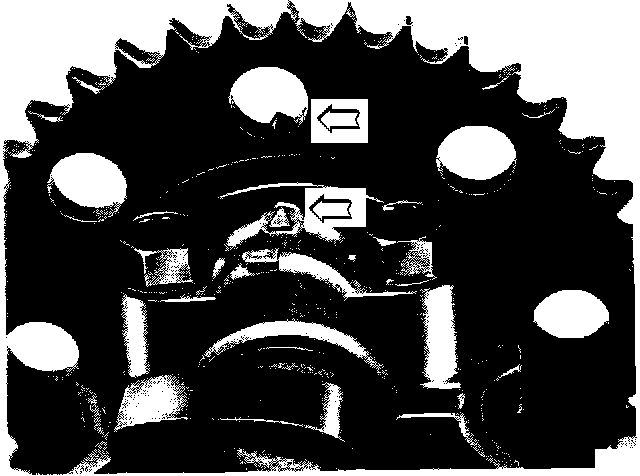

Camshaft Timing Mark:

Rotate engine until (0) mark on flywheel is aligned with pointer and marks are aligned with camshaft sprocket.

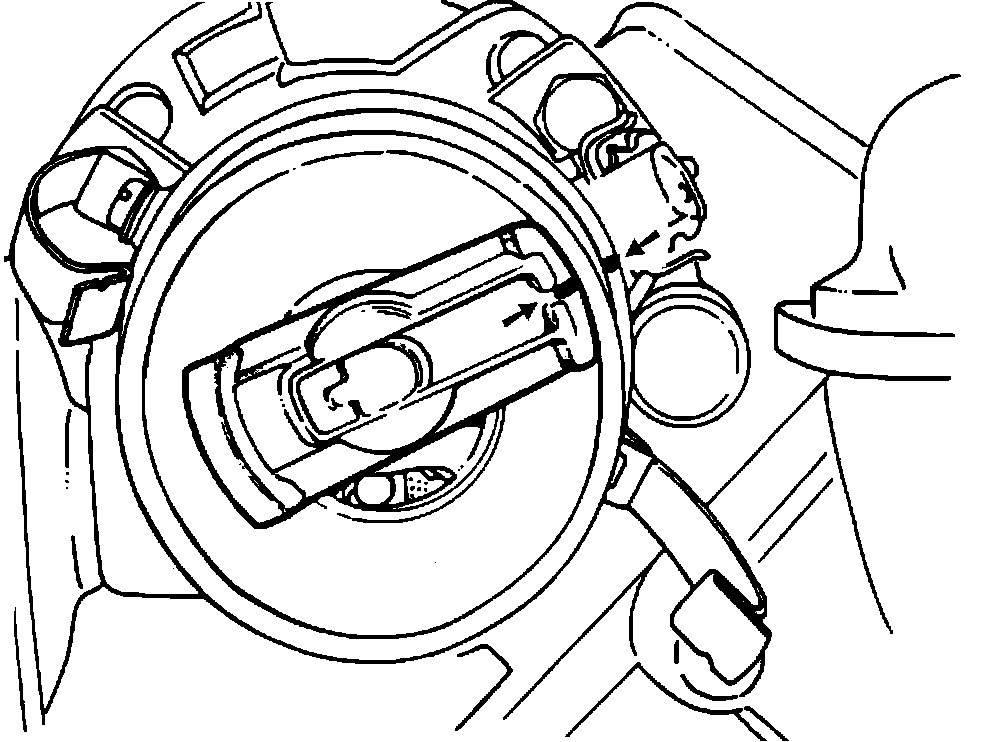

Distributor Alignment:

Distributor rotor should be aligned with mark on housing.

For further information refer to Timing Chain : Service and Repair Timing Chain
