Engine Torque Specifications

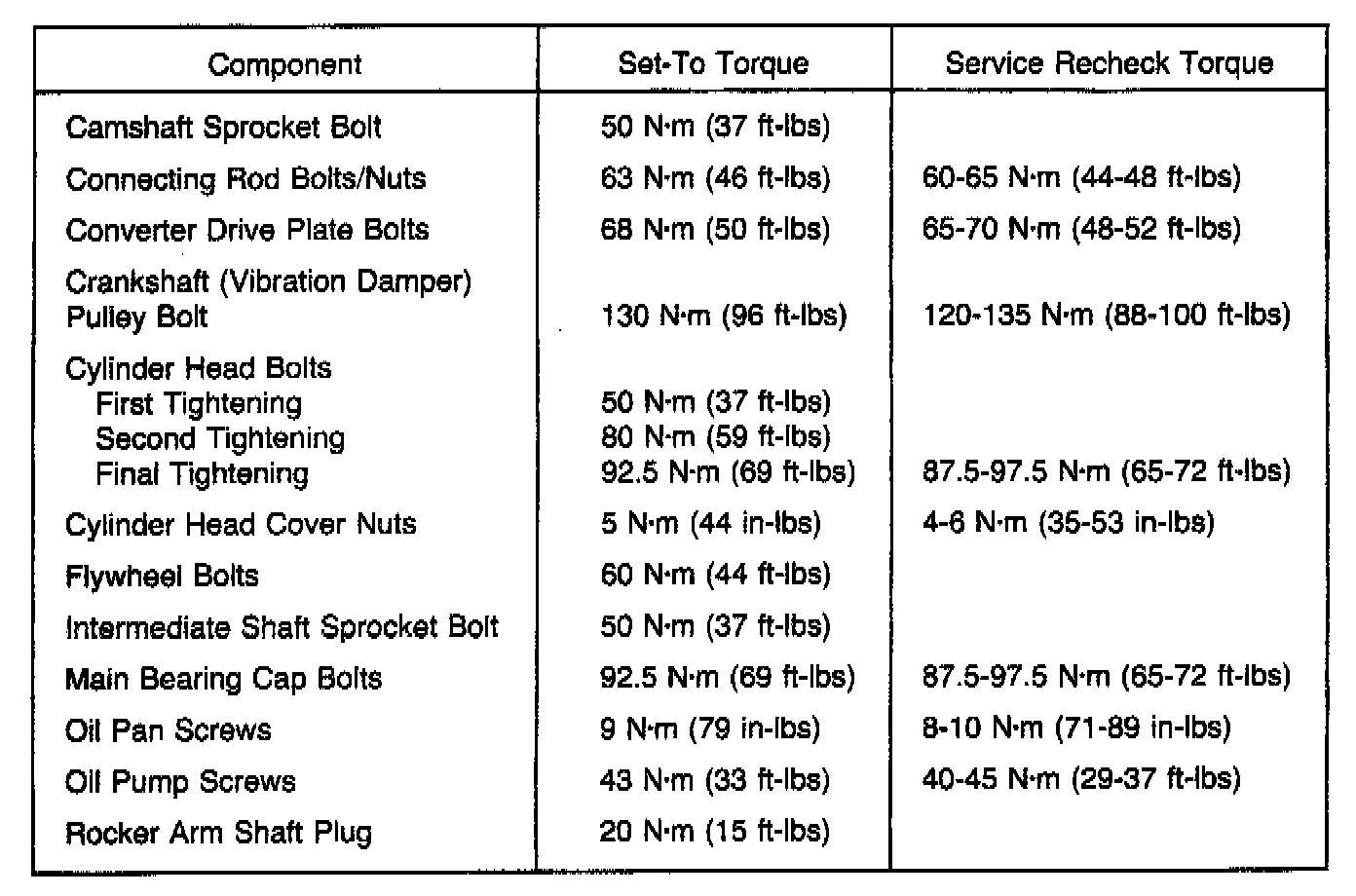

Engine Tightening Specification





Cylinder Head Tightening Specification

Fig. 5 Cylinder head tightening sequence:

Torque to 37 ft.lbs. following sequence shown in Fig. 5.

Torque to 59 ft.lbs. following sequence shown in Fig. 5.

Loosen head bolts 1/2 turn, then torque to 68 ft.lbs. following sequence shown in Fig. 5.
