Bosch LU Electronic Fuel Injection
Bosch LU Electronic Fuel Injection

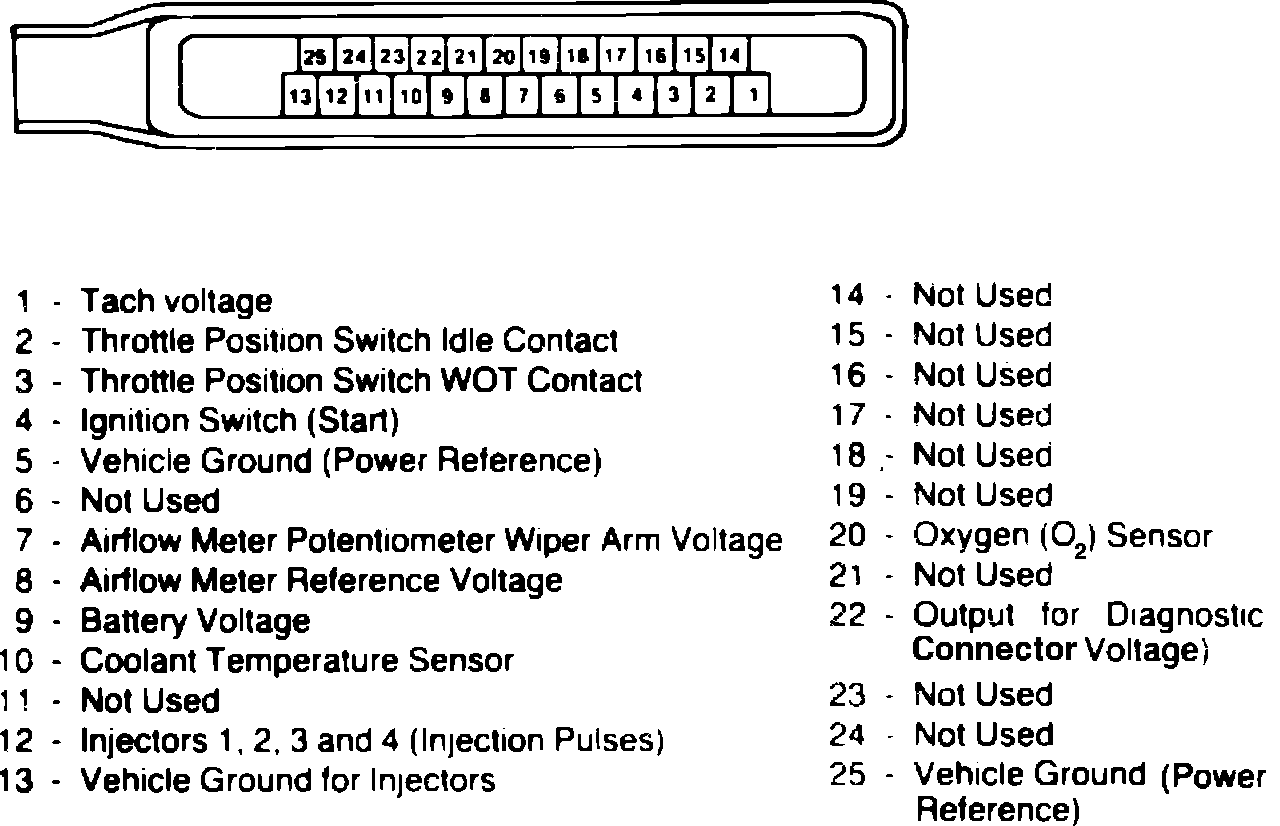

Fig. 8 Electronic control unit connector:
