Throttle Position Sensor: Service and Repair

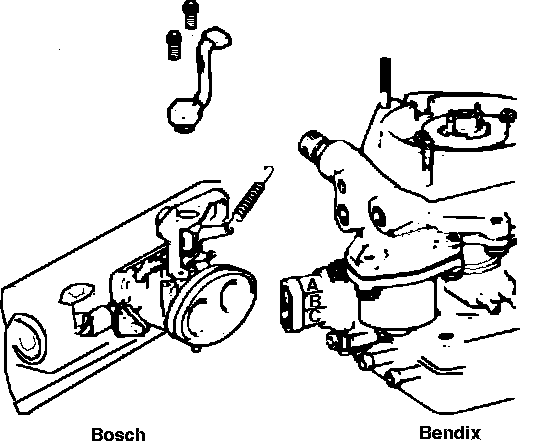

Fig. 6 Load potentiometer installation:

1. Remove air cleaner, as needed, and disconnect electrical connector between potentiometer and computer.
2. Remove 2 retaining screws and the potentiometer, Fig. 6
3. Reverse procedure to install and adjust potentiometer as outlined in ``Checks And Adjustments.''
