Fuel Level Sensor: Diagrams

Tank System - Sheet 18

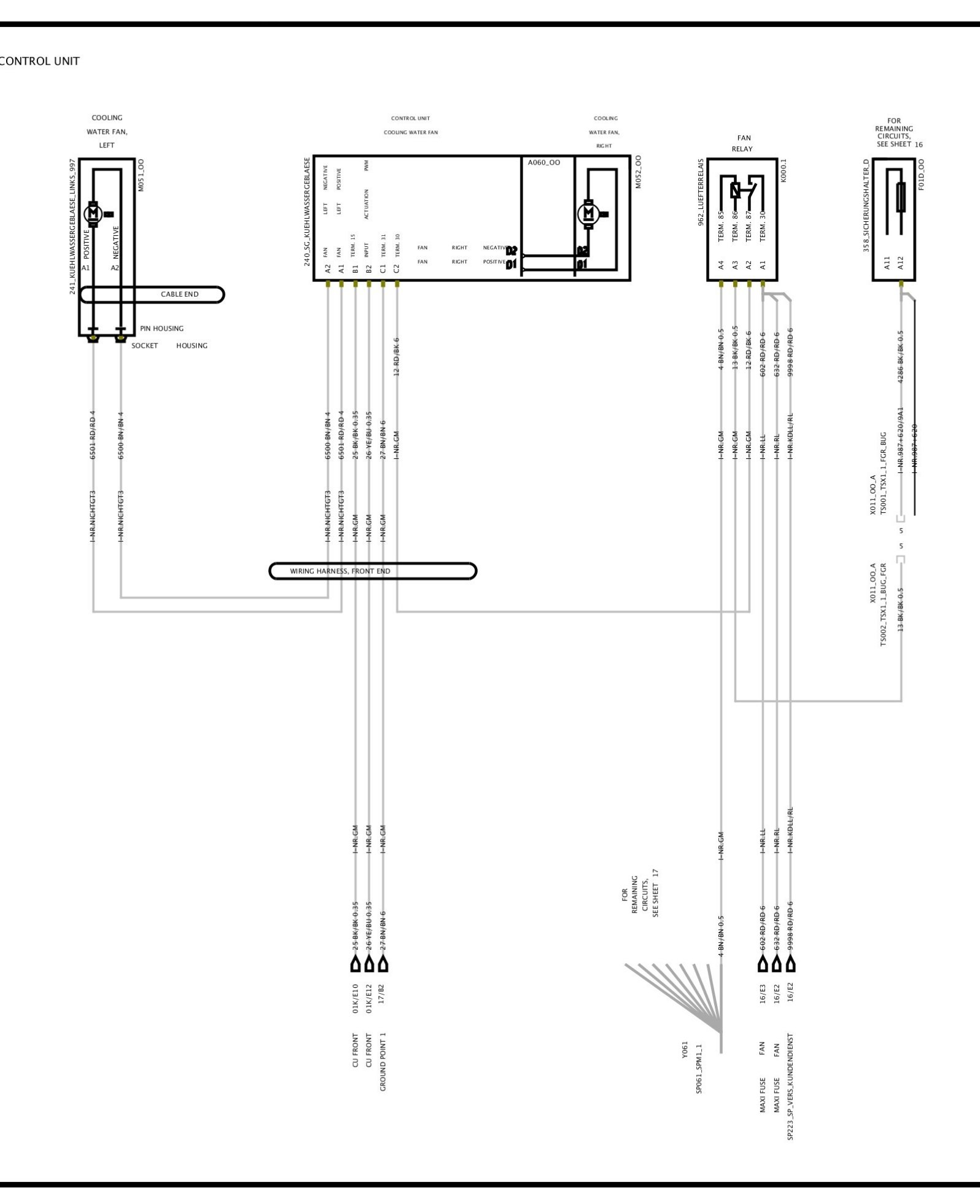

Tank System - Sheet 18 (Part 1):

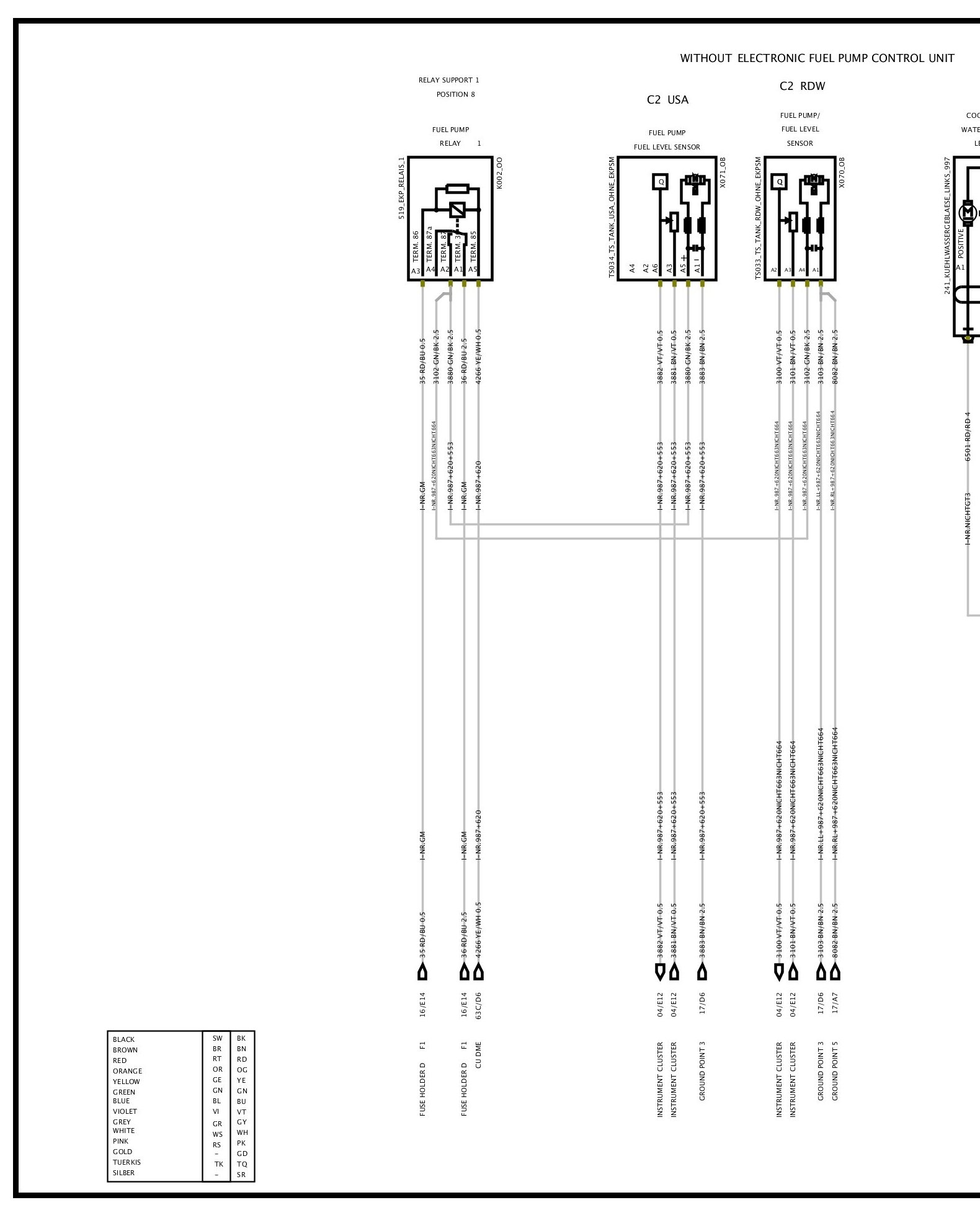

Tank System - Sheet 18 (Part 2):

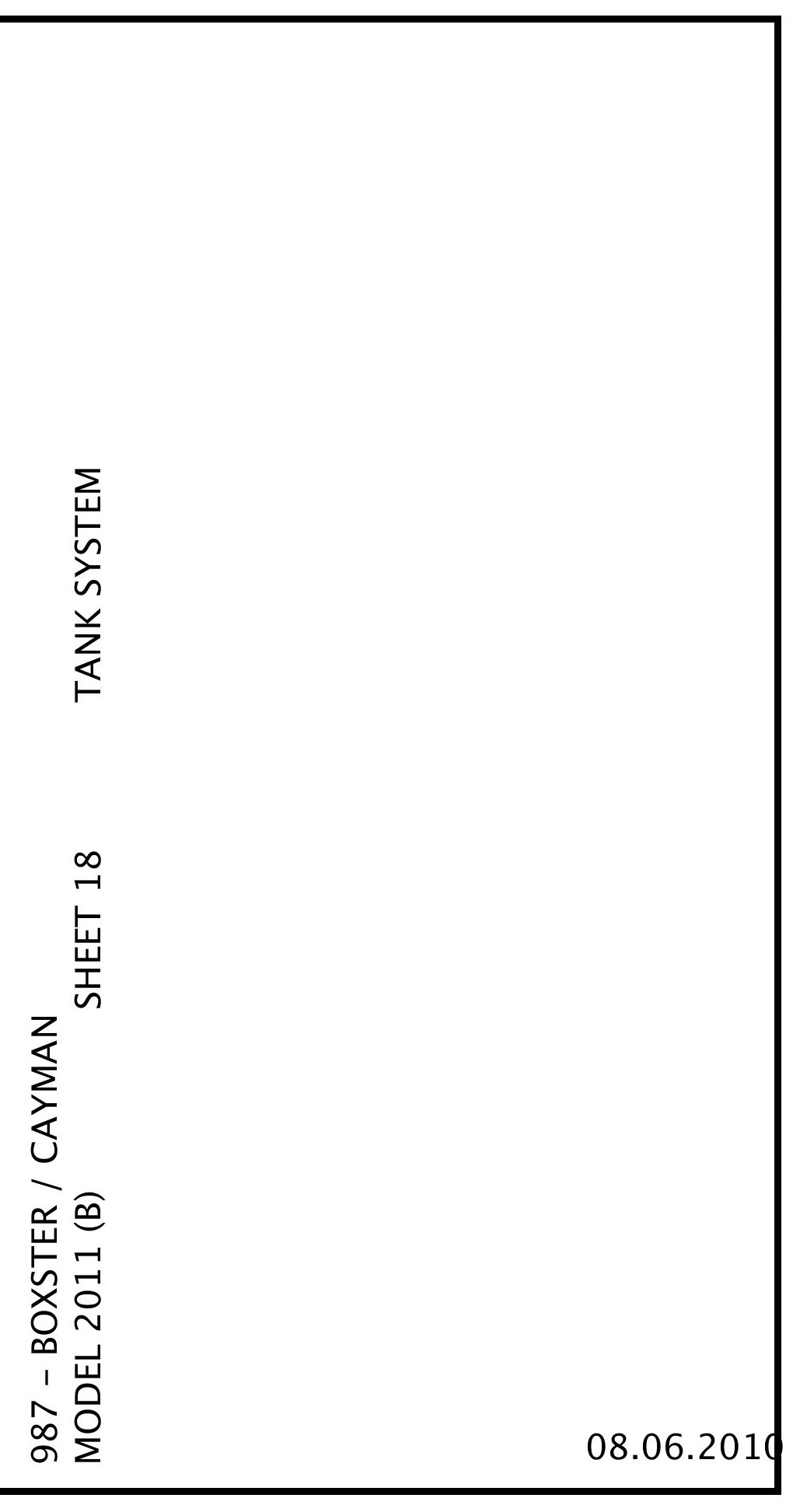

Tank System - Sheet 18 (Part 3):

Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
