Engine Temperature Sensor: Locations

ENGINE TEMPERATURE SENSOR

Engine Temperature Sensor:

Front Of Engine:

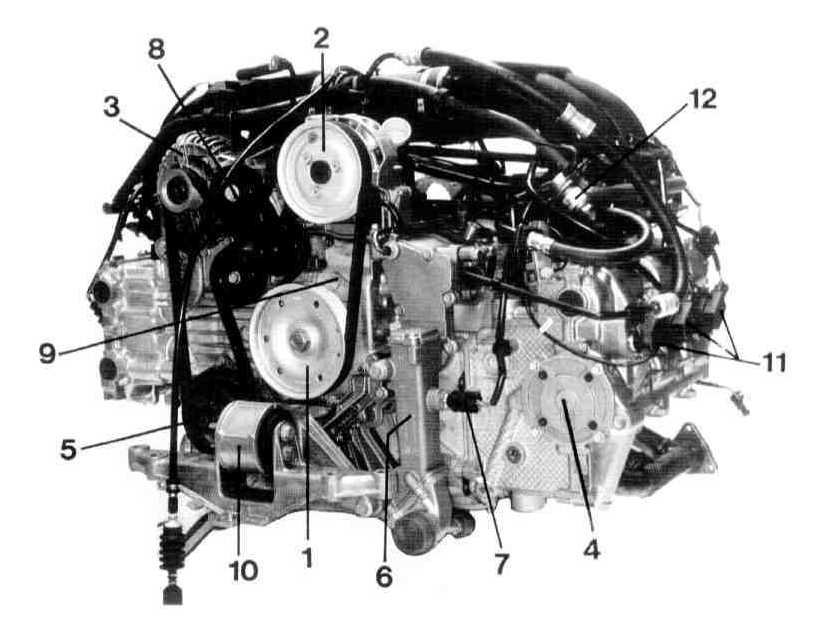

Image Legend:
1 Belt pulley
2 Power steering pump
3 Alternator
4 Oil return pump for cyl. head line 4-6
5 Coolant pump
6 Coolant duct case
7 Engine temperature sensor
8 Belt tensioner
9 TDC mark
10 Front engine mount
11 Ignition coils
12 Pressure regulator

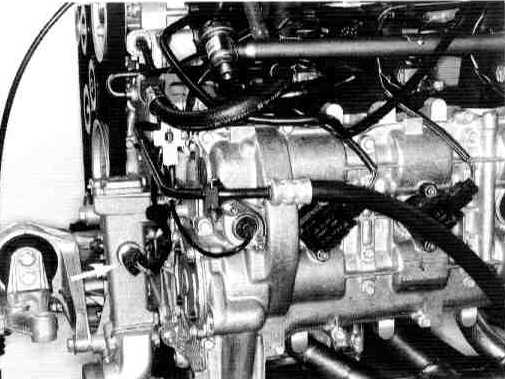

The engine temperature sensor is bolted into the coolant duct housing.
