Home >> Porsche >> 1985 >> 944 L4-2479cc 2.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

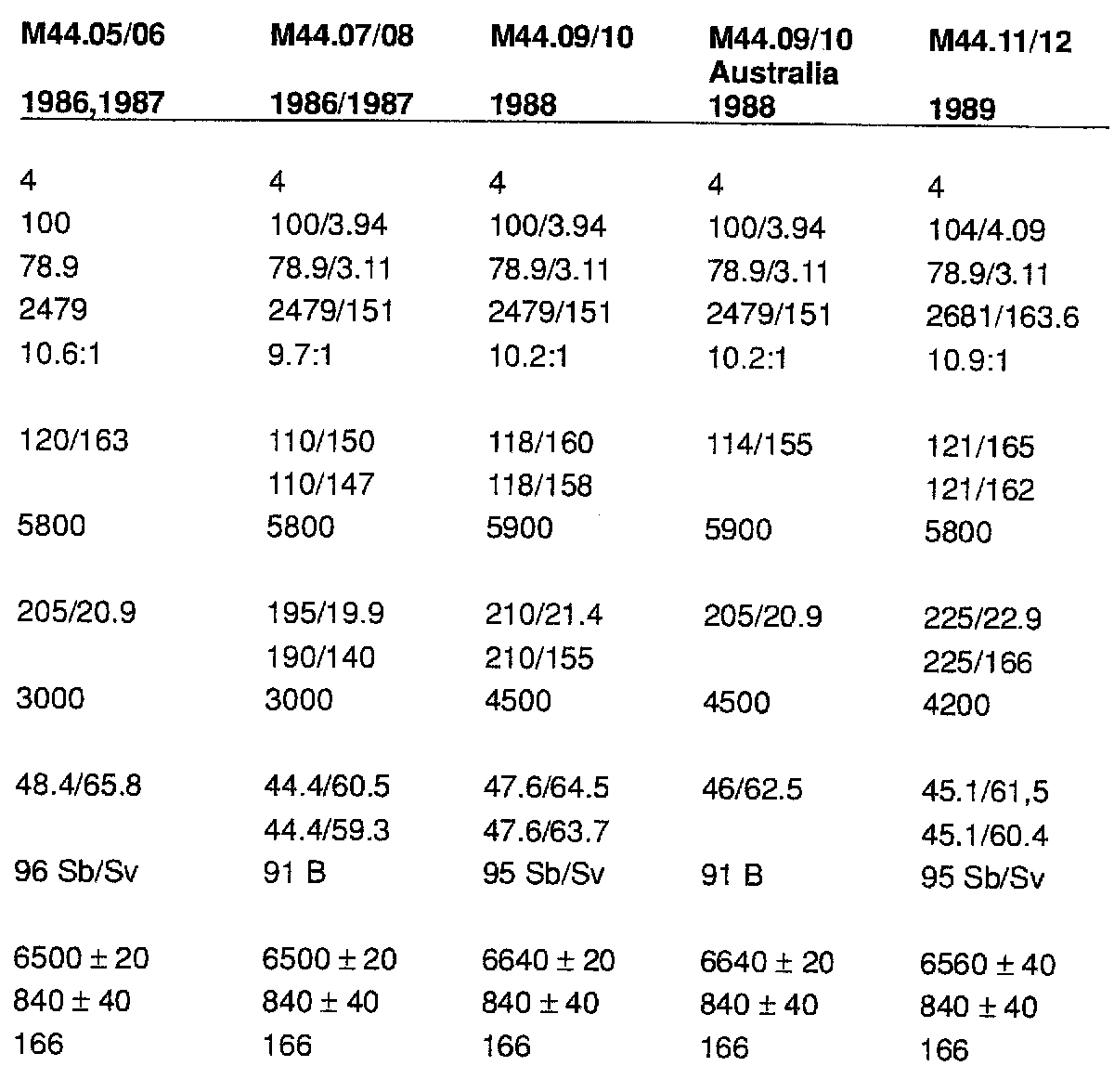

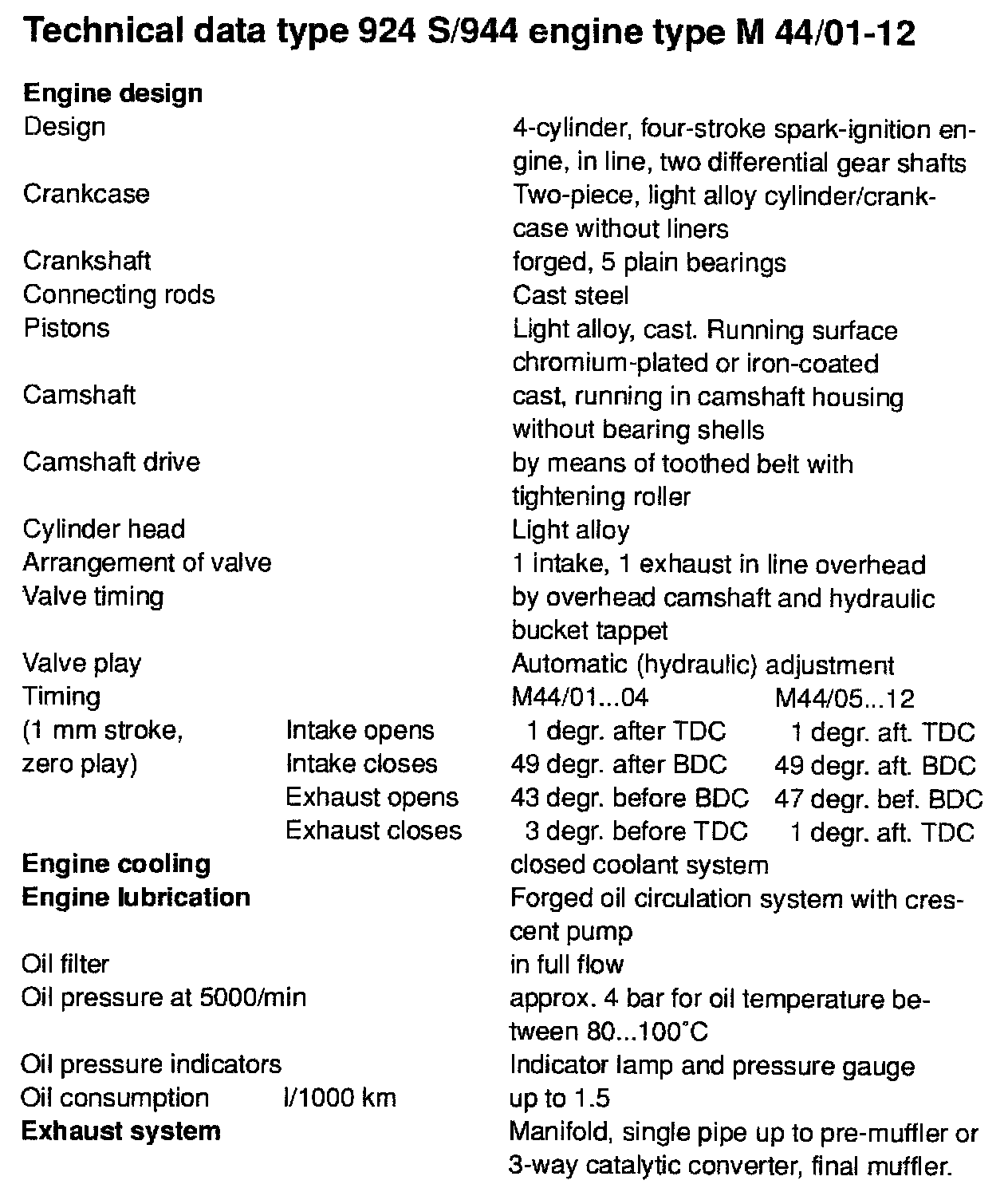

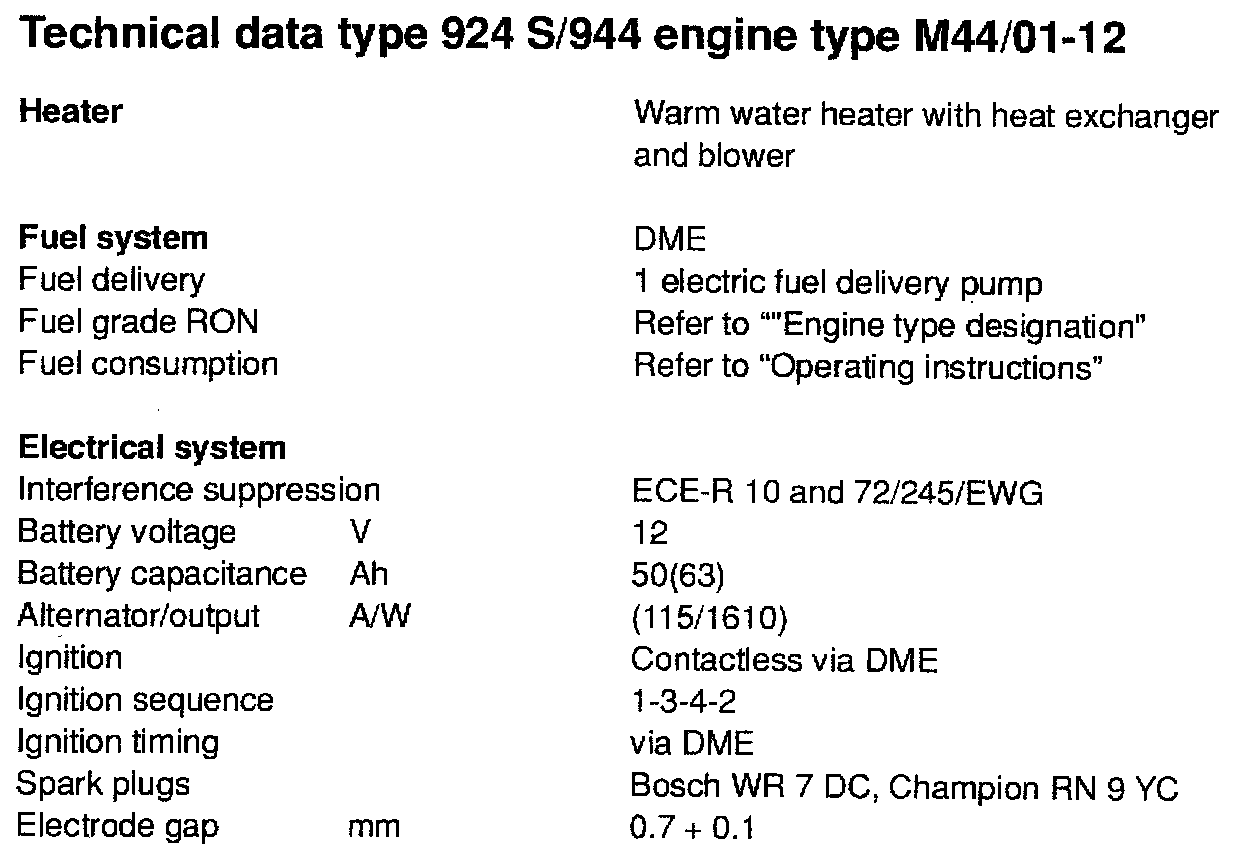

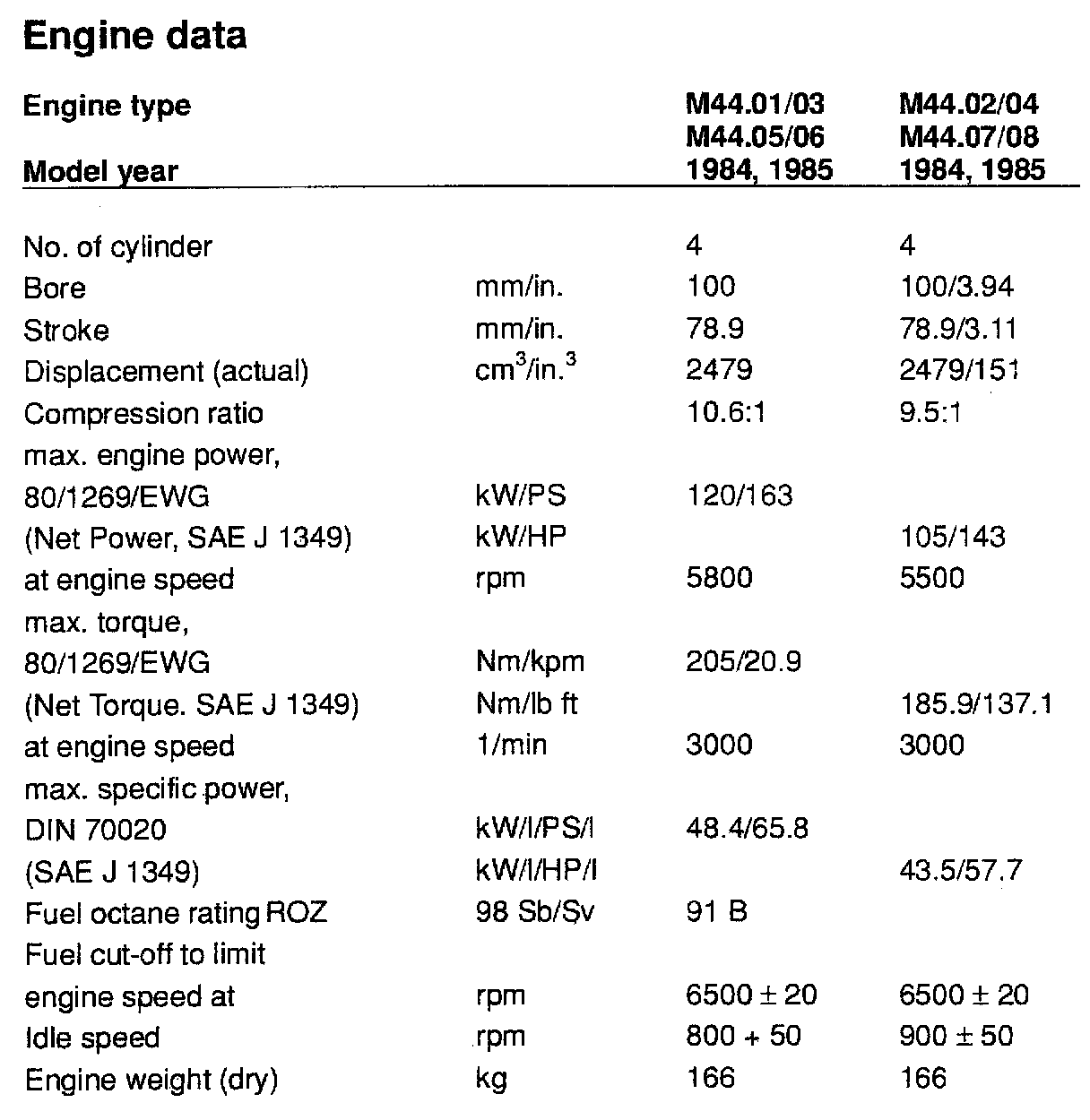

GENERAL SPECIFICATIONS

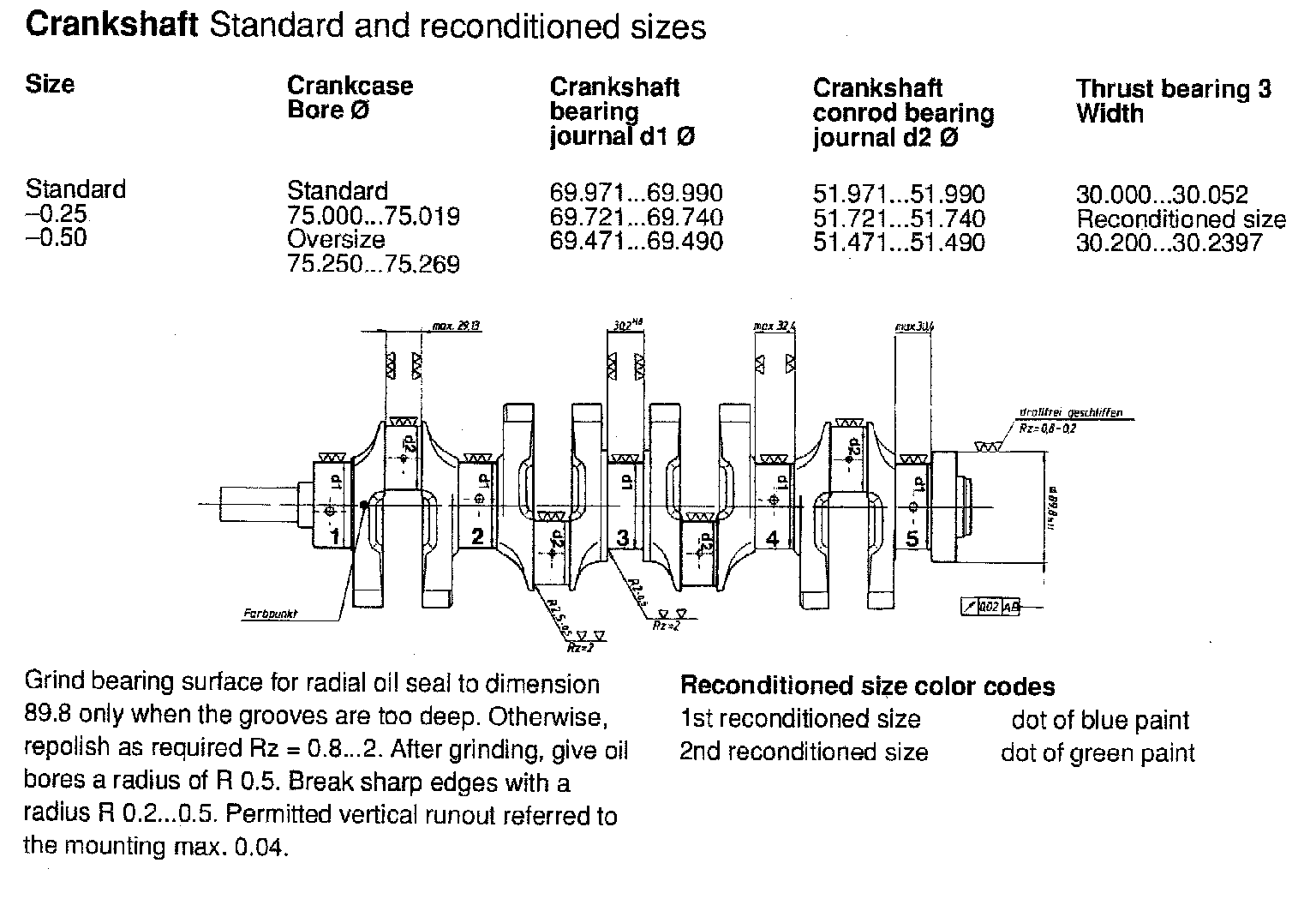

CRANKSHAFT SPECIFICATION

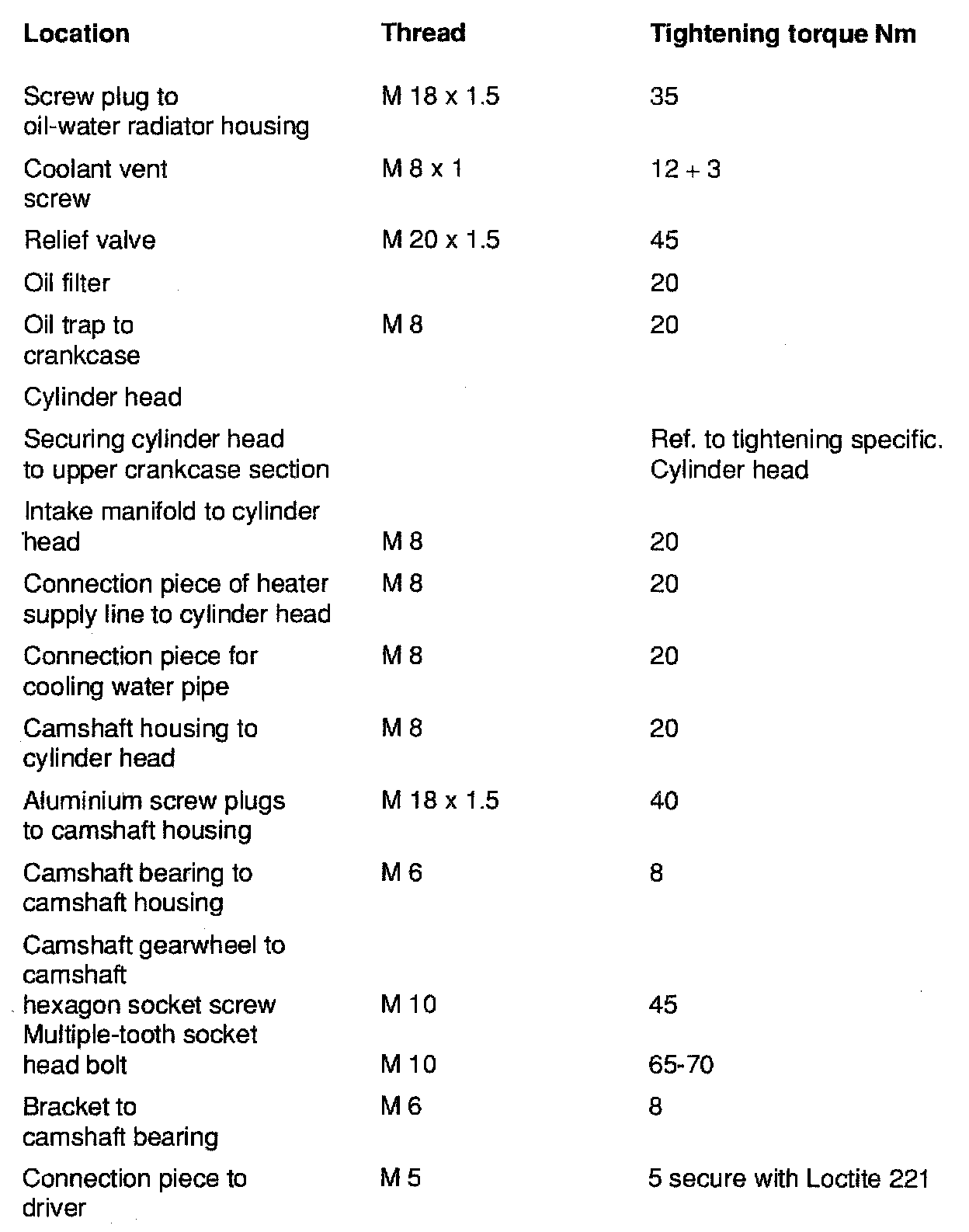

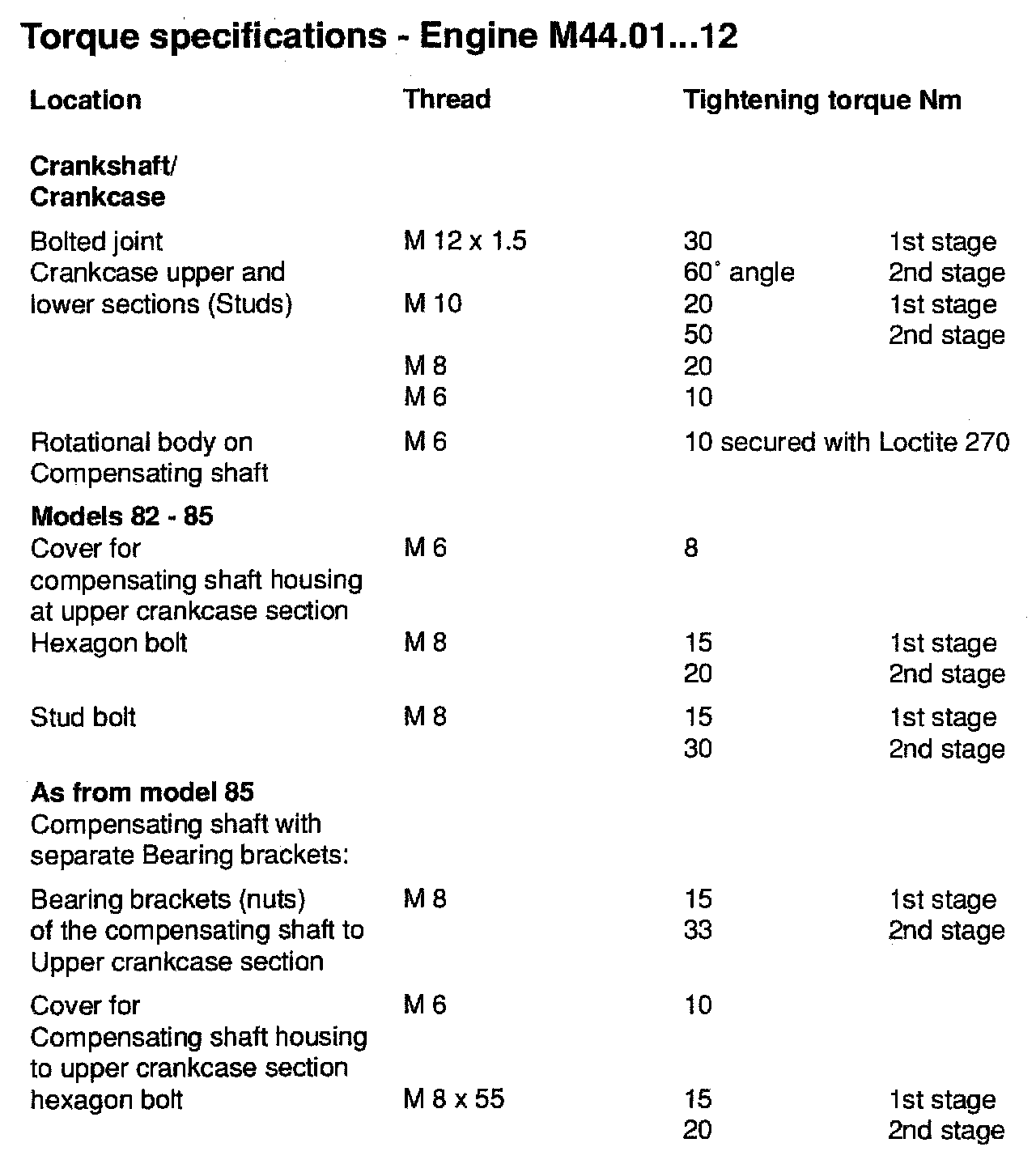

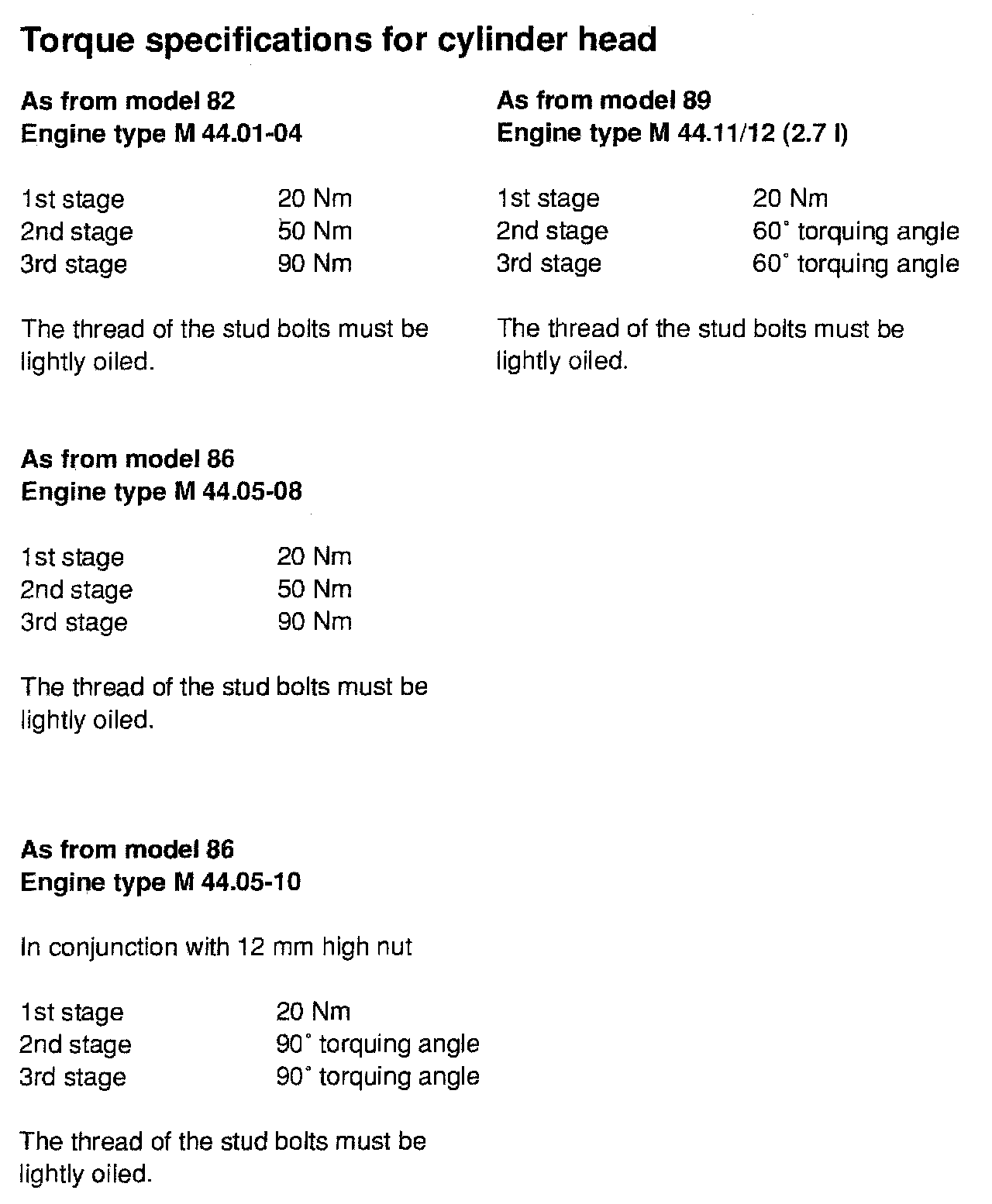

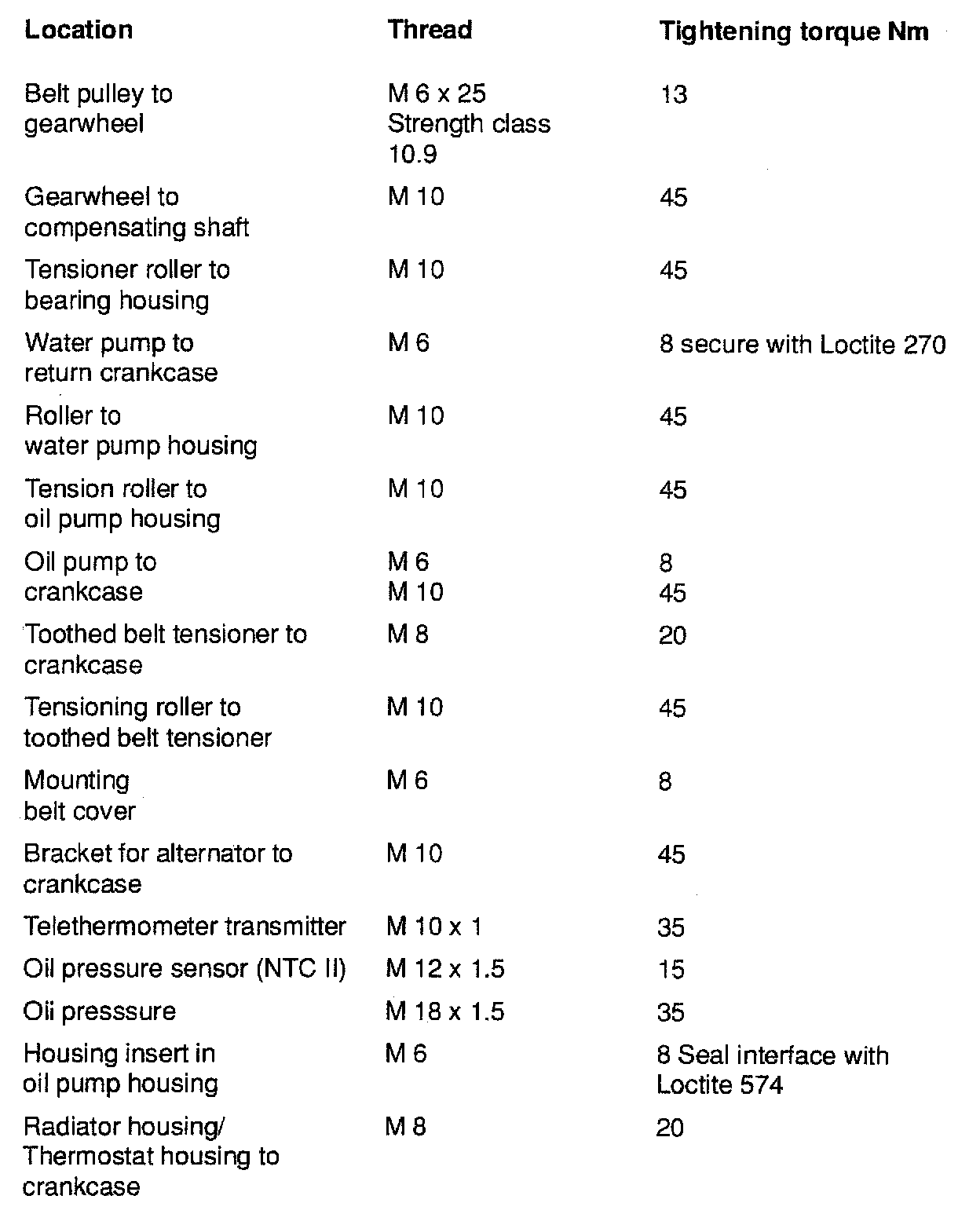

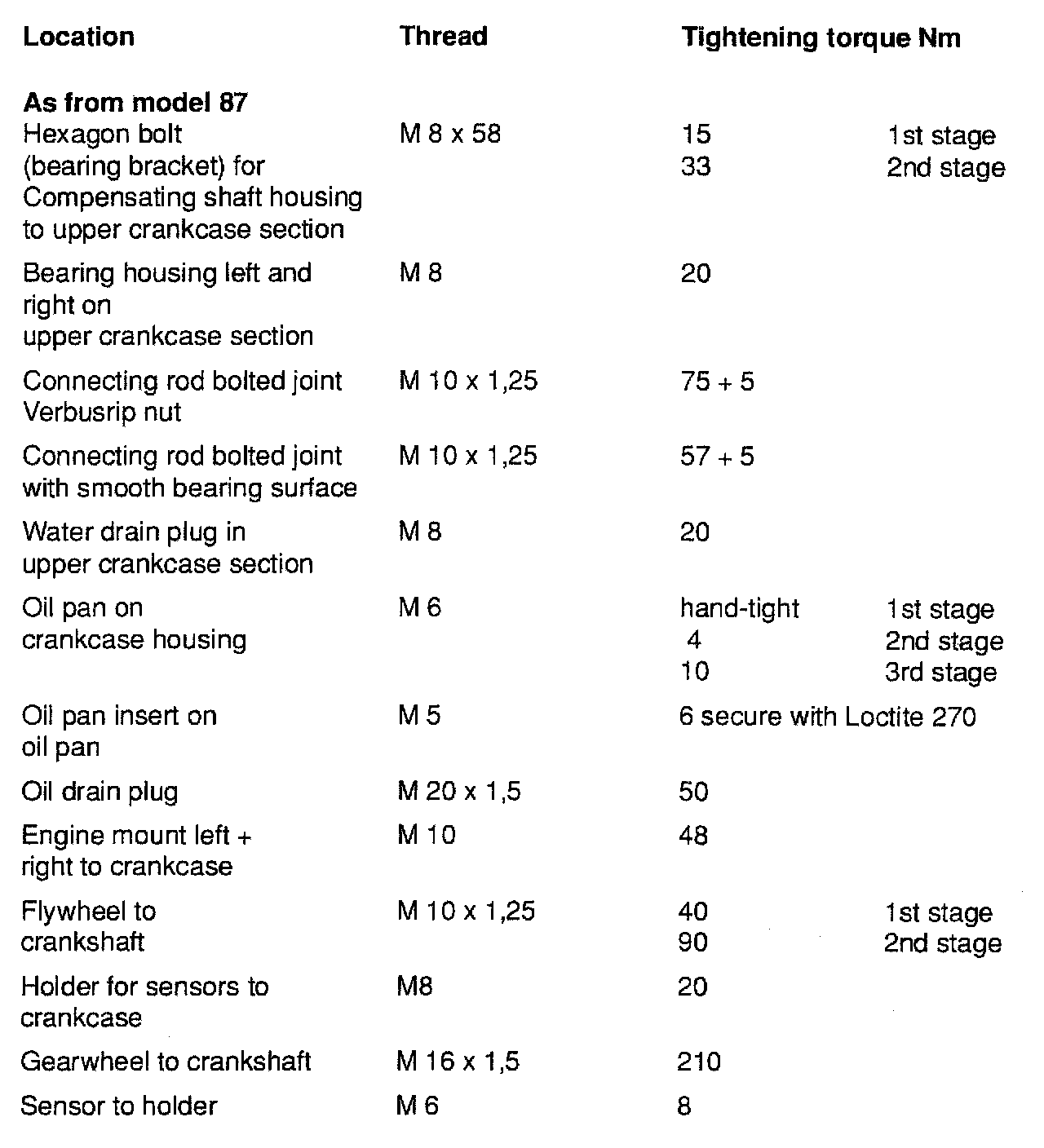

TIGHTENING SPECIFICATIONS

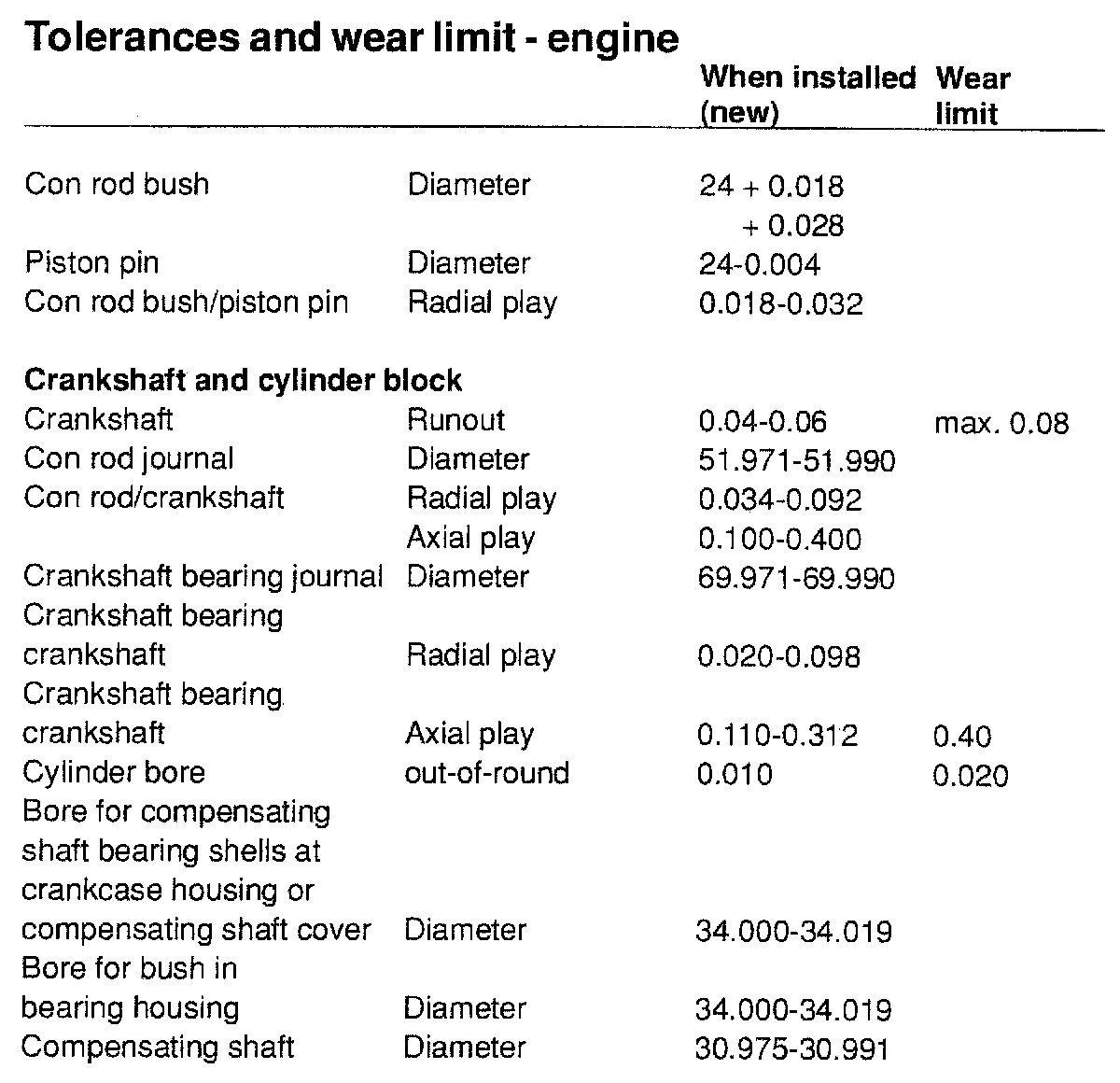

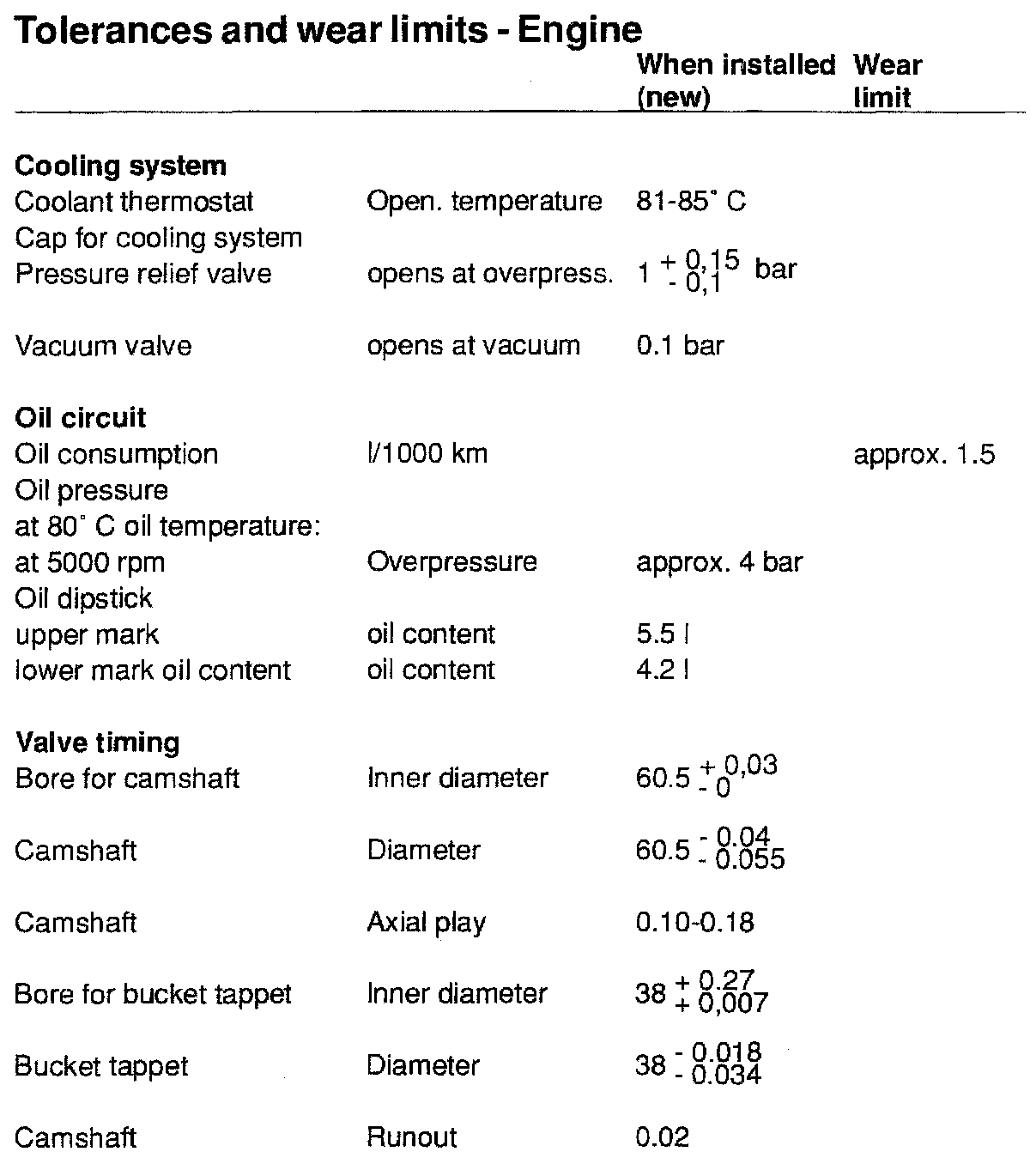

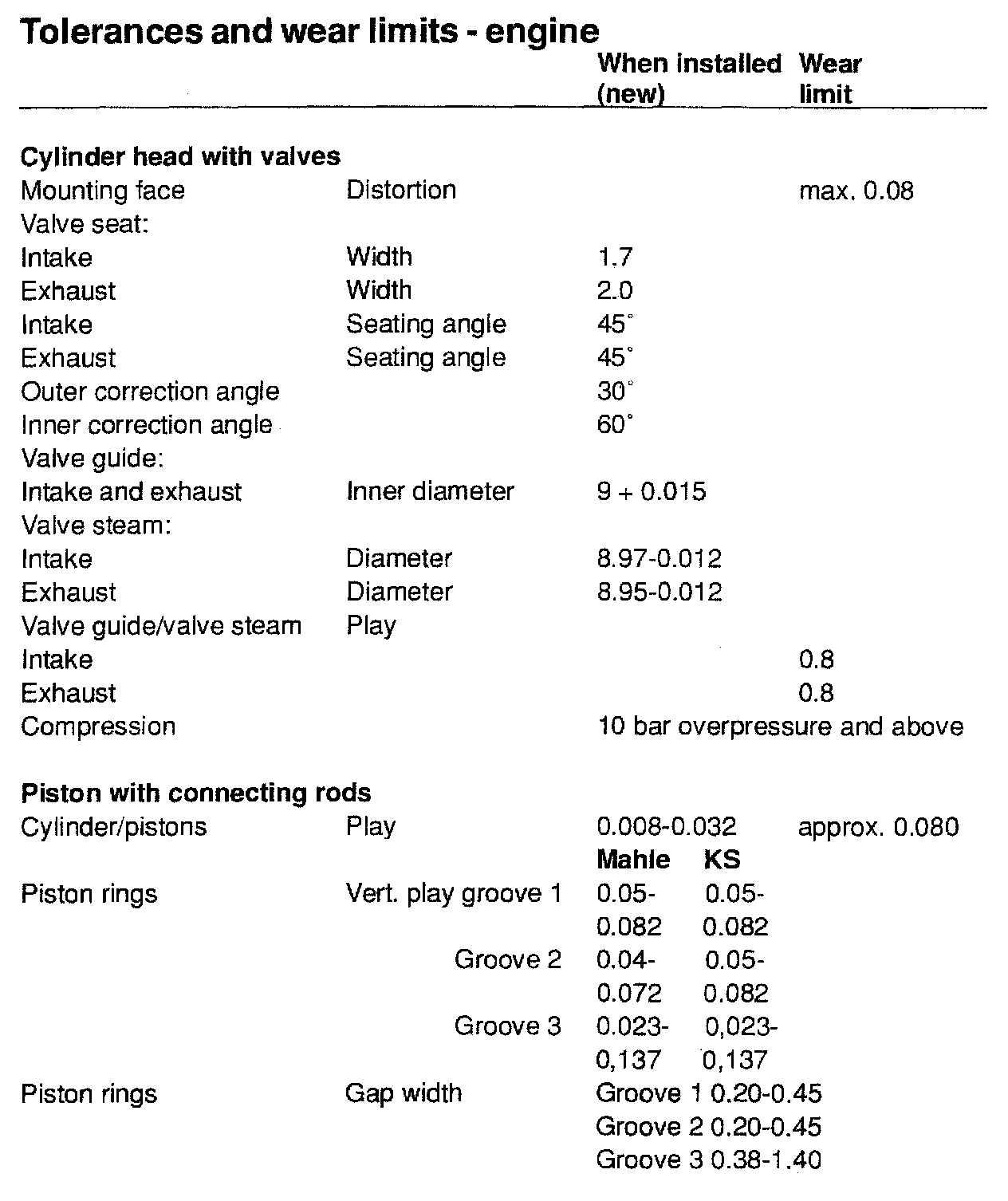

TOLERANCES AND WEAR SPECIFICATIONS

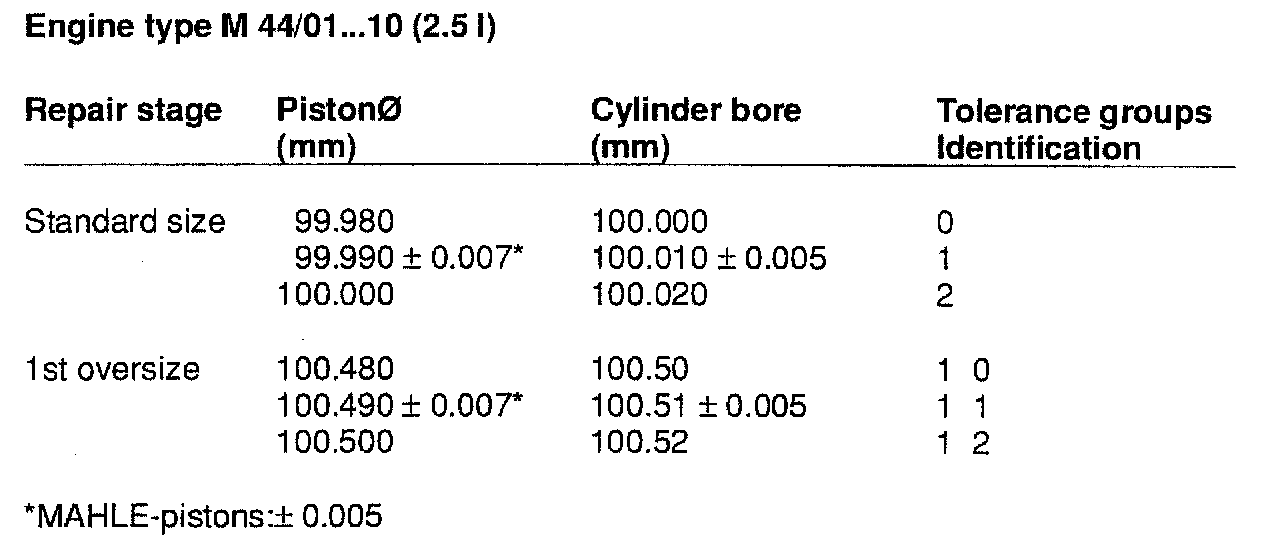

PISTON SPECIFICATIONS

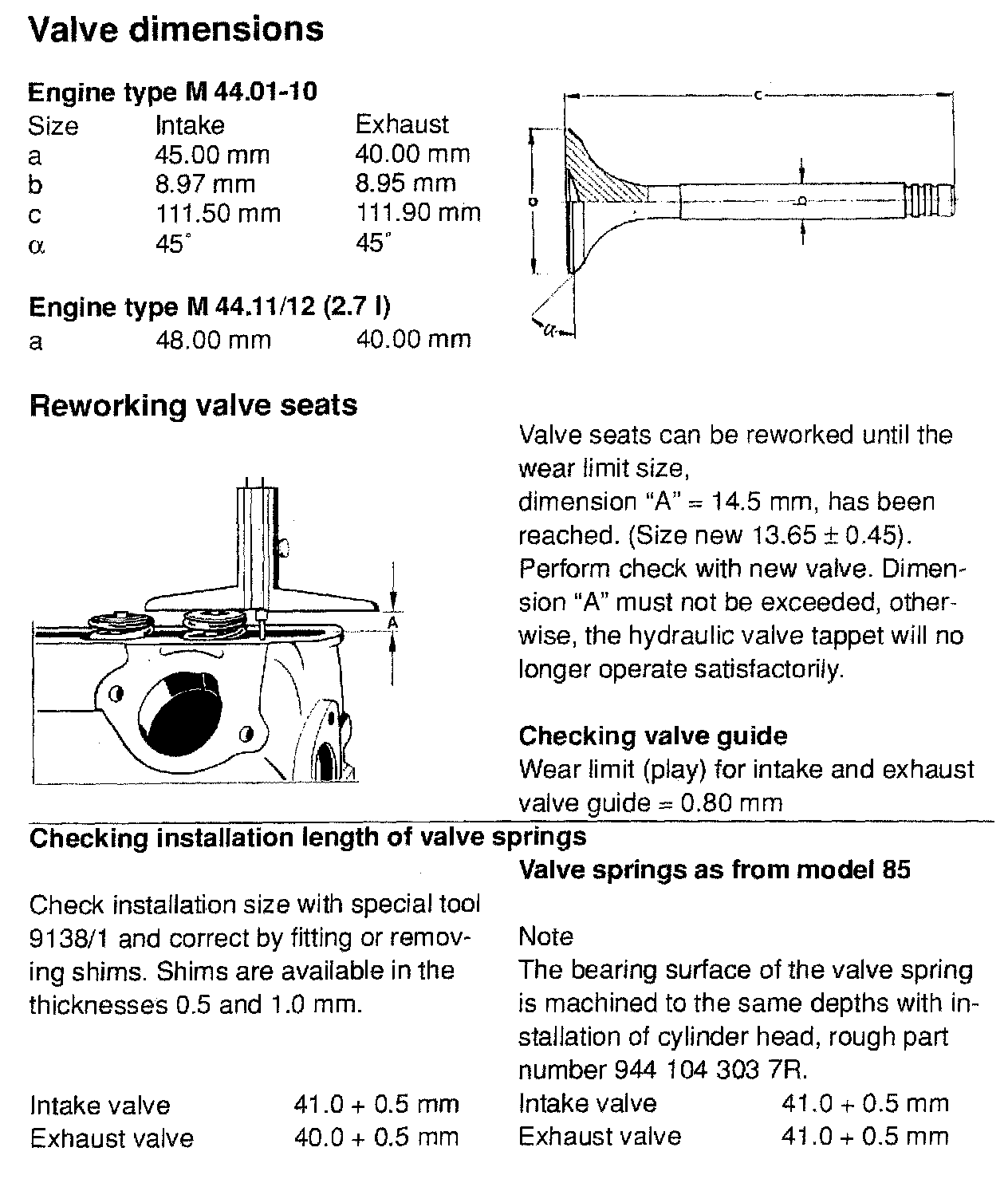

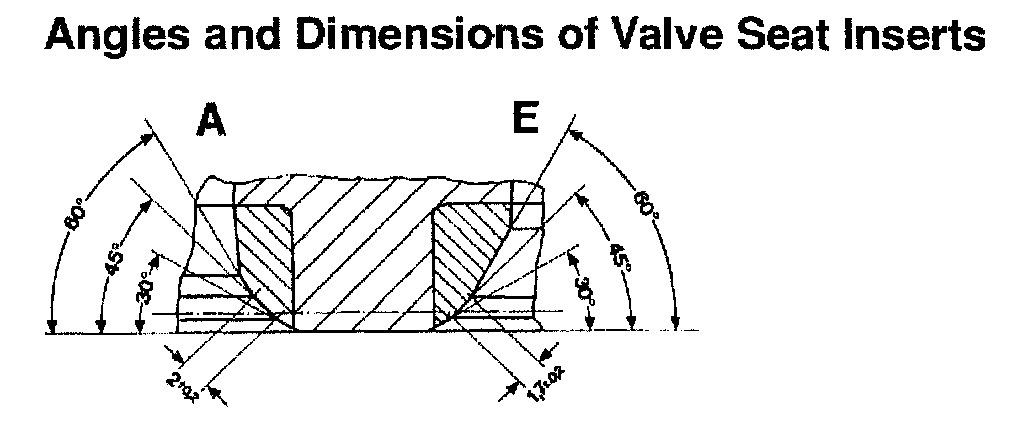

VALVE SPECIFICATIONS
