Home >> Porsche >> 1983 >> 944 L4-2479cc 2.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

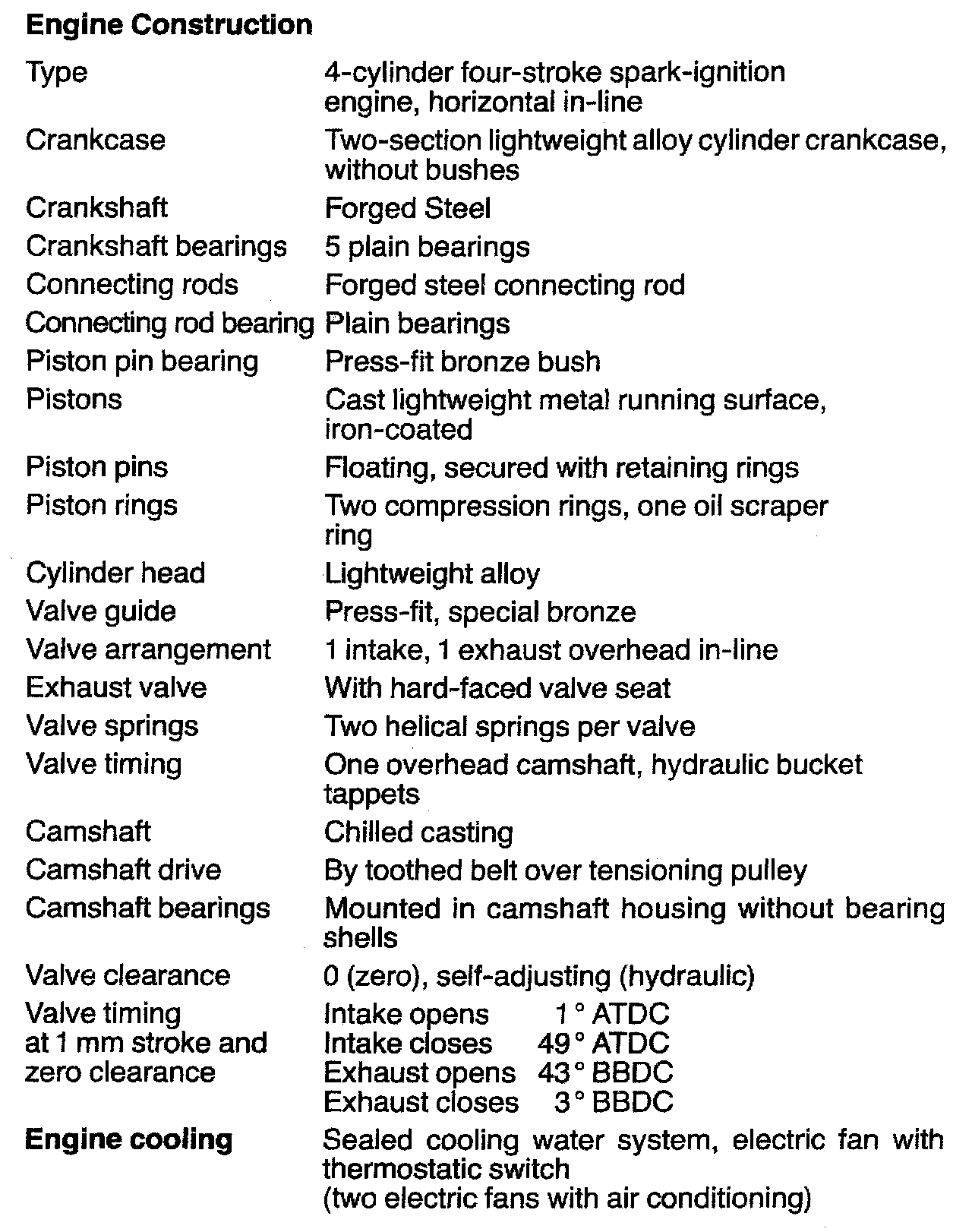

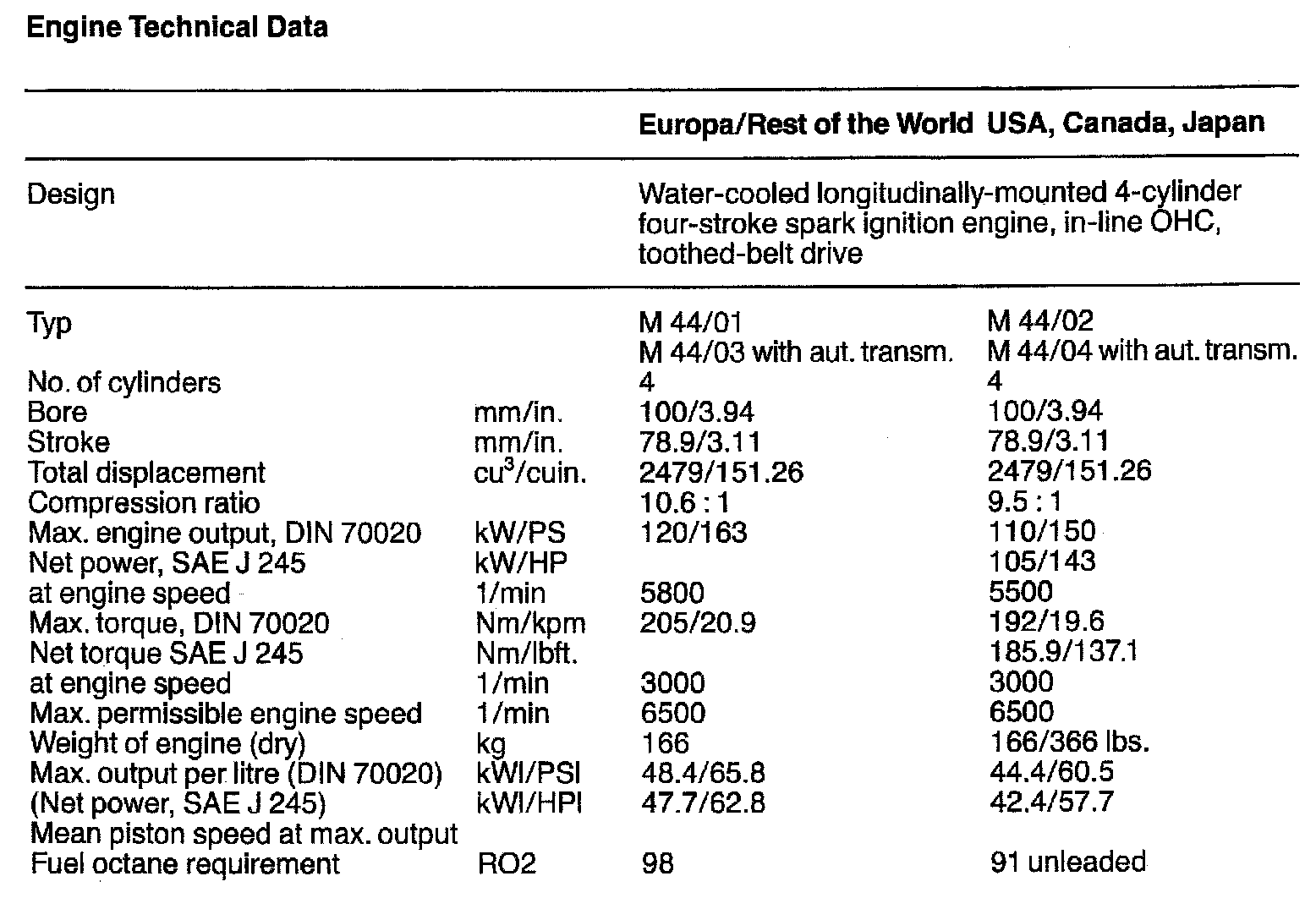

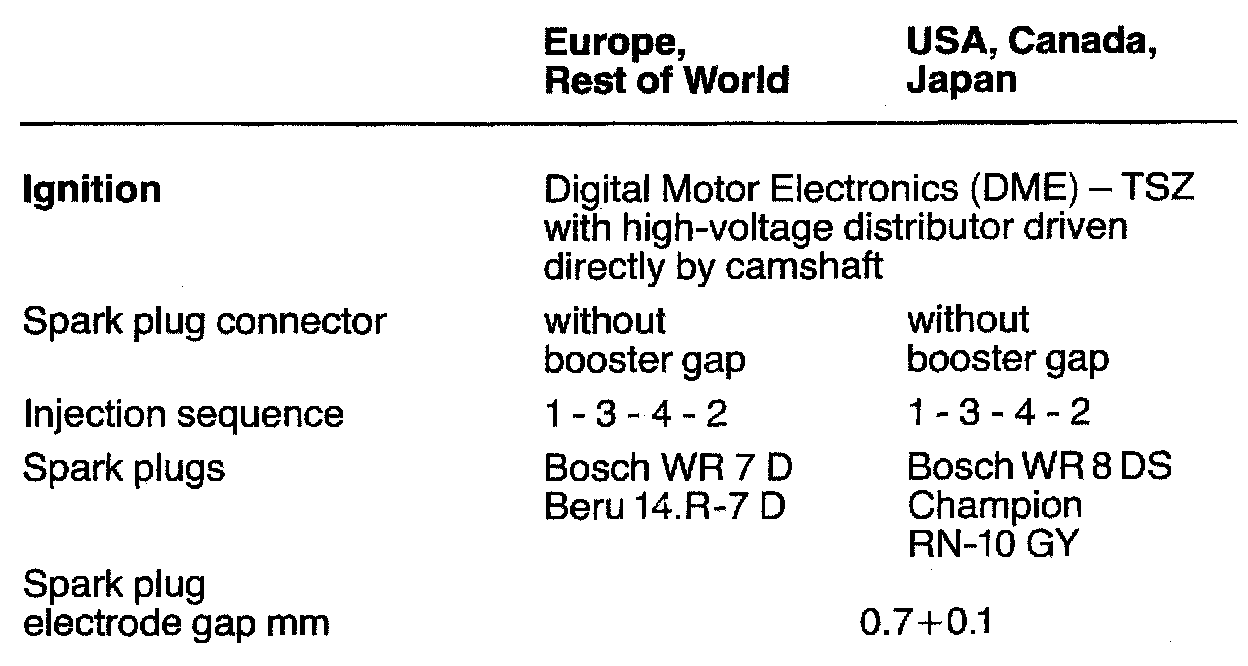

GENERAL SPECIFICATIONS

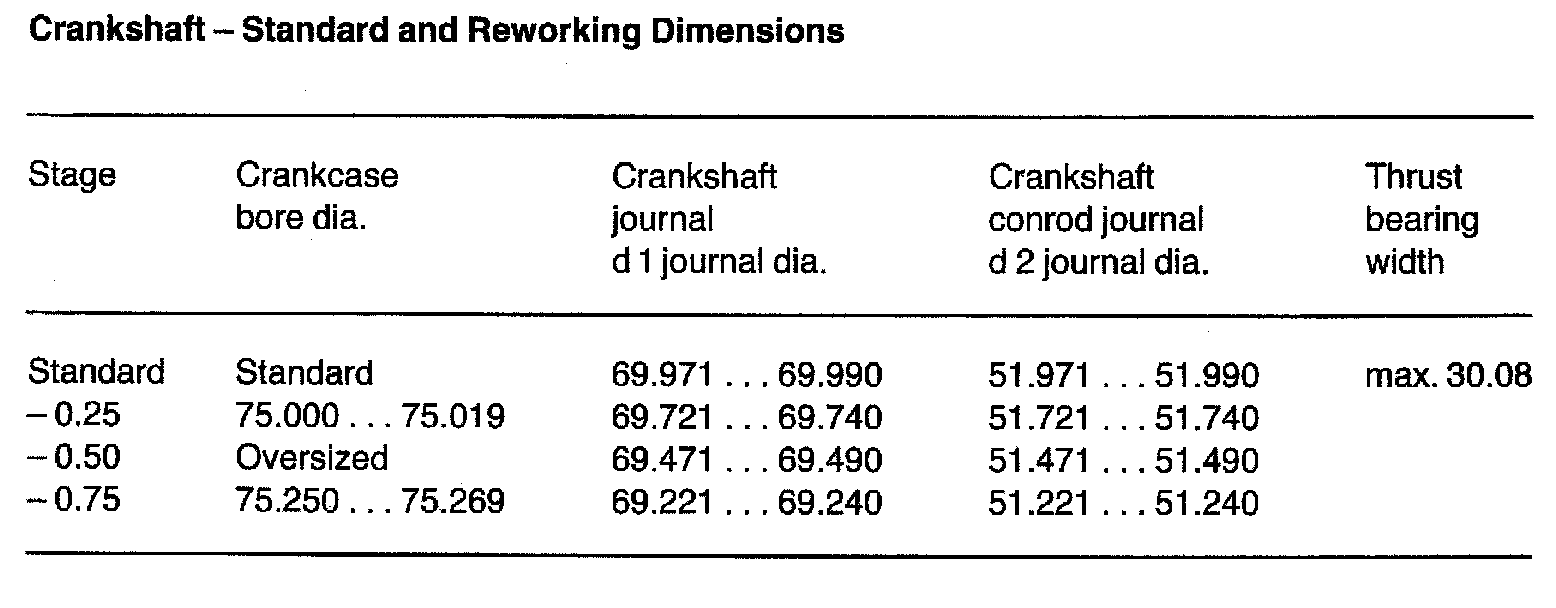

CRANKSHAFT SPECIFICATIONS

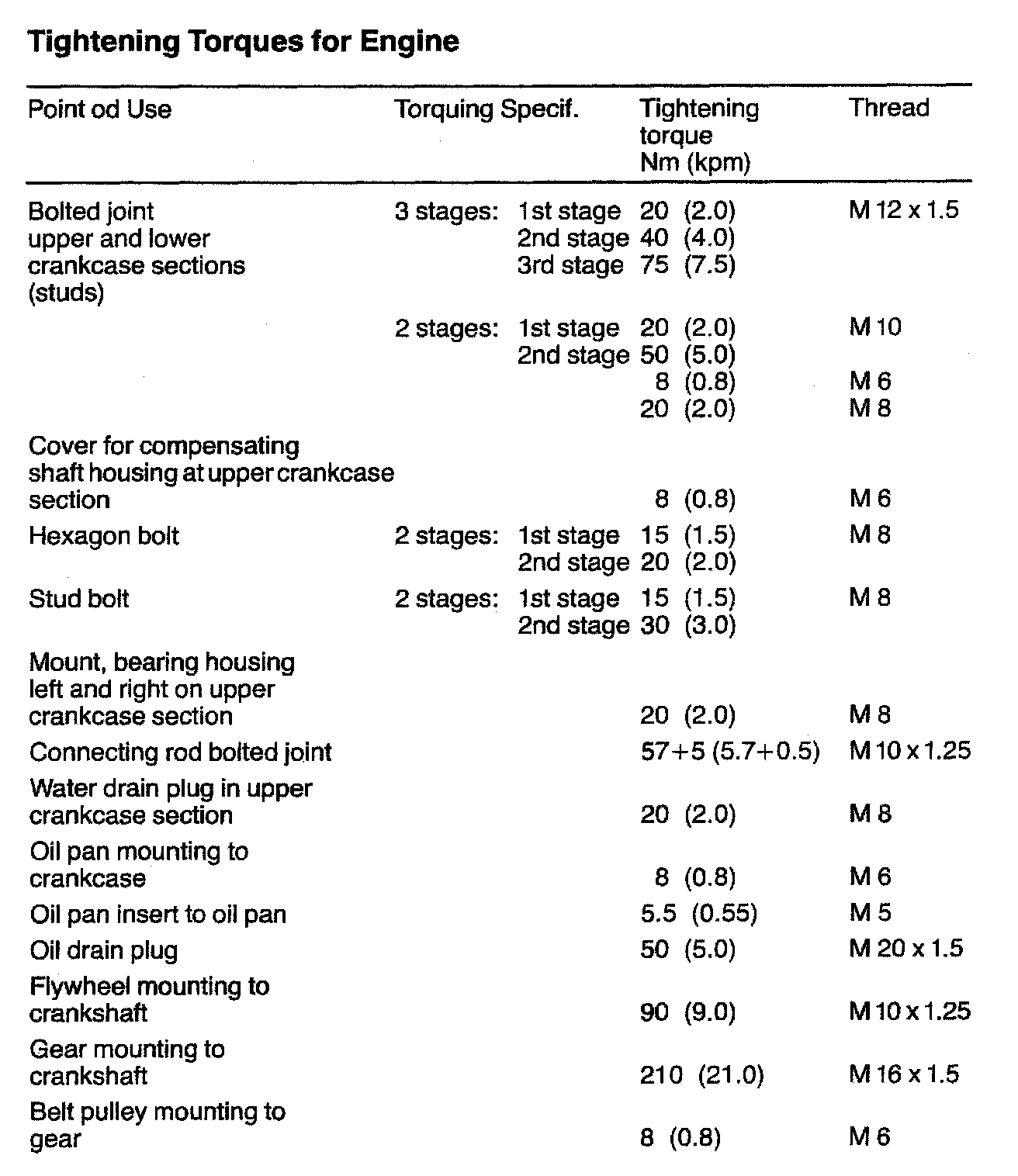

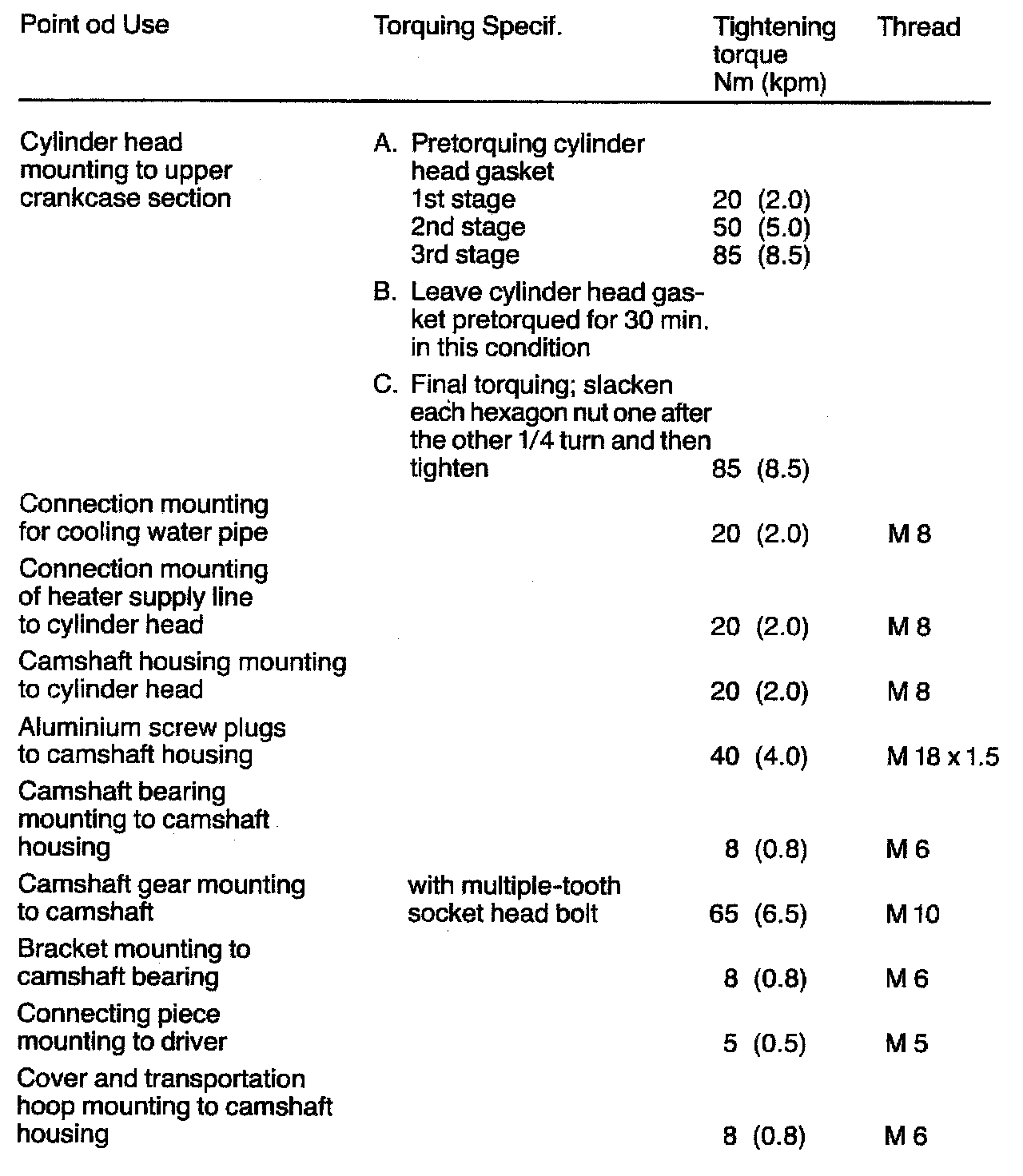

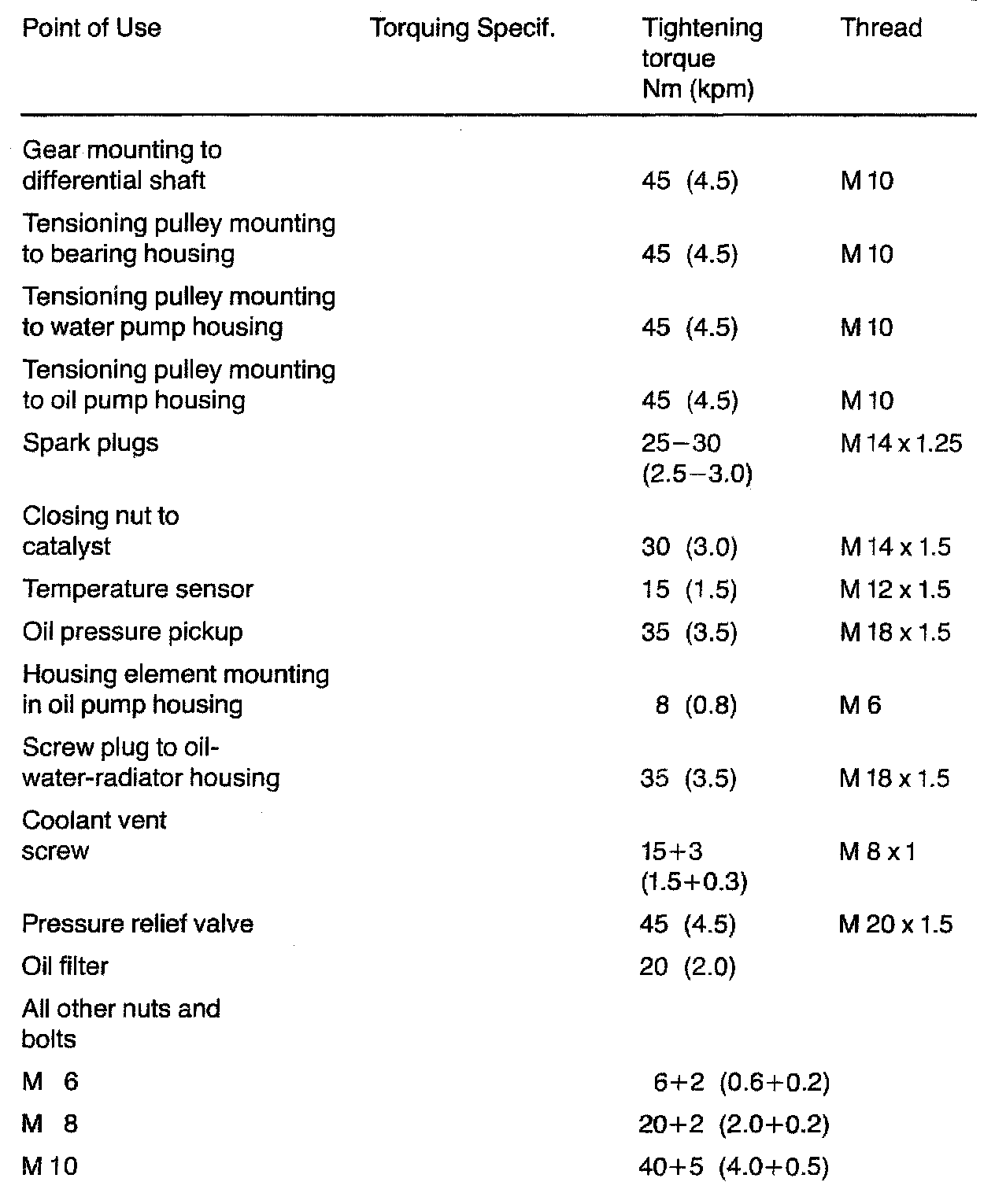

TIGHTENING SPECIFICATIONS

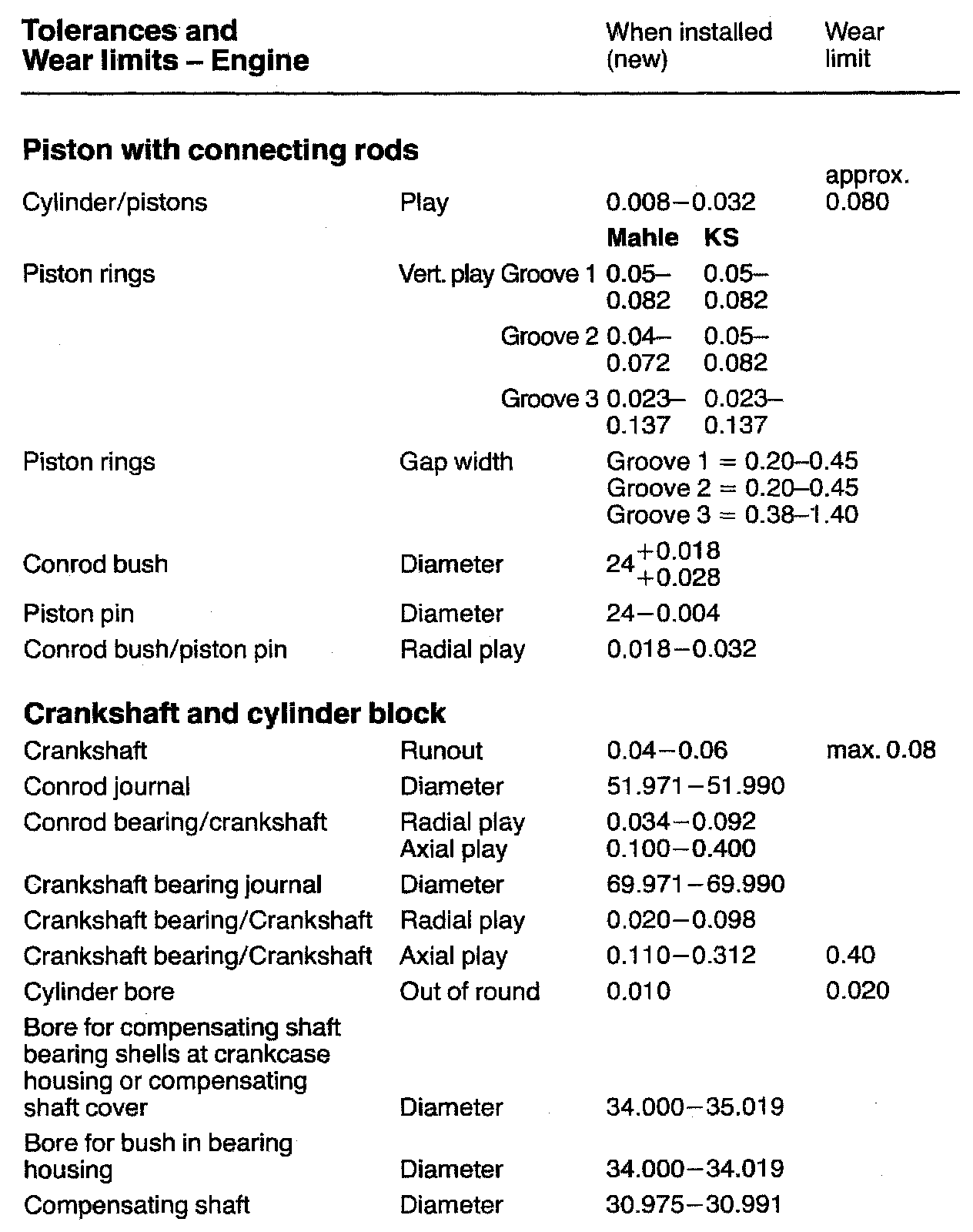

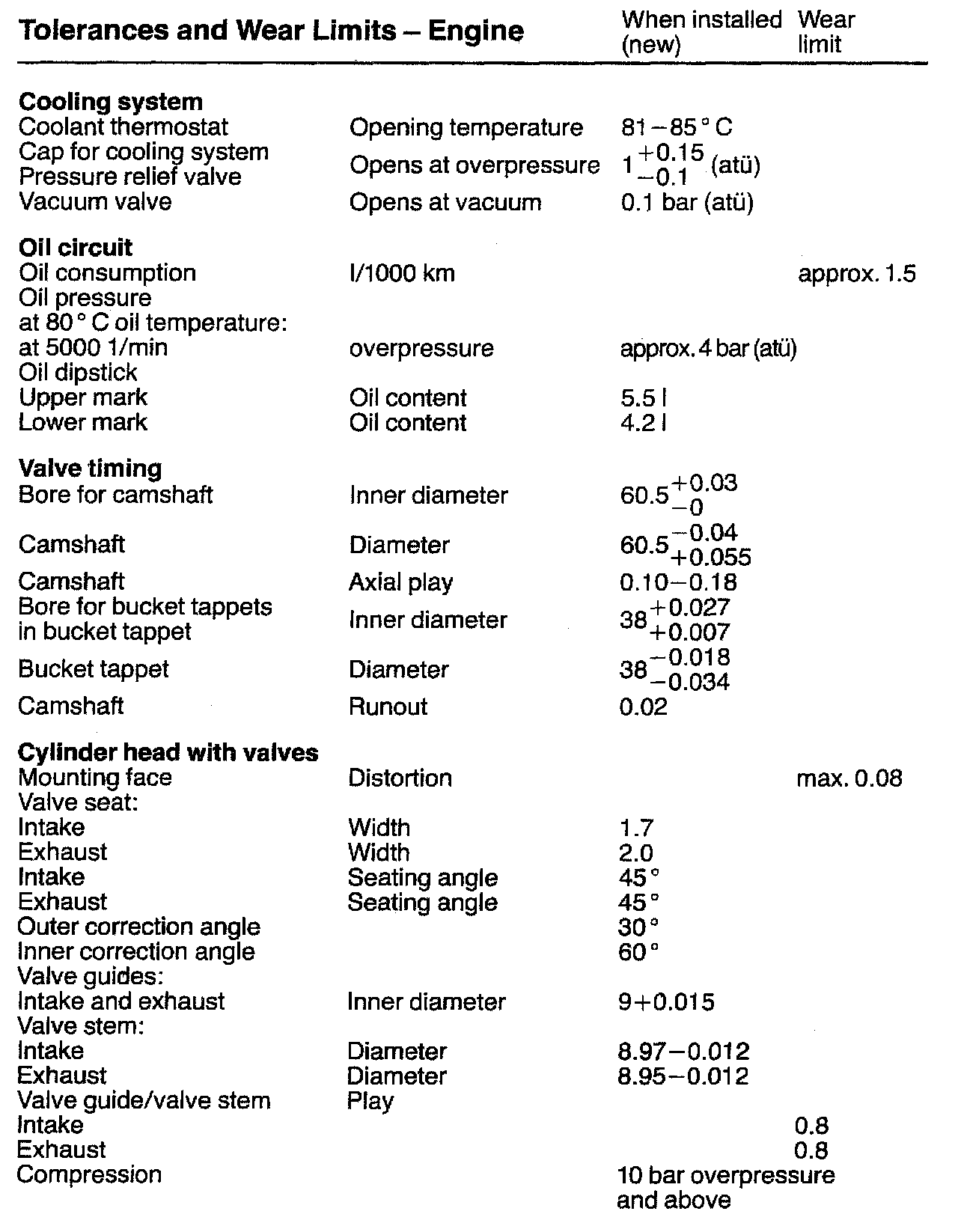

TOLERANCES AND WEAR SPECIFICATIONS

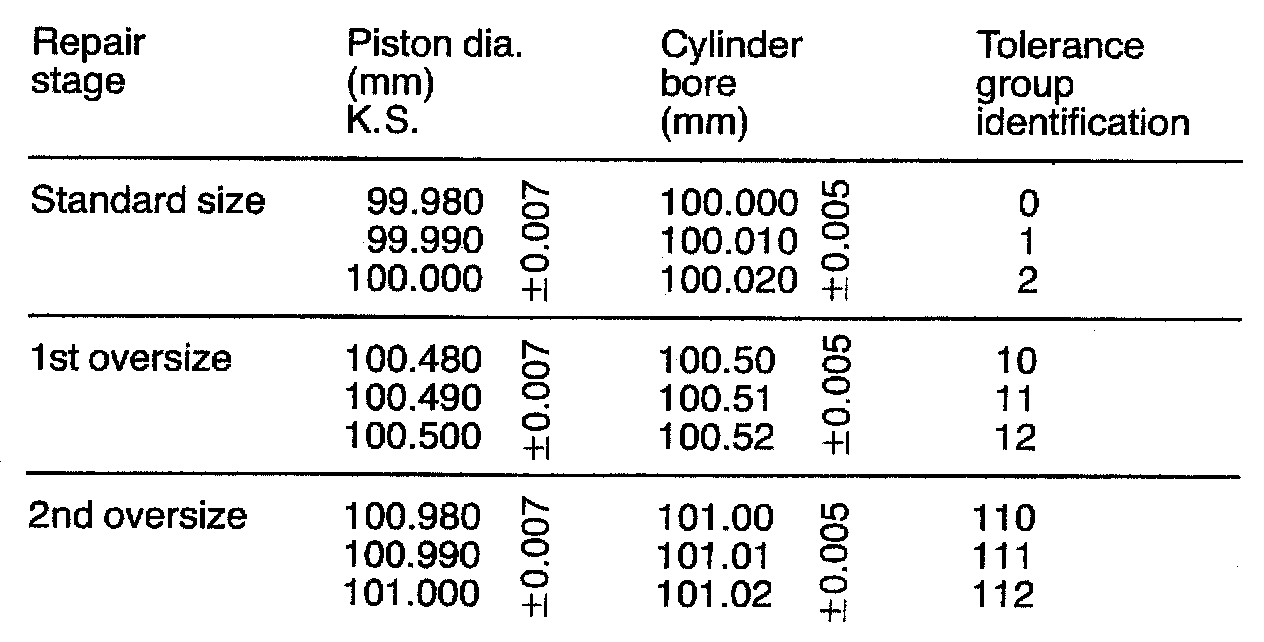

PISTON SPECIFICATIONS

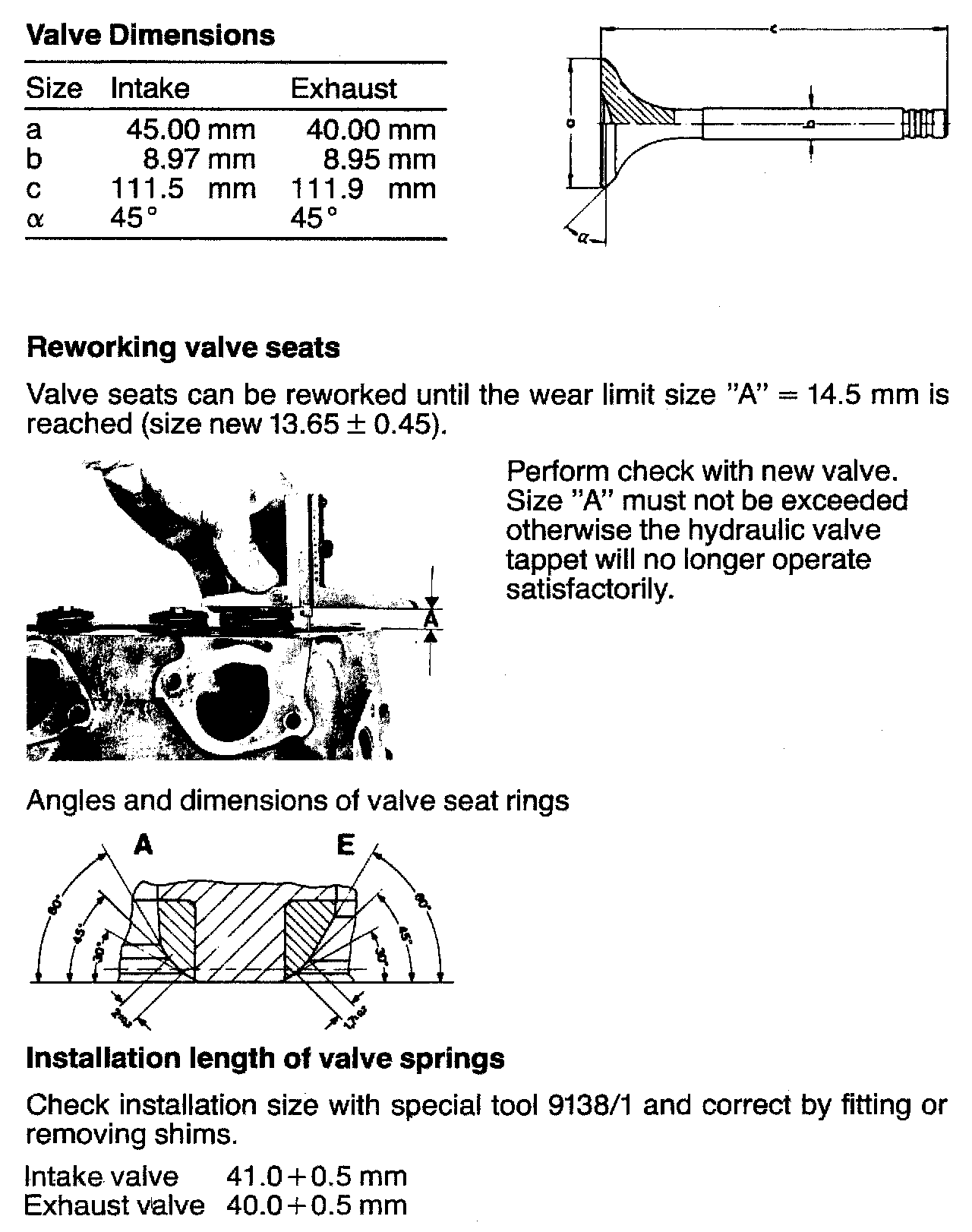

VALVE SPECIFICATIONS
