Piston, Engine

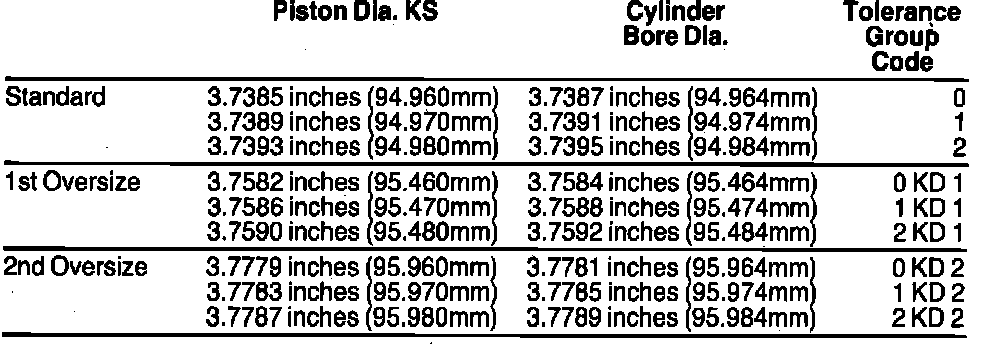

Fig. 10 Piston dimension chart.:

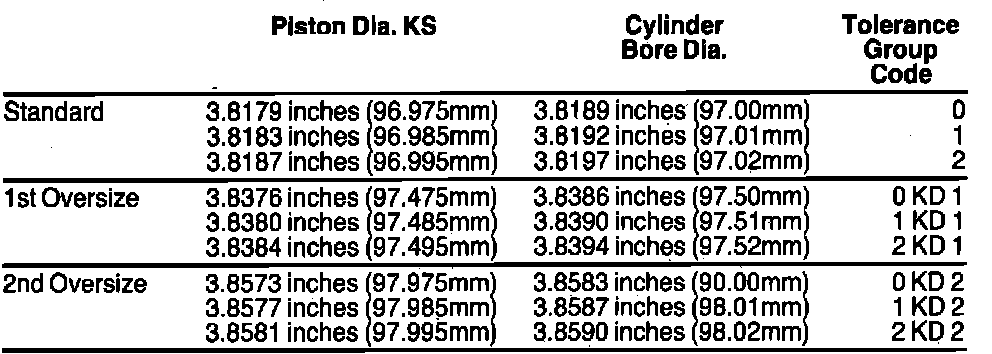

Fig. 11 Piston dimension chart.:

Refer to Figs. 10 and 11 for piston standard and oversize. Different tolerance groups can be used in the same engine.
