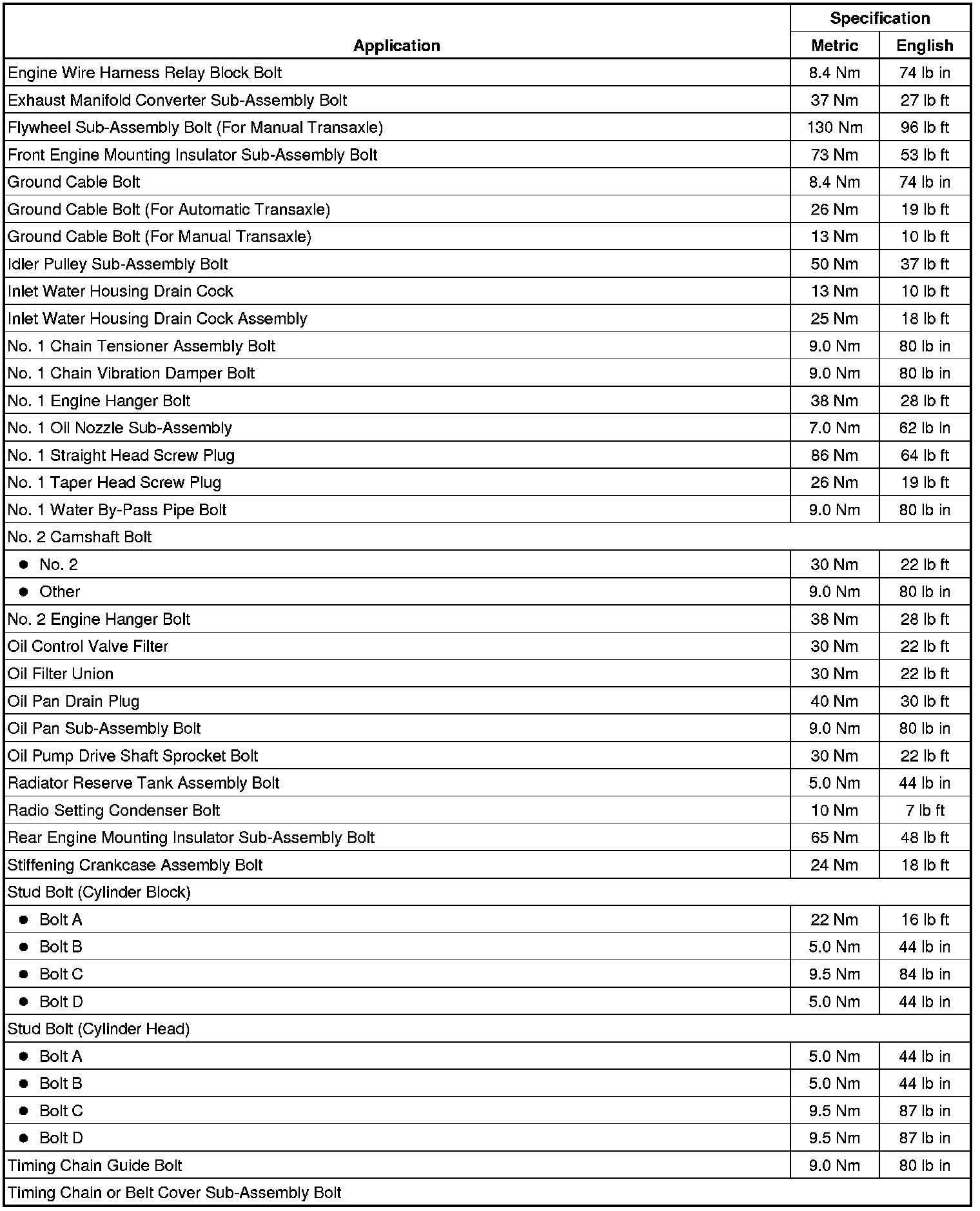

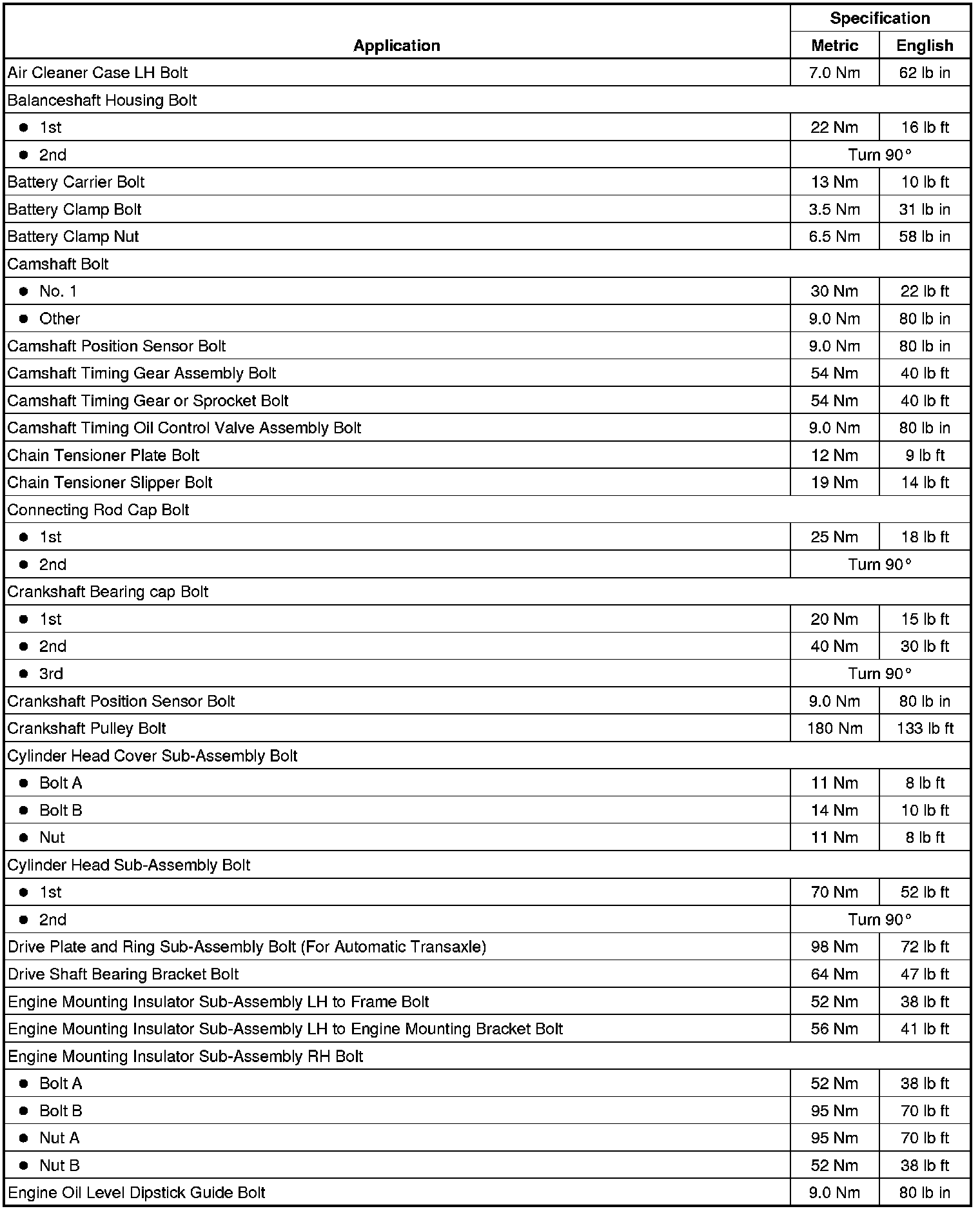

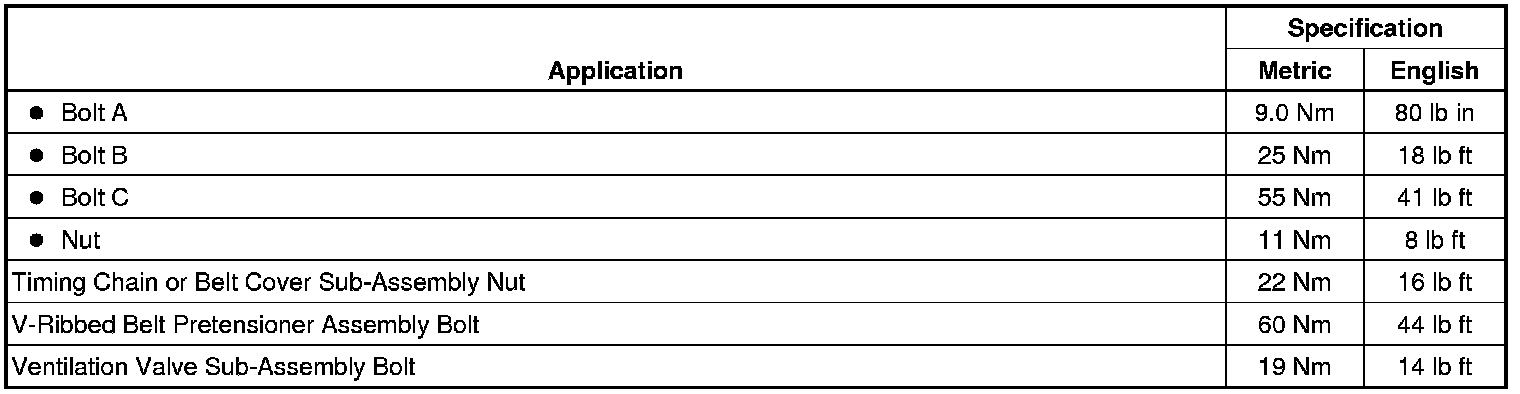

Fastener Tightening Specifications

Fastener Tightening Specifications











Intake Manifold 30 Nm (22 lb ft)





Crankshaft Pulley Bolt 180 Nm (133 lb ft)

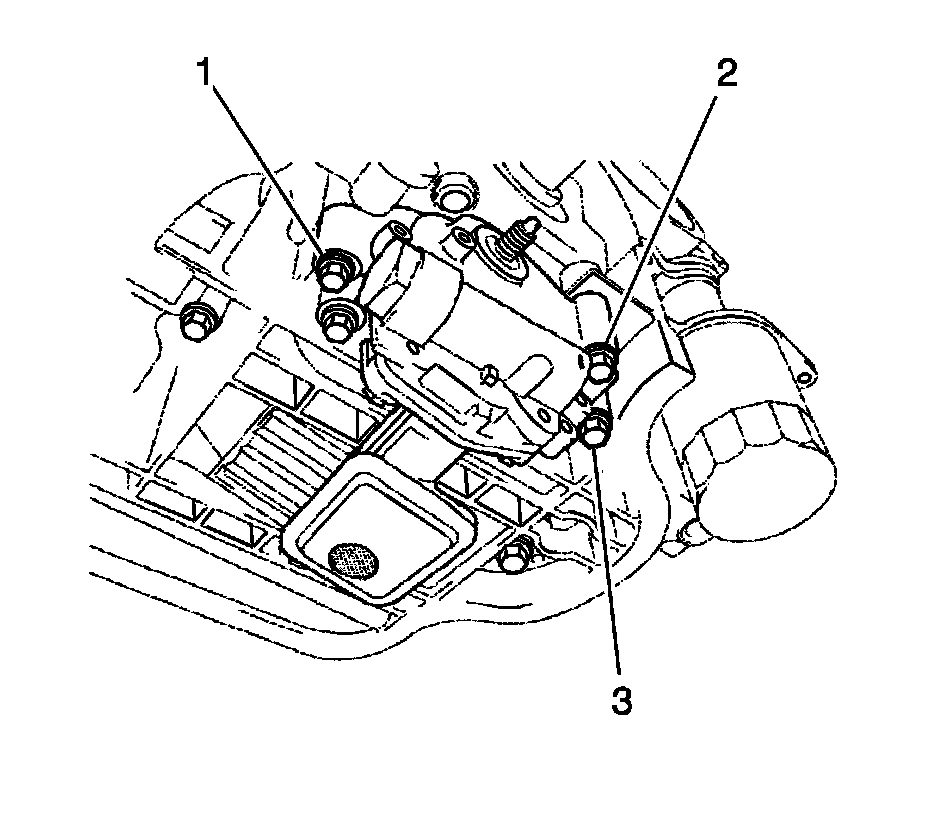

Oil pump 19 Nm (14 lb ft)

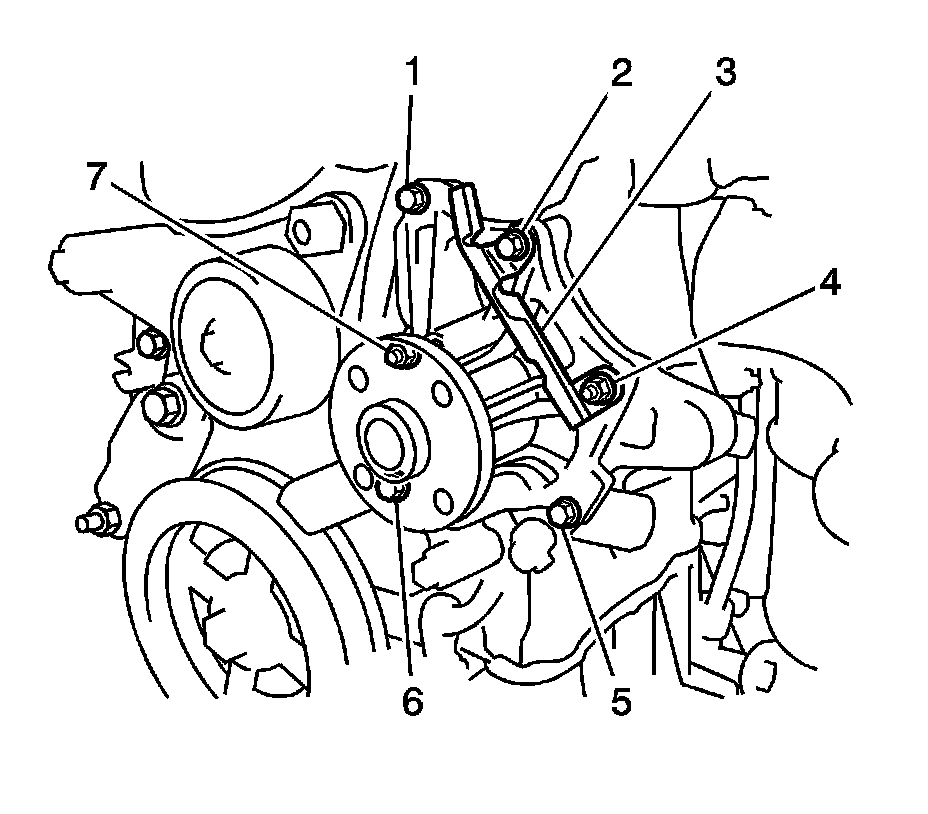

Water pump 9.0 Nm (80 lb in)
