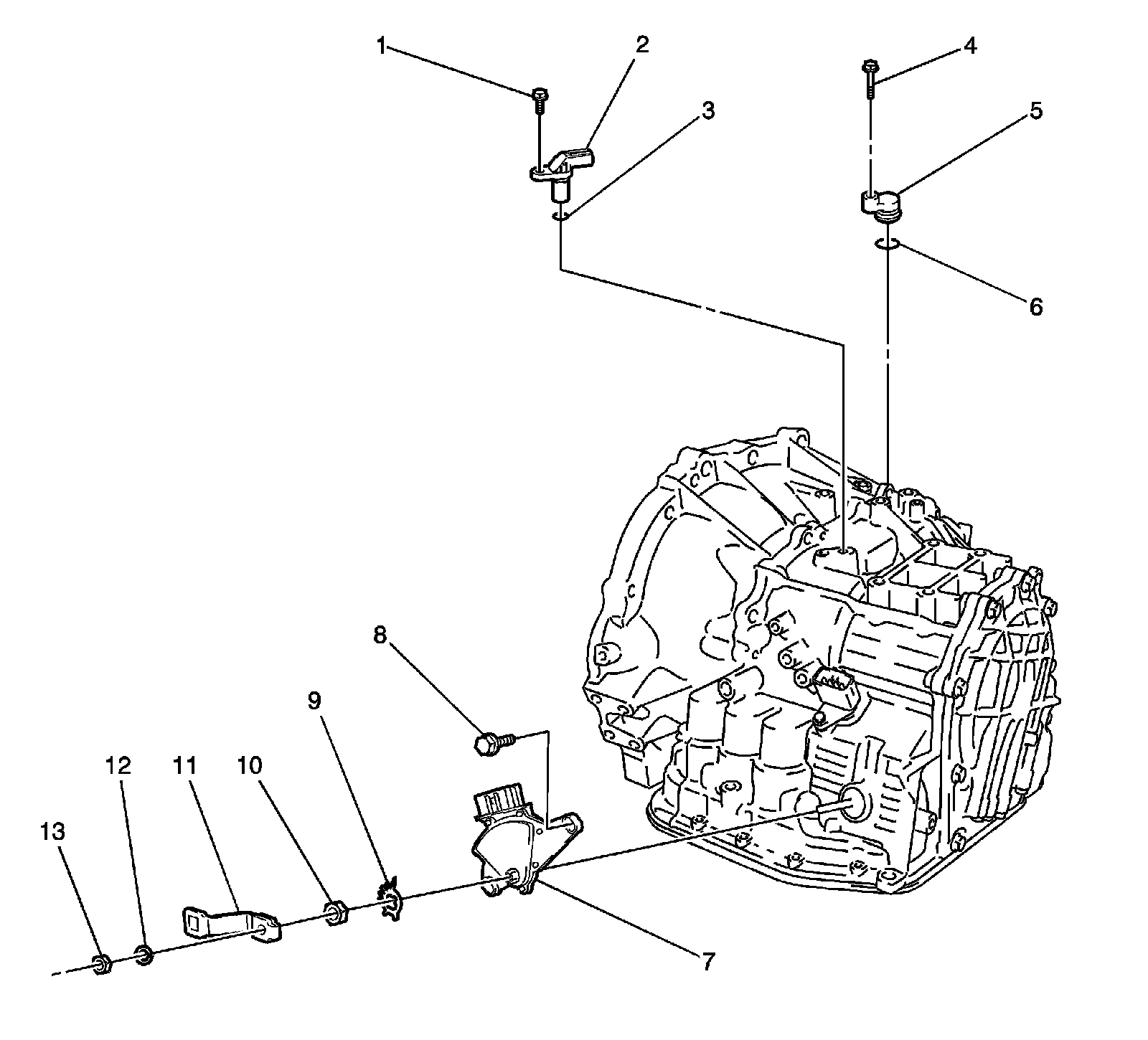

Exploded Views

Disassembled Views

External Electrical Component Locations




1 - Bolt
2 - Speed Sensor
3 - O-ring
4 - Screw
5 - Speedometer Driven Hole Cover Sub-Assembly
6 - O-ring
7 - Park/Neutral Position Switch Assembly
8 - Bolt
9 - Lock Plate
10 - Nut
11 - Control Shaft Lever
12 - Washer
13 - Nut
