Engine Control Module
Component Connector End Views

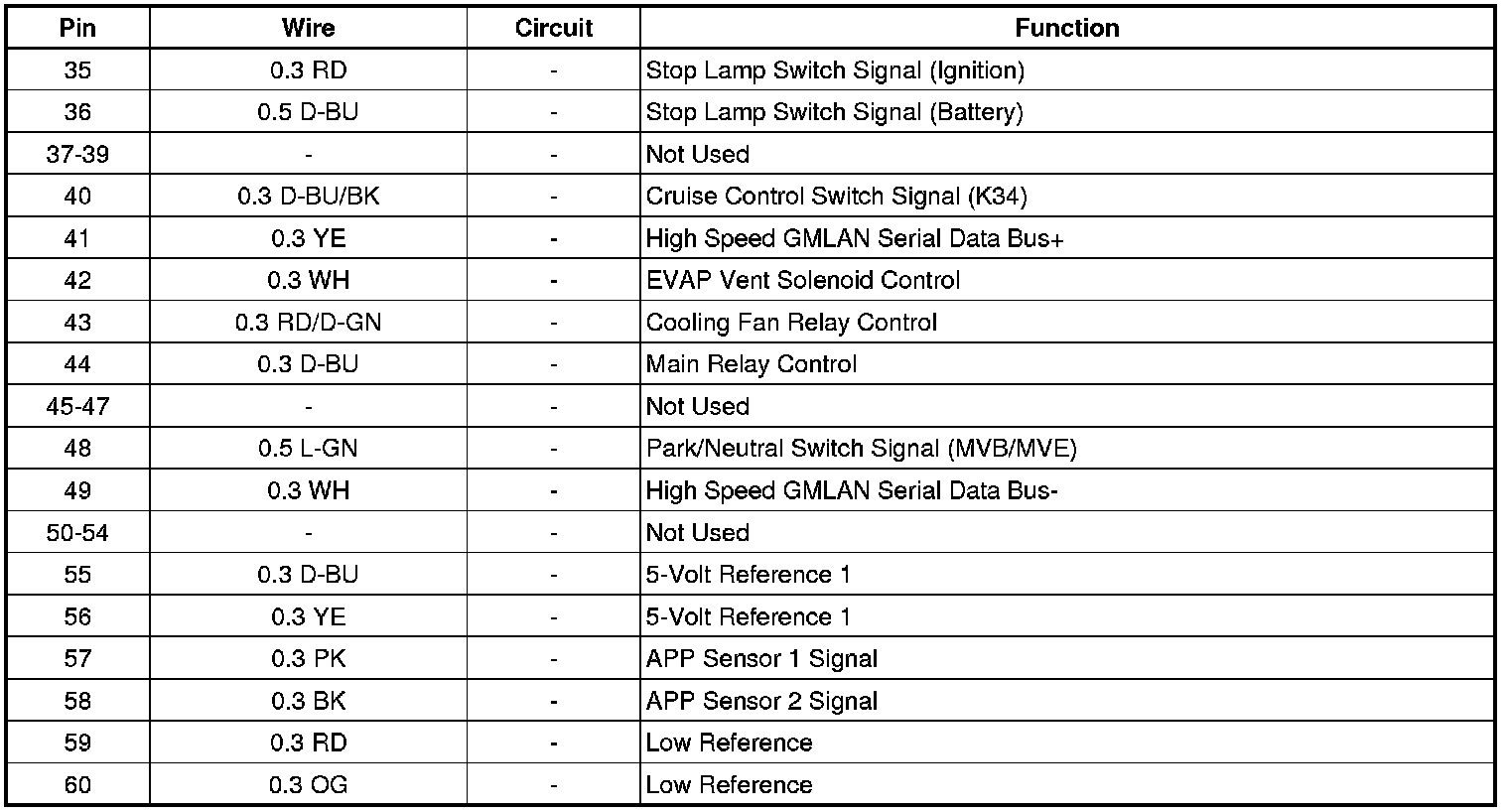

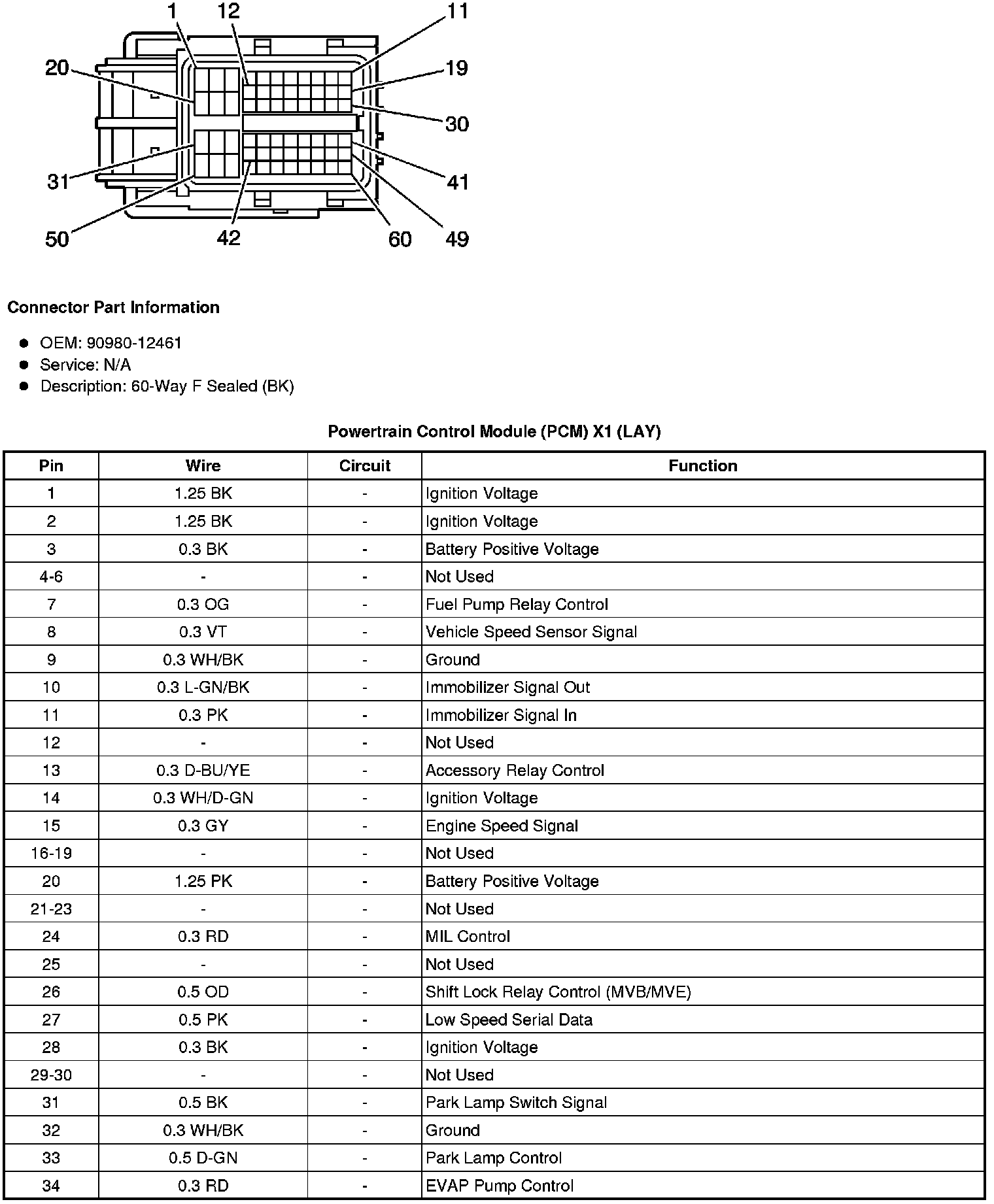

Powertrain Control Module (PCM) X1 (LAY)

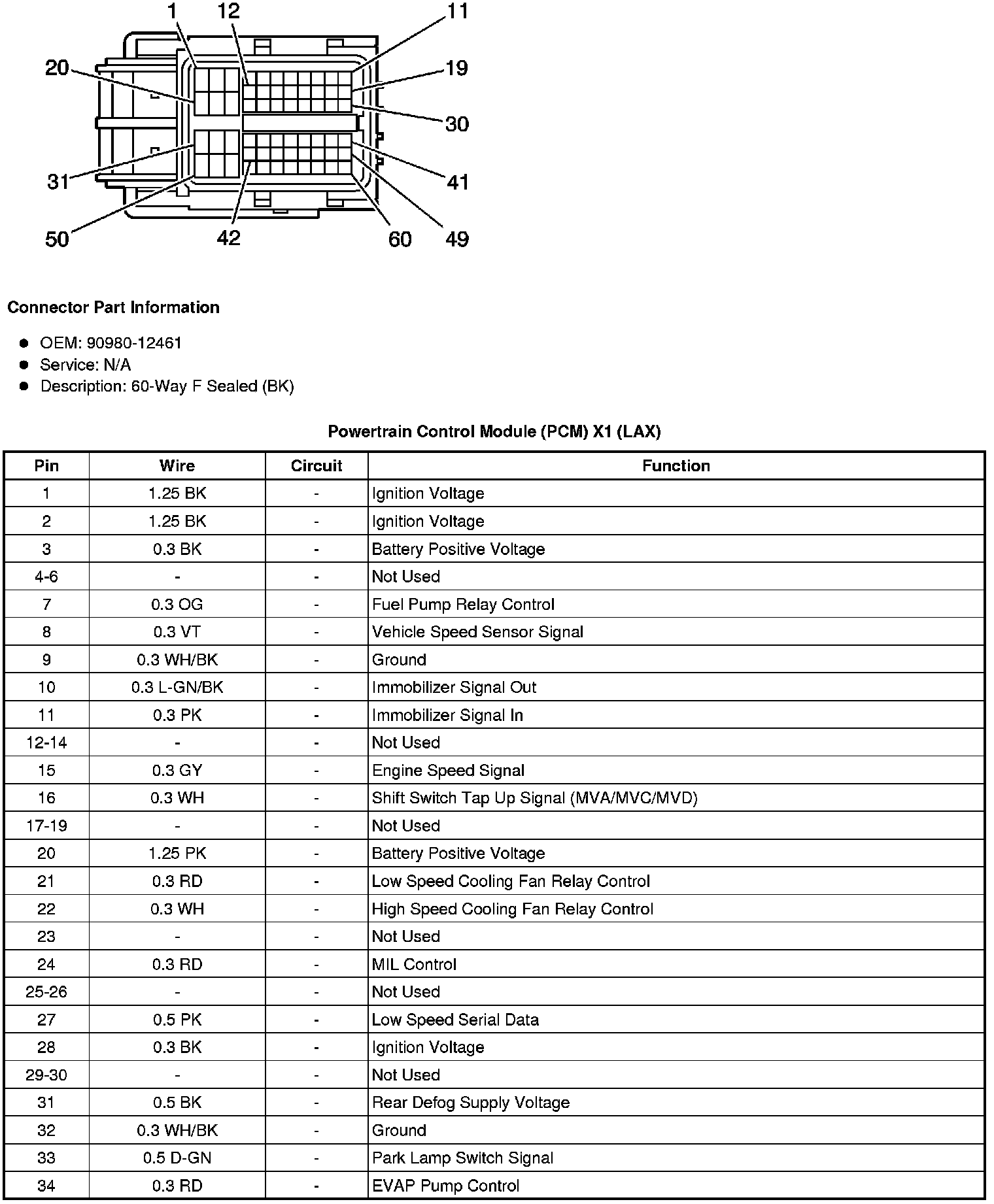

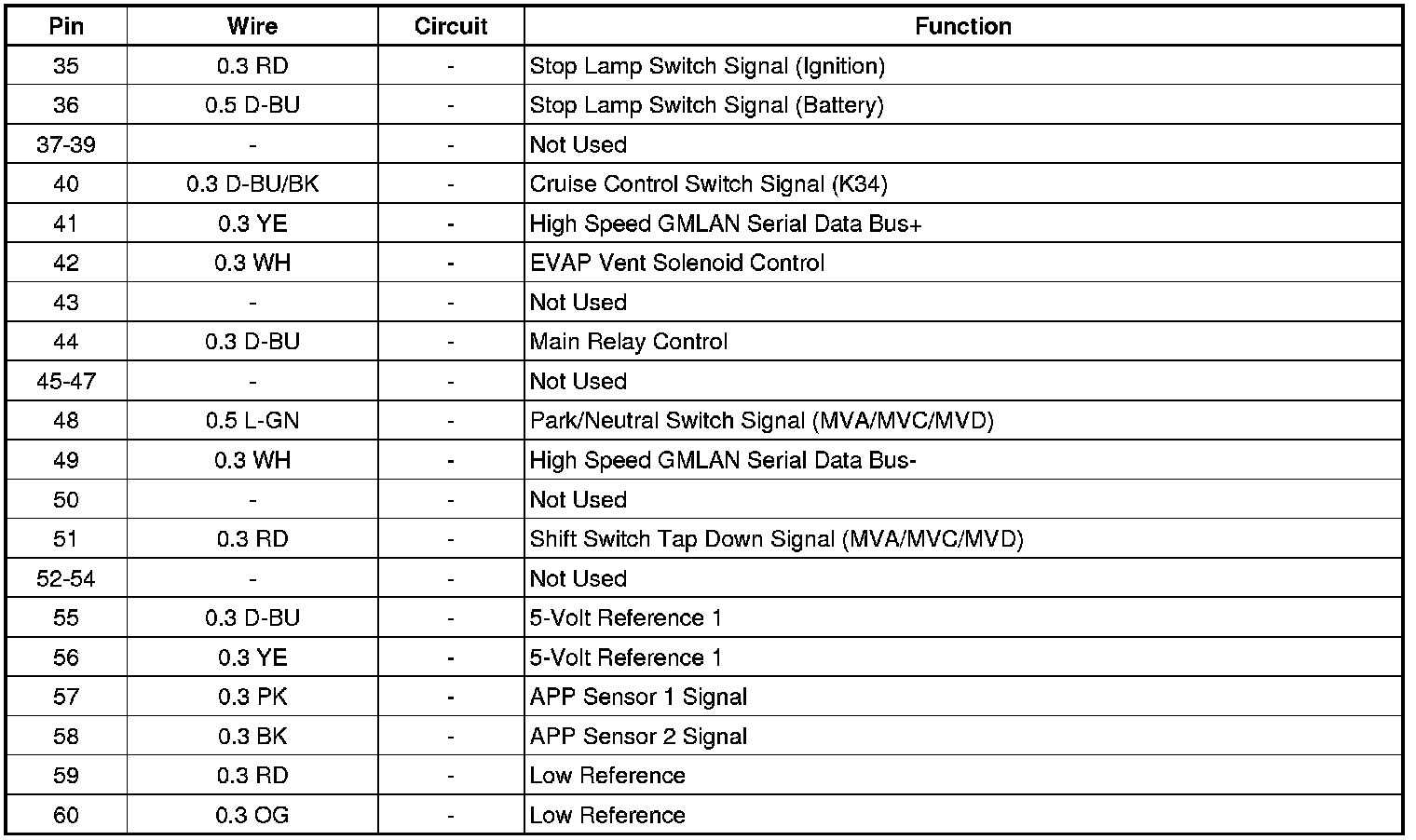

Powertrain Control Module (PCM) X1 (LAX)

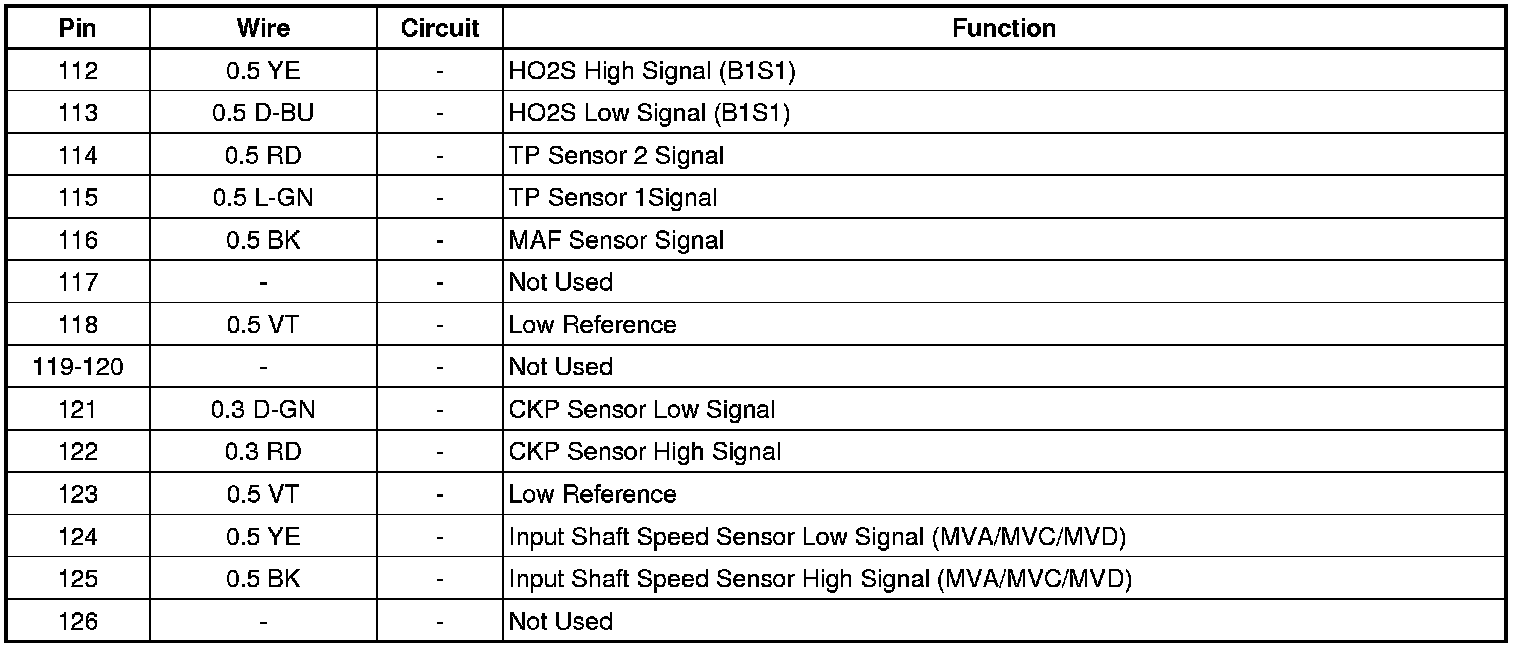

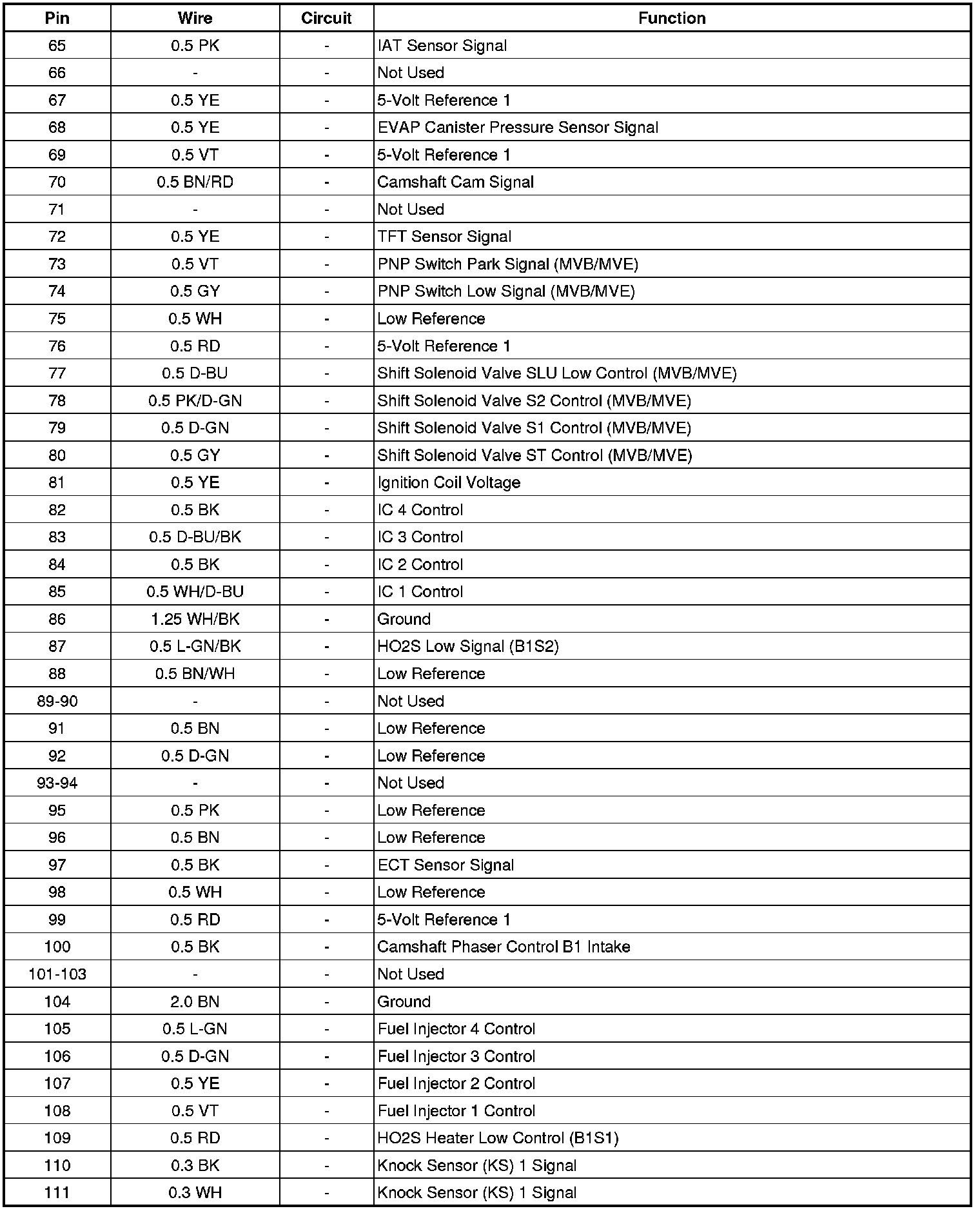

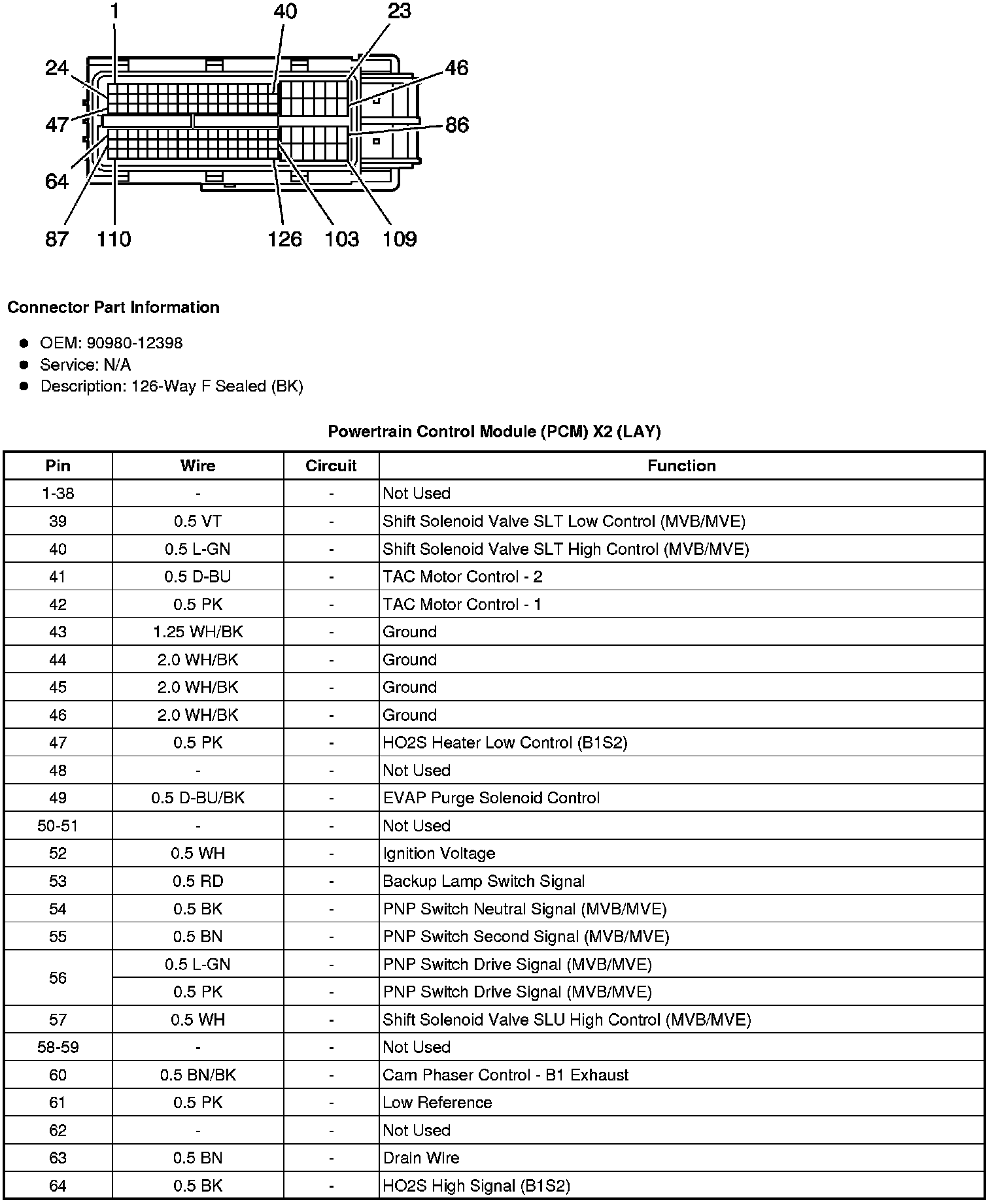

Powertrain Control Module (PCM) X2 (LAY)

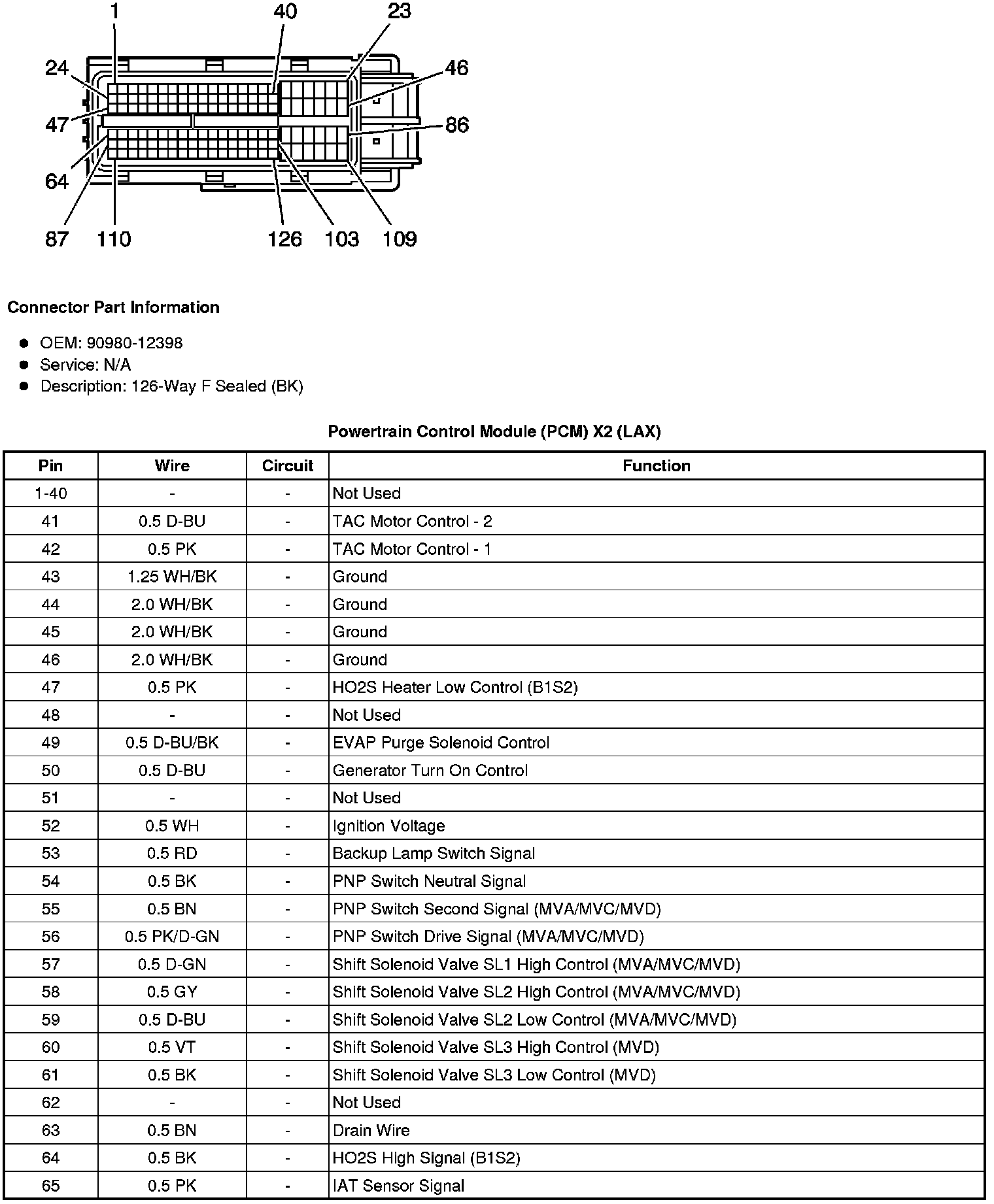

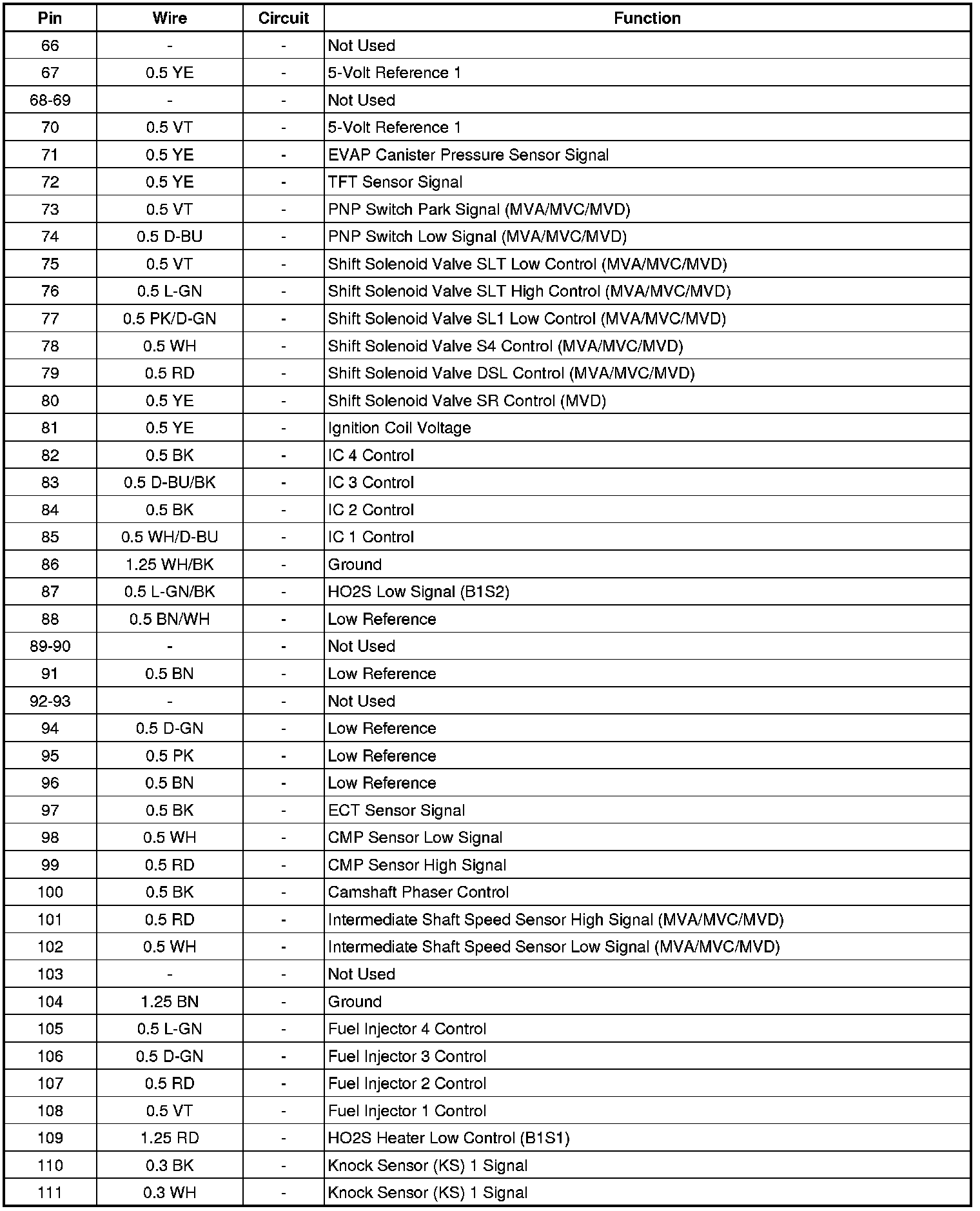

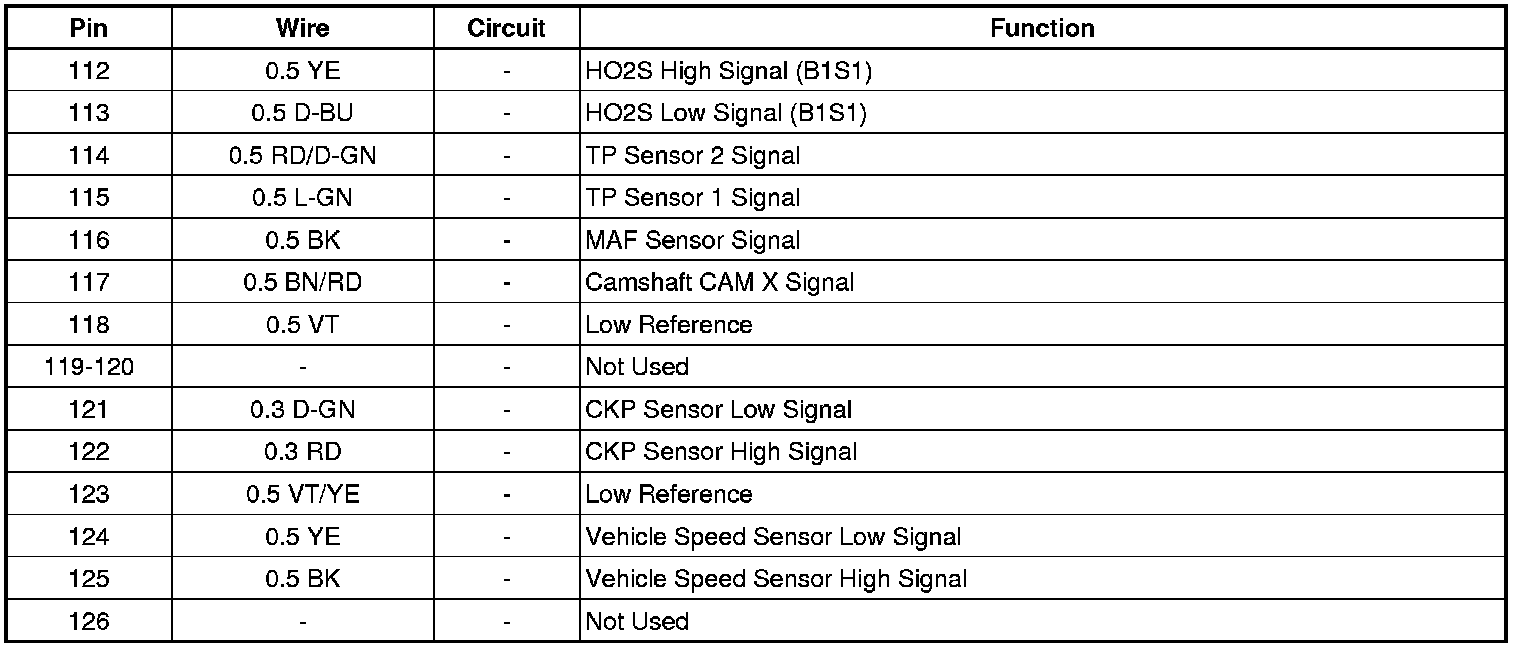

Powertrain Control Module (PCM) X2 (LAX)
Component Connector End Views
Powertrain Control Module (PCM) X1 (LAY)
Powertrain Control Module (PCM) X1 (LAX)
Powertrain Control Module (PCM) X2 (LAY)
Powertrain Control Module (PCM) X2 (LAX)
