System Specifications
Timing Chain Tensioner 10 Nm (7 lb ft)Timing cover
bolts 1 and 5 26 Nm (19 lb ft)
bolts 2 and 3 51 Nm(37 lb ft)
bolt 4 10 Nm (7 lb ft)
Crankshaft Pulley Bolt 190 Nm (140 lb ft)

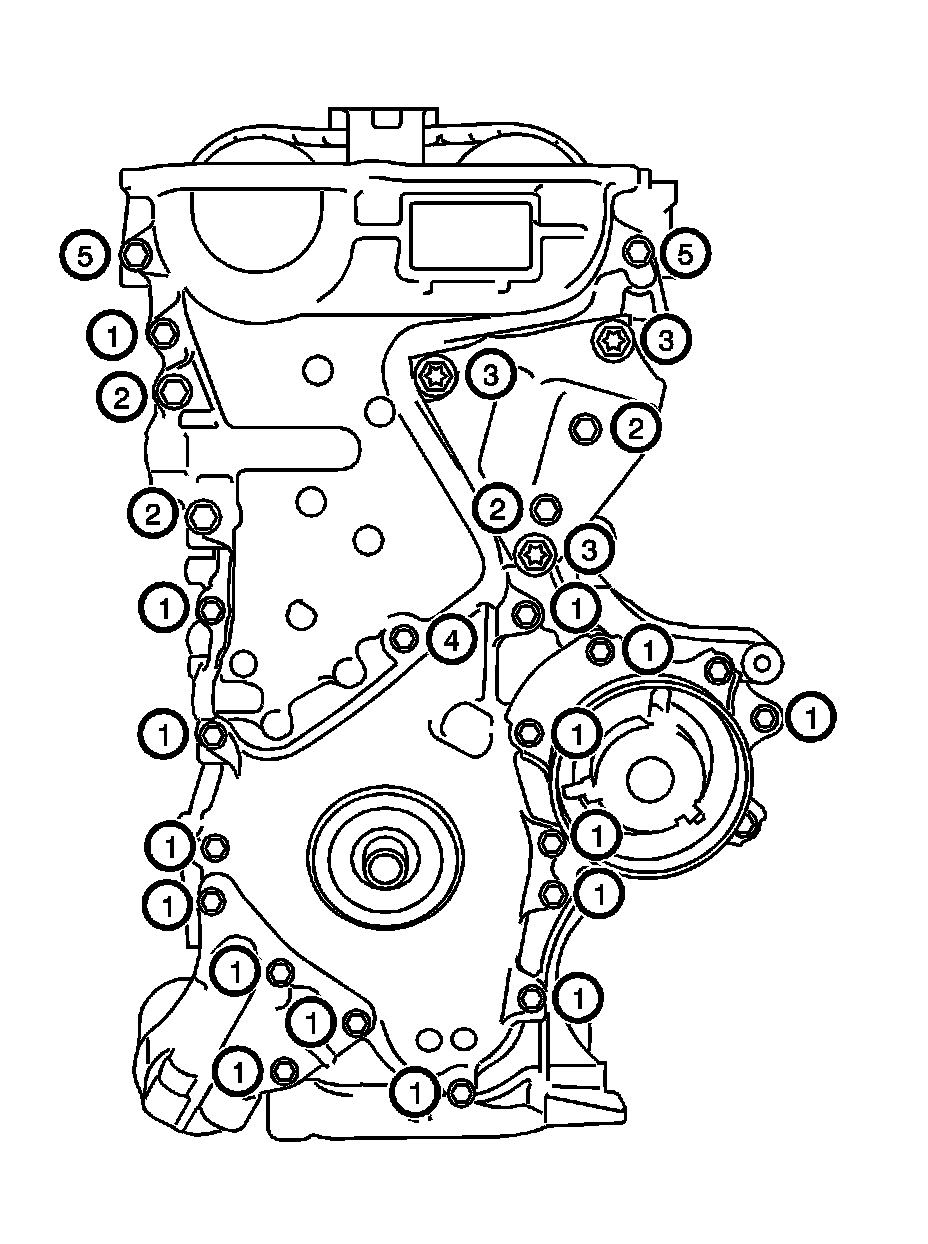

Timing cover
bolts 1 and 5 26 Nm (19 lb ft)
bolts 2 and 3 51 Nm(37 lb ft)
bolt 4 10 Nm (7 lb ft)
Crankshaft Pulley Bolt 190 Nm (140 lb ft)
