Electronic Power Steering Control Module X2 (NV7)
Electronic Power Steering Control Module X2 (NV7)

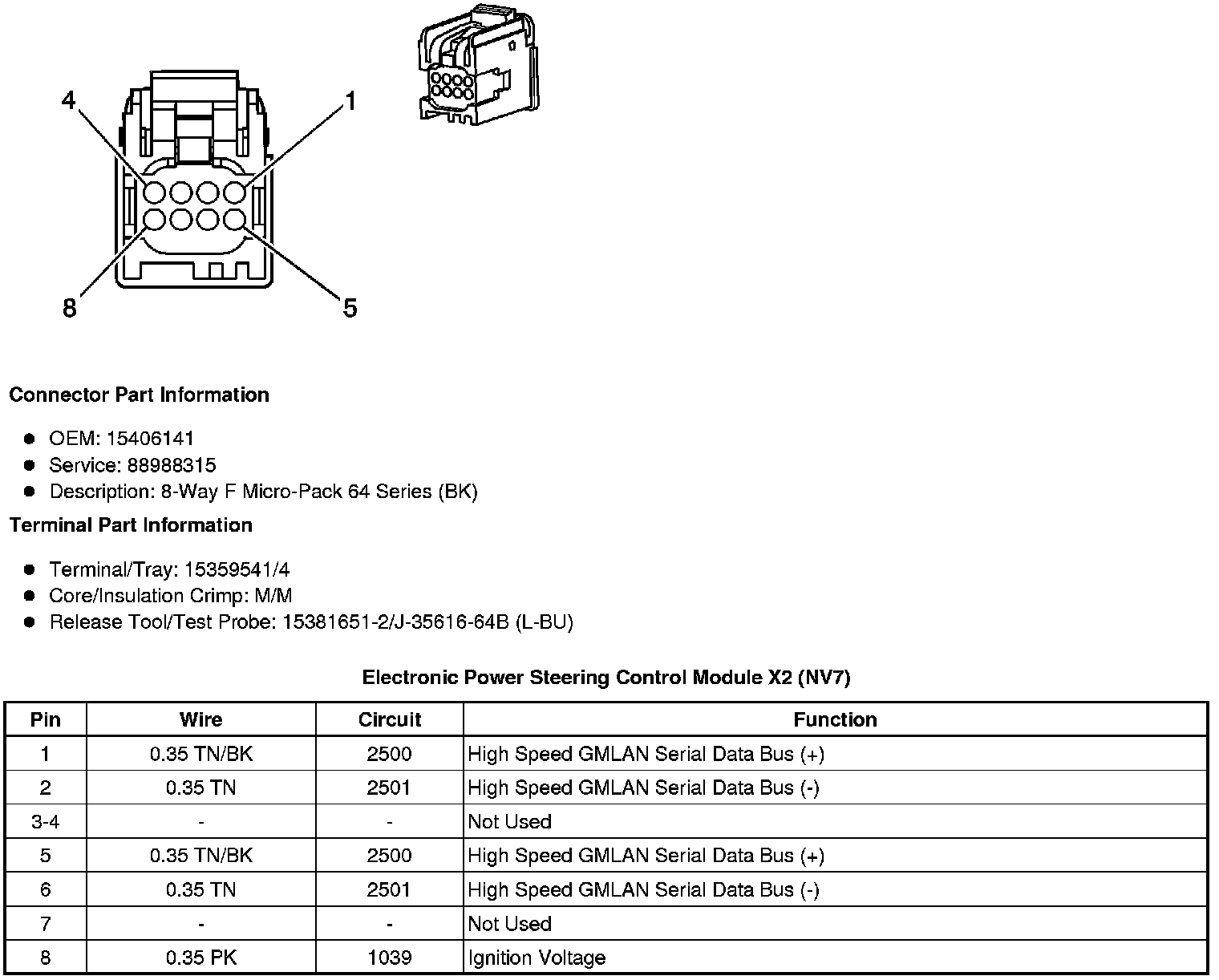

Component Connector End Views
Electronic Power Steering Control Module X2 (NV7)
