Folding Top Control Module

Passenger Compartment/Roof Component Views

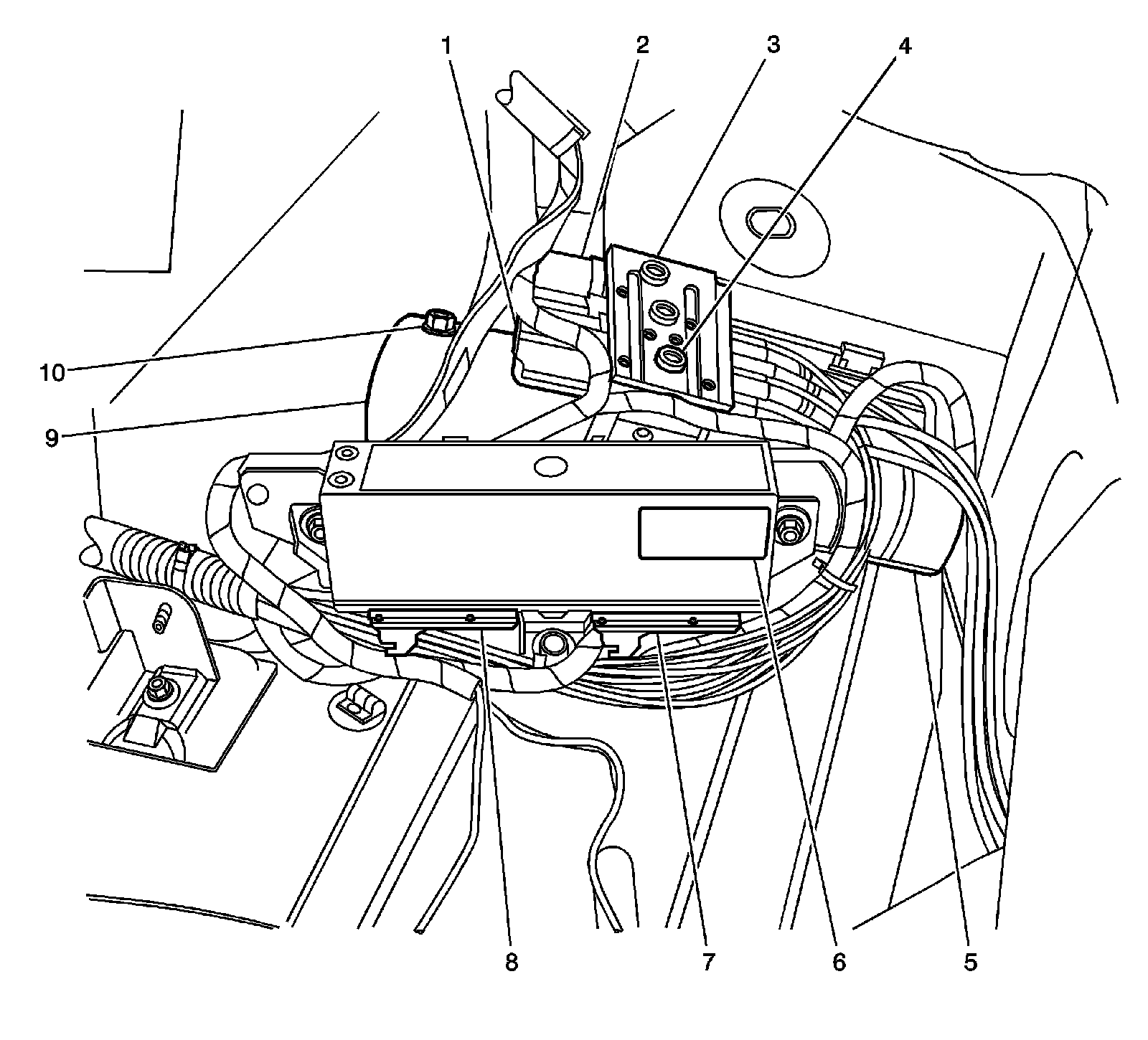

Folding Top Components (4 of 4)




1 - Folding Top Valve 1
2 - Folding Top Valve 2
3 - Hydraulic Pump Assembly
4 - Hydraulic Pump Bypass Valve
5 - Folding Top Pump Motor
6 - Folding Top Control Module
7 - Folding Top Control Module X1 (BK)
8 - Folding Top Control Module X2 (BU)
9 - Reservoir
10 - Reservoir Filler Plug
