Intake Manifold

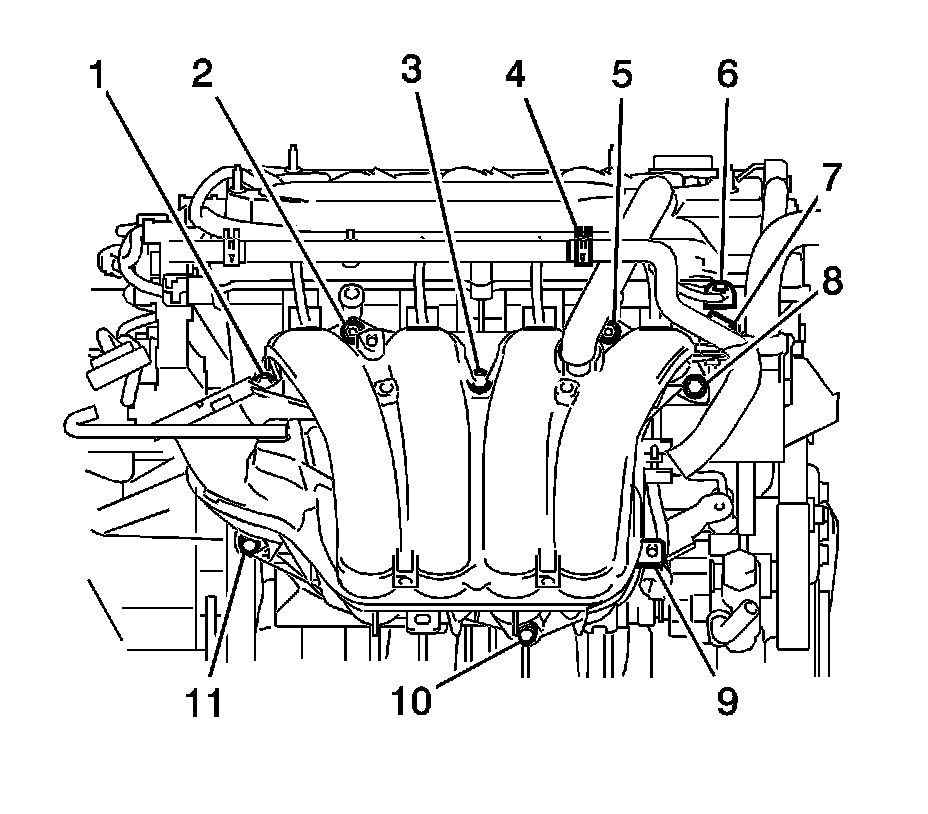

INTAKE MANIFOLD
Intake manifold with the 5 bolts (1, 3, 8, 10, 11) and 2 nuts (2, 5) and tighten to 30 Nm (22 lb ft)

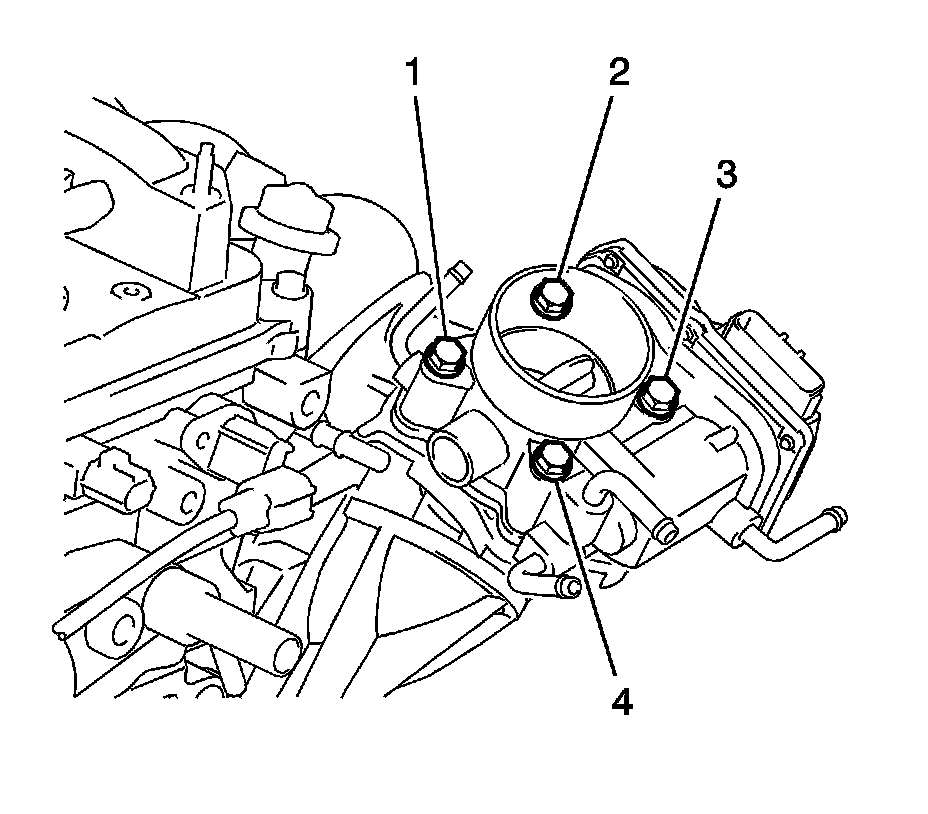

THROTTLE BODY
Throttle body assembly bolts (1, 2, 3, 4) 30 Nm (22 lb ft)
Intake manifold with the 5 bolts (1, 3, 8, 10, 11) and 2 nuts (2, 5) and tighten to 30 Nm (22 lb ft)
THROTTLE BODY
Throttle body assembly bolts (1, 2, 3, 4) 30 Nm (22 lb ft)
