Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal Position Sensor Replacement

Removal Procedure

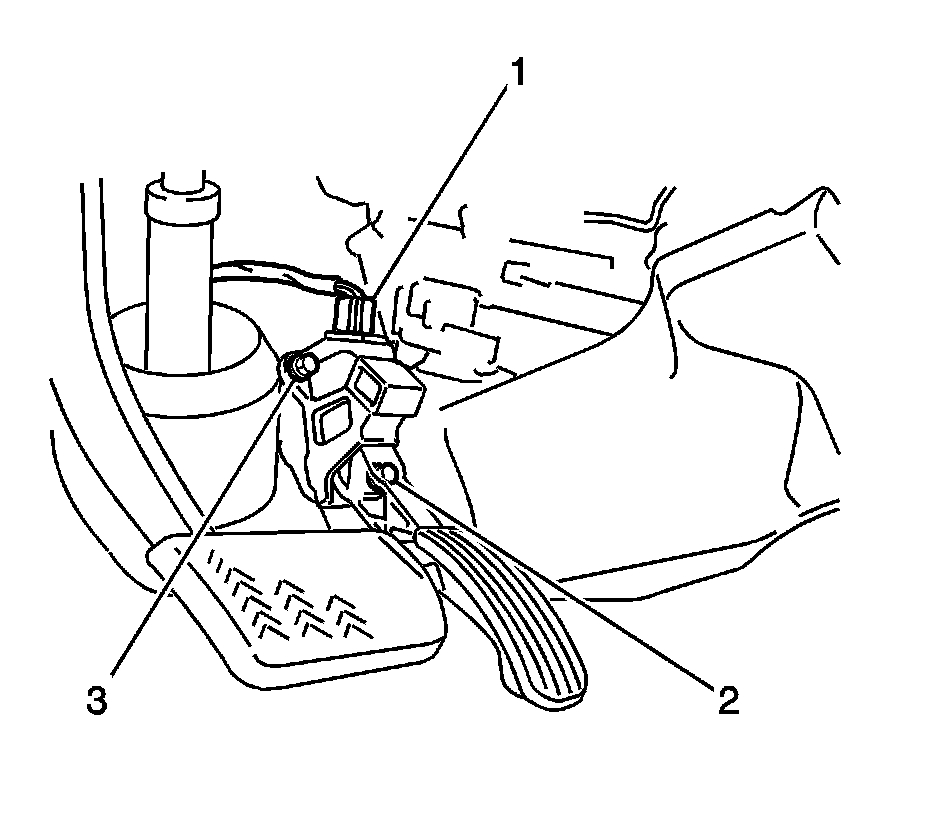

1. Disconnect the accelerator pedal position sensor connector (1).
2. Remove the 2 bolts (2, 3) and accelerator pedal.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the accelerator pedal assembly with the 2 bolts (2, 3) and tighten to 5.5 Nm (49 lb in).
2. Install the accelerator pedal assembly connector (1).
