Engine Control Module
Engine Control Module
Component Connector End Views

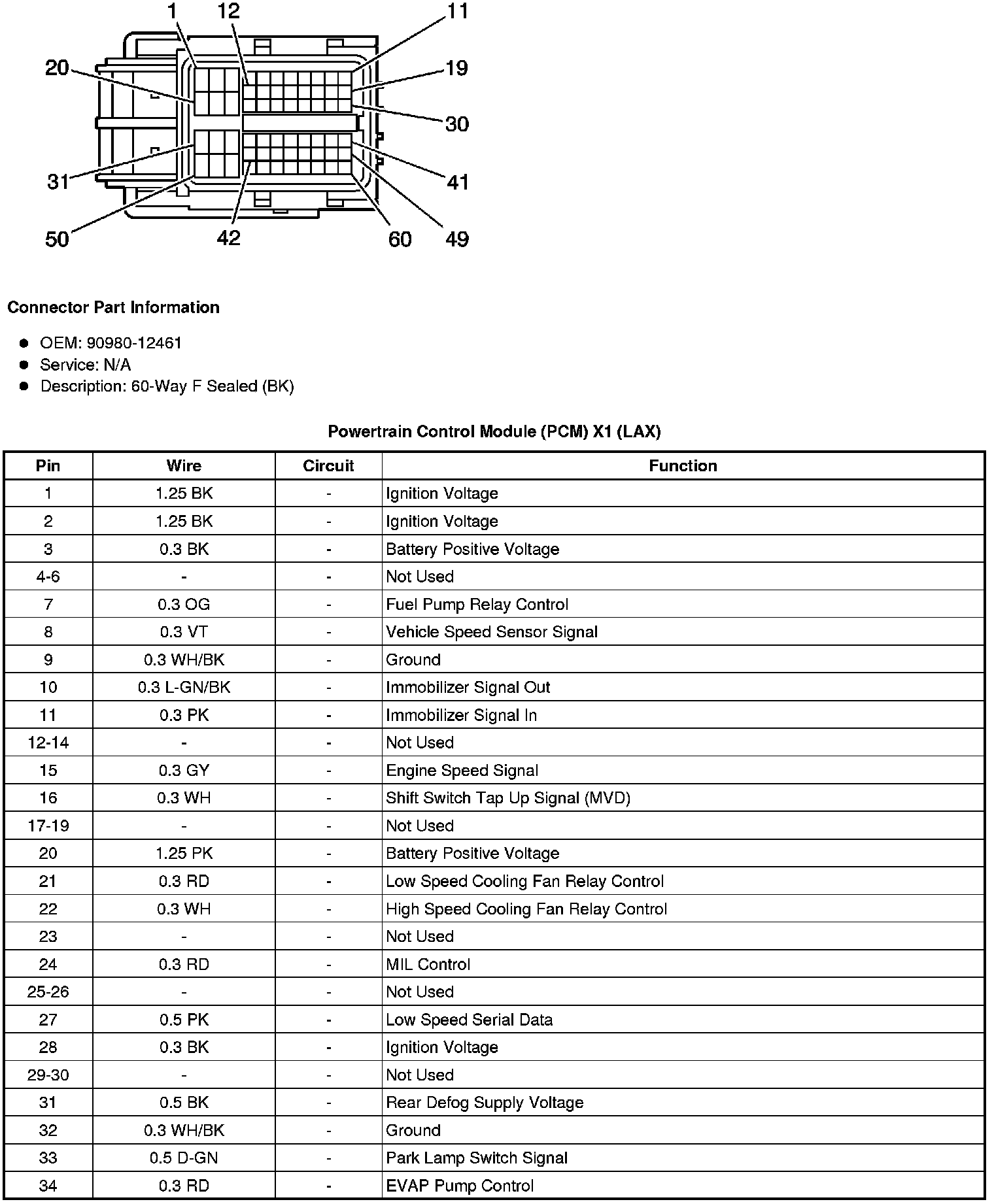

Powertrain Control Module (PCM) X1 (LAX)

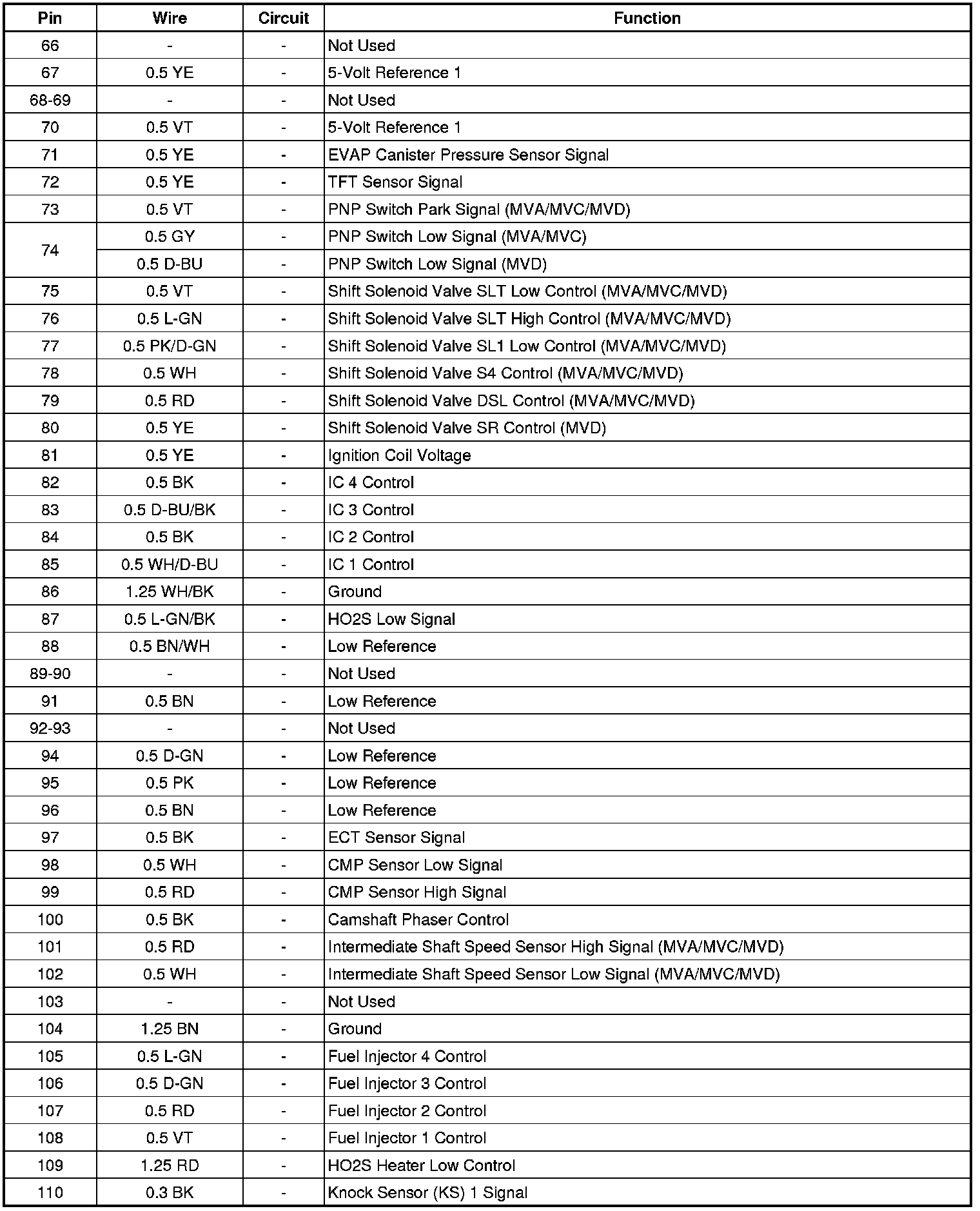

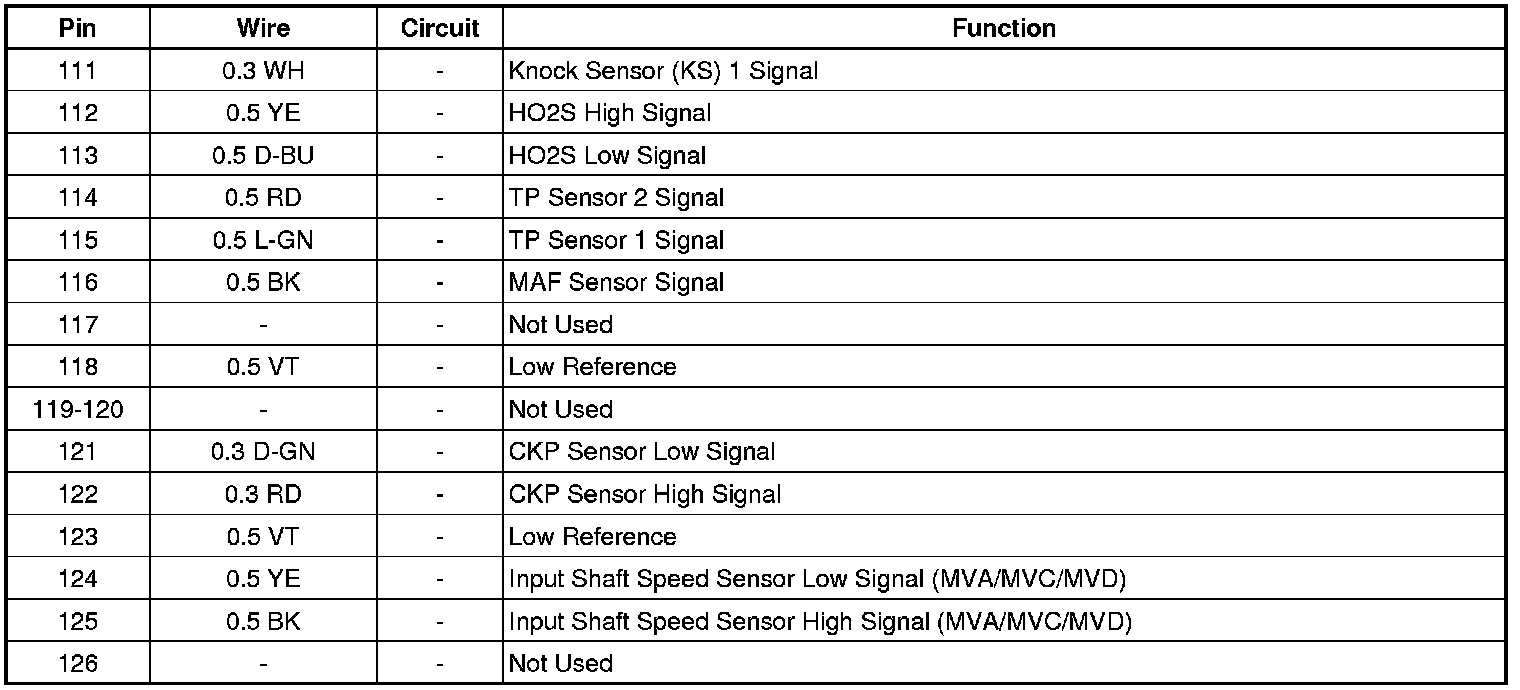

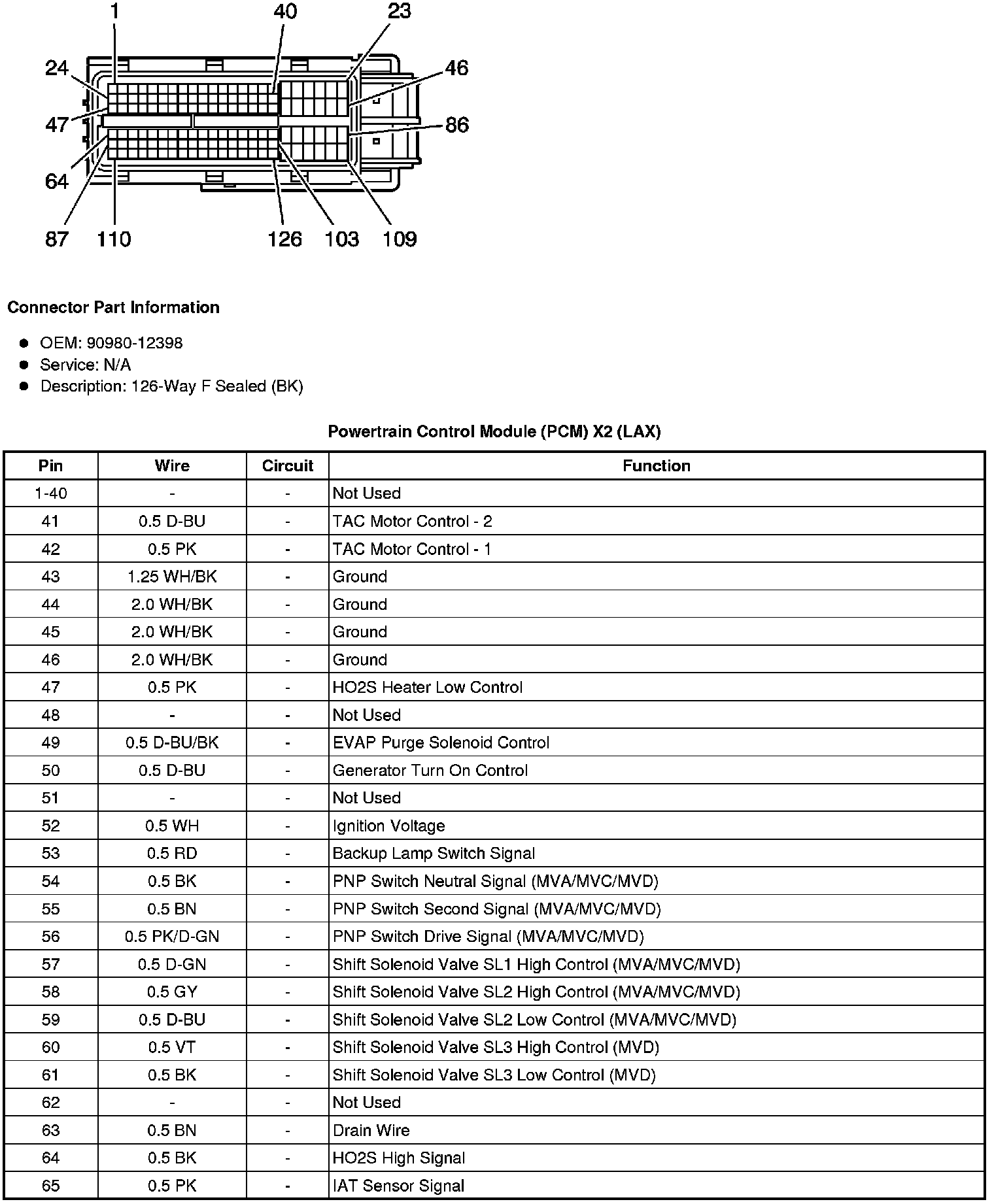

Powertrain Control Module (PCM) X2 (LAX)
