Keyless Entry Receiver: Diagrams

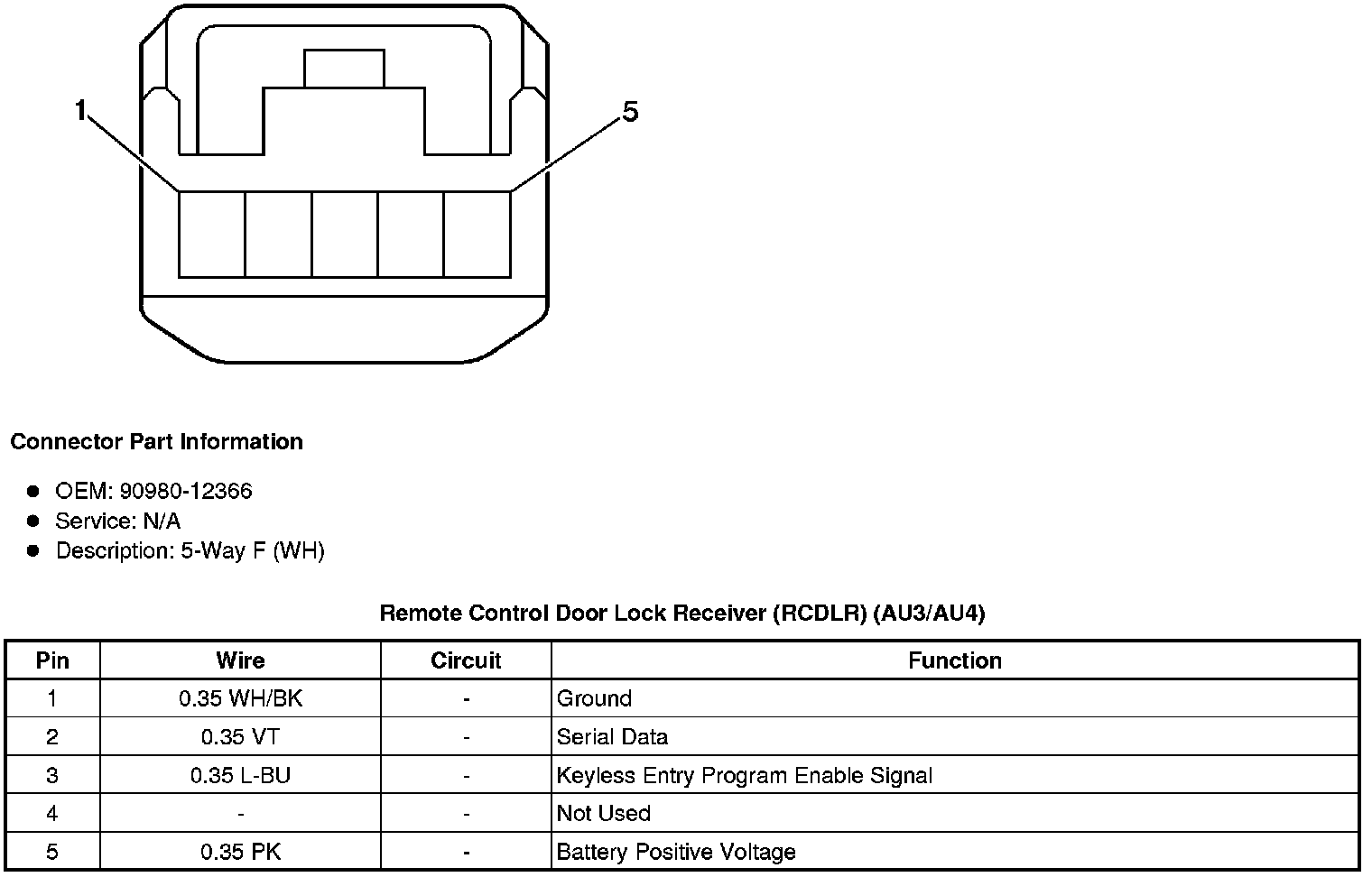

Component Connector End Views

Remote Control Door Lock Receiver (RCDLR) (AU3/AU4)
