Air Flow Meter/Sensor: Service and Repair

Mass Airflow Sensor Replacement

Removal Procedure

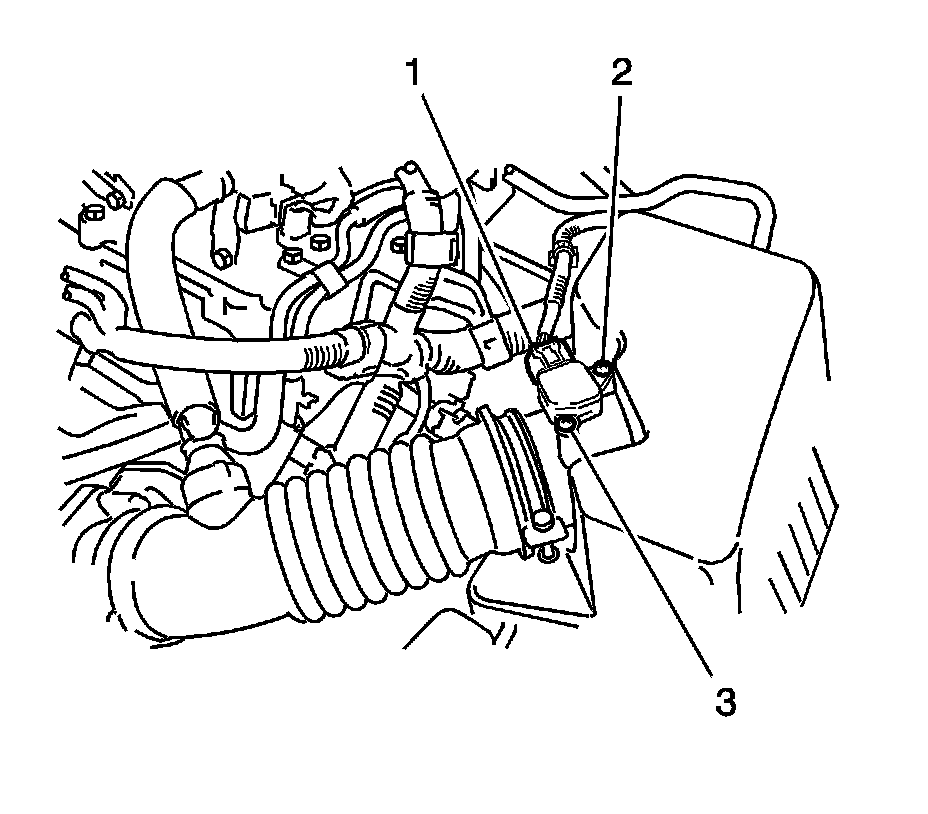

1. Disconnect the mass air flow meter connector (1).
2. Remove the 2 screws (2) and the mass air flow meter (3).

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the mass air flow meter (3) with the 2 screws (3) and tighten to 1.0 Nm (9 lb in).
2. Connect the mass air flow meter connector (1).
