Pontiac
>>
2009
>>
Vibe AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case
>>
Control Module, Transfer Case
Control Module, Transfer Case
Component Connector End Views

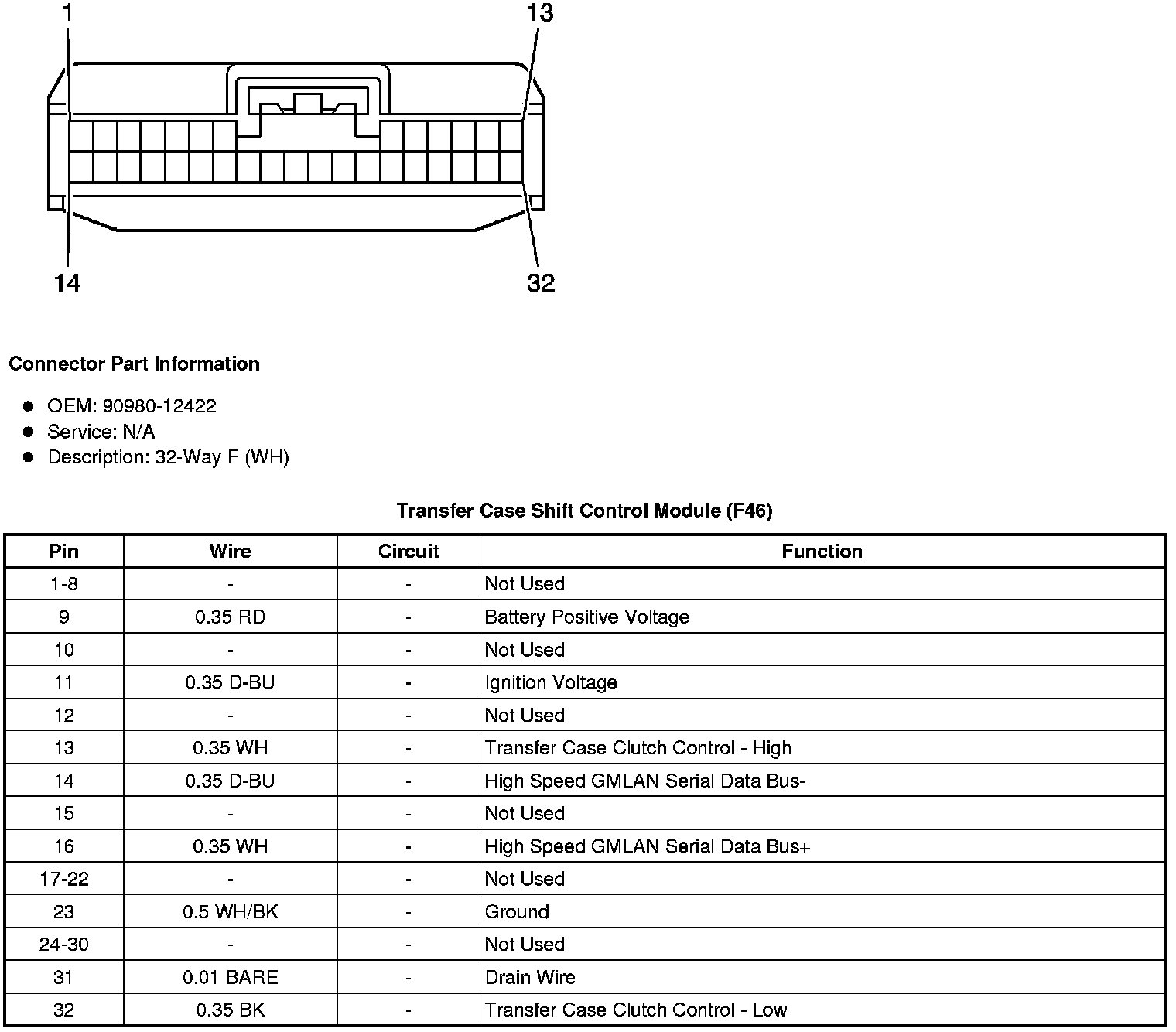

Transfer Case Shift Control Module (F46)
