Home >> Pontiac >> 2009 >> G8 V8-6.2L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Flywheel

Flywheel

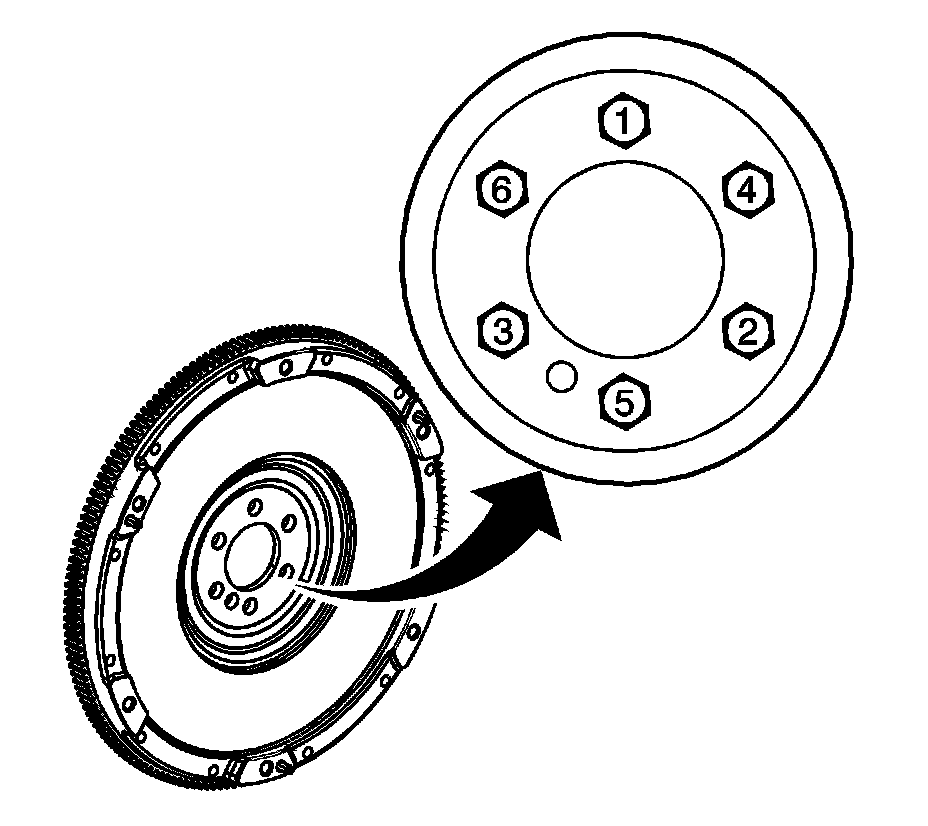

Flywheel to crankshaft bolts - First pass 20 Nm (15 lb ft)
Flywheel to crankshaft bolts - Second pass 50 Nm (37 lb ft)
Flywheel to crankshaft bolts - Final pass 100 Nm (74 lb ft)
