Oil Temperature Sensor/Switch, Engine

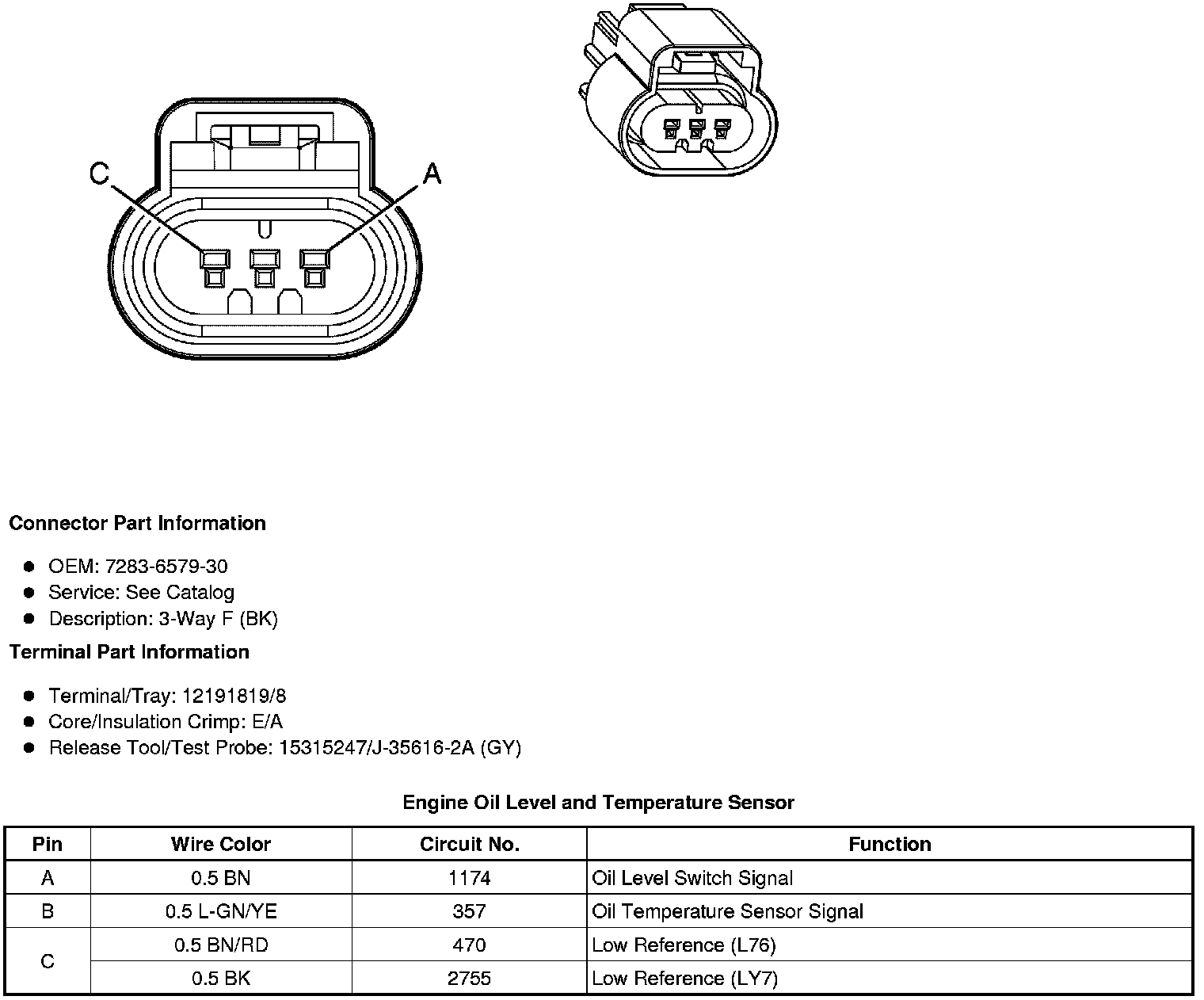

Component Connector End Views

Engine Oil Level and Temperature Sensor
