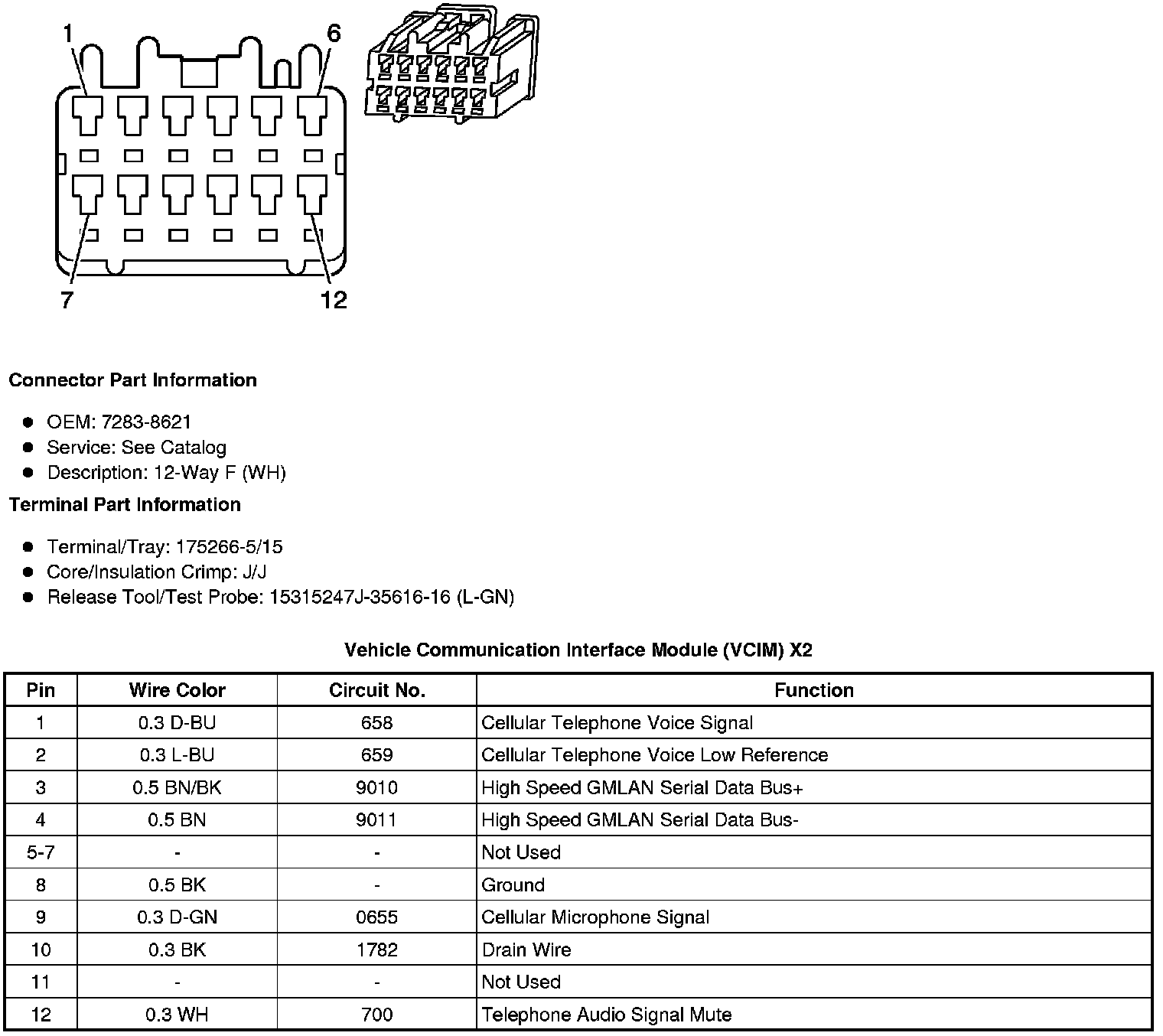

Vehicle Communication Interface Module (VCIM) X2
Component Connector End Views
Vehicle Communication Interface Module (VCIM) X2
