lemon-mirror
:
Home
>>
Pontiac
>>
2009
>>
G8 V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Central Control Module
>>
Vehicle Communication Interface Module (VCIM) Battery
Vehicle Communication Interface Module (VCIM) Battery

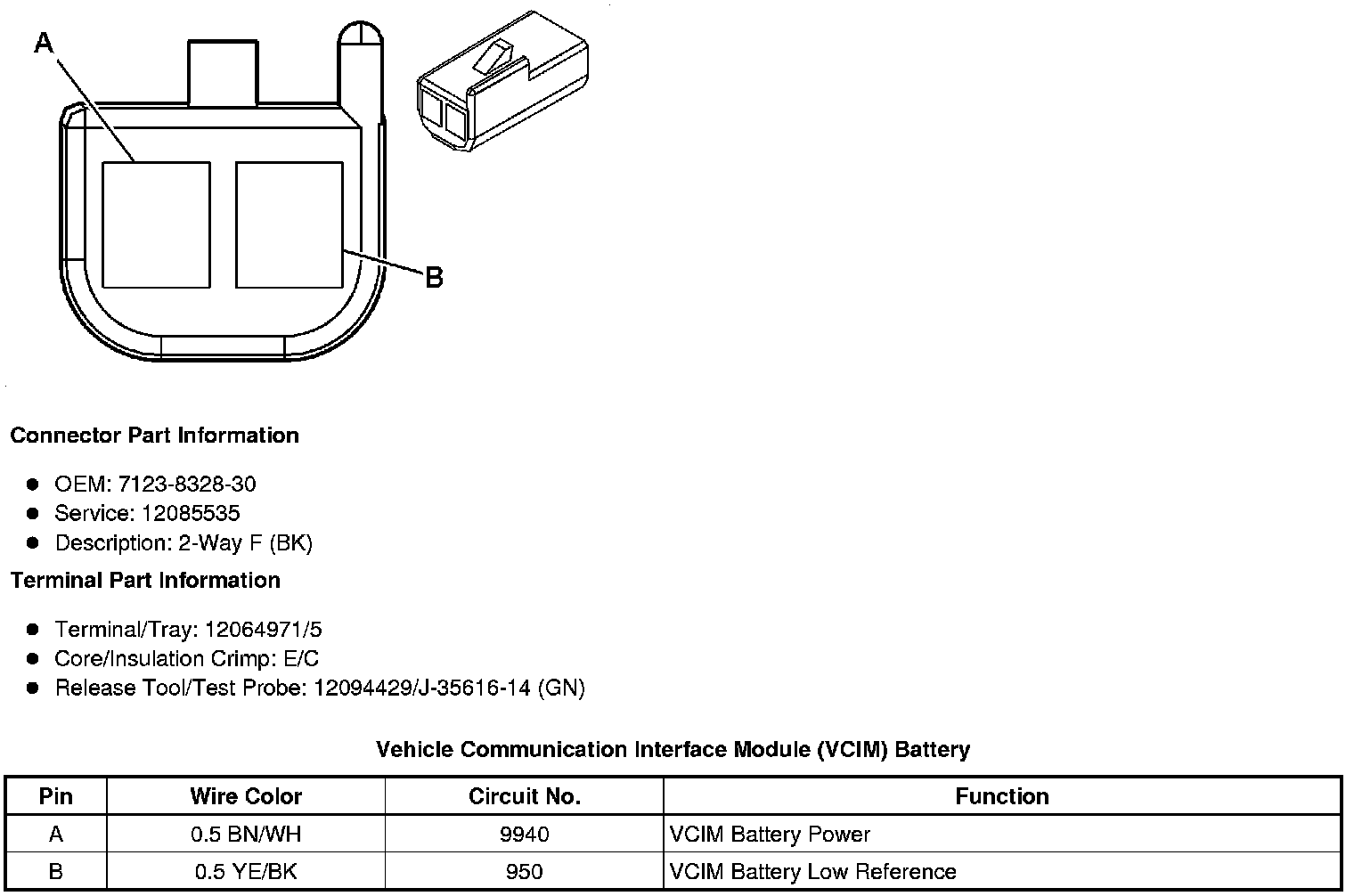

Component Connector End Views
Vehicle Communication Interface Module (VCIM) Battery
