Air Flow Meter/Sensor: Locations

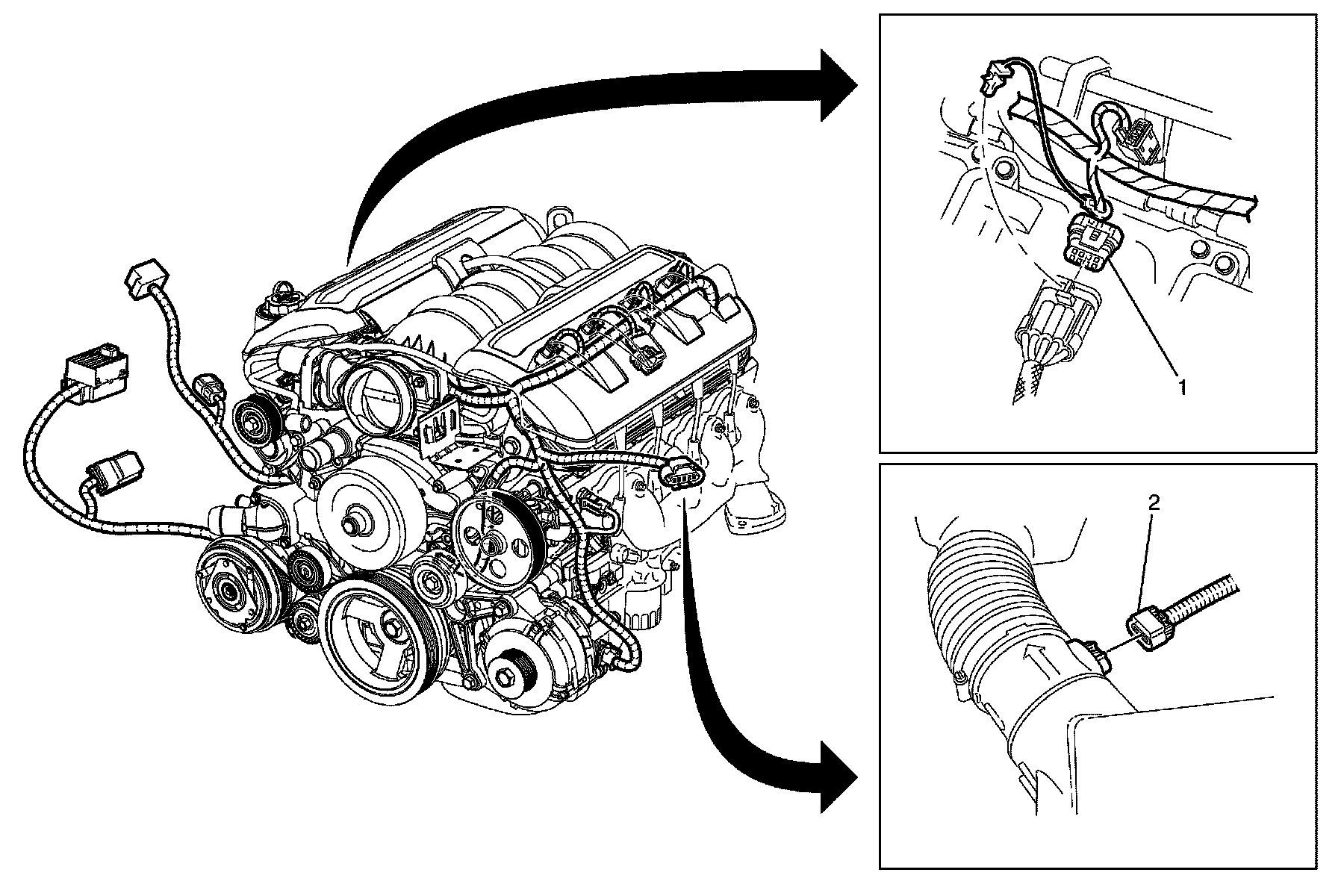

Harness Routing Views

1 - Ignition Coil (Odd) Connector - X113
2 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Connector - B69
