Specifications
>>
Mechanical Specifications
>>
Engine
>>
Oil Pan, Engine

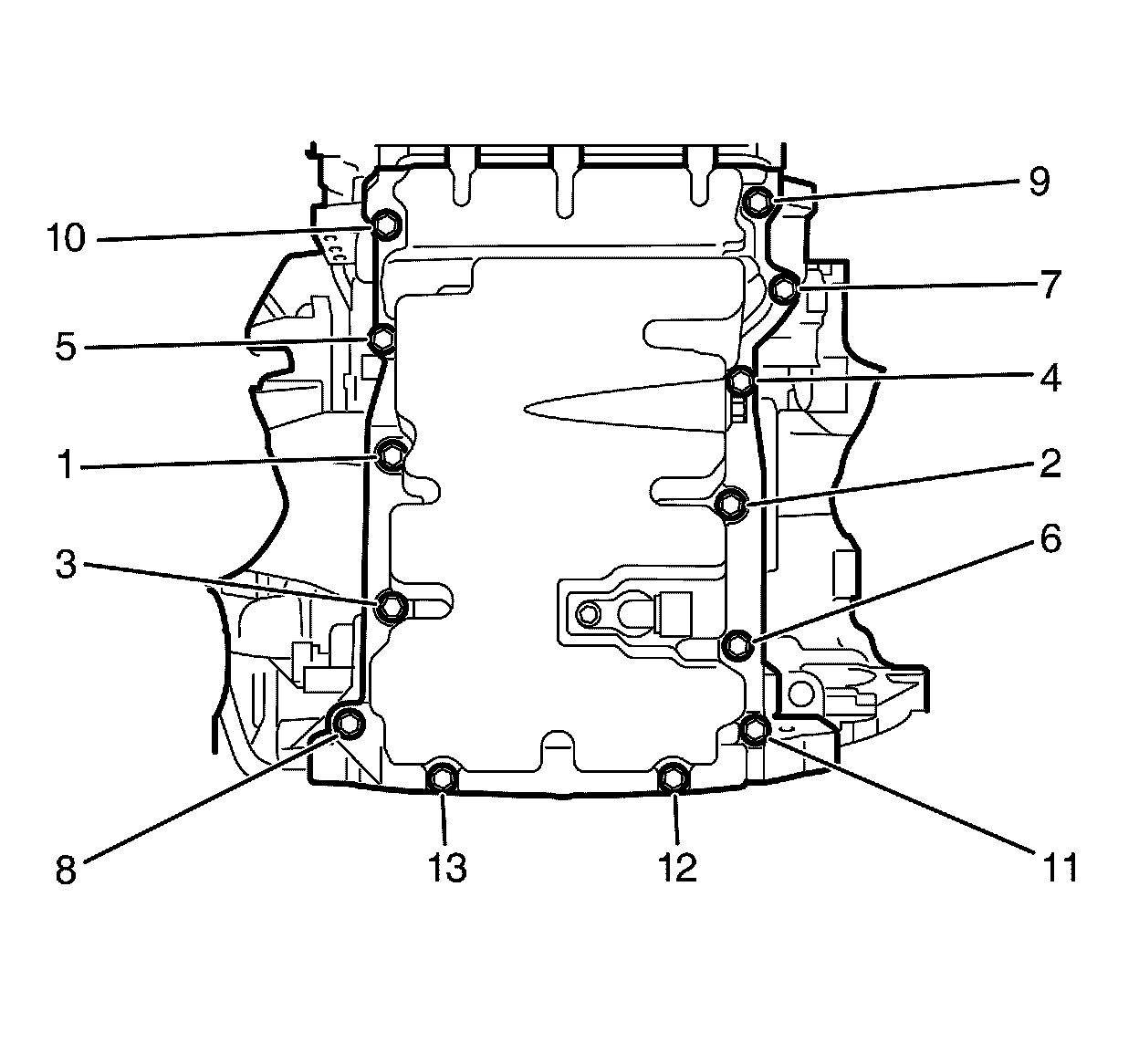

Oil Pan, Engine
M8 bolts (1-11)
23 Nm (17 lb ft)
M6 bolts (12, 13)
10 Nm (89 lb in)
