Knock Sensor: Diagrams
Component Connector End Views

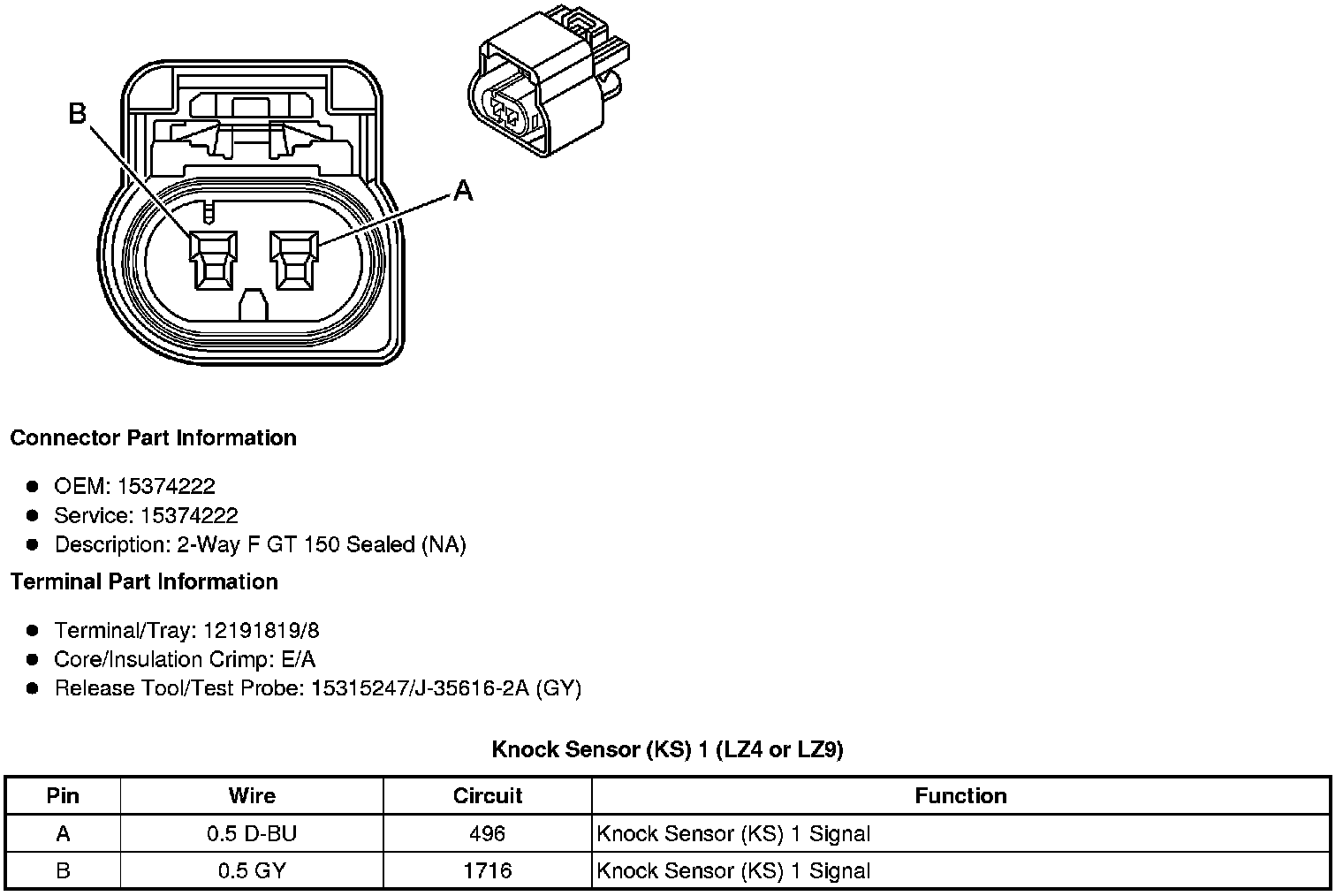

Knock Sensor (KS) 1 (LZ4 or LZ9)
Knock Sensor (KS) 2 (LZ4 or LZ9)
