Engine Control Module
Engine Control Module
Component Connector End Views

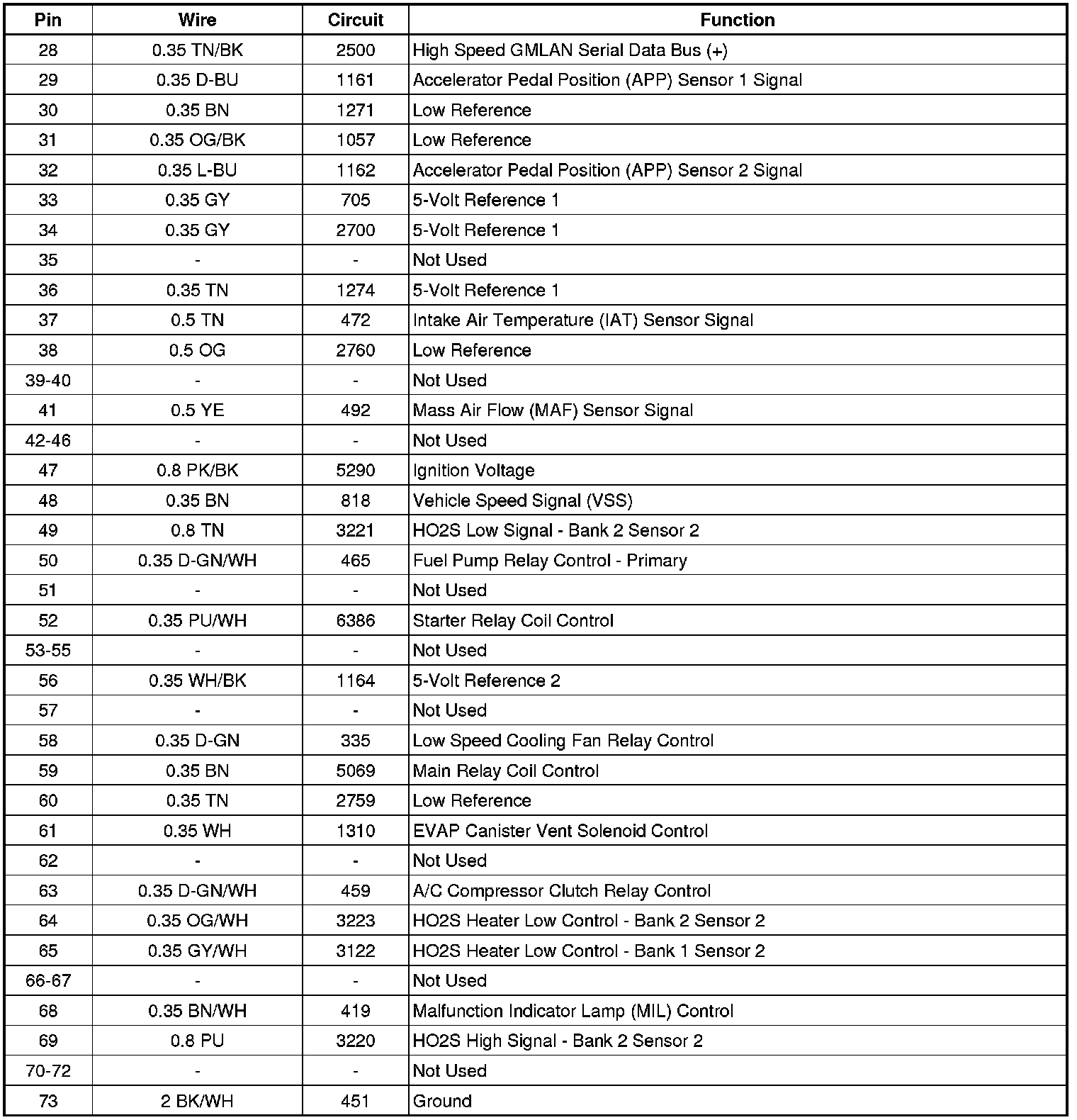

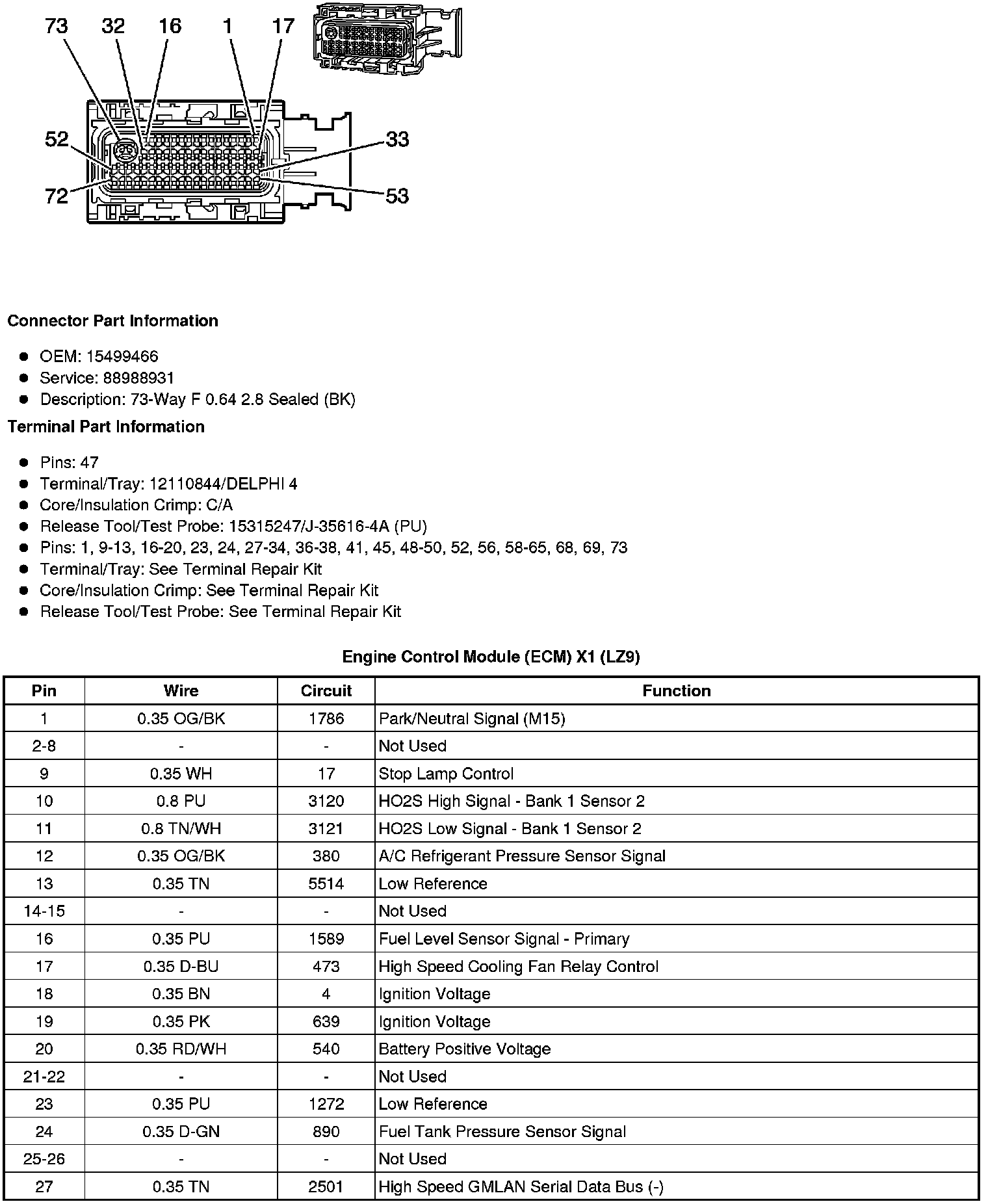

Engine Control Module (ECM) X1 (LZ9)

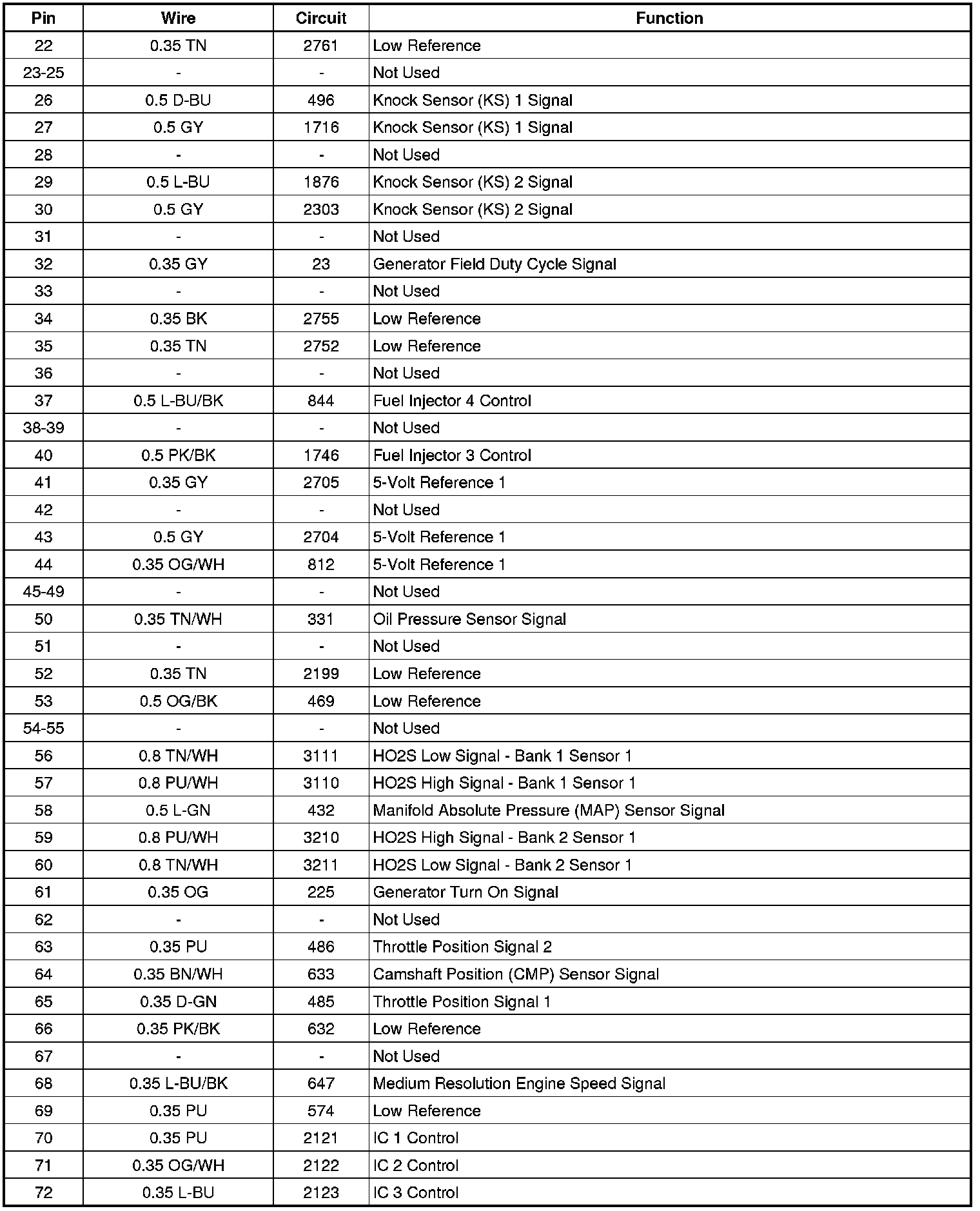

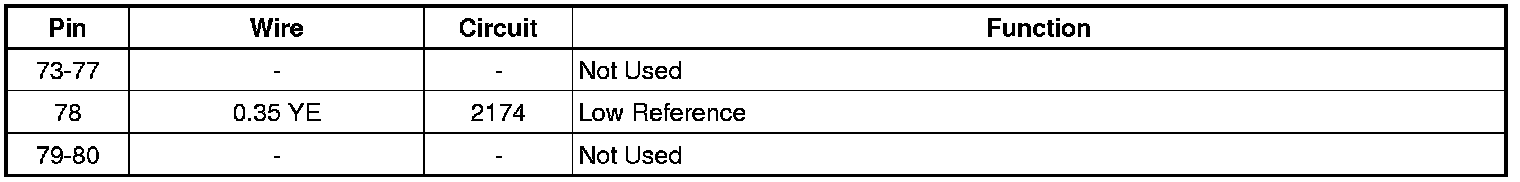

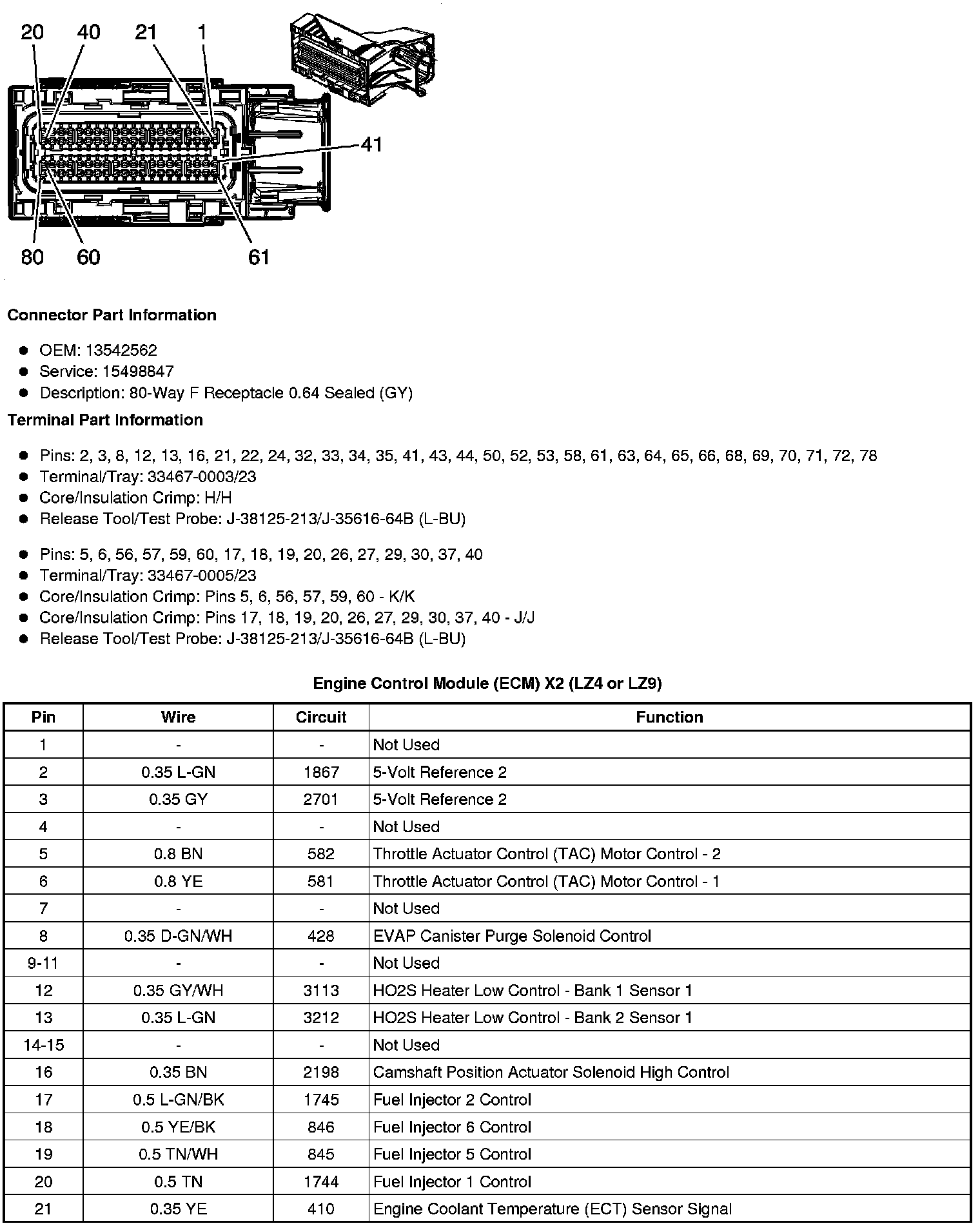

Engine Control Module (ECM) X2 (LZ4 or LZ9)
