Oil Pressure Sensor: Service and Repair

Engine Oil Pressure Sensor and/or Switch Replacement

Special Tools

J 41712 Oil Pressure Switch Socket

Removal Procedure




1. Turn the ignition OFF.
2. Disconnect the oil pressure sensor electrical connector.

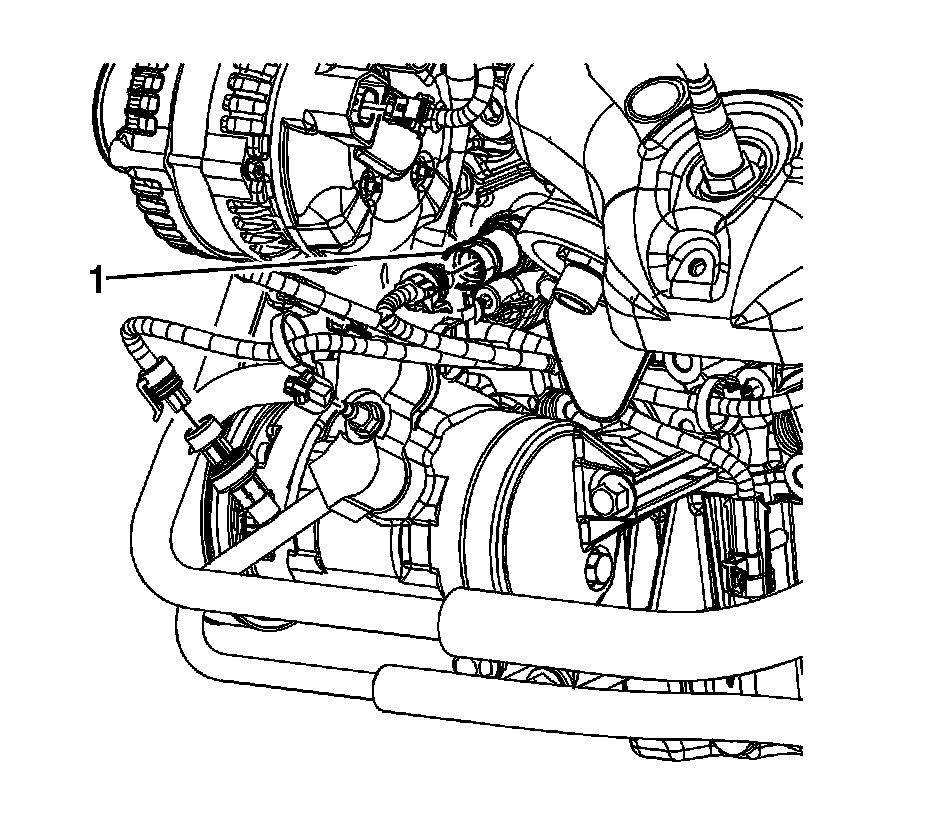

3. Remove the oil pressure sensor (1).

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the oil pressure sensor (1) and tighten to 20 Nm (15 lb ft).
2. Connect the oil pressure sensor electrical connector.
