Electronic Throttle Control Module: Locations

Harness Routing Views

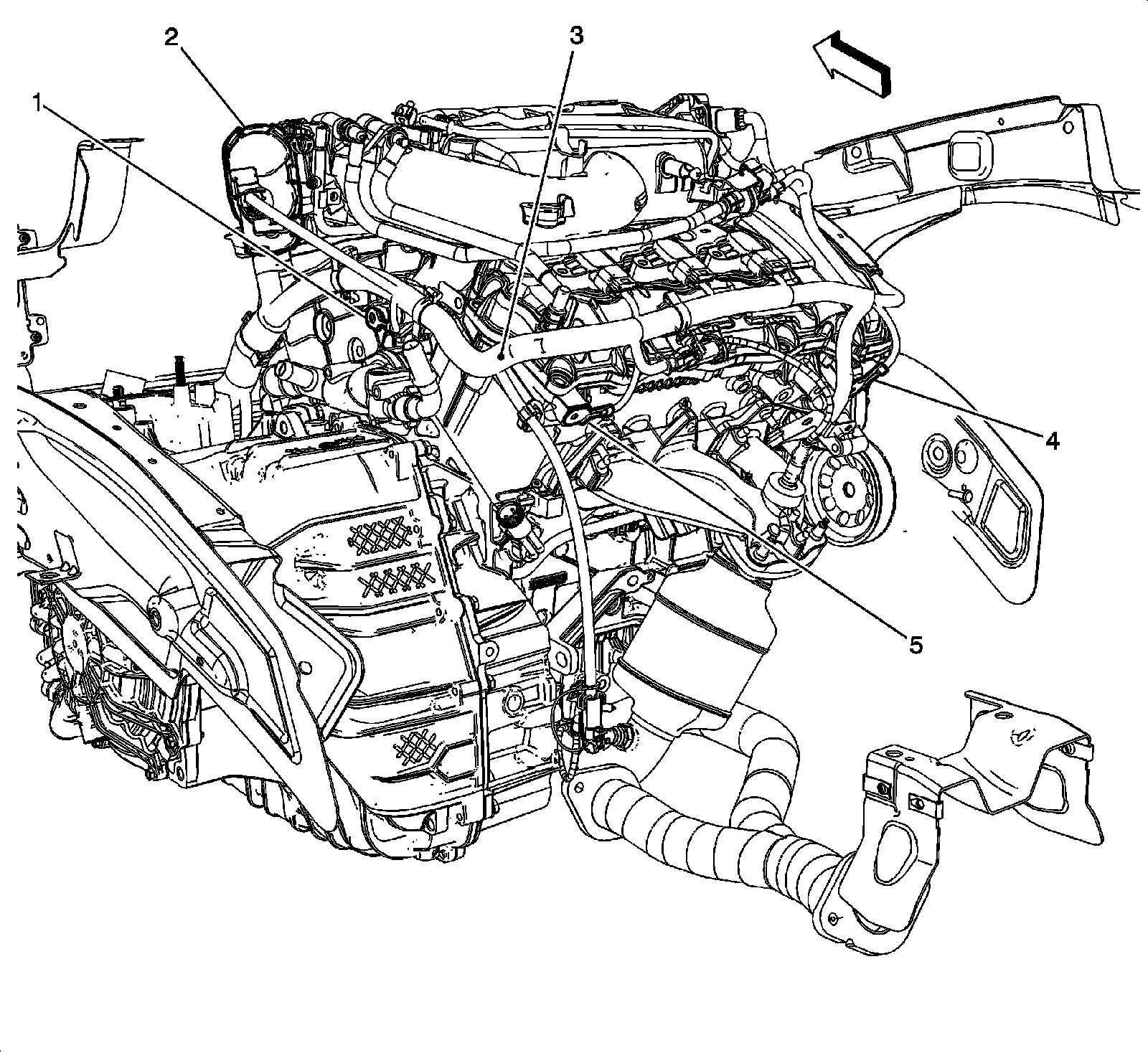

Rear View of Engine - (LY7)

1 - G105
2 - Throttle Actuator Control (TAC) Module
3 - J198
4 - G108
5 - G111
